0.39-inch FHD Micro OLED Display Module
| Size |
0.39 inch (Type 0.39) |
|---|---|
| Pixels |
1920 × 1080 |
| Interface | , |
| Brightness |
1500 cd/m² (White brightness, center) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active matrix color OLED (Micro OLED); full color; 16.7M colors |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
-55° to +55° (white) |
| Outline L*W*H |
16.6 × 17.0 × 4.75 mm (PCB module; 4.75 mm max) |
| Active Area L*W |
8.7495 × 4.9689 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.8 V (typ); AVDD: 5.4 V (typ); AVEE: -5.4 V (typ); VIN (for PCB): 4.4 V (typ) |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
7.8505 × 12.0311 mm (derived: Outline – Active Area) |
| Aspect Ratio |
16:9 (derived from 1920×1080) |
| Connection Type |
FPC/connector, 60-pin |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
~4.56 × 4.60 µm (derived: Active Area / Pixels) |
| Sunlight Readable |
– |
| Model |
BO039M1920M |
| PPI ( pixels per inch ) |
5644 PPI |
| Application |
AR/VR; head mounted displays; near-eye displays |
0.49-inch 1920×1080 Micro OLED Display
| Size |
0.49 inch |
|---|---|
| Pixels |
1920(H) × 1080(V) |
| Interface | |
| Brightness |
700 cd/m² (White brightness, typ., ±20%) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
AMOLED (Active Matrix OLED microdisplay panel module) |
| Color Depth | |
| Refresh Rate |
50–100 Hz |
| Viewing Angle Range |
-20° to +20° (luminance / color shift criteria in optical spec) |
| Outline L*W*H |
15.65 ±0.15 mm × 9.09 ±0.25 mm × 1.50 ±0.04 mm |
| Active Area L*W |
11.053 mm × 6.337 mm |
| Orientation | |
| Supply Voltage |
VCI 2.8 V; VDD1 1.8 V; VDD2 1.2 V |
| Consumption |
180 mW (50 Hz); 360 mW (100 Hz); 450 mW (max in table) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
W total 2.753 mm (≈1.3765 mm each side); L total 4.597 mm (≈2.2985 mm each side) |
| Aspect Ratio |
16:9 |
| Connection Type |
FPC (flex cable) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
BO049FHPMO |
| PPI ( pixels per inch ) |
4496 PPI |
| Application |
VR/AR near-eye microdisplay |
0.71-inch FHD Micro OLED mini-LVDS Display
| Size |
0.71 inch |
|---|---|
| Pixels |
1920(RGB) × 1080 |
| Interface | |
| Brightness |
120 cd/m² (typ., Mode 0); 90 cd/m² (typ., Mode 2); 200 cd/m² (typ., Mode 3) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active Matrix Color OLED panel (single crystal silicon transistors; on-chip driver) |
| Color Depth | |
| Refresh Rate |
60 Hz (Mini-LVDS I/F spec); also supports 50 Hz and 48 Hz input modes |
| Viewing Angle Range |
– |
| Outline L*W*H |
99.5 ± 1.4 mm × 25.44 ± 0.05 mm × 1.92 ± 0.25 mm |
| Active Area L*W |
(15.8 mm) × (8.99 mm) |
| Orientation | |
| Supply Voltage |
VDD1: 1.62–1.98 V (typ. 1.8 V); VDD1IF: 1.62–1.98 V (typ. 1.8 V); VDD2: 9.7–10.3 V (typ. 10.0 V); Vcath: -0.3–0.3 V (typ. 0 V) |
| Consumption |
Total power (typ.): 387 mW @ 120 cd/m²; 467 mW @ 200 cd/m²; 361 mW @ 90 cd/m²; Standby: 0.33 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 |
| Connection Type |
81-pin FPC |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.00823 mm (H) / 0.00832 mm (V) |
| Sunlight Readable |
– |
| Model |
ECX335AF-6 |
| PPI ( pixels per inch ) |
3103 PPI |
| Application |
View finders; head mounted displays; very small monitors |
1.6 Inch 400×400 IPS TFT LCD Round Display
| Size |
1.6 inch |
|---|---|
| Pixels |
400 × 400 |
| Interface | |
| Brightness |
230 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth |
16.7M |
| Refresh Rate |
30 Hz |
| Viewing Angle Range |
85° (L/R/U/D) |
| Outline L*W*H |
42.92 (H)×45.87 (V) ×2.2 (D) mm |
| Active Area L*W |
39.84 × 39.84 mm |
| Orientation | |
| Build-in Touch IC |
No Touch IC |
| Supply Voltage |
3.0 – 3.6 V (Typ. 3.3V) |
| Consumption |
16 mA (Typ.) |
| Operating Temperarure |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Mass |
– |
| Aspect Ratio |
1:1 (H:V) |
| Connection Type |
Soldering |
| Viewing Area ( L*W) |
39.84 × 39.84 mm |
| IC package |
On Glass |
| Touch Panel |
Need to Be Customized |
| Pixel Pitch |
0.0996 x 0.0996 mm |
| Sunlight Readable |
No |
| Model |
PL016VI-I16Q |
| Color Depth | |
| PPI ( pixels per inch ) |
254 |
1.78-inch 368×448 AMOLED Display
| Size |
1.78 inch |
|---|---|
| Pixels |
368(W) × 448(H) (Real RGB) |
| Interface | , |
| Brightness |
350 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode) |
| Viewing Angle Range |
80° (Top/Bottom/Right/Left, CR ≥ 1000) |
| Outline L*W*H |
LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm |
| Active Area L*W |
28.7 × 34.94 mm |
| Orientation | |
| Supply Voltage |
Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V) |
| Consumption |
Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 (368:448) |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
78 × 78 μm |
| Sunlight Readable |
– |
| Model |
ED178AM368MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Smart Watch |
1.91-inch 240×536 AMOLED Long Strip Shape
| Size |
1.91 inch |
|---|---|
| Pixels |
240(W) × 536(H) |
| Interface | |
| Brightness |
350 cd/m² (Typ., Br0, θ=0°); 315 cd/m² (Min.); 385 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode, test condition); 15 Hz (Idle mode, test condition) |
| Viewing Angle Range |
ALL angle: θ = 0° to 88°, φ = 0° to 360° |
| Outline L*W*H |
51.32 ± 0.15 mm × 22.40 ± 0.15 mm × 0.753 ± 0.10 mm (module outline / side view) |
| Active Area L*W |
44.22 mm × 19.80 mm |
| Orientation | |
| Supply Voltage |
VBAT: 2.5 / 3.7 / 4.5 V (Min/Typ/Max); VDDIO: 1.65 / 1.8 / 1.95 V; VCI: 2.65 / 2.8 / 3.6 V |
| Consumption |
Ivbat: 42 mA (Typ), 50.4 mA (Max); Ivddio: 6.5 mA (Typ), 7.8 mA (Max); Ivci: 12 mA (Typ), 14 mA (Max) (Normal mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right bezel: (22.40−19.80)/2 = 1.30 mm each; Top/Bottom bezel: (51.32−44.22)/2 = 3.55 mm each |
| Aspect Ratio |
240:536 |
| Connection Type |
BTB connector, 51 pins, 0.4 mm pitch (BM25R-0.4DP-0.35V(51)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
82.5 × 82.5 μm |
| Sunlight Readable |
– |
| Model |
E191AM8M0 |
| PPI ( pixels per inch ) |
307 PPI |
| Application |
Smart Phone |
2.1 inch TFT-LCD 1600×1600 MIPI For VR
| Size |
2.1inch |
|---|---|
| Pixels |
1600(H) × 1600(V) |
| Interface | |
| Brightness |
Min 360 / Typ 450 cd/m² |
| Manufacturer |
Geisght |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Transmission mode, Normally Black |
| Color Depth | |
| Refresh Rate |
70 / 90 Hz |
| Viewing Angle Range |
CR > 100: Left/Right 40°, Up/Down 40° |
| Outline L*W*H |
41.2(H) × 45.3(V) × 1.66(T) mm |
| Active Area L*W |
38.40 × 38.40 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.7 / 1.8 / 1.9 V (Min/Typ/Max); AVDD: 5.7 / 6.0 / 6.3 V; AVEE: -6.3 / -6.0 / -5.7 V |
| Consumption |
IVDDI: Typ 79.8 mA / Max 87.7 mA; IAVDD: Typ 8.7 mA / Max 12 mA; IAVEE: Typ -5.4 mA / Max -11 mA; Backlight Power PBL: Typ 468 mW (20% duty) |
| Operating Temperarure |
−10~55°C |
| Storage Temperature |
−40~70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
Connector: Kyocera 145863050024829+ |
| IC package |
– |
| Pixel Pitch |
8(H) × 24(V) μm |
| Sunlight Readable |
– |
| Model |
VS021XRM-NW0-DKP0 |
| PPI ( pixels per inch ) |
1058 |
2.69-inch 800×600 AMOLED Display Module
| Size |
2.69 inch |
|---|---|
| Pixels |
800 × 600 |
| Interface | |
| Brightness |
420 nit (Typ.), 380 nit (Min.), 460 nit (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ.), 58–62 Hz |
| Viewing Angle Range |
≥80° (CR ≥ 1600) |
| Outline L*W*H |
56.6 × 47.25 × 0.505 mm |
| Active Area L*W |
54.6 × 40.95 mm |
| Orientation | |
| Supply Voltage |
VCI 2.7–3.6 V (Typ. 3.0 V); VDDIO 1.62–1.98 V (Typ. 1.8 V); AVDD 6.8–7.8 V (Typ. 6.8 V); ELVDD 4.6 V; ELVSS -3.0 to -1.4 V (Typ. -2.0 V) |
| Consumption |
TBD |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
4:3 |
| Connection Type |
FPC (Recommended connector: Molex 5052743040) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
68.25 × 68.25 µm |
| Sunlight Readable |
– |
| Model |
BO269FM800 |
| PPI ( pixels per inch ) |
372 PPI |
| Application |
Smart Mobile Phone |
2.95-inch 1080×1200 AMOLED Near-Eye Display
| Size |
2.95 inch |
|---|---|
| Pixels |
1080(W) × 1200(H) (RGB) |
| Interface | |
| Brightness |
100 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz |
| Viewing Angle Range |
80° (U/D/L/R, CR ≥ 200) |
| Outline L*W*H |
52.91 × 62.58 × 0.65 mm (Including Cushion) |
| Active Area L*W |
50.11 × 55.68 mm |
| Orientation | |
| Supply Voltage |
ELVDD: 4.6 V (Typ.); ELVSS: -2.5 V (Typ.); VSP: 6.4 V (Typ., 6.1–6.5 V); VDDI: 1.8 V (Typ., 1.65–3.6 V); VCI: 3.3 V (Typ., 2.5–4.8 V) |
| Consumption |
TBD (IELVDD/IELVSS, IVCI, IVDDIO, IVSP) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
Derived from outline & active area: (52.91−50.11)/2 = 1.40 mm; (62.58−55.68)/2 = 3.45 mm |
| Aspect Ratio |
9:10 (1080:1200) |
| Connection Type |
FPC (39 pins shown in I/O connection table) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
23.2 × 46.4 μm |
| Sunlight Readable |
– |
| Model |
EDO295FM01 |
| PPI ( pixels per inch ) |
547 PPI |
| Application |
VR (Virtual Reality) |

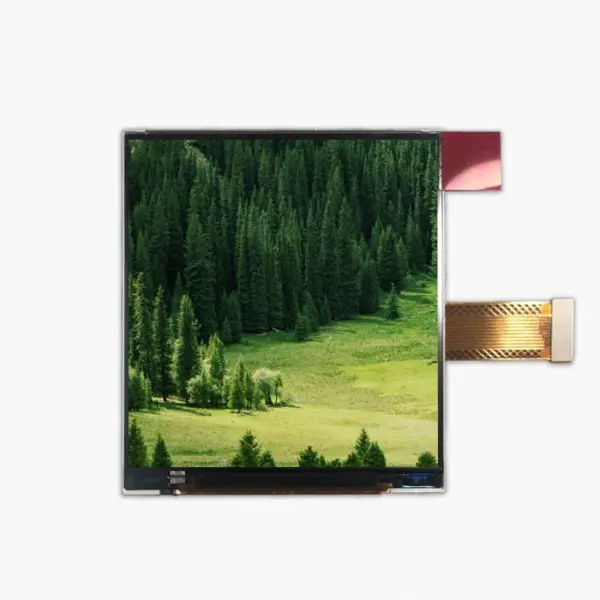

3.5-inch TFT-LCD Display Module 1440×1600 MIPI DSI
| Size |
3.5 inch |
|---|---|
| Pixels |
1440RGB×1600 |
| Interface | |
| Brightness |
Min 160 / Typ 200 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Transmission mode, Normally black |
| Color Depth | |
| Refresh Rate |
Typ 90 Hz |
| Viewing Angle Range |
Left 70° / Right 70° / Up 70° / Down 70° |
| Outline L*W*H |
62.2(H) × 73.6(V) × 1.7(T) mm |
| Active Area L*W |
59.4(H) × 66.0(V) mm |
| Supply Voltage |
VDDI：1.7–1.9 V（Typ 1.8）/ AVDD：5.4–6.0 V（Typ 5.7）/ AVEE：-6.0–-5.4 V（Typ -5.7） |
| Consumption |
LCD panel current：IVDDI / IAVDD / IAVEE = TBD；Backlight power：Typ 480 mW（10% duty） |
| Operating Temperarure |
-10 ~ 55 ℃ |
| Storage Temperature |
-40 ~ 70 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1440:1600 = 9:10 |
| Connection Type |
Electronics interface connector：Kyocera 145863050024829+（50-pin） |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
13.75(H) × 41.25(V) μm |
| Sunlight Readable |
– |
| Model |
BOL035VRM90 |
| PPI ( pixels per inch ) |
615 ppi |
| Application |
Virtual Reality Device；Augmented Reality Device |
3.81-inch 1080×1200 90Hz AMOLED Display
| Size |
3.81 inch |
|---|---|
| Pixels |
1080(H) × 1200(V) |
| Interface | |
| Brightness |
100 nits (Typ.), 80 nits (Min.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz |
| Viewing Angle Range |
Top/Bottom/Left/Right: 80 Deg. (CR > 480) |
| Outline L*W*H |
67.60 (H) × 78.95 (V) × 1.14 (T) mm |
| Active Area L*W |
64.80 (H) × 72.0 (V) mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.8 V (Typ., 1.65–1.95 V); VCI: 3.0 V (Typ., 2.8–3.2 V); OVDD: 4.6 V; OVSS: -2.9 V; AVDD: 5.8 V |
| Consumption |
Normal mode current (Typ.): IAVDD 15 mA; IVCI 3 mA; IIOVCC 38 mA; IOVDD 16 mA; IOVSS 16 mA (Condition: 25℃, 100 nits White) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.40 mm each; Top/Bottom: 3.48 mm each |
| Aspect Ratio |
9:10 |
| Connection Type |
39-pin FPC connector (Recommended: Hirose FH35C-39S-0.3HW(50)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
60 um |
| Sunlight Readable |
– |
| Model |
H381DLN01.0 |
| PPI ( pixels per inch ) |
424 PPI |
| Application |
– |
5.5 Inch TFT LCD HD IPS switch Lite replacement
| Size |
5.5 inch |
|---|---|
| Pixels |
720 × 1280 |
| Interface | |
| Brightness |
300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Color Depth | |
| Viewing Angle Range |
80° (H) / 80° (V) |
| Outline L*W*H |
73.8 × 132.6 × 1.5 mm |
| Active Area L*W |
68.04 × 120.96 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8V / 3.3V |
| Consumption |
Max 100 mA |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
–30°C ~ 80°C |
| Aspect Ratio |
9:16 |
| Connection Type |
45-pin connector |
| IC package |
ST7703 |
| Touch Panel | |
| Sunlight Readable |
NO |
| Model |
PL055F720PM |
| PPI ( pixels per inch ) |
293 |
5.5 inch 4K UHD LCD – 530cd/m² 801PPI Low Latency Longevity
| Size |
5.5 inches |
|---|---|
| Pixels |
2160×3840 |
| Interface | |
| Brightness |
425 cd/m² (Min), 530 cd/m² (Typ) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black (Transmissive) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (CR > 10) in all directions (θ11, θ12, θ21, θ22) |
| Outline L*W*H |
69.84 mm (W) x 128.76 mm (H) x 1.24 mm (D) |
| Active Area L*W |
68.04 mm (W) x 120.96 mm (H) |
| Orientation | |
| Supply Voltage |
VDDI: 1.85V (Typ), DVDD: 1.36V (Typ), VSP: 5.8V (Typ), VSN: -5.6V (Typ) |
| Consumption |
696 mW (Typ), 839 mW (Max) in command mode |
| Operating Temperarure |
-20°C to +60°C |
| Storage Temperature |
-30°C to +70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 (3840×2160 UHD) |
| Connection Type |
B-to-B connector (FB35-RC60-3A, 60 pins) |
| IC package |
COG (Chip-on-Glass) with NT35950 driver IC |
| Touch Panel | |
| Pixel Pitch |
Same as pixel size |
| Sunlight Readable |
Not specified (high brightness suggests potential suitability) |
| Model |
LS055D1SX05(G) |
| PPI ( pixels per inch ) |
~801 PPI (calculated) |
| Application |
Telecommunication equipment (terminals), VR devices, etc. |

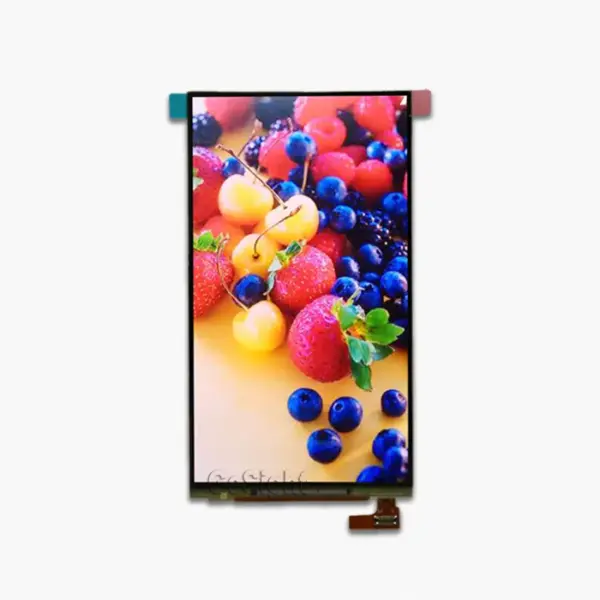

5.55-inch 720×1280 AMOLED Display MIPI
| Size |
5.551 inch |
|---|---|
| Pixels |
720(W) × RGB × 1280(H) |
| Interface | |
| Brightness |
300 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (U/D/L/R, CR ≥ 200) |
| Outline L*W*H |
131.20 × 72.80 × 1.181 mm (w/o cushion) |
| Active Area L*W |
122.88 × 69.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (typ., 2.5–4.8 V); VDDI 1.8 V (typ., 1.65–3.6 V); ELVDD 4.6 V (typ.); ELVSS -3.5 V (typ.); VSP 6.5 V; VPP(NC) 7.6 V (typ., 7.4–7.8 V) |
| Consumption |
IELVDD/ELVSS 200 mA (typ.) / 260 mA (max); IVCI 70 mA (typ.) / 110 mA (max); IVSP 15 mA (typ.) / 25 mA (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +70 °C |
| Bezel Area (mm) |
3.68 (W) × 8.32 (H) mm (derived: outline − active); per-side: 1.84 mm (L/R), 4.16 mm (T/B) |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
32 × 96 μm |
| Sunlight Readable |
– |
| Model |
555HDC2 |
| PPI ( pixels per inch ) |
265 PPI |
| Application |
Mobile phone; portable GPS; handheld game console |
7-inch 1024X600 TFT LCD Module LVDS Industrial Panel
| Size |
7 inch |
|---|---|
| Pixels |
1024X600 |
| Interface | |
| Brightness |
300 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
70°–80° (CR≥10, all directions) |
| Outline L*W*H |
165 mm × 100 mm × 3.5 mm |
| Active Area L*W |
154.21 mm × 85.92 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
3.3V (VDDIN), 5–12V (VLED for backlight) |
| Operating Temperarure |
–10°C ~ 50°C |
| Storage Temperature |
–20°C ~ 60°C |
| Aspect Ratio |
16:9 (H:V) |
| Connection Type |
20-pin interface |
| Touch Panel | |
| Model |
CXW070WSLM005 |
| PPI ( pixels per inch ) |
149 PPI |
7 Inch 1200 x 1920 TFT Tablet LCD Screen Raspberry Pi
| Size |
7 inch |
|---|---|
| Pixels |
1200 (H) × 1920 (V) (WUXGA) |
| Interface | |
| Brightness |
450 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80/80/80/80 (Typ.)(CR≥10) |
| Outline L*W*H |
97.3 mm (W) × 159.4 mm (H) |
| Active Area L*W |
94.5 mm (W) × 151.2 mm (H) |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDDP) |
| Operating Temperarure |
-10°C ~60°C |
| Storage Temperature |
-30°C ~70°C |
| Aspect Ratio |
5:8 (H:V) |
| Connection Type |
Hirose DF19LA-20P-1H (signal), JST BHR-04VS-1 (backlight) |
| IC package |
COG Built-in ISL97692IRTZ |
| Touch Panel | |
| Sunlight Readable |
Yes |
| Model |
LT070ME05000 |
| PPI ( pixels per inch ) |
323 PPI |
8.8 inch LCD 480X1920 bar LCD hdmi Raspberry Pi
| Size |
8.8 inch |
|---|---|
| Pixels |
480 × 1920 |
| Interface | |
| Brightness |
600 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Mode |
Normally Black, transmissive |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
85°/85°/85°/85° (L/R/U/D, CR>10) |
| Outline L*W*H |
231.3 × 64.3 × 5.1 mm (typ.) |
| Active Area L*W |
218.88 × 54.72 mm |
| Orientation | |
| Supply Voltage |
3.3 V (logic), 12 V (analog), 20 V (VGH), –10 V (VGL) |
| Consumption |
Logic: 0.65 W max (white pattern), BL: 2.8 W max (without LED driver) |
| Operating Temperarure |
–20°C to +70°C |
| Storage Temperature |
–30°C to +80°C |
| Aspect Ratio |
1:4 |
| Connection Type |
40-pin FPC, Hirose FH34SRJ-40S-0.5SH(50) |
| IC package |
Cell On Glass |
| Build-in IC |
– |
| Touch Panel | |
| Pixel Size |
0.114 × 0.114 mm |
| Pixel Pitch |
0.114 × 0.114 mm |
| Sunlight Readable |
Yes (600 cd/m², high contrast) |
| Model |
HSD088IPW1 |
| PPI (pixels per inch ) |
223 PPI |
| Application |
Automotive, industrial bar LCD, stretched display |

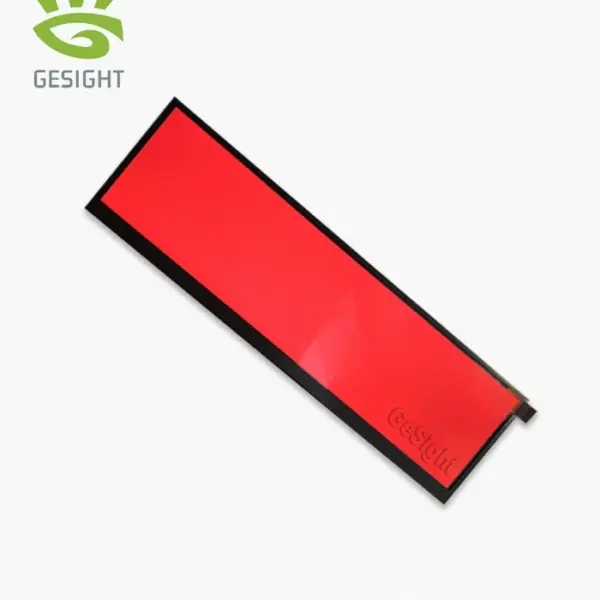

12.6-inch 1920×515 TFT LCD Touch Bar Display
| Size |
12.61 inch |
|---|---|
| Pixels |
1920 (H) × 515 (V) |
| Interface | |
| Brightness |
250 cd/m² (Typ., white luminance) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ.) |
| Viewing Angle Range |
85° (Typ.) / 80° (Min.) / 89° (Max.) @ CR > 10 (Left/Right/Up/Down) |
| Outline L*W*H |
315.61 ±0.3 mm × 94.02 ±0.5 mm × 5.3 mm (Max., PCB side) / 3.0 mm (Max., body) |
| Active Area L*W |
309.312 mm × 82.9665 mm |
| Orientation | |
| Build-in Touch IC |
– |
| Supply Voltage |
VDD = 3.3 V (Typ.), 3.0–3.6 V |
| Consumption |
Total PTotal = 2.0 W (Max., Mosaic); Backlight PBL = 1.5 W (Max.); Logic PRGB = 1.0 W (Max., RGB) |
| Operating Temperarure |
0°C ~ 60°C |
| Storage Temperature |
–20°C ~ 65°C |
| Aspect Ratio |
1920:515 (≈ 3.73:1) |
| Connection Type |
eDP connector (mating: I-PEX 20455-040E-66) |
| IC package |
– |
| Touch Panel | |
| Sunlight Readable |
– |
| Model |
NV126B5M-N41 V3.1 |
| PPI ( pixels per inch ) |
≈ 157.7 PPI |
