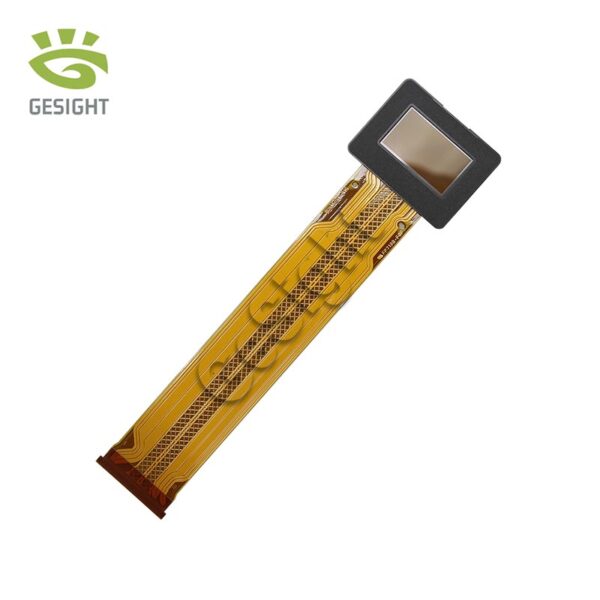

0.71 inch Micro OLED 1920X1080 LVDS HDMI Controller Board
| Size |
0.71 |
|---|---|
| Pixels |
1920×1080 |
| Interface | |
| Brightness |
230 cd/m² (Typ.) |
| Manufacturer |
Sony |
| Display Mode |
Mini LVDS 81 pins FPC |
| Color Depth |
16.7M sRGB |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80/80/80/80 (Typ.)(CR≥10) |
| Outline L*W*H |
24.24(H)×19.4(V) ×2.18(D) mm |
| Active Area L*W |
15.8X8.99 mm |
| Build-in Touch IC |
No Touch IC |
| Supply Voltage |
1.8/10V (Typ.)(VDD1/VDD2) |
| Consumption |
34/421mW (Typ.)(PDD1/PDD2) |
| Operating Temperarure |
-30 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Orientation |
Landscape |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Mass |
– |
| Aspect Ratio |
16:9 (H:V) |
| Connection Type |
FPC Zif |
| Viewing Area L*W |
– |
| IC package |
Silicon substrate (Chip on backside) |
| Sunlight Readable |
Yes |
| Application |
AR MR Head-Mounted Display |
| Model |
ECX335AF |
| Color Depth | , , |
| PPI |
0.39-inch FHD Micro OLED Display Module
| Size |
0.39 inch (Type 0.39) |
|---|---|
| Pixels |
1920 × 1080 |
| Interface | , |
| Brightness |
1500 cd/m² (White brightness, center) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active matrix color OLED (Micro OLED); full color; 16.7M colors |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
-55° to +55° (white) |
| Outline L*W*H |
16.6 × 17.0 × 4.75 mm (PCB module; 4.75 mm max) |
| Active Area L*W |
8.7495 × 4.9689 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.8 V (typ); AVDD: 5.4 V (typ); AVEE: -5.4 V (typ); VIN (for PCB): 4.4 V (typ) |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
7.8505 × 12.0311 mm (derived: Outline – Active Area) |
| Aspect Ratio |
16:9 (derived from 1920×1080) |
| Connection Type |
FPC/connector, 60-pin |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
~4.56 × 4.60 µm (derived: Active Area / Pixels) |
| Sunlight Readable |
– |
| Model |
BO039M1920M |
| PPI ( pixels per inch ) |
5644 PPI |
| Application |
AR/VR; head mounted displays; near-eye displays |
0.49-inch 1920×1080 Micro OLED Display
| Size |
0.49 inch |
|---|---|
| Pixels |
1920(H) × 1080(V) |
| Interface | |
| Brightness |
700 cd/m² (White brightness, typ., ±20%) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
AMOLED (Active Matrix OLED microdisplay panel module) |
| Color Depth | |
| Refresh Rate |
50–100 Hz |
| Viewing Angle Range |
-20° to +20° (luminance / color shift criteria in optical spec) |
| Outline L*W*H |
15.65 ±0.15 mm × 9.09 ±0.25 mm × 1.50 ±0.04 mm |
| Active Area L*W |
11.053 mm × 6.337 mm |
| Orientation | |
| Supply Voltage |
VCI 2.8 V; VDD1 1.8 V; VDD2 1.2 V |
| Consumption |
180 mW (50 Hz); 360 mW (100 Hz); 450 mW (max in table) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
W total 2.753 mm (≈1.3765 mm each side); L total 4.597 mm (≈2.2985 mm each side) |
| Aspect Ratio |
16:9 |
| Connection Type |
FPC (flex cable) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
BO049FHPMO |
| PPI ( pixels per inch ) |
4496 PPI |
| Application |
VR/AR near-eye microdisplay |
0.5-inch XGA Micro OLED display 1024×768
| Size |
0.5 inch |
|---|---|
| Pixels |
1024 × 768 dots (RGB) |
| Interface | |
| Brightness |
200 cd/m² (Mode 0); 120 cd/m² (Mode 2); 300 cd/m² (Mode 3); 500 cd/m² (Mode 4) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active matrix color OLED panel |
| Color Depth | |
| Refresh Rate |
59.94 Hz (XGA); 50 Hz (XGA) |
| Viewing Angle Range |
– |
| Outline L*W*H |
51.1 × 17.8 × 2.125 mm (as shown in package outline drawing) |
| Active Area L*W |
10.336 × 7.801 mm |
| Orientation | |
| Supply Voltage |
VDD1: 2.7–3.3 V (Typ. 3.0 V); VDD2: 12.0–13.0 V (Typ. 12.5 V); VDD4: 9.7–10.3 V (Typ. 10.0 V); DS_H: 12.0–13.0 V (Typ. 12.5 V); Vcath: -0.3–0.3 V (Typ. 0 V) |
| Consumption |
Total (Typ., Tpnl=40℃, all-white, 60 Hz, 54 MHz): 480/345/280/225 mW (for 500/300/200/120 cd/m²); Standby: 3.3 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
4:3 |
| Connection Type |
FPC (61-pin) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
ECX331DB-6 |
| PPI ( pixels per inch ) |
2510 PPI |
| Application |
View finders; head mounted displays; very small monitors |
0.71-inch FHD Micro OLED display 3000 nits
| Size |
0.71 inch |
|---|---|
| Pixels |
1920(RGB) × 1080 |
| Interface | |
| Brightness |
3000 cd/m2 (Typ., Mode 4) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active Matrix Color OLED (AMOLED) |
| Color Depth | |
| Refresh Rate |
60 Hz (also supports 50 Hz / 48 Hz modes) |
| Viewing Angle Range |
– |
| Outline L*W*H |
37.32 mm × 21.443 mm × 1.475 mm |
| Active Area L*W |
15.8 mm × 8.99 mm |
| Orientation | |
| Supply Voltage |
VDD1: 1.62–1.98 V (Typ. 1.8 V); VDD1IF: 1.62–1.98 V (Typ. 1.8 V); VDD2: 9.7–10.3 V (Typ. 10.0 V); VCATH: -0.3–0.3 V (Typ. 0 V) |
| Consumption |
Total power (Typ.): 1280 mW @ 3000 cd/m2 (All white, 60 Hz) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 |
| Connection Type |
FPC, 81-pin (P0.2 mm pitch) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.00819 mm |
| Sunlight Readable |
– |
| Model |
ECX335SN-6 |
| PPI ( pixels per inch ) |
3103 PPI |
| Application |
Head mounted displays; View finders; Small monitors |
0.71-inch FHD Micro OLED mini-LVDS Display
| Size |
0.71 inch |
|---|---|
| Pixels |
1920(RGB) × 1080 |
| Interface | |
| Brightness |
120 cd/m² (typ., Mode 0); 90 cd/m² (typ., Mode 2); 200 cd/m² (typ., Mode 3) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active Matrix Color OLED panel (single crystal silicon transistors; on-chip driver) |
| Color Depth | |
| Refresh Rate |
60 Hz (Mini-LVDS I/F spec); also supports 50 Hz and 48 Hz input modes |
| Viewing Angle Range |
– |
| Outline L*W*H |
99.5 ± 1.4 mm × 25.44 ± 0.05 mm × 1.92 ± 0.25 mm |
| Active Area L*W |
(15.8 mm) × (8.99 mm) |
| Orientation | |
| Supply Voltage |
VDD1: 1.62–1.98 V (typ. 1.8 V); VDD1IF: 1.62–1.98 V (typ. 1.8 V); VDD2: 9.7–10.3 V (typ. 10.0 V); Vcath: -0.3–0.3 V (typ. 0 V) |
| Consumption |
Total power (typ.): 387 mW @ 120 cd/m²; 467 mW @ 200 cd/m²; 361 mW @ 90 cd/m²; Standby: 0.33 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 |
| Connection Type |
81-pin FPC |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.00823 mm (H) / 0.00832 mm (V) |
| Sunlight Readable |
– |
| Model |
ECX335AF-6 |
| PPI ( pixels per inch ) |
3103 PPI |
| Application |
View finders; head mounted displays; very small monitors |
0.95-inch LTPS AMOLED Display 120×240 SPI
| Size |
0.95 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
88° Up/Down/Right/Left (Cr ≥ 10) |
| Outline L*W*H |
27.35 × 12.8 × 0.78 mm |
| Active Area L*W |
21.6 × 10.8 mm |
| Orientation | |
| Supply Voltage |
VCI_DIS_28: 2.7–3.6 V (typ 2.8); VDDIO: 1.65–3.3 V (typ 1.8); ELVDD: 4.55–4.65 V (typ 4.6); ELVSS: -2.25––2.15 V (typ -2.2) |
| Consumption |
Full white @ 450 nits, 60 Hz (typ current): IVCI_DIS_28 3.2 mA; IVDDIO 1 mA; IELVDD/ELVSS 7 mA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.0 mm; Top/Bottom: 2.875 mm |
| Aspect Ratio |
1:2 |
| Connection Type |
FPC, 30 pins (pin table shows 1–30) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
80 × 80 um |
| Sunlight Readable |
– |
| Model |
TR095A120SPC |
| PPI ( pixels per inch ) |
282.45 PPI |
| Application |
Smart Watch |
1.2-inch Circular 390×390 AMOLED Display
| Size |
1.2 inch |
|---|---|
| Pixels |
390 × 390 |
| Interface | , |
| Brightness |
300 min, 350 typ, nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
33.22 × 34.72 × 0.66 mm |
| Active Area L*W |
30.42 × 30.42 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65 / 1.8 / 1.95 V (min/typ/max); VCI: 3.27 / 3.3 / 3.33 V; ELVDD: 3.27 / 3.3 / 3.33 V; ELVSS: -3.33 / -3.3 / -3.27 V |
| Consumption |
Panel power (full white, 350 nits): 128.7 mW typ; IOLED: 19.5 mA typ; IC Normal: PVCI 5.3 mW typ, PVDDIO 3.5 mW typ; Idle: PVCI 4.5 mW typ, PVDDIO 2.4 mW typ; Sleep: PVCI < 0.075 mW, PVDDIO < 0.1 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Derived from outline vs active: (33.22-30.42)=2.80 mm; (34.72-30.42)=4.30 mm. Per-side bezel: Left/Right 1.40 mm; Top/Bottom 2.15 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 24-pin; recommended connector BM28B0.6-24DP/2-0.35V(51) / BM28B0.6-24DS/2-0.35V(51) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
Derived: 30.42 mm / 390 = 0.0780 mm (78.0 µm) |
| Sunlight Readable |
– |
| Model |
PO120F390MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.39-inch Flexible/Bendable OLED Display 400×400 MIPI
| Size |
1.39 inch |
|---|---|
| Pixels |
400 × 400 |
| Interface | |
| Brightness |
300 cd/m² (typ), 250 cd/m² (min) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED ,Flexible OLED |
| Display Mode |
AMOLED (LTPS-AMOLED) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Top 80° / Bottom 80° / Left 80° / Right 80° (CR > 1600) |
| Outline L*W*H |
38.6 (H) × 40.5 (V) × 0.7 typ, 0.8 max (T), w/o FPCa (mm) |
| Active Area L*W |
Ø35.4 mm (Diameter) |
| Orientation | |
| Supply Voltage |
VVCI: 2.7–3.6 V (typ 2.8 V); VDDIO: 1.65–3.3 V (typ 1.8 V); ELVDD: 4.55–4.65 V (typ 4.6 V); ELVSS: −2.35 to −2.45 V (typ −2.4 V) |
| Consumption |
Current (typ) at VDDIO=1.8 V, VCI=2.8 |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 (400×400) |
| Connection Type |
FPCa; FPCA recommended connector: Molex 504248-2410 (24 pins); Main board recommended connector: Molex 504208-2410 |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.0885 (H) × 0.0885 (V) mm |
| Sunlight Readable |
– |
| Model |
PO139FN01F |
| PPI ( pixels per inch ) |
287 PPI |
| Application |
– |
1.39-inch Circular AMOLED Display 454×454
| Size |
1.39 inch |
|---|---|
| Pixels |
454RGB × 454 |
| Interface | , |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
45 Hz (typ), 43–47 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (L/R/U/D, CR≥10) |
| Outline L*W*H |
≤ 42.0 × ≤ 42.0 × 0.733 mm (module outline ≤ φ42; max thickness 0.733 mm MDL) |
| Active Area L*W |
35.412 × 35.412 mm (AA = φ35.412 mm) |
| Orientation | |
| Supply Voltage |
VDDIO: 1.8 V (typ) [1.65–1.95 V]; Vbat: 3.7 V (typ) [2.9–4.8 V] |
| Consumption |
260 mW (typ) @ 100% on, 450 nits, 45 Hz; 38 mW (typ) all pixel off; 1.2 mW (typ) standby (Vci on/Vddio on); < 50 μW standby (Vci off/Vddio on) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
2.275 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
Board to Board Connection |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 µm |
| Sunlight Readable |
– |
| Model |
BO139A454SPI |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.43-inch 466×466 AMOLED Display
| Size |
1.43 inch |
|---|---|
| Pixels |
466 × 466 |
| Interface | |
| Brightness |
700 cd/m² (typ, Ta=25℃, all-white, θ=0) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS Glass |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency fFRM) |
| Viewing Angle Range |
88° (Up/Down/Right/Left, Cr≥200) |
| Outline L*W*H |
44.75 × 44.75 × 2.58 mm |
| Active Area L*W |
36.35 × 36.35 mm |
| Orientation | |
| Supply Voltage |
VCC 2.7–3.6 V; IOVCC 1.65–3.3 V; ELVDD 3.25–3.35 V; ELVSS -3.35–-3.25 V |
| Consumption |
Full white (Sleep out): IVCC 2 mA typ (4 mA max); IIOVCC 1.5 mA typ (3 mA max); IELVDD/ELVSS 13 mA typ (19.5 mA max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
4.20 mm per side |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
TR143R2404A |
| PPI ( pixels per inch ) |
461 PPI |
| Application |
Touch interface pins listed; Touch signals present |
1.47-inch AMOLED Touch Display 194×368
| Size |
1.47 inch |
|---|---|
| Pixels |
194 (W) × 368 (H) (Real RGB arrangement) |
| Interface | , |
| Brightness |
450 nits typ (Luminance: 400 min / 450 typ / 500 max cd/m²) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode); 15 Hz (Idle mode) |
| Viewing Angle Range |
Left/Right/Top/Bottom: 80° min / 85° typ (Cr ≥ 200) |
| Outline L*W*H |
LTPS Glass outline: 19.36 (V) × 36.17 (W) mm; Glass thickness (LTPS/Encap./POL): 0.2/0.3/0.147 mm |
| Active Area L*W |
17.46 × 33.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (3.2–3.4 V); VDDIO 1.8 V (1.7–1.9 V); ELVDD 3.3 V (3.2–3.4 V); ELVSS -3.3 V (-3.4–-3.2 V); TP_VDD 2.8 V (typ); TP_OPT_VDDIO 1.8 V (typ) |
| Consumption |
Normal: 110 typ / 130 max mW (450 nits @ 60 Hz); Idle: 6.5 typ / 8.2 max mW (50 nits @ 15 Hz); Standby: 50 µW max |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
1.90 mm (V total = 19.36 − 17.46); 3.05 mm (W total = 36.17 − 33.12) |
| Aspect Ratio |
194:368 |
| Connection Type |
FPC (Main FPC Bonding PAD), 34 pins |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
90 × 90 µm |
| Sunlight Readable |
– |
| Model |
E1473AC63.B |
| PPI ( pixels per inch ) |
283 PPI |
| Application |
Display/Touch terminals for Smart Watch |
1.5-inch Flexible/Bendable OLED Display 120×240 SPI/MIPI
| Size |
1.5 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | , |
| Brightness |
350 cd/m² typ (300 cd/m² min @ θ=0°) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Top/Bottom/Left/Right, condition CR > 1600) |
| Outline L*W*H |
20.12 × 38.94 × 0.71 mm (typ, Module Size w/o COF & FPCa & CAF; Thickness typ) |
| Active Area L*W |
16.92 × 33.84 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.8 V typ (2.7–3.6 V); VDDIO: 1.8 V typ (1.65–3.3 V); ELVDD: 4.6 V typ (4.55–4.65 V); ELVSS: −2.4 V typ (−2.35 to −2.45 V) |
| Consumption |
110 mW typ; IC: 14.24 mW typ |
| Operating Temperarure |
−20 to +60 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
H bezel total 3.20 mm (≈1.60 mm per side); V bezel total 5.10 mm (≈2.55 mm per side) |
| Aspect Ratio |
1:2 (120:240) |
| Connection Type |
I-PEX connector: 20641-024E (module); mating/user connector: 20642-024E |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.141(H) × 0.141(V) mm |
| Sunlight Readable |
– |
| Model |
GO15F120SPI |
| PPI ( pixels per inch ) |
180 PPI |
| Application |
Smart bracelet |
1.6 Inch 400×400 IPS TFT LCD Round Display
| Size |
1.6 inch |
|---|---|
| Pixels |
400 × 400 |
| Interface | |
| Brightness |
230 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth |
16.7M |
| Refresh Rate |
30 Hz |
| Viewing Angle Range |
85° (L/R/U/D) |
| Outline L*W*H |
42.92 (H)×45.87 (V) ×2.2 (D) mm |
| Active Area L*W |
39.84 × 39.84 mm |
| Orientation | |
| Build-in Touch IC |
No Touch IC |
| Supply Voltage |
3.0 – 3.6 V (Typ. 3.3V) |
| Consumption |
16 mA (Typ.) |
| Operating Temperarure |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Mass |
– |
| Aspect Ratio |
1:1 (H:V) |
| Connection Type |
Soldering |
| Viewing Area ( L*W) |
39.84 × 39.84 mm |
| IC package |
On Glass |
| Touch Panel |
Need to Be Customized |
| Pixel Pitch |
0.0996 x 0.0996 mm |
| Sunlight Readable |
No |
| Model |
PL016VI-I16Q |
| Color Depth | |
| PPI ( pixels per inch ) |
254 |
1.63-inch AMOLED Display 320×320 MIPI DSI
| Size |
1.63 inch |
|---|---|
| Pixels |
320 x RGB x 320 |
| Interface | |
| Brightness |
300 nits (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode) |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
32.08 (H) x 36.48 (V) x 0.7 (T) mm (cell + foam) |
| Active Area L*W |
29.28 (H) x 29.28 (V) mm |
| Orientation | |
| Supply Voltage |
IOVDD 1.65–1.95 V (Typ. 1.8 V); VDD 2.8–3.1 V (Typ. 3.0 V); ELVDD 4.57–4.63 V (Typ. 4.60 V); ELVSS -3.35 to -3.45 V (Typ. -3.40 V) |
| Consumption |
Panel Power 138.4 mW (Full white, 300 nits, 60 Hz CMD mode test condition); Idle PVDD 12.0 mW (30 Hz CMD mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 20 pins; Recommended connector: AXE520127 (Panasonic) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
H163QLN01.1 |
| PPI ( pixels per inch ) |
278 PPI |
| Application |
– |
1.78-inch 368×448 AMOLED Display
| Size |
1.78 inch |
|---|---|
| Pixels |
368(W) × 448(H) (Real RGB) |
| Interface | , |
| Brightness |
350 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode) |
| Viewing Angle Range |
80° (Top/Bottom/Right/Left, CR ≥ 1000) |
| Outline L*W*H |
LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm |
| Active Area L*W |
28.7 × 34.94 mm |
| Orientation | |
| Supply Voltage |
Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V) |
| Consumption |
Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 (368:448) |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
78 × 78 μm |
| Sunlight Readable |
– |
| Model |
ED178AM368MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Smart Watch |
1.9-inch TFT-LCD Display Module 170×320 4-SPI
| Size |
1.9 inch |
|---|---|
| Pixels |
170(RGB) × 320 |
| Interface | |
| Brightness |
Typ. 330 cd/m²（If=20mA) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
IPS / Transmissive / Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
H: 80°/80°，V: 80°/80°（CR≥10） |
| Outline L*W*H |
25.8(H) × 49.72(V) × 1.43(T) mm |
| Active Area L*W |
22.7(H) × 42.72(V) mm |
| Supply Voltage |
VDD: 2.4–3.3V（Typ 2.8V）; VCI: 2.4–3.3V（Typ 2.8V）; IOVDD: 1.65–3.3V（Typ 1.8/2.8V） |
| Consumption |
Normal display Ivdd: Typ 50 mA；Standby Ivdd: Typ 20 µA |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
17:32 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
≈ 0.1335 mm |
| Sunlight Readable |
– |
| Model |
PL19006C30 |
| PPI ( pixels per inch ) |
≈ 191 PPI |
| Application |
– |
1.91-inch 240×536 AMOLED Long Strip Shape
| Size |
1.91 inch |
|---|---|
| Pixels |
240(W) × 536(H) |
| Interface | |
| Brightness |
350 cd/m² (Typ., Br0, θ=0°); 315 cd/m² (Min.); 385 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode, test condition); 15 Hz (Idle mode, test condition) |
| Viewing Angle Range |
ALL angle: θ = 0° to 88°, φ = 0° to 360° |
| Outline L*W*H |
51.32 ± 0.15 mm × 22.40 ± 0.15 mm × 0.753 ± 0.10 mm (module outline / side view) |
| Active Area L*W |
44.22 mm × 19.80 mm |
| Orientation | |
| Supply Voltage |
VBAT: 2.5 / 3.7 / 4.5 V (Min/Typ/Max); VDDIO: 1.65 / 1.8 / 1.95 V; VCI: 2.65 / 2.8 / 3.6 V |
| Consumption |
Ivbat: 42 mA (Typ), 50.4 mA (Max); Ivddio: 6.5 mA (Typ), 7.8 mA (Max); Ivci: 12 mA (Typ), 14 mA (Max) (Normal mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right bezel: (22.40−19.80)/2 = 1.30 mm each; Top/Bottom bezel: (51.32−44.22)/2 = 3.55 mm each |
| Aspect Ratio |
240:536 |
| Connection Type |
BTB connector, 51 pins, 0.4 mm pitch (BM25R-0.4DP-0.35V(51)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
82.5 × 82.5 μm |
| Sunlight Readable |
– |
| Model |
E191AM8M0 |
| PPI ( pixels per inch ) |
307 PPI |
| Application |
Smart Phone |
