All productsFilter by display-type
3.81-inch 1080×1200 90Hz AMOLED Display
| Size |
3.81 inch |
|---|---|
| Pixels |
1080(H) × 1200(V) |
| Interface | |
| Brightness |
100 nits (Typ.), 80 nits (Min.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz |
| Viewing Angle Range |
Top/Bottom/Left/Right: 80 Deg. (CR > 480) |
| Outline L*W*H |
67.60 (H) × 78.95 (V) × 1.14 (T) mm |
| Active Area L*W |
64.80 (H) × 72.0 (V) mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.8 V (Typ., 1.65–1.95 V); VCI: 3.0 V (Typ., 2.8–3.2 V); OVDD: 4.6 V; OVSS: -2.9 V; AVDD: 5.8 V |
| Consumption |
Normal mode current (Typ.): IAVDD 15 mA; IVCI 3 mA; IIOVCC 38 mA; IOVDD 16 mA; IOVSS 16 mA (Condition: 25℃, 100 nits White) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.40 mm each; Top/Bottom: 3.48 mm each |
| Aspect Ratio |
9:10 |
| Connection Type |
39-pin FPC connector (Recommended: Hirose FH35C-39S-0.3HW(50)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
60 um |
| Sunlight Readable |
– |
| Model |
H381DLN01.0 |
| PPI ( pixels per inch ) |
424 PPI |
| Application |
– |
3.92-inch 1080×1240 AMOLED Touch Display
| Size |
3.92 inch |
|---|---|
| Pixels |
1080(H) × 1240(V) |
| Interface | |
| Brightness |
520 cd/m² (typ, white); 600 cd/m² (typ, HBM) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (typ) (Frame Frequency Ff: 57 / 60 / 63 Hz) |
| Viewing Angle Range |
85°/85°/85°/85° (U/D/R/L) |
| Outline L*W*H |
67.248 × 79.874 × 0.699 mm (W × H × T) |
| Active Area L*W |
65.448 × 75.144 mm (W × H) |
| Orientation | |
| Supply Voltage |
VDDIO 1.8 V (typ); VCI 3.0 V (typ); AVDD 7.0 V; ELVDD 4.6 V; ELVSS -3.0 V; TP_DVDD 1.8 V (typ); TP_AVDD 3.3 V (typ) |
| Consumption |
Total 1103.9 mW (typ), 1578.2 mW (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
W bezel total 1.800 mm (0.900 mm each side); H bezel total 4.730 mm (~2.365 mm top/bottom) |
| Aspect Ratio |
27:31 |
| Connection Type |
BM23PF0.8-44DP-0.35V(43) |
| IC package |
Driver IC: COG package; Touch IC: BGA116 (6×6×0.5 mm) |
| Touch Panel | |
| Pixel Pitch |
0.0606 × 0.0606 mm |
| Sunlight Readable |
– |
| Model |
VSX392A101GG |
| PPI ( pixels per inch ) |
419 PPI |
| Application |
– |
4.3-inch 540×960 AMOLED Display
| Size |
4.3 inch |
|---|---|
| Pixels |
540(RGB) × 960 |
| Interface | , |
| Brightness |
Recommend 250 nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
OLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
– |
| Outline L*W*H |
57.26 × 103.87 × 0.77 mm |
| Active Area L*W |
53.46(H) × 95.04(V) mm |
| Orientation | |
| Supply Voltage |
VDDIO: typ 1.80 V (min 1.65, max 3.30); VDD: typ 3.00 V (min 2.80, max 3.20); OVDD: typ 4.60 V (min 4.55, max 4.65); OVSS: typ -4.40 V (min -4.33, max -4.47) |
| Consumption |
Panel Power (P_EL): typ 405.0 mW, max 1350.0 mW; Panel Current (I_EL): typ 64.2 mA, max 150.0 mA; IC P_VDD: min 81.8 mW, typ 102.3 mW, max 122.7 mW; IC I_VDD: min 26.6 mA, typ 33.3 mA, max 39.9 mA; IC P_VDDIO: min 18.5 uW, typ 23.2 uW, max 27.8 uW; IC I_VDDIO: min 9.8 uA, typ 12.3 uA, max 14.7 uA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +105 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
9:16 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.033(H) × 0.099(V) mm |
| Sunlight Readable |
– |
| Model |
AUO429FN01P |
| PPI ( pixels per inch ) |
256 PPI |
| Application |
– |
5.0-inch Circular TFT LCD 1080×1080 MIPI DSI
| Size |
5.0 inch |
|---|---|
| Pixels |
1080(RGB) × 1080 |
| Interface | |
| Brightness |
400 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black, Transmissive mode |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
U/D/L/R free viewing direction |
| Outline L*W*H |
136.531 × 132.208 × 1.98 mm |
| Active Area L*W |
127.008 × 127.008 mm (circle) |
| Orientation | |
| Supply Voltage |
IOVCC 1.8 V (typ); VSP +5.0 V (typ); VSN -5.0 V (typ); LED VF 38.4 V (typ); LED IF 20 mA (typ) |
| Consumption |
Backlight power 0.744 W (typ); 0.768 W (max) |
| Operating Temperarure |
-20 to +60 °C |
| Storage Temperature |
-30 to +75 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
Board-to-board connector |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1176 × 0.1176 mm |
| Sunlight Readable |
– |
| Model |
PL050HDC |
| PPI ( pixels per inch ) |
305 |
| Application |
– |
5.1-inch Flexible/Bendable OLED Display 720×1520 MIPI DSI
| Size |
5.1 inch |
|---|---|
| Pixels |
720 × 1520 |
| Interface | |
| Brightness |
390 cd/m² (typ, with CG, center); 886 cd/m² (typ, without CG, center) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Active matrix AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left: 80° (typ) @ CR ≥ 10 (min 75°) |
| Outline L*W*H |
70.78 × 151.31 × 1.343 mm (module outline × total thickness) |
| Active Area L*W |
55.404 × 116.964 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.62–1.98 V; VCI: 2.60–3.60 V; ELVDD: 4.40–4.80 V; ELVSS: −5.00 to −1.40 V; VCC (TSP): 2.7–3.6 V; AVDD: 5.40–7.60 V |
| Consumption |
Display (Full White, 886 nit w/o CG): VCI 3.5 mA (typ), VDDIO 22.0 mA (typ), AVDD 13.5 mA (typ), Panel EL 147 mA (typ); Touch power: Active 49.5 mW, Standby 4.29 mW, Sleep 409 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right 1.10 mm each, Top/Bottom 1.80 mm each |
| Aspect Ratio |
19:9 |
| Connection Type |
Board-to-board connector (Recommended: AXE640124); Touch connector type: FOF |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
76.95 × 76.95 µm |
| Sunlight Readable |
– |
| Model |
BF051FBM-AK0- |
| PPI ( pixels per inch ) |
329.8 PPI |
| Application |
Smart Mobile Phone |

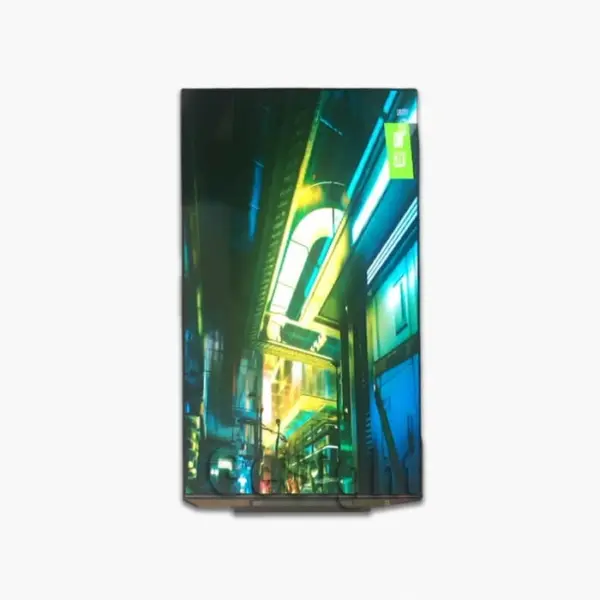

5.48-inch 1080×1920 AMOLED Touch Display
| Size |
5.48 inch |
|---|---|
| Pixels |
1080(W) × 1920(H) |
| Interface | |
| Brightness |
350 cd/m² (typ), 280 (min), 420 (max) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
75° (min) / 85° (typ) for T/B/L/R (CR ≥ 10) |
| Outline L*W*H |
148.86 × 73.56 × 1.92 mm (including cover lens) |
| Active Area L*W |
121.344 × 68.256 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65–3.30 V; VCI: 2.65–3.60 V; ELVDD: 4.55–4.65 V; ELVSS: -1 (min) / TBD (typ) / -5 (max) V |
| Consumption |
Panel Power: TBD mW; INL: 191.80 mA (typ); IVCI (normal): 1.5 mA (min), TBD (typ/max); IIOVCC (normal): 42 mA (min), TBD (typ/max); Stand-by: IVCI 1 uA (min), TBD; IIOVCC 1 uA (min), TBD |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +70 °C |
| Bezel Area (mm) |
(69.902 − 68.256) × (127.904 − 121.344) = 1.646 × 6.560 mm total bezel |
| Aspect Ratio |
9:16 |
| Connection Type |
B-to-B connector (FPC connector: AXE340124; recommended: AXE440124) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
94.8(W) × 63.2(H) μm |
| Sunlight Readable |
– |
| Model |
G1548FH101GF-001 |
| PPI ( pixels per inch ) |
402 PPI |
| Application |
– |
5.5 Inch TFT LCD HD IPS switch Lite replacement
| Size |
5.5 inch |
|---|---|
| Pixels |
720 × 1280 |
| Interface | |
| Brightness |
300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Color Depth | |
| Viewing Angle Range |
80° (H) / 80° (V) |
| Outline L*W*H |
73.8 × 132.6 × 1.5 mm |
| Active Area L*W |
68.04 × 120.96 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8V / 3.3V |
| Consumption |
Max 100 mA |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
–30°C ~ 80°C |
| Aspect Ratio |
9:16 |
| Connection Type |
45-pin connector |
| IC package |
ST7703 |
| Touch Panel | |
| Sunlight Readable |
NO |
| Model |
PL055F720PM |
| PPI ( pixels per inch ) |
293 |
5.5 inch 4K UHD LCD – 530cd/m² 801PPI Low Latency Longevity
| Size |
5.5 inches |
|---|---|
| Pixels |
2160×3840 |
| Interface | |
| Brightness |
425 cd/m² (Min), 530 cd/m² (Typ) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black (Transmissive) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (CR > 10) in all directions (θ11, θ12, θ21, θ22) |
| Outline L*W*H |
69.84 mm (W) x 128.76 mm (H) x 1.24 mm (D) |
| Active Area L*W |
68.04 mm (W) x 120.96 mm (H) |
| Orientation | |
| Supply Voltage |
VDDI: 1.85V (Typ), DVDD: 1.36V (Typ), VSP: 5.8V (Typ), VSN: -5.6V (Typ) |
| Consumption |
696 mW (Typ), 839 mW (Max) in command mode |
| Operating Temperarure |
-20°C to +60°C |
| Storage Temperature |
-30°C to +70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 (3840×2160 UHD) |
| Connection Type |
B-to-B connector (FB35-RC60-3A, 60 pins) |
| IC package |
COG (Chip-on-Glass) with NT35950 driver IC |
| Touch Panel | |
| Pixel Pitch |
Same as pixel size |
| Sunlight Readable |
Not specified (high brightness suggests potential suitability) |
| Model |
LS055D1SX05(G) |
| PPI ( pixels per inch ) |
~801 PPI (calculated) |
| Application |
Telecommunication equipment (terminals), VR devices, etc. |
5.55-inch 720×1280 AMOLED Display MIPI
| Size |
5.551 inch |
|---|---|
| Pixels |
720(W) × RGB × 1280(H) |
| Interface | |
| Brightness |
300 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (U/D/L/R, CR ≥ 200) |
| Outline L*W*H |
131.20 × 72.80 × 1.181 mm (w/o cushion) |
| Active Area L*W |
122.88 × 69.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (typ., 2.5–4.8 V); VDDI 1.8 V (typ., 1.65–3.6 V); ELVDD 4.6 V (typ.); ELVSS -3.5 V (typ.); VSP 6.5 V; VPP(NC) 7.6 V (typ., 7.4–7.8 V) |
| Consumption |
IELVDD/ELVSS 200 mA (typ.) / 260 mA (max); IVCI 70 mA (typ.) / 110 mA (max); IVSP 15 mA (typ.) / 25 mA (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +70 °C |
| Bezel Area (mm) |
3.68 (W) × 8.32 (H) mm (derived: outline − active); per-side: 1.84 mm (L/R), 4.16 mm (T/B) |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
32 × 96 μm |
| Sunlight Readable |
– |
| Model |
555HDC2 |
| PPI ( pixels per inch ) |
265 PPI |
| Application |
Mobile phone; portable GPS; handheld game console |
5.99-inch Flexible/Bendable OLED Display 1080×2160 MIPI DSI
| Size |
5.99 inch |
|---|---|
| Pixels |
1080 × 2160 |
| Interface | |
| Brightness |
390 cd/m² (typ, Normal / W L255); 351 min, 429 max |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Color active matrix AMOLED module (LTPS TFT) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left, CR ≥ 10: 80° (typ), 75° (min) |
| Outline L*W*H |
71.35 × 150.42 mm; Total thickness: 1.416 mm |
| Active Area L*W |
68.04 × 136.08 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.60–3.60 V (typ 3.00 V); VDDIO: 1.62–1.98 V (typ 1.80 V); AVDD: 5.40–7.70 V (typ 6.80 V); ELVDD: 4.40–4.80 V (typ 4.60 V); ELVSS: -5.00 to -1.40 V (typ -2.40 V); TSP VCC: 2.7–3.6 V |
| Consumption |
VCI 2.0 mA typ; VDDIO 30 mA typ; AVDD 20 mA typ; Panel EL 220 mA typ. Display sleep-in: VCI 0.1 mA typ; VDDIO 1.5 mA typ. Touch power: Active 82 mW; Standby 33 mW; Sleep 165 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
18:9 |
| Connection Type |
Main FPC, B-to-B contact pads; recommended connector: 24-5857-048 |
| IC package |
GT9286-BGA |
| Touch Panel | |
| Pixel Pitch |
63 µm |
| Sunlight Readable |
– |
| Model |
BO599FF2KM |
| PPI ( pixels per inch ) |
403 ppi |
| Application |
Smart Mobile Phone |
6.52-inch Flexible/Bendable OLED Display 2520×840 MIPI DSI
| Size |
6.52 inch |
|---|---|
| Pixels |
2520 × 840 (SPR) |
| Interface | |
| Brightness |
430 nits (typ, normal mode); 700 nits (typ, HBM mode) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz / 90 Hz |
| Viewing Angle Range |
Full viewing angle; detailed angles TBD (Top/Bottom/Right/Left, CR > 10) |
| Outline L*W*H |
159.472 × 54.379 × 1.0 mm (H max; outline is “MOD W/O CG”) |
| Active Area L*W |
157.1976 × 52.3992 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65–1.95 V; VCI: 2.65–4.8 V; AVDD: 6.0–8.0 V; DVDD: 1.10–1.23 V; ELVDD: 4.6–5.0 V; ELVSS: -5.4–-1.4 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Approx. 0.99 mm (left/right) & 1.14 mm (top/bottom), computed from Outline vs Active Area |
| Aspect Ratio |
27:9 |
| Connection Type |
40-pin connector; connector model: BM035-I40-C08 |
| IC package |
COP (Driver IC location: COP) |
| Touch Panel | |
| Pixel Pitch |
0.06238 mm |
| Sunlight Readable |
– |
| Model |
PO652F2K |
| PPI ( pixels per inch ) |
407.41 PPI |
| Application |
– |
6.67-inch Flexible/Bendable AMOLED Display 1080×2400 MIPI
| Size |
6.67 inch |
|---|---|
| Pixels |
1080 (W) × 2400 (H) |
| Interface | |
| Brightness |
350–700 cd/m² (White) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (Φ=0°/90°/180°/270°) |
| Outline L*W*H |
159.24 × 72.63 × 0.62 mm |
| Active Area L*W |
154.560 × 69.552 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V; ID1 1.8 V; VDD 1.8 V; ELVSS -4.0 to 0 V (typ -3.0 V); DVDD 1.2 V; Touch VCC 3.0–3.5 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
L/R total 3.078 mm (≈1.539 mm each), T/B total 4.680 mm (≈2.340 mm each) |
| Aspect Ratio |
9:20 (1080:2400) |
| Connection Type |
FPC + connector |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
TA067FM01 |
| PPI ( pixels per inch ) |
~395 PPI |
| Application |
– |
6.8 inch 480×1280 Bar TFT LCD High Brightness MIPI Interface Wide Temp
| Weight | 12 kg |
|---|---|
| Size |
6.8 inches |
| Pixels |
480 (RGB) × 1280 |
| Interface | |
| Brightness |
550 cd/m² (typ), 500–600 cd/m² (range) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
TFT LCD |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
70°–80° (CR ≥10, all directions) |
| Outline L*W*H |
205.78 × 67.60 × 4.60 mm (Outline: 205.78 × 67.60; Thickness: 4.6 mm) |
| Active Area L*W |
190.08 × 59.40 mm |
| Supply Voltage |
Logic: 1.8V (IOVCC), 3.3V (VCI); Backlight: 10.4V (typ) |
| Consumption |
IOVCC: 80 mA (typ), VCI: 200 mA (typ) |
| Operating Temperarure |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
~1:2.67 (480×1280 resolution) |
| Connection Type |
FPC (Flexible Printed Circuit) |
| IC package |
Suggested Driver IC: EK79030 |
| Touch Panel | |
| Pixel Pitch |
Same as Pixel Size |
| Sunlight Readable |
– |
| Model |
TM686T40 |
| PPI ( pixels per inch ) |
~185 PPI (calculated) |
| PPI | |
| Application |
6.8-inch rearview mirror TFT LCD module |

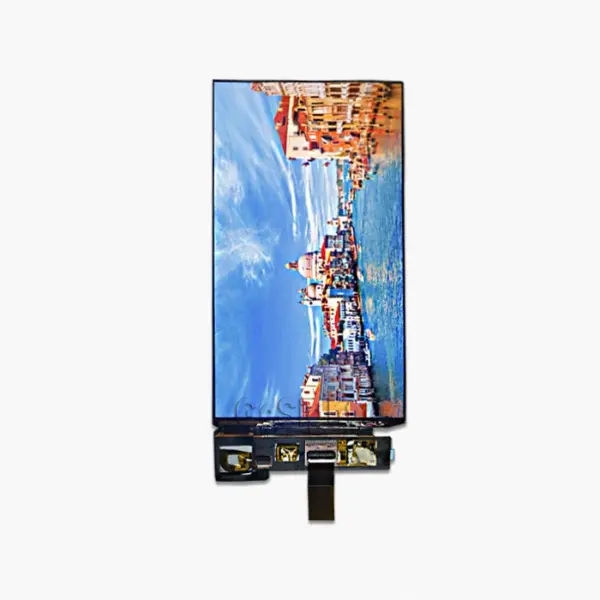

7.0-inch 1080×1920 AMOLED Touch Display
| Size |
7.0 inch |
|---|---|
| Pixels |
1080 × 1920 (FHD) |
| Interface | |
| Brightness |
800 cd/m² (typ, Normal); 1000 cd/m² (typ, HBM) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
50/60/120/165 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (T/B/L/R, CR ≥ 10) |
| Outline L*W*H |
89.13 × 160.91 × 1.095 mm (module, with R.T); 89.1344 × 160.9056 × 0.8 mm (panel outline) |
| Active Area L*W |
87.13 × 154.91 mm (AA) |
| Orientation | |
| Supply Voltage |
VBAT: 3.8–4.5 V; VCC: 3.3 V; IOVCC: 1.8 V |
| Consumption |
4.40 W (typ, Normal); 5.84 W (typ, HBM) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
AA: L/R ≈ 1.0 mm each; T/B ≈ 3.0 mm each |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC connector (FH26-39S-0.3SHW) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
≈ 0.0807 mm |
| Sunlight Readable |
– |
| Model |
PO700FH101GG |
| PPI ( pixels per inch ) |
315 PPI |
| Application |
Folding / Flexible AMOLED module (panel) |
7 Inch 1200 x 1920 TFT Tablet LCD Screen Raspberry Pi
| Size |
7 inch |
|---|---|
| Pixels |
1200 (H) × 1920 (V) (WUXGA) |
| Interface | |
| Brightness |
450 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80/80/80/80 (Typ.)(CR≥10) |
| Outline L*W*H |
97.3 mm (W) × 159.4 mm (H) |
| Active Area L*W |
94.5 mm (W) × 151.2 mm (H) |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDDP) |
| Operating Temperarure |
-10°C ~60°C |
| Storage Temperature |
-30°C ~70°C |
| Aspect Ratio |
5:8 (H:V) |
| Connection Type |
Hirose DF19LA-20P-1H (signal), JST BHR-04VS-1 (backlight) |
| IC package |
COG Built-in ISL97692IRTZ |
| Touch Panel | |
| Sunlight Readable |
Yes |
| Model |
LT070ME05000 |
| PPI ( pixels per inch ) |
323 PPI |
7 Inch 1920×1200 IPS TFT LCD 2000 cd High Brightness
| Size |
7 inch |
|---|---|
| Pixels |
1200 (H) × RGB × 1920 (V) |
| Interface | |
| Brightness |
2000 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black, a-Si TFT / transmissive |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (L/R/U/D) |
| Outline L*W*H |
111.0 × 166.0 × 3.29 mm |
| Active Area L*W |
94.5 × 151.2 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.7–2.0 V, VSP: 4.5–6.0 V, VSN: –6.0 to –4.5 V |
| Consumption |
BL: 390 mA @ 21.7 V (typ) |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
-30 ~ 80 °C |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Aspect Ratio |
16:10 (H:V) |
| Connection Type |
40-pin MIPI |
| IC package |
COG |
| Touch Panel | |
| Pixel Pitch |
0.0996 x 0.0996 mm |
| Sunlight Readable |
Yes (2000 cd/m²) |
| Model |
CXW070WULM006B |
| PPI ( pixels per inch ) |
323 |
7.8 Inch Flexible OLED 1920 x 1440 Bendable Display MIPI
| Size |
7.8 inch |
|---|---|
| Pixels |
1440 × 1920 |
| Interface | |
| Brightness |
300 cd/m² (typical) |
| Manufacturer |
Royole Corporation |
| Display Type |
Flexible OLED |
| Display Mode |
Flexible AMOLED |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80° U / D / L / R (CR ≥ 200) |
| Outline L*W*H |
129.4 × 175.95 × 0.5 mm |
| Active Area L*W |
118.8 × 158.4 mm |
| Build-in Touch IC |
FT3558 |
| Supply Voltage |
VDDI 1.8 V, VCI 3.0 V, AVDD 5 V, ELVDD 5.2 V, ELVSS −2.3 V, LVGL −7 V |
| Consumption |
1.77 W @ 40% APL |
| Operating Temperarure |
-30 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Brightness | |
| Bezel Area (mm) |
Not specified |
| Mass |
– |
| Aspect Ratio |
16:9 (H:V) |
| Connection Type |
FPC Zif |
| IC package |
Silicon substrate (Chip on backside) |
| Sunlight Readable |
Yes |
| Model |
ECX335AF |
| PPI (Pixels Per Inch) |
308 |
7.8-inch Flexible/Bendable AMOLED 1440×1920 Display Module
| Size |
7.8 inch |
|---|---|
| Pixels |
1440 × 1920 |
| Interface | |
| Brightness |
Min 250 cd/m²; Typ 300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (U/D/L/R) @ CR ≥ 200 |
| Outline L*W*H |
129.4 × 175.95 × TBD mm |
| Active Area L*W |
118.8 × 158.4 mm |
| Orientation | |
| Supply Voltage |
Panel driving (Typ): ELVDD 5.2 V; ELVSS -2.3 V; LVGL -7 V; AVDD 5.0 V; VDDI 1.8 V; VCI 3.0 V. Touch driving (Typ): VDD28 2.8 V; IOVCC 1.8 V |
| Consumption |
1.77 W @ 40% APL; (2.91 W @ 300 nits full white) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Calculated (total border): (129.4 – 118.8) = 10.6 mm (W total); (175.95 – 158.4) = 17.55 mm (H total). |
| Aspect Ratio |
4:3 |
| Connection Type |
BTB |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.0825 mm |
| Sunlight Readable |
– |
| Model |
D07802-02 |
| PPI ( pixels per inch ) |
308 |
| Application |
– |
