0.95-inch LTPS AMOLED Display 120×240 SPI
| Size |
0.95 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
88° Up/Down/Right/Left (Cr ≥ 10) |
| Outline L*W*H |
27.35 × 12.8 × 0.78 mm |
| Active Area L*W |
21.6 × 10.8 mm |
| Orientation | |
| Supply Voltage |
VCI_DIS_28: 2.7–3.6 V (typ 2.8); VDDIO: 1.65–3.3 V (typ 1.8); ELVDD: 4.55–4.65 V (typ 4.6); ELVSS: -2.25––2.15 V (typ -2.2) |
| Consumption |
Full white @ 450 nits, 60 Hz (typ current): IVCI_DIS_28 3.2 mA; IVDDIO 1 mA; IELVDD/ELVSS 7 mA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.0 mm; Top/Bottom: 2.875 mm |
| Aspect Ratio |
1:2 |
| Connection Type |
FPC, 30 pins (pin table shows 1–30) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
80 × 80 um |
| Sunlight Readable |
– |
| Model |
TR095A120SPC |
| PPI ( pixels per inch ) |
282.45 PPI |
| Application |
Smart Watch |
1.2-inch Circular 390×390 AMOLED Display
| Size |
1.2 inch |
|---|---|
| Pixels |
390 × 390 |
| Interface | , |
| Brightness |
300 min, 350 typ, nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
33.22 × 34.72 × 0.66 mm |
| Active Area L*W |
30.42 × 30.42 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65 / 1.8 / 1.95 V (min/typ/max); VCI: 3.27 / 3.3 / 3.33 V; ELVDD: 3.27 / 3.3 / 3.33 V; ELVSS: -3.33 / -3.3 / -3.27 V |
| Consumption |
Panel power (full white, 350 nits): 128.7 mW typ; IOLED: 19.5 mA typ; IC Normal: PVCI 5.3 mW typ, PVDDIO 3.5 mW typ; Idle: PVCI 4.5 mW typ, PVDDIO 2.4 mW typ; Sleep: PVCI < 0.075 mW, PVDDIO < 0.1 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Derived from outline vs active: (33.22-30.42)=2.80 mm; (34.72-30.42)=4.30 mm. Per-side bezel: Left/Right 1.40 mm; Top/Bottom 2.15 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 24-pin; recommended connector BM28B0.6-24DP/2-0.35V(51) / BM28B0.6-24DS/2-0.35V(51) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
Derived: 30.42 mm / 390 = 0.0780 mm (78.0 µm) |
| Sunlight Readable |
– |
| Model |
PO120F390MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.39-inch Circular AMOLED Display 454×454
| Size |
1.39 inch |
|---|---|
| Pixels |
454RGB × 454 |
| Interface | , |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
45 Hz (typ), 43–47 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (L/R/U/D, CR≥10) |
| Outline L*W*H |
≤ 42.0 × ≤ 42.0 × 0.733 mm (module outline ≤ φ42; max thickness 0.733 mm MDL) |
| Active Area L*W |
35.412 × 35.412 mm (AA = φ35.412 mm) |
| Orientation | |
| Supply Voltage |
VDDIO: 1.8 V (typ) [1.65–1.95 V]; Vbat: 3.7 V (typ) [2.9–4.8 V] |
| Consumption |
260 mW (typ) @ 100% on, 450 nits, 45 Hz; 38 mW (typ) all pixel off; 1.2 mW (typ) standby (Vci on/Vddio on); < 50 μW standby (Vci off/Vddio on) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
2.275 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
Board to Board Connection |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 µm |
| Sunlight Readable |
– |
| Model |
BO139A454SPI |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.43-inch 466×466 AMOLED Display
| Size |
1.43 inch |
|---|---|
| Pixels |
466 × 466 |
| Interface | |
| Brightness |
700 cd/m² (typ, Ta=25℃, all-white, θ=0) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS Glass |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency fFRM) |
| Viewing Angle Range |
88° (Up/Down/Right/Left, Cr≥200) |
| Outline L*W*H |
44.75 × 44.75 × 2.58 mm |
| Active Area L*W |
36.35 × 36.35 mm |
| Orientation | |
| Supply Voltage |
VCC 2.7–3.6 V; IOVCC 1.65–3.3 V; ELVDD 3.25–3.35 V; ELVSS -3.35–-3.25 V |
| Consumption |
Full white (Sleep out): IVCC 2 mA typ (4 mA max); IIOVCC 1.5 mA typ (3 mA max); IELVDD/ELVSS 13 mA typ (19.5 mA max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
4.20 mm per side |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
TR143R2404A |
| PPI ( pixels per inch ) |
461 PPI |
| Application |
Touch interface pins listed; Touch signals present |

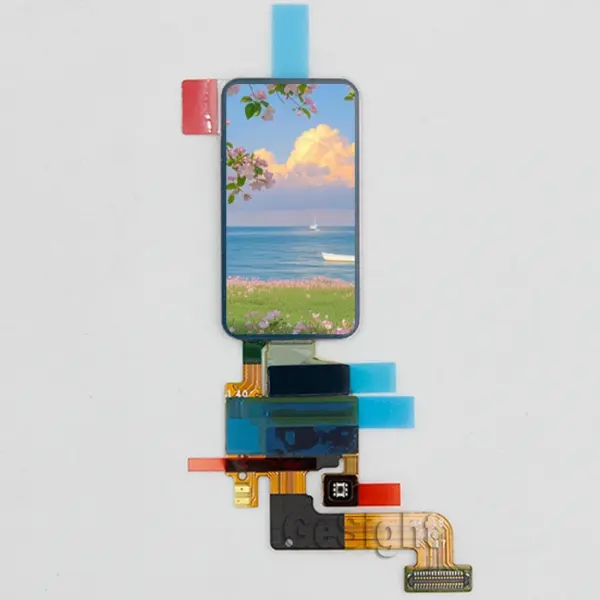

1.47-inch AMOLED Touch Display 194×368
| Size |
1.47 inch |
|---|---|
| Pixels |
194 (W) × 368 (H) (Real RGB arrangement) |
| Interface | , |
| Brightness |
450 nits typ (Luminance: 400 min / 450 typ / 500 max cd/m²) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode); 15 Hz (Idle mode) |
| Viewing Angle Range |
Left/Right/Top/Bottom: 80° min / 85° typ (Cr ≥ 200) |
| Outline L*W*H |
LTPS Glass outline: 19.36 (V) × 36.17 (W) mm; Glass thickness (LTPS/Encap./POL): 0.2/0.3/0.147 mm |
| Active Area L*W |
17.46 × 33.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (3.2–3.4 V); VDDIO 1.8 V (1.7–1.9 V); ELVDD 3.3 V (3.2–3.4 V); ELVSS -3.3 V (-3.4–-3.2 V); TP_VDD 2.8 V (typ); TP_OPT_VDDIO 1.8 V (typ) |
| Consumption |
Normal: 110 typ / 130 max mW (450 nits @ 60 Hz); Idle: 6.5 typ / 8.2 max mW (50 nits @ 15 Hz); Standby: 50 µW max |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
1.90 mm (V total = 19.36 − 17.46); 3.05 mm (W total = 36.17 − 33.12) |
| Aspect Ratio |
194:368 |
| Connection Type |
FPC (Main FPC Bonding PAD), 34 pins |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
90 × 90 µm |
| Sunlight Readable |
– |
| Model |
E1473AC63.B |
| PPI ( pixels per inch ) |
283 PPI |
| Application |
Display/Touch terminals for Smart Watch |
1.63-inch AMOLED Display 320×320 MIPI DSI
| Size |
1.63 inch |
|---|---|
| Pixels |
320 x RGB x 320 |
| Interface | |
| Brightness |
300 nits (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode) |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
32.08 (H) x 36.48 (V) x 0.7 (T) mm (cell + foam) |
| Active Area L*W |
29.28 (H) x 29.28 (V) mm |
| Orientation | |
| Supply Voltage |
IOVDD 1.65–1.95 V (Typ. 1.8 V); VDD 2.8–3.1 V (Typ. 3.0 V); ELVDD 4.57–4.63 V (Typ. 4.60 V); ELVSS -3.35 to -3.45 V (Typ. -3.40 V) |
| Consumption |
Panel Power 138.4 mW (Full white, 300 nits, 60 Hz CMD mode test condition); Idle PVDD 12.0 mW (30 Hz CMD mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 20 pins; Recommended connector: AXE520127 (Panasonic) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
H163QLN01.1 |
| PPI ( pixels per inch ) |
278 PPI |
| Application |
– |
1.78-inch 368×448 AMOLED Display
| Size |
1.78 inch |
|---|---|
| Pixels |
368(W) × 448(H) (Real RGB) |
| Interface | , |
| Brightness |
350 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode) |
| Viewing Angle Range |
80° (Top/Bottom/Right/Left, CR ≥ 1000) |
| Outline L*W*H |
LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm |
| Active Area L*W |
28.7 × 34.94 mm |
| Orientation | |
| Supply Voltage |
Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V) |
| Consumption |
Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 (368:448) |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
78 × 78 μm |
| Sunlight Readable |
– |
| Model |
ED178AM368MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Smart Watch |
1.91-inch 240×536 AMOLED Long Strip Shape
| Size |
1.91 inch |
|---|---|
| Pixels |
240(W) × 536(H) |
| Interface | |
| Brightness |
350 cd/m² (Typ., Br0, θ=0°); 315 cd/m² (Min.); 385 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode, test condition); 15 Hz (Idle mode, test condition) |
| Viewing Angle Range |
ALL angle: θ = 0° to 88°, φ = 0° to 360° |
| Outline L*W*H |
51.32 ± 0.15 mm × 22.40 ± 0.15 mm × 0.753 ± 0.10 mm (module outline / side view) |
| Active Area L*W |
44.22 mm × 19.80 mm |
| Orientation | |
| Supply Voltage |
VBAT: 2.5 / 3.7 / 4.5 V (Min/Typ/Max); VDDIO: 1.65 / 1.8 / 1.95 V; VCI: 2.65 / 2.8 / 3.6 V |
| Consumption |
Ivbat: 42 mA (Typ), 50.4 mA (Max); Ivddio: 6.5 mA (Typ), 7.8 mA (Max); Ivci: 12 mA (Typ), 14 mA (Max) (Normal mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right bezel: (22.40−19.80)/2 = 1.30 mm each; Top/Bottom bezel: (51.32−44.22)/2 = 3.55 mm each |
| Aspect Ratio |
240:536 |
| Connection Type |
BTB connector, 51 pins, 0.4 mm pitch (BM25R-0.4DP-0.35V(51)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
82.5 × 82.5 μm |
| Sunlight Readable |
– |
| Model |
E191AM8M0 |
| PPI ( pixels per inch ) |
307 PPI |
| Application |
Smart Phone |

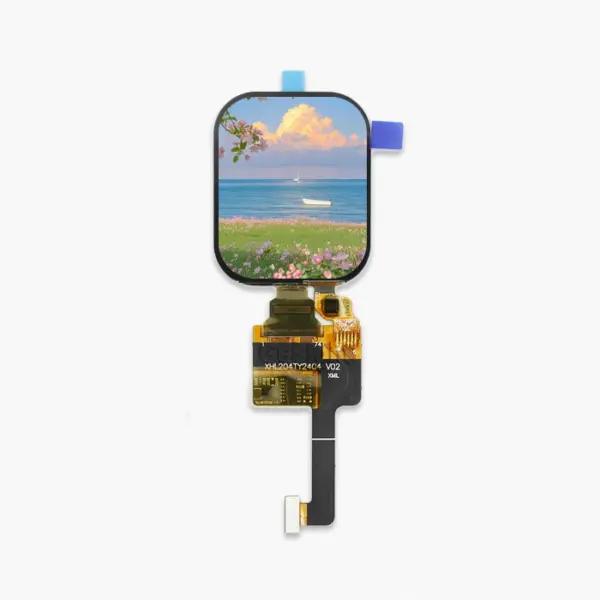

2.04-inch 368×448 AMOLED Wearable Display
| Size |
2.04 inch |
|---|---|
| Pixels |
368 × 448 |
| Interface | |
| Brightness |
700 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency) |
| Viewing Angle Range |
Up/Down/Right/Left: 88 deg (Cr ≥ 200) |
| Outline L*W*H |
44.46 × 34.64 × 2.58 mm |
| Active Area L*W |
39.98 × 33.74 mm |
| Orientation | |
| Supply Voltage |
VCC: 2.7–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V); ELVDD: 3.25–3.35 V (typ. 3.3 V); ELVSS: -3.35–-3.25 V (typ. -3.3 V) |
| Consumption |
IVCC: 2 mA (typ., full white, sleep out); IIOVCC: 1.5 mA (typ.); IELVDD/ELVSS: 13 mA (typ.) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
PO204RT448S |
| PPI ( pixels per inch ) |
284 PPI |
| Application |
Smart Watch |
2.4-inch 450×600 AMOLED Display Module
| Size |
2.4 inch |
|---|---|
| Pixels |
450RGB × 600 |
| Interface | , , |
| Brightness |
800 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Left/Right/Top/Bottom, CR ≥ 10) |
| Outline L*W*H |
38.72 × 51.56 × 0.5 mm |
| Active Area L*W |
36.72 × 48.96 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.7–3.6 V (typ. 3.3 V); VDDIO: 1.65–3.3 V (typ. 1.8 V); ELVDD: 2.0–6.0 V (typ. 3.6 V); ELVSS: -4.7–-0.4 V (typ. -3.6 V) |
| Consumption |
TBD (spec lists power as TBD; IELVSS typ. 72.2 mA in on-mode condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
3:4 |
| Connection Type |
FPC (mating connector: Molex 502598-4591) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
81.6 um |
| Sunlight Readable |
– |
| Model |
B024JMV-N50-6DP0 |
| PPI ( pixels per inch ) |
311 PPI |
| Application |
Sports camera; Smart home |
2.6-inch 240×320 AMOLED Display Module
| Size |
2.6 inch |
|---|---|
| Pixels |
240 × RGB × 320 |
| Interface | |
| Brightness |
200 cd/m² (Typ), 170 cd/m² (Min), 230 cd/m² (Max) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
80 Hz (Frame Rate setting in test condition) |
| Viewing Angle Range |
160° (Min), 170° (Typ) |
| Outline L*W*H |
44.7 × 62.2 × 1.65 mm (Typ) |
| Active Area L*W |
39.60 × 52.48 mm |
| Orientation | |
| Supply Voltage |
AR_VDD = +4.6 V; AR_VSS = -4.4 V; VCI = 2.5–3.3 V; IOVCC (VDD3) = 1.65–3.3 V |
| Consumption |
260 mW (Typ), 300 mW (Max) @ 30% pixels on |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
L/R = 2.55 mm; T/B = 4.86 mm (calculated from Outline vs Active Area) |
| Aspect Ratio |
3:4 (240:320) |
| Connection Type |
– |
| IC package |
COG assembly |
| Touch Panel | |
| Pixel Pitch |
0.055 × 0.164 mm |
| Sunlight Readable |
– |
| Model |
AMS260DN01 |
| PPI ( pixels per inch ) |
154 PPI |
| Application |
Cell phone etc. |
2.69-inch 800×600 AMOLED Display Module
| Size |
2.69 inch |
|---|---|
| Pixels |
800 × 600 |
| Interface | |
| Brightness |
420 nit (Typ.), 380 nit (Min.), 460 nit (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ.), 58–62 Hz |
| Viewing Angle Range |
≥80° (CR ≥ 1600) |
| Outline L*W*H |
56.6 × 47.25 × 0.505 mm |
| Active Area L*W |
54.6 × 40.95 mm |
| Orientation | |
| Supply Voltage |
VCI 2.7–3.6 V (Typ. 3.0 V); VDDIO 1.62–1.98 V (Typ. 1.8 V); AVDD 6.8–7.8 V (Typ. 6.8 V); ELVDD 4.6 V; ELVSS -3.0 to -1.4 V (Typ. -2.0 V) |
| Consumption |
TBD |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
4:3 |
| Connection Type |
FPC (Recommended connector: Molex 5052743040) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
68.25 × 68.25 µm |
| Sunlight Readable |
– |
| Model |
BO269FM800 |
| PPI ( pixels per inch ) |
372 PPI |
| Application |
Smart Mobile Phone |
2.95-inch 1080×1200 AMOLED Near-Eye Display
| Size |
2.95 inch |
|---|---|
| Pixels |
1080(W) × 1200(H) (RGB) |
| Interface | |
| Brightness |
100 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz |
| Viewing Angle Range |
80° (U/D/L/R, CR ≥ 200) |
| Outline L*W*H |
52.91 × 62.58 × 0.65 mm (Including Cushion) |
| Active Area L*W |
50.11 × 55.68 mm |
| Orientation | |
| Supply Voltage |
ELVDD: 4.6 V (Typ.); ELVSS: -2.5 V (Typ.); VSP: 6.4 V (Typ., 6.1–6.5 V); VDDI: 1.8 V (Typ., 1.65–3.6 V); VCI: 3.3 V (Typ., 2.5–4.8 V) |
| Consumption |
TBD (IELVDD/IELVSS, IVCI, IVDDIO, IVSP) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
Derived from outline & active area: (52.91−50.11)/2 = 1.40 mm; (62.58−55.68)/2 = 3.45 mm |
| Aspect Ratio |
9:10 (1080:1200) |
| Connection Type |
FPC (39 pins shown in I/O connection table) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
23.2 × 46.4 μm |
| Sunlight Readable |
– |
| Model |
EDO295FM01 |
| PPI ( pixels per inch ) |
547 PPI |
| Application |
VR (Virtual Reality) |

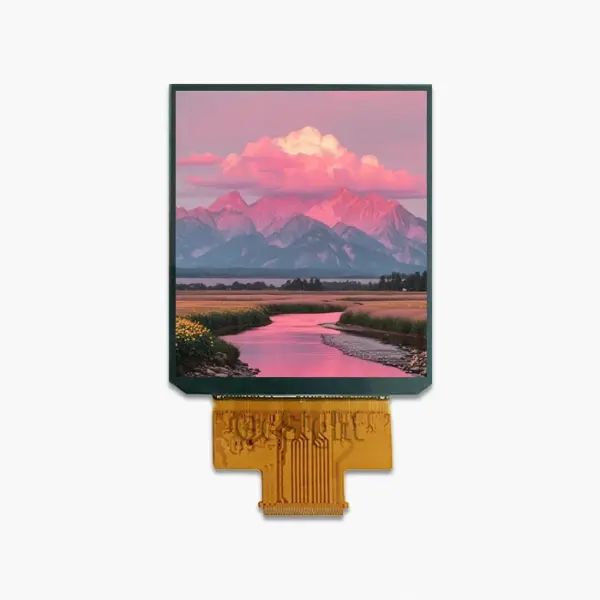

3.5-inch 1440×1600 AMOLED Microdisplay
| Size |
3.5 inch |
|---|---|
| Pixels |
1440(H) × 1600(V) |
| Interface | |
| Brightness |
166 cd/m² typ (130 min, 200 max), White Mode |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz (typ) |
| Viewing Angle Range |
90° ± 30° (Up/Down/Left/Right) |
| Outline L*W*H |
100.91(H) × 62.472(W) × 0.846(T) mm |
| Active Area L*W |
66.0(H) × 59.4(W) mm |
| Orientation | |
| Supply Voltage |
VDD3: 1.8 V typ (1.65–1.95 V); VCI: 3.3 V typ (2.9–4.8 V); VBAT: 3.8 V typ; VLIN(AVDD): 7.3 V typ; ELVDD: 4.6 V typ; ELVSS: variable (-5.4 V to -1.4 V) |
| Consumption |
IVCI: 3.0 mA typ (6.5 mA max); IVDD3: 40 mA typ (55 mA max); IBAT: 70 mA typ (85 mA max) @ 90 Hz, white pattern |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +75 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
9:10 (1440:1600) |
| Connection Type |
ZIF contact pads |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
41.25 µm × 41.25 µm |
| Sunlight Readable |
– |
| Model |
AMS350MU04 |
| PPI ( pixels per inch ) |
615 PPI |
| Application |
QHD HMD VR |

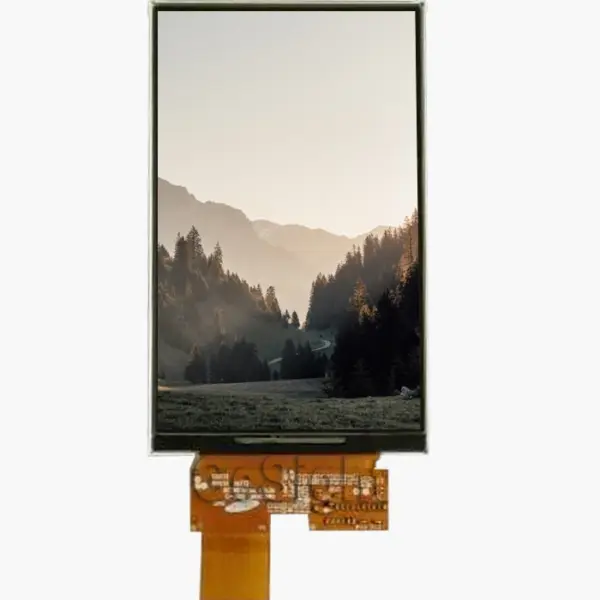

3.7-inch 480×800 AMOLED Display (RGB-24bit + 3-Wire SPI)
| Size |
3.69 inch |
|---|---|
| Pixels |
480 × 800 |
| Interface | , |
| Brightness |
250 cd/m² (Typ.), 200 cd/m² (Min.), 300 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
±30° (inspection tolerance) |
| Outline L*W*H |
90.0 × 53.94 × 1.5 mm |
| Active Area L*W |
80.4 × 48.24 mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.65–3.3 V (Typ. 1.8 V); VCI: 2.5–3.3 V (Typ. 2.9 V); VBAT: 2.5–4.5 V (Typ. 3.8 V) |
| Consumption |
IBAT: 320 mA (Typ.), 380 mA (Max.) @ 250 cd/m², full white, VBAT=3.8 V |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +85 °C |
| Bezel Area (mm) |
Left/Right: 2.85 mm; Top/Bottom: 4.80 mm (calculated from outline vs active area) |
| Aspect Ratio |
3:5 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1005 × 0.1005 mm |
| Sunlight Readable |
– |
| Model |
AMS369FG06-0 |
| PPI ( pixels per inch ) |
253 PPI |
| Application |
– |
3.81-inch 1080×1200 90Hz AMOLED Display
| Size |
3.81 inch |
|---|---|
| Pixels |
1080(H) × 1200(V) |
| Interface | |
| Brightness |
100 nits (Typ.), 80 nits (Min.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz |
| Viewing Angle Range |
Top/Bottom/Left/Right: 80 Deg. (CR > 480) |
| Outline L*W*H |
67.60 (H) × 78.95 (V) × 1.14 (T) mm |
| Active Area L*W |
64.80 (H) × 72.0 (V) mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.8 V (Typ., 1.65–1.95 V); VCI: 3.0 V (Typ., 2.8–3.2 V); OVDD: 4.6 V; OVSS: -2.9 V; AVDD: 5.8 V |
| Consumption |
Normal mode current (Typ.): IAVDD 15 mA; IVCI 3 mA; IIOVCC 38 mA; IOVDD 16 mA; IOVSS 16 mA (Condition: 25℃, 100 nits White) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.40 mm each; Top/Bottom: 3.48 mm each |
| Aspect Ratio |
9:10 |
| Connection Type |
39-pin FPC connector (Recommended: Hirose FH35C-39S-0.3HW(50)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
60 um |
| Sunlight Readable |
– |
| Model |
H381DLN01.0 |
| PPI ( pixels per inch ) |
424 PPI |
| Application |
– |
3.92-inch 1080×1240 AMOLED Touch Display
| Size |
3.92 inch |
|---|---|
| Pixels |
1080(H) × 1240(V) |
| Interface | |
| Brightness |
520 cd/m² (typ, white); 600 cd/m² (typ, HBM) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (typ) (Frame Frequency Ff: 57 / 60 / 63 Hz) |
| Viewing Angle Range |
85°/85°/85°/85° (U/D/R/L) |
| Outline L*W*H |
67.248 × 79.874 × 0.699 mm (W × H × T) |
| Active Area L*W |
65.448 × 75.144 mm (W × H) |
| Orientation | |
| Supply Voltage |
VDDIO 1.8 V (typ); VCI 3.0 V (typ); AVDD 7.0 V; ELVDD 4.6 V; ELVSS -3.0 V; TP_DVDD 1.8 V (typ); TP_AVDD 3.3 V (typ) |
| Consumption |
Total 1103.9 mW (typ), 1578.2 mW (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
W bezel total 1.800 mm (0.900 mm each side); H bezel total 4.730 mm (~2.365 mm top/bottom) |
| Aspect Ratio |
27:31 |
| Connection Type |
BM23PF0.8-44DP-0.35V(43) |
| IC package |
Driver IC: COG package; Touch IC: BGA116 (6×6×0.5 mm) |
| Touch Panel | |
| Pixel Pitch |
0.0606 × 0.0606 mm |
| Sunlight Readable |
– |
| Model |
VSX392A101GG |
| PPI ( pixels per inch ) |
419 PPI |
| Application |
– |
4.3-inch 540×960 AMOLED Display
| Size |
4.3 inch |
|---|---|
| Pixels |
540(RGB) × 960 |
| Interface | , |
| Brightness |
Recommend 250 nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
OLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
– |
| Outline L*W*H |
57.26 × 103.87 × 0.77 mm |
| Active Area L*W |
53.46(H) × 95.04(V) mm |
| Orientation | |
| Supply Voltage |
VDDIO: typ 1.80 V (min 1.65, max 3.30); VDD: typ 3.00 V (min 2.80, max 3.20); OVDD: typ 4.60 V (min 4.55, max 4.65); OVSS: typ -4.40 V (min -4.33, max -4.47) |
| Consumption |
Panel Power (P_EL): typ 405.0 mW, max 1350.0 mW; Panel Current (I_EL): typ 64.2 mA, max 150.0 mA; IC P_VDD: min 81.8 mW, typ 102.3 mW, max 122.7 mW; IC I_VDD: min 26.6 mA, typ 33.3 mA, max 39.9 mA; IC P_VDDIO: min 18.5 uW, typ 23.2 uW, max 27.8 uW; IC I_VDDIO: min 9.8 uA, typ 12.3 uA, max 14.7 uA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +105 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
9:16 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.033(H) × 0.099(V) mm |
| Sunlight Readable |
– |
| Model |
AUO429FN01P |
| PPI ( pixels per inch ) |
256 PPI |
| Application |
– |
Gesight Technology offers premium AMOLED displays at wholesale prices, directly from the factory. These displays feature high brightness and advanced engineering support, ideal for various applications.
AMOLED Display
What Is an AMOLED Display?
AMOLED stands for Active Matrix Organic Light Emitting Diode, a type of OLED display that provides full-color output, high contrast, and fast response times. These displays are widely used in smartphones, tablets, wearables, and embedded devices, offering vivid visuals, deep blacks, and energy-efficient performance compared to traditional LCD panels.
What Sizes and Resolutions Are Available for AMOLED Modules?
AMOLED modules range from small 3.7-inch displays to large 10.5-inch screens. Resolutions vary from 480×800 up to 2560×1600, supporting HD, Full HD, and ultra-high-definition visuals. This variety ensures suitability for wearables, smartphones, tablets, gaming devices, and professional monitors, meeting diverse application needs.
Do AMOLED Displays Support Touch Functionality?
Yes, many AMOLED modules integrate capacitive touch functionality. Touch-enabled AMOLED displays are ideal for smartphones, tablets, medical devices, and interactive embedded systems, providing smooth, responsive input while maintaining high brightness, color accuracy, and visual clarity.
Which Interfaces Are Commonly Used with AMOLED Displays?
AMOLED modules support interfaces such as MIPI and SPI for high-speed data transfer and easy integration. These interfaces allow efficient connectivity in compact embedded devices, industrial panels, consumer electronics, and interactive touch systems, ensuring smooth performance and compatibility with modern controllers.
What Are the Advantages of AMOLED Over LCD Panels?
AMOLED displays offer higher contrast, deeper blacks, faster response times, and lower power consumption than traditional LCDs. Each pixel emits light individually, enabling vivid visuals and energy efficiency, making AMOLED ideal for mobile devices, wearables, and premium consumer electronics.
Can AMOLED Displays Be Customized for OEM/ODM Applications?
Yes, OEM/ODM customization includes size, resolution, touch integration, interface type, and panel finish. Clients can receive tailored AMOLED solutions for specific industrial, medical, automotive, or consumer applications, ensuring compatibility, optimal performance, and enhanced user experience.
Which Industries Commonly Use AMOLED Displays?
AMOLED displays are widely used in smartphones, tablets, wearables, VR devices, automotive dashboards, medical equipment, and embedded systems. Their high resolution, vibrant colors, and responsive touch functionality make them suitable for both consumer electronics and professional industrial applications.
How Is Quality and Reliability Ensured for AMOLED Modules?
Quality is ensured through rigorous testing, high-grade components, and controlled production processes. Environmental, thermal, and electrical tests verify durability, reliability, and consistent performance. Automated production lines and strict quality standards provide scalable and long-lasting AMOLED displays for global industrial, automotive, and consumer markets.
