1.39-inch Flexible/Bendable OLED Display 400×400 MIPI
| Size |
1.39 inch |
|---|---|
| Pixels |
400 × 400 |
| Interface | |
| Brightness |
300 cd/m² (typ), 250 cd/m² (min) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED ,Flexible OLED |
| Display Mode |
AMOLED (LTPS-AMOLED) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Top 80° / Bottom 80° / Left 80° / Right 80° (CR > 1600) |
| Outline L*W*H |
38.6 (H) × 40.5 (V) × 0.7 typ, 0.8 max (T), w/o FPCa (mm) |
| Active Area L*W |
Ø35.4 mm (Diameter) |
| Orientation | |
| Supply Voltage |
VVCI: 2.7–3.6 V (typ 2.8 V); VDDIO: 1.65–3.3 V (typ 1.8 V); ELVDD: 4.55–4.65 V (typ 4.6 V); ELVSS: −2.35 to −2.45 V (typ −2.4 V) |
| Consumption |
Current (typ) at VDDIO=1.8 V, VCI=2.8 |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 (400×400) |
| Connection Type |
FPCa; FPCA recommended connector: Molex 504248-2410 (24 pins); Main board recommended connector: Molex 504208-2410 |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.0885 (H) × 0.0885 (V) mm |
| Sunlight Readable |
– |
| Model |
PO139FN01F |
| PPI ( pixels per inch ) |
287 PPI |
| Application |
– |
1.5-inch Flexible/Bendable OLED Display 120×240 SPI/MIPI
| Size |
1.5 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | , |
| Brightness |
350 cd/m² typ (300 cd/m² min @ θ=0°) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Top/Bottom/Left/Right, condition CR > 1600) |
| Outline L*W*H |
20.12 × 38.94 × 0.71 mm (typ, Module Size w/o COF & FPCa & CAF; Thickness typ) |
| Active Area L*W |
16.92 × 33.84 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.8 V typ (2.7–3.6 V); VDDIO: 1.8 V typ (1.65–3.3 V); ELVDD: 4.6 V typ (4.55–4.65 V); ELVSS: −2.4 V typ (−2.35 to −2.45 V) |
| Consumption |
110 mW typ; IC: 14.24 mW typ |
| Operating Temperarure |
−20 to +60 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
H bezel total 3.20 mm (≈1.60 mm per side); V bezel total 5.10 mm (≈2.55 mm per side) |
| Aspect Ratio |
1:2 (120:240) |
| Connection Type |
I-PEX connector: 20641-024E (module); mating/user connector: 20642-024E |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.141(H) × 0.141(V) mm |
| Sunlight Readable |
– |
| Model |
GO15F120SPI |
| PPI ( pixels per inch ) |
180 PPI |
| Application |
Smart bracelet |

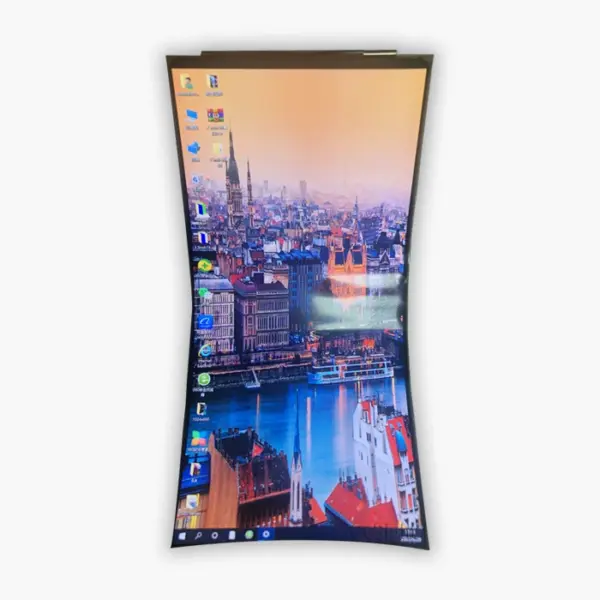

5.1-inch Flexible/Bendable OLED Display 720×1520 MIPI DSI
| Size |
5.1 inch |
|---|---|
| Pixels |
720 × 1520 |
| Interface | |
| Brightness |
390 cd/m² (typ, with CG, center); 886 cd/m² (typ, without CG, center) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Active matrix AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left: 80° (typ) @ CR ≥ 10 (min 75°) |
| Outline L*W*H |
70.78 × 151.31 × 1.343 mm (module outline × total thickness) |
| Active Area L*W |
55.404 × 116.964 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.62–1.98 V; VCI: 2.60–3.60 V; ELVDD: 4.40–4.80 V; ELVSS: −5.00 to −1.40 V; VCC (TSP): 2.7–3.6 V; AVDD: 5.40–7.60 V |
| Consumption |
Display (Full White, 886 nit w/o CG): VCI 3.5 mA (typ), VDDIO 22.0 mA (typ), AVDD 13.5 mA (typ), Panel EL 147 mA (typ); Touch power: Active 49.5 mW, Standby 4.29 mW, Sleep 409 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right 1.10 mm each, Top/Bottom 1.80 mm each |
| Aspect Ratio |
19:9 |
| Connection Type |
Board-to-board connector (Recommended: AXE640124); Touch connector type: FOF |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
76.95 × 76.95 µm |
| Sunlight Readable |
– |
| Model |
BF051FBM-AK0- |
| PPI ( pixels per inch ) |
329.8 PPI |
| Application |
Smart Mobile Phone |

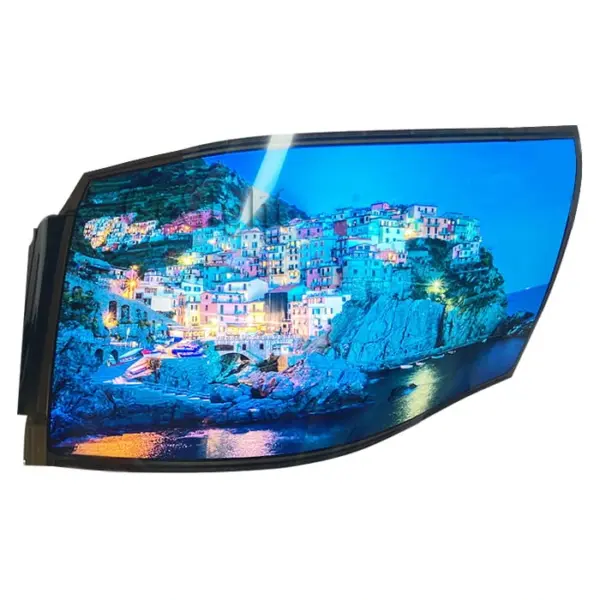

5.99-inch Flexible/Bendable OLED Display 1080×2160 MIPI DSI
| Size |
5.99 inch |
|---|---|
| Pixels |
1080 × 2160 |
| Interface | |
| Brightness |
390 cd/m² (typ, Normal / W L255); 351 min, 429 max |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Color active matrix AMOLED module (LTPS TFT) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left, CR ≥ 10: 80° (typ), 75° (min) |
| Outline L*W*H |
71.35 × 150.42 mm; Total thickness: 1.416 mm |
| Active Area L*W |
68.04 × 136.08 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.60–3.60 V (typ 3.00 V); VDDIO: 1.62–1.98 V (typ 1.80 V); AVDD: 5.40–7.70 V (typ 6.80 V); ELVDD: 4.40–4.80 V (typ 4.60 V); ELVSS: -5.00 to -1.40 V (typ -2.40 V); TSP VCC: 2.7–3.6 V |
| Consumption |
VCI 2.0 mA typ; VDDIO 30 mA typ; AVDD 20 mA typ; Panel EL 220 mA typ. Display sleep-in: VCI 0.1 mA typ; VDDIO 1.5 mA typ. Touch power: Active 82 mW; Standby 33 mW; Sleep 165 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
18:9 |
| Connection Type |
Main FPC, B-to-B contact pads; recommended connector: 24-5857-048 |
| IC package |
GT9286-BGA |
| Touch Panel | |
| Pixel Pitch |
63 µm |
| Sunlight Readable |
– |
| Model |
BO599FF2KM |
| PPI ( pixels per inch ) |
403 ppi |
| Application |
Smart Mobile Phone |

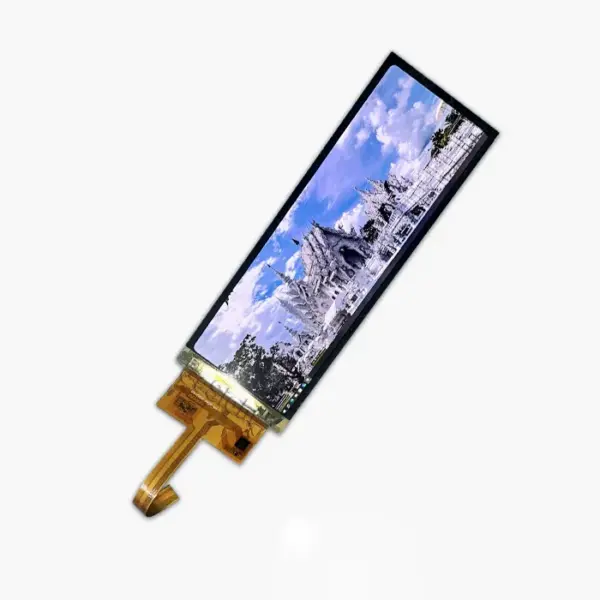

6.52-inch Flexible/Bendable OLED Display 2520×840 MIPI DSI
| Size |
6.52 inch |
|---|---|
| Pixels |
2520 × 840 (SPR) |
| Interface | |
| Brightness |
430 nits (typ, normal mode); 700 nits (typ, HBM mode) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz / 90 Hz |
| Viewing Angle Range |
Full viewing angle; detailed angles TBD (Top/Bottom/Right/Left, CR > 10) |
| Outline L*W*H |
159.472 × 54.379 × 1.0 mm (H max; outline is “MOD W/O CG”) |
| Active Area L*W |
157.1976 × 52.3992 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65–1.95 V; VCI: 2.65–4.8 V; AVDD: 6.0–8.0 V; DVDD: 1.10–1.23 V; ELVDD: 4.6–5.0 V; ELVSS: -5.4–-1.4 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Approx. 0.99 mm (left/right) & 1.14 mm (top/bottom), computed from Outline vs Active Area |
| Aspect Ratio |
27:9 |
| Connection Type |
40-pin connector; connector model: BM035-I40-C08 |
| IC package |
COP (Driver IC location: COP) |
| Touch Panel | |
| Pixel Pitch |
0.06238 mm |
| Sunlight Readable |
– |
| Model |
PO652F2K |
| PPI ( pixels per inch ) |
407.41 PPI |
| Application |
– |

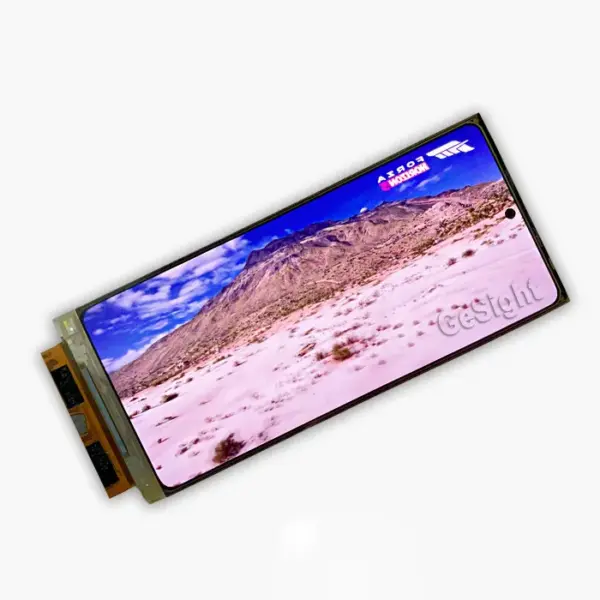

6.67-inch Flexible/Bendable AMOLED Display 1080×2400 MIPI
| Size |
6.67 inch |
|---|---|
| Pixels |
1080 (W) × 2400 (H) |
| Interface | |
| Brightness |
350–700 cd/m² (White) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (Φ=0°/90°/180°/270°) |
| Outline L*W*H |
159.24 × 72.63 × 0.62 mm |
| Active Area L*W |
154.560 × 69.552 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V; ID1 1.8 V; VDD 1.8 V; ELVSS -4.0 to 0 V (typ -3.0 V); DVDD 1.2 V; Touch VCC 3.0–3.5 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
L/R total 3.078 mm (≈1.539 mm each), T/B total 4.680 mm (≈2.340 mm each) |
| Aspect Ratio |
9:20 (1080:2400) |
| Connection Type |
FPC + connector |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
TA067FM01 |
| PPI ( pixels per inch ) |
~395 PPI |
| Application |
– |

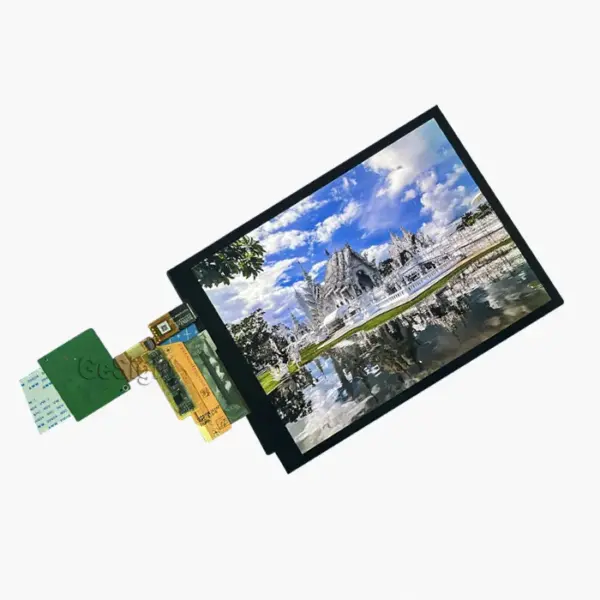

7.8 Inch Flexible OLED 1920 x 1440 Bendable Display MIPI
| Size |
7.8 inch |
|---|---|
| Pixels |
1440 × 1920 |
| Interface | |
| Brightness |
300 cd/m² (typical) |
| Manufacturer |
Royole Corporation |
| Display Type |
Flexible OLED |
| Display Mode |
Flexible AMOLED |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80° U / D / L / R (CR ≥ 200) |
| Outline L*W*H |
129.4 × 175.95 × 0.5 mm |
| Active Area L*W |
118.8 × 158.4 mm |
| Build-in Touch IC |
FT3558 |
| Supply Voltage |
VDDI 1.8 V, VCI 3.0 V, AVDD 5 V, ELVDD 5.2 V, ELVSS −2.3 V, LVGL −7 V |
| Consumption |
1.77 W @ 40% APL |
| Operating Temperarure |
-30 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Brightness | |
| Bezel Area (mm) |
Not specified |
| Mass |
– |
| Aspect Ratio |
16:9 (H:V) |
| Connection Type |
FPC Zif |
| IC package |
Silicon substrate (Chip on backside) |
| Sunlight Readable |
Yes |
| Model |
ECX335AF |
| PPI (Pixels Per Inch) |
308 |

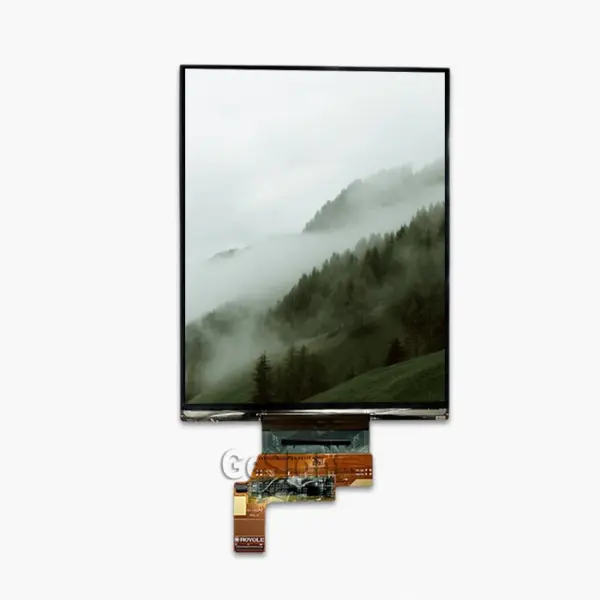

7.8-inch Flexible/Bendable AMOLED 1440×1920 Display Module
| Size |
7.8 inch |
|---|---|
| Pixels |
1440 × 1920 |
| Interface | |
| Brightness |
Min 250 cd/m²; Typ 300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (U/D/L/R) @ CR ≥ 200 |
| Outline L*W*H |
129.4 × 175.95 × TBD mm |
| Active Area L*W |
118.8 × 158.4 mm |
| Orientation | |
| Supply Voltage |
Panel driving (Typ): ELVDD 5.2 V; ELVSS -2.3 V; LVGL -7 V; AVDD 5.0 V; VDDI 1.8 V; VCI 3.0 V. Touch driving (Typ): VDD28 2.8 V; IOVCC 1.8 V |
| Consumption |
1.77 W @ 40% APL; (2.91 W @ 300 nits full white) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Calculated (total border): (129.4 – 118.8) = 10.6 mm (W total); (175.95 – 158.4) = 17.55 mm (H total). |
| Aspect Ratio |
4:3 |
| Connection Type |
BTB |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.0825 mm |
| Sunlight Readable |
– |
| Model |
D07802-02 |
| PPI ( pixels per inch ) |
308 |
| Application |
– |

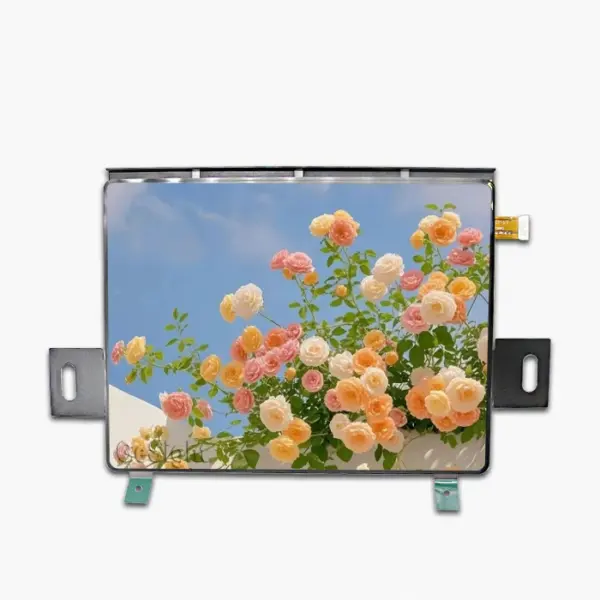

8.01-inch 2480×1860 Flexible/Bendable AMOLED Display
| Size |
8.01 inch |
|---|---|
| Pixels |
2480 × 1860 (SPR) |
| Interface | , |
| Brightness |
430 nits (typ, complete machine); 600 nits (HBM typ, complete machine) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left: CR @ 80 degree = 1000 : 1 |
| Outline L*W*H |
165.89 × 126.12 × 0.778 mm (typ) |
| Active Area L*W |
162.688 × 122.016 mm |
| Orientation | |
| Supply Voltage |
VCI 3.0 V (typ); VDDIO 1.8 V (typ); AVDD 7.6 V (typ); ELVDD 4.6 V (typ); ELVSS: Normal -3.3 V / HBM -4.0 V / AOD -2 V |
| Consumption |
Display current (typ, 60 Hz, white pattern): Normal/430 nits — AVDD 38.08 mA; VCI 10.58 mA; VDDIO 117.97 mA; ELVDD 451.78 mA; ELVSS 423.01 mA. HBM/600 nits — AVDD 37.48 mA; VCI 10.52 mA; VDDIO 118.73 mA; ELVDD 619.09 mA; ELVSS 618.89 mA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
long-side bezel 1.601 mm each side; short-side bezel 2.052 mm each side |
| Aspect Ratio |
4:3 |
| Connection Type |
FPC connector; Connector Type: 5052744042 |
| IC package |
Driver IC: COP; Touch IC: FPC |
| Touch Panel | |
| Pixel Pitch |
0.0656 mm |
| Sunlight Readable |
– |
| Model |
PF801FM2480C |
| PPI ( pixels per inch ) |
387.0 PPI |
| Application |
Folding / Flexible AMOLED module (panel) |

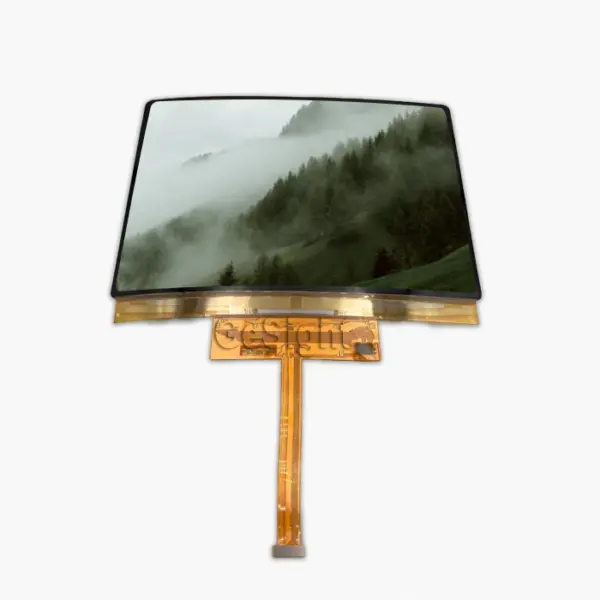

8.01-inch Flexible/Bendable AMOLED Display 2480×1860 MIPI
| Size |
8.01 inch |
|---|---|
| Pixels |
2480 × 1860 (2K+) |
| Interface | , |
| Brightness |
Typ 430 nits (after lamination); Typ 500 cd/m² (before lamination); HBM Typ 700 nits |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Full viewing angle; TBD (Top/Bottom/Right/Left, CR > 10) |
| Outline L*W*H |
165.688 × 125.416 × TBD mm |
| Active Area L*W |
162.688 × 122.016 mm |
| Orientation | |
| Supply Voltage |
VDDIO 1.65–1.95 V; VCI 2.65–4.8 V; AVDD 6.0–8.0 V; DVDD 1.1–1.23 V; ELVDD 4.6–5.0 V; ELVSS -5.4–-1.4 V |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
1.5 mm (L-side) / 1.7 mm (W-side) |
| Aspect Ratio |
4:3 |
| Connection Type |
BM035-I40-C08 |
| IC package |
Driver IC: COP; Touch IC: FPC |
| Touch Panel | |
| Pixel Pitch |
0.0656 mm |
| Sunlight Readable |
– |
| Model |
PF801FM2480F |
| PPI ( pixels per inch ) |
387 PPI |
| Application |
– |

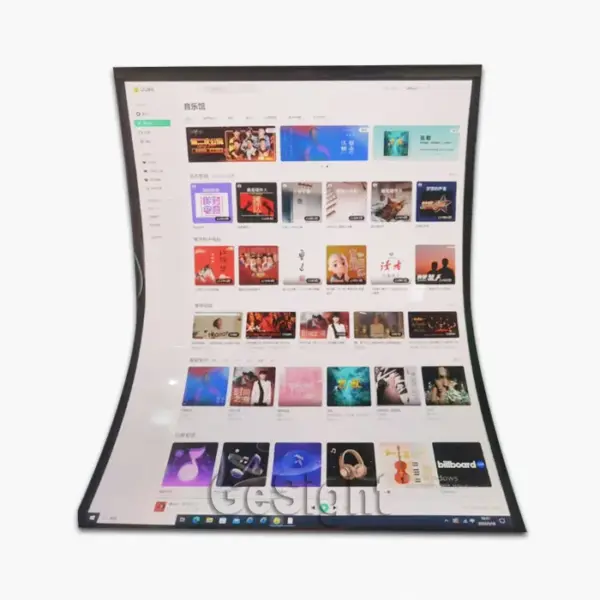

13.3 Inch 1536 x 2048 Rollable OLED Touch Panel
| Size |
13.3 inch |
|---|---|
| Pixels |
1536 x 2048 |
| Interface | |
| Brightness |
300 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED ,Flexible OLED |
| Display Mode |
Active Matrix OLED, Top Emission |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
85° (all directions: L/R/U/D) |
| Outline L*W*H |
284.8 mm × 213.8 mm × 0.53 mm (w/o PCB) |
| Active Area L*W |
270.336 mm × 202.752 mm |
| Orientation | |
| Supply Voltage |
Logic: 3.3V (3.0–3.6V), OLED: 7.4V (4.8–9.0V) |
| Consumption |
Total: 10.44W (Logic: 1.7W, OLED: 8.74W) |
| Operating Temperarure |
0°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
3:4 |
| Connection Type |
40-pin Hirose connector (KN38A-40S-0.5H) |
| IC package |
COF Chip on FPC |
| Touch Panel | |
| Pixel Pitch |
0.132 mm |
| Sunlight Readable |
Yes, OLED are Readable Under Sun |
| Model |
POF133F2048E |
| PPI ( pixels per inch ) |
192 |
Gesight Technology offers Flexible OLED Displays with ultra-thin and bendable solutions. These displays feature perfect blacks and durability, ideal for phones, wearables, and automotive screens. Available at wholesale prices for direct purchase from the factory.
Flexible OLED Display
What Is a Flexible OLED Display and How Does It Work?
A Flexible OLED (FOLED) display uses organic light-emitting diodes on a bendable substrate like polyimide instead of glass. It emits its own light, enabling ultra-thin, lightweight, and foldable designs. Pixels can be curved, rolled, or folded, making it ideal for innovative devices like foldable smartphones, wearables, and curved automotive dashboards.
What Are the Key Advantages of Flexible OLED Technology?
Flexible OLED displays offer self-emissive pixels, perfect blacks, high contrast, wide color gamut, and ultra-wide viewing angles. They are ultra-thin, lightweight, bendable, and durable due to PI substrates, providing fast response times and design flexibility that traditional LCDs cannot achieve.
Which Devices Commonly Use Flexible OLED Displays?
Flexible OLEDs are used in foldable smartphones, curved smartwatches, AR/MR devices, automotive dashboards, and industrial devices with irregular shapes. Their lightweight, bendable, and durable design makes them suitable for both consumer electronics and specialized industrial applications.
How Thin and Lightweight Are Flexible OLED Panels?
Flexible OLED panels can be as thin as a sheet of paper, significantly reducing weight compared to glass-based displays. This ultra-thin construction allows panels to bend, fold, or curve without compromising image quality or durability.
Are Flexible OLED Displays More Durable Than Glass OLEDs?
Yes. Using polyimide substrates instead of glass enhances impact and drop resistance. Flexible OLED panels are less prone to cracking, making them suitable for foldable smartphones, wearables, and devices exposed to mechanical stress.
What Interfaces Are Supported by Flexible OLED Displays?
Flexible OLED displays commonly support MIPI DSI, SPI, and eDP interfaces. These allow integration with a wide range of embedded systems, mobile devices, and automotive electronics, ensuring compatibility and high-performance display control.
Can Flexible OLED Displays Be Customized for Specific Applications?
Flexible OLED displays can be customized in size, resolution, curvature, brightness, and touch integration. OEM and ODM services allow tailored solutions for industrial, automotive, wearable, and consumer electronics, meeting exact design and performance requirements.
Why Choose Gesight Technology for Flexible OLED Solutions?
Gesight provides high-quality flexible OLED modules with engineering support, custom interfaces, and scalable production. Their displays deliver high image quality, fast response times, and durability, making them suitable for innovative consumer and industrial applications worldwide.
