All productsFilter by display-type
1.6 Inch 400×400 IPS TFT LCD Round Display
| Size |
1.6 inch |
|---|---|
| Pixels |
400 × 400 |
| Interface | |
| Brightness |
230 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth |
16.7M |
| Refresh Rate |
30 Hz |
| Viewing Angle Range |
85° (L/R/U/D) |
| Outline L*W*H |
42.92 (H)×45.87 (V) ×2.2 (D) mm |
| Active Area L*W |
39.84 × 39.84 mm |
| Orientation | |
| Build-in Touch IC |
No Touch IC |
| Supply Voltage |
3.0 – 3.6 V (Typ. 3.3V) |
| Consumption |
16 mA (Typ.) |
| Operating Temperarure |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Mass |
– |
| Aspect Ratio |
1:1 (H:V) |
| Connection Type |
Soldering |
| Viewing Area ( L*W) |
39.84 × 39.84 mm |
| IC package |
On Glass |
| Touch Panel |
Need to Be Customized |
| Pixel Pitch |
0.0996 x 0.0996 mm |
| Sunlight Readable |
No |
| Model |
PL016VI-I16Q |
| Color Depth | |
| PPI ( pixels per inch ) |
254 |
2.1 inch TFT-LCD 1600×1600 MIPI For VR
| Size |
2.1inch |
|---|---|
| Pixels |
1600(H) × 1600(V) |
| Interface | |
| Brightness |
Min 360 / Typ 450 cd/m² |
| Manufacturer |
Geisght |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Transmission mode, Normally Black |
| Color Depth | |
| Refresh Rate |
70 / 90 Hz |
| Viewing Angle Range |
CR > 100: Left/Right 40°, Up/Down 40° |
| Outline L*W*H |
41.2(H) × 45.3(V) × 1.66(T) mm |
| Active Area L*W |
38.40 × 38.40 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.7 / 1.8 / 1.9 V (Min/Typ/Max); AVDD: 5.7 / 6.0 / 6.3 V; AVEE: -6.3 / -6.0 / -5.7 V |
| Consumption |
IVDDI: Typ 79.8 mA / Max 87.7 mA; IAVDD: Typ 8.7 mA / Max 12 mA; IAVEE: Typ -5.4 mA / Max -11 mA; Backlight Power PBL: Typ 468 mW (20% duty) |
| Operating Temperarure |
−10~55°C |
| Storage Temperature |
−40~70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
Connector: Kyocera 145863050024829+ |
| IC package |
– |
| Pixel Pitch |
8(H) × 24(V) μm |
| Sunlight Readable |
– |
| Model |
VS021XRM-NW0-DKP0 |
| PPI ( pixels per inch ) |
1058 |
2.1-inch Circular TFT LCD 480×480 RGB+SPI
| Size |
2.1 inch |
|---|---|
| Pixels |
480(RGB) × 480 |
| Interface | , |
| Brightness |
Min 280 / Typ 300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
U/D/L/R 80°（CR≥10） |
| Outline L*W*H |
56.18 × 59.71 × 2.3 mm |
| Active Area L*W |
53.28 × 53.28 mm |
| Orientation | |
| Supply Voltage |
VDD：2.5 ~ 4.8 V（Typ 2.8 V） |
| Consumption |
Backlight power Typ 80 / Max 88 mA |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
Left/Right bezel: ~1.45 mm each |
| Aspect Ratio |
1:1 |
| Connection Type |
0.5 PITCH 40PIN |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.111 mm（≈111 µm） |
| Sunlight Readable |
– |
| Model |
PL021WQI-B40TP |
| PPI ( pixels per inch ) |
≈323.25 |
| Application |
– |
2.45 Inch TFT LCD Display High Brightness Wide Viewing Angle
| Size |
2.45" (Diagonal) |
|---|---|
| Pixels |
240× 432 |
| Interface | |
| Brightness |
450 ~ 500 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
ECB, Normally White |
| Color Depth | |
| Refresh Rate |
30 fps (typical at 240 Mbps MIPI) |
| Viewing Angle Range |
≥50° each direction (CR≥10) |
| Outline L*W*H |
31.82 × 33.72 × 1.242 mm |
| Active Area L*W |
30.24 × 54.432 mm |
| Orientation | |
| Supply Voltage |
Logic: 1.8 V, Analog: 3.0 V |
| Consumption |
Backlight: ~252 mW, MIPI logic: up to 40 mW |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Bezel Area (mm) |
(Not explicitly listed; approx. outline – active area margins) |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC (flex cable) |
| IC package |
COG (Chip on Glass) |
| Touch Panel | |
| Pixel Pitch |
0.042 × 0.126 mm |
| Sunlight Readable |
Partial (≥500 cd/m², but not full outdoor readability) |
| Model |
H245QBN02.0 |
| PPI ( pixels per inch ) |
~180 PPI |
| Application |
Handheld devices, portable instruments, smart appliances |
2.47-inch Circular TFT LCD 480×480 MIPI DSI
| Size |
2.47 inch (diagonally measured active area) |
|---|---|
| Pixels |
480RGB × 480 |
| Interface | |
| Brightness |
350 min / 400 typ cd/m² (nit) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black, Transmissive mode |
| Color Depth | |
| Refresh Rate |
60 Hz (Frame rate condition in DC characteristics note) |
| Viewing Angle Range |
CR>10: 70 min / 85 typ (H/V, U/D/L/R same) |
| Outline L*W*H |
69.19 ±0.2 (H) × 71.74 ±0.2 (V) × 2.45 ±0.15 (D) mm (no component & FPC) |
| Active Area L*W |
62.64 × 62.64 (circle) mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.65–3.3 V (typ 1.8 V); VCI: 2.5–3.6 V (typ 3.3 V) |
| Consumption |
Normal: 80 typ / 100 max mW; Standby: 260 typ µW |
| Operating Temperarure |
-10 to +60 ℃ |
| Storage Temperature |
-30 to +70 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC connector, 35-pin pin map |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
130.5 (H) × 130.5 (V) µm |
| Sunlight Readable |
– |
| Model |
PL025C480M |
| PPI ( pixels per inch ) |
≈ 275 PPI |
| Application |
Healthcare & Industrial |

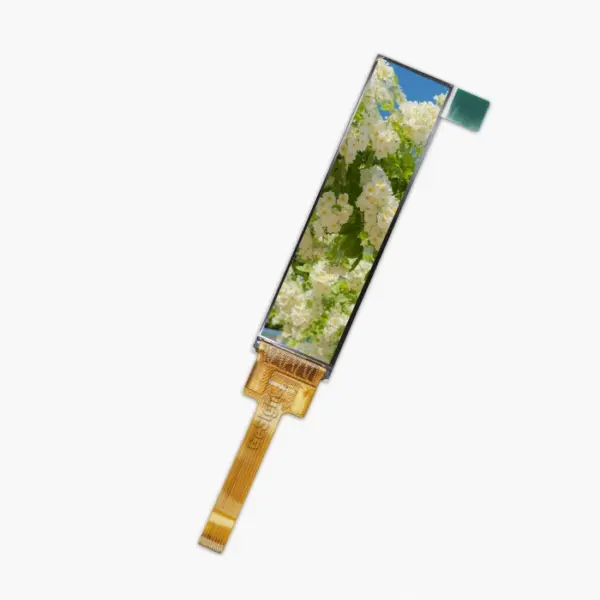

3.71-inch Bar TFT-LCD Display Module 240×960 MIPI DSI
| Size |
3.71 inch |
|---|---|
| Pixels |
240 (RGB) × 960 |
| Interface | |
| Brightness |
350 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
IPS |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Horizontal: -80° to +80° (CR ≥ 10); Vertical: -80° to +80° (CR ≥ 10) |
| Outline L*W*H |
98.89 × 25.3 × 2.3 mm (datasheet lists as W×H×T = 25.3 × 98.89 × 2.3 mm) |
| Active Area L*W |
91.44 × 22.86 mm (datasheet lists as W×H = 22.86 × 91.44 mm) |
| Supply Voltage |
VCC (logic): 3.3 V; IOVCC (I/O): 1.8 V |
| Consumption |
Idd (input current): Not specified in datasheet; Backlight: If = 20 mA (constant current), Vf = 19.8 V |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:4 |
| Connection Type |
FPC |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
0.09525 × 0.09525 mm |
| Sunlight Readable |
– |
| Model |
PL037L960 |
| PPI ( pixels per inch ) |
≈ 266.7 PPI |
| Application |
– |
4.0-inch Square TFT-LCD Display Module 480×480 SPI+RGB
| Size |
4.0inch |
|---|---|
| Pixels |
480(RGB) × 480 |
| Interface | , |
| Brightness |
420 min / 450 typ cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (T) / 80° (B) / 80° (L) / 80° (R), CR ≥ 10 |
| Outline L*W*H |
84.3 * 84.3 * 3.2 mm |
| Active Area L*W |
71.86 * 70.18 mm |
| Supply Voltage |
VDD = 2.8 min / 3.3 typ / 3.6 max V |
| Consumption |
IDD = 50 mA max (VDD = 2.8 V, Ta = 25°C); Backlight IF = 40 typ / 45 max mA, VF = 12.8 V (typ) |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
0.5 PITCH connector |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
PL040WQI-H401-R4018 |
| PPI ( pixels per inch ) |
– |
| Application |
– |
5.0-inch Circular TFT LCD 1080×1080 MIPI DSI
| Size |
5.0 inch |
|---|---|
| Pixels |
1080(RGB) × 1080 |
| Interface | |
| Brightness |
400 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black, Transmissive mode |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
U/D/L/R free viewing direction |
| Outline L*W*H |
136.531 × 132.208 × 1.98 mm |
| Active Area L*W |
127.008 × 127.008 mm (circle) |
| Orientation | |
| Supply Voltage |
IOVCC 1.8 V (typ); VSP +5.0 V (typ); VSN -5.0 V (typ); LED VF 38.4 V (typ); LED IF 20 mA (typ) |
| Consumption |
Backlight power 0.744 W (typ); 0.768 W (max) |
| Operating Temperarure |
-20 to +60 °C |
| Storage Temperature |
-30 to +75 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
Board-to-board connector |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1176 × 0.1176 mm |
| Sunlight Readable |
– |
| Model |
PL050HDC |
| PPI ( pixels per inch ) |
305 |
| Application |
– |

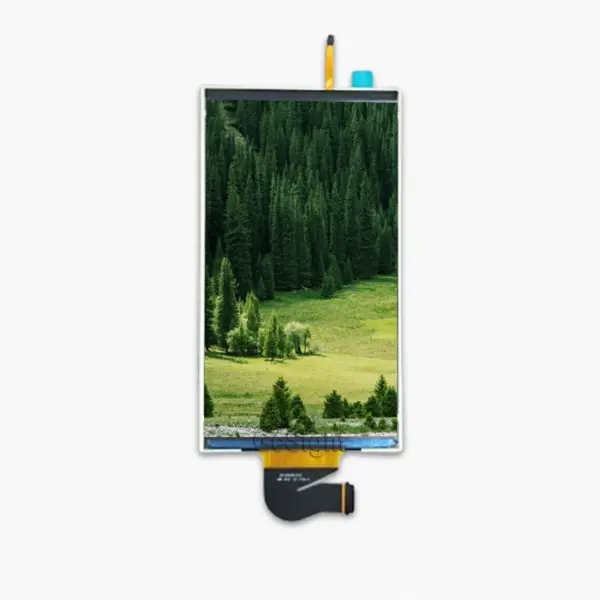

5.5 Inch TFT LCD HD IPS switch Lite replacement
| Size |
5.5 inch |
|---|---|
| Pixels |
720 × 1280 |
| Interface | |
| Brightness |
300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Color Depth | |
| Viewing Angle Range |
80° (H) / 80° (V) |
| Outline L*W*H |
73.8 × 132.6 × 1.5 mm |
| Active Area L*W |
68.04 × 120.96 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8V / 3.3V |
| Consumption |
Max 100 mA |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
–30°C ~ 80°C |
| Aspect Ratio |
9:16 |
| Connection Type |
45-pin connector |
| IC package |
ST7703 |
| Touch Panel | |
| Sunlight Readable |
NO |
| Model |
PL055F720PM |
| PPI ( pixels per inch ) |
293 |

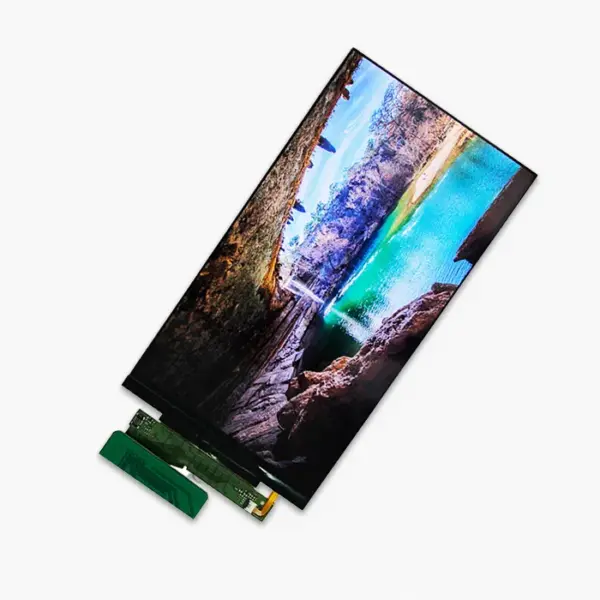

5.5 inch 4K UHD LCD – 530cd/m² 801PPI Low Latency Longevity
| Size |
5.5 inches |
|---|---|
| Pixels |
2160×3840 |
| Interface | |
| Brightness |
425 cd/m² (Min), 530 cd/m² (Typ) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black (Transmissive) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (CR > 10) in all directions (θ11, θ12, θ21, θ22) |
| Outline L*W*H |
69.84 mm (W) x 128.76 mm (H) x 1.24 mm (D) |
| Active Area L*W |
68.04 mm (W) x 120.96 mm (H) |
| Orientation | |
| Supply Voltage |
VDDI: 1.85V (Typ), DVDD: 1.36V (Typ), VSP: 5.8V (Typ), VSN: -5.6V (Typ) |
| Consumption |
696 mW (Typ), 839 mW (Max) in command mode |
| Operating Temperarure |
-20°C to +60°C |
| Storage Temperature |
-30°C to +70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
16:9 (3840×2160 UHD) |
| Connection Type |
B-to-B connector (FB35-RC60-3A, 60 pins) |
| IC package |
COG (Chip-on-Glass) with NT35950 driver IC |
| Touch Panel | |
| Pixel Pitch |
Same as pixel size |
| Sunlight Readable |
Not specified (high brightness suggests potential suitability) |
| Model |
LS055D1SX05(G) |
| PPI ( pixels per inch ) |
~801 PPI (calculated) |
| Application |
Telecommunication equipment (terminals), VR devices, etc. |

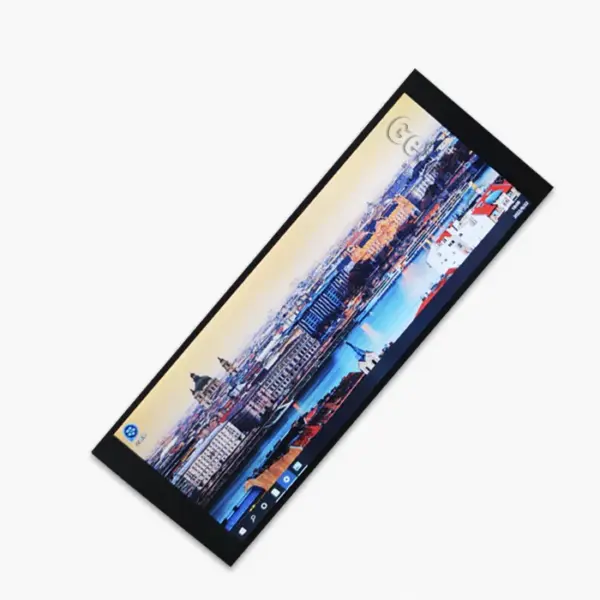

6.8 inch 480×1280 Bar TFT LCD High Brightness MIPI Interface Wide Temp
| Weight | 12 kg |
|---|---|
| Size |
6.8 inches |
| Pixels |
480 (RGB) × 1280 |
| Interface | |
| Brightness |
550 cd/m² (typ), 500–600 cd/m² (range) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
TFT LCD |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
70°–80° (CR ≥10, all directions) |
| Outline L*W*H |
205.78 × 67.60 × 4.60 mm (Outline: 205.78 × 67.60; Thickness: 4.6 mm) |
| Active Area L*W |
190.08 × 59.40 mm |
| Supply Voltage |
Logic: 1.8V (IOVCC), 3.3V (VCI); Backlight: 10.4V (typ) |
| Consumption |
IOVCC: 80 mA (typ), VCI: 200 mA (typ) |
| Operating Temperarure |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
~1:2.67 (480×1280 resolution) |
| Connection Type |
FPC (Flexible Printed Circuit) |
| IC package |
Suggested Driver IC: EK79030 |
| Touch Panel | |
| Pixel Pitch |
Same as Pixel Size |
| Sunlight Readable |
– |
| Model |
TM686T40 |
| PPI ( pixels per inch ) |
~185 PPI (calculated) |
| PPI | |
| Application |
6.8-inch rearview mirror TFT LCD module |
7-inch 1024X600 TFT LCD Module LVDS Industrial Panel
| Size |
7 inch |
|---|---|
| Pixels |
1024X600 |
| Interface | |
| Brightness |
300 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
70°–80° (CR≥10, all directions) |
| Outline L*W*H |
165 mm × 100 mm × 3.5 mm |
| Active Area L*W |
154.21 mm × 85.92 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
3.3V (VDDIN), 5–12V (VLED for backlight) |
| Operating Temperarure |
–10°C ~ 50°C |
| Storage Temperature |
–20°C ~ 60°C |
| Aspect Ratio |
16:9 (H:V) |
| Connection Type |
20-pin interface |
| Touch Panel | |
| Model |
CXW070WSLM005 |
| PPI ( pixels per inch ) |
149 PPI |
7 Inch 1200 x 1920 TFT Tablet LCD Screen Raspberry Pi
| Size |
7 inch |
|---|---|
| Pixels |
1200 (H) × 1920 (V) (WUXGA) |
| Interface | |
| Brightness |
450 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80/80/80/80 (Typ.)(CR≥10) |
| Outline L*W*H |
97.3 mm (W) × 159.4 mm (H) |
| Active Area L*W |
94.5 mm (W) × 151.2 mm (H) |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDDP) |
| Operating Temperarure |
-10°C ~60°C |
| Storage Temperature |
-30°C ~70°C |
| Aspect Ratio |
5:8 (H:V) |
| Connection Type |
Hirose DF19LA-20P-1H (signal), JST BHR-04VS-1 (backlight) |
| IC package |
COG Built-in ISL97692IRTZ |
| Touch Panel | |
| Sunlight Readable |
Yes |
| Model |
LT070ME05000 |
| PPI ( pixels per inch ) |
323 PPI |

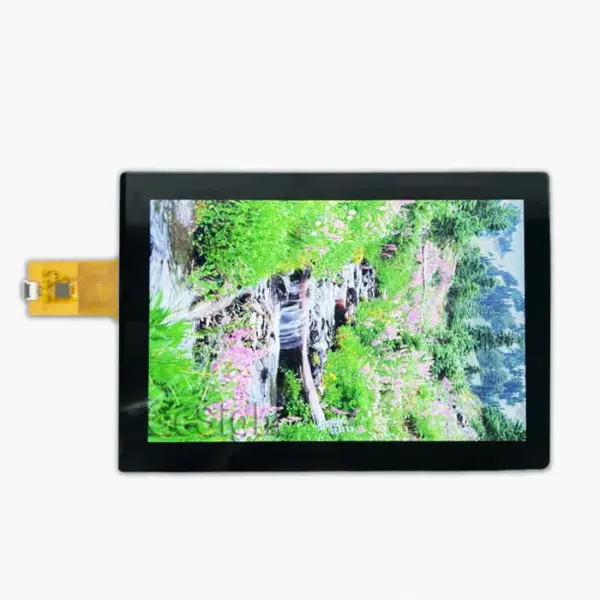

7 Inch 1920×1200 IPS TFT LCD 2000 cd High Brightness
| Size |
7 inch |
|---|---|
| Pixels |
1200 (H) × RGB × 1920 (V) |
| Interface | |
| Brightness |
2000 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black, a-Si TFT / transmissive |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (L/R/U/D) |
| Outline L*W*H |
111.0 × 166.0 × 3.29 mm |
| Active Area L*W |
94.5 × 151.2 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.7–2.0 V, VSP: 4.5–6.0 V, VSN: –6.0 to –4.5 V |
| Consumption |
BL: 390 mA @ 21.7 V (typ) |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
-30 ~ 80 °C |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Aspect Ratio |
16:10 (H:V) |
| Connection Type |
40-pin MIPI |
| IC package |
COG |
| Touch Panel | |
| Pixel Pitch |
0.0996 x 0.0996 mm |
| Sunlight Readable |
Yes (2000 cd/m²) |
| Model |
CXW070WULM006B |
| PPI ( pixels per inch ) |
323 |
7.84 inch IPS TFT LCD Module 500cd/m² | MIPI | Industrial Grade
| Weight | 12 kg |
|---|---|
| Size |
7.84 inches |
| Pixels |
400×1280 |
| Interface | |
| Brightness |
450 cd/m² (Min), 500 cd/m² (Typ) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCM |
| Display Mode |
Normally Black, a-Si TFT / transmissive |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
70°–80° (CR ≥10, all directions) |
| Outline L*W*H |
205.78 × 67.60 × 4.60 mm (Outline: 205.78 × 67.60; Thickness: 4.6 mm) |
| Active Area L*W |
190.08 × 59.40 mm |
| Supply Voltage |
19.2V (Typ, for backlight), 3.3V/1.8V (Logic) |
| Consumption |
24 × 192 mW (Max power dissipation) |
| Operating Temperarure |
-20°C to +70°C |
| Storage Temperature |
-30°C to +70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
~3.2:1 (190.08:59.4) |
| Connection Type |
FPC (Flexible Printed Circuit) |
| IC package |
Suggested Driver IC: EK79030 |
| Touch Panel | |
| Pixel Pitch |
Same as Pixel Size |
| Sunlight Readable |
– |
| Model |
BRT784-4.6BL0292-24A / TM078XYHP01-00 |
| PPI ( pixels per inch ) |
~163 PPI (Calculated from resolution and active area) |
| PPI | |
| Application |
Automotive(Rearview Mirror) |

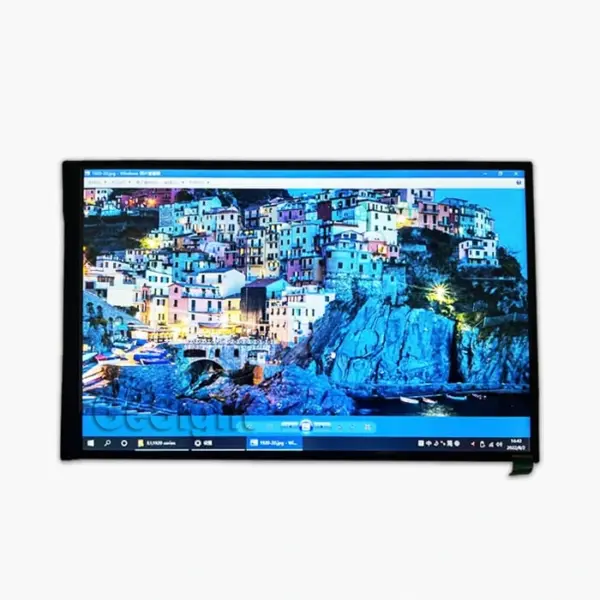

8.0-inch TFT LCD 800×1280 MIPI Display
| Size |
8 inch |
|---|---|
| Pixels |
800(RGB) × 1280 dots |
| Interface | |
| Brightness |
Typ 250 cd/m² (Min 220) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz (Frame rate condition in DC characteristics note) |
| Viewing Angle Range |
L/R/U/D：Min 80°, Typ 85°（CR=10） |
| Outline L*W*H |
114.6 × 184.1 × 2.6 mm |
| Active Area L*W |
107.64(H) × 172.22(V) mm |
| Orientation | |
| Supply Voltage |
VCC(analog): 3.0–3.6V (Typ 3.3V)；VDDIO(logic): 1.7–3.0V (Typ 1.8V) |
| Consumption |
– |
| Operating Temperarure |
-10 to +60 ℃ |
| Storage Temperature |
-20 to +70 ℃ |
| Bezel Area (mm) |
Bezel Area (mm): **L/R: 3.48 mm each; T/B: 5.94 mm each** |
| Aspect Ratio |
16:10 |
| Connection Type |
31-pin FPC (pinout: 1–31) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1506(H) × 0.1432(V) mm |
| Sunlight Readable |
– |
| Model |
PL801WXGAM |
| PPI ( pixels per inch ) |
≈188.68 PPI |
| Application |
– |

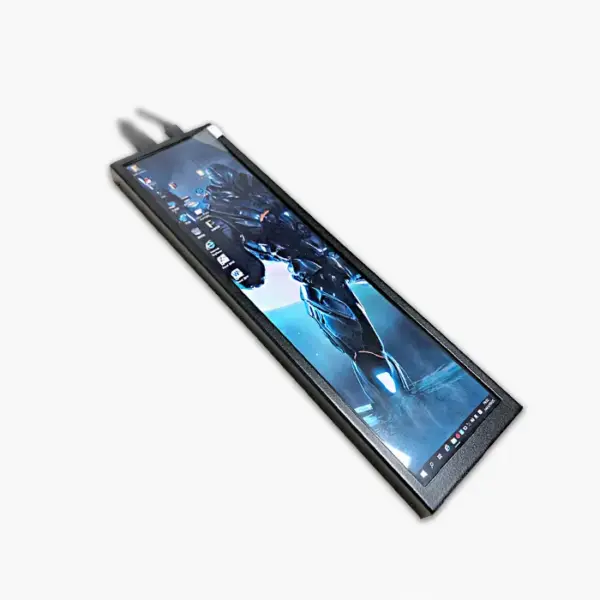

8.8 inch LCD 480X1920 bar LCD hdmi Raspberry Pi
| Size |
8.8 inch |
|---|---|
| Pixels |
480 × 1920 |
| Interface | |
| Brightness |
600 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Mode |
Normally Black, transmissive |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
85°/85°/85°/85° (L/R/U/D, CR>10) |
| Outline L*W*H |
231.3 × 64.3 × 5.1 mm (typ.) |
| Active Area L*W |
218.88 × 54.72 mm |
| Orientation | |
| Supply Voltage |
3.3 V (logic), 12 V (analog), 20 V (VGH), –10 V (VGL) |
| Consumption |
Logic: 0.65 W max (white pattern), BL: 2.8 W max (without LED driver) |
| Operating Temperarure |
–20°C to +70°C |
| Storage Temperature |
–30°C to +80°C |
| Aspect Ratio |
1:4 |
| Connection Type |
40-pin FPC, Hirose FH34SRJ-40S-0.5SH(50) |
| IC package |
Cell On Glass |
| Build-in IC |
– |
| Touch Panel | |
| Pixel Size |
0.114 × 0.114 mm |
| Pixel Pitch |
0.114 × 0.114 mm |
| Sunlight Readable |
Yes (600 cd/m², high contrast) |
| Model |
HSD088IPW1 |
| PPI (pixels per inch ) |
223 PPI |
| Application |
Automotive, industrial bar LCD, stretched display |

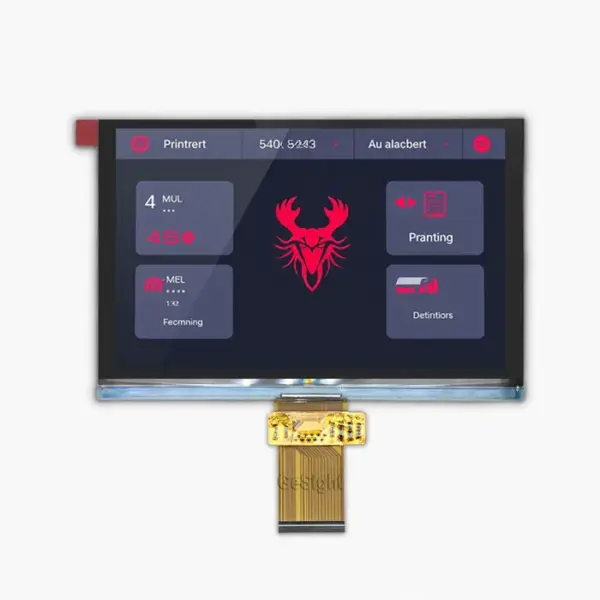

8.9 Inch 4k LCD Ultra High PPI for SLA 3D Printer
| Size |
8.9 inch |
|---|---|
| Pixels |
3840(H) × 2400(V) |
| Interface | |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
40hz |
| Viewing Angle Range |
Horizontal: 80° (typ.), Vertical: 80° (typ.) |
| Outline L*W*H |
202.0 × 133.0mm |
| Active Area L*W |
192.0 × 120.0 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
IOVCC: 3.3V, VSP: +6V, VSN: -6V |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
–20°C ~ 80°C |
| Bezel Area (mm) |
L/R: 5.0, U: 3.0, D: 4.0+6.0 |
| Aspect Ratio |
16:10 (H:V) |
| Connection Type |
FPC, 60-pin |
| IC package |
ST5892B |
| Touch Panel | |
| Sunlight Readable |
NO |
| Model |
GS089FBB-N10-6HP0 |
| PPI ( pixels per inch ) |
498PPI |
Gesight Technology specializes in IPS LCD displays known for their wide viewing angles accurate color and stable image quality. These high-quality IPS LCD displays are ideal for applications like smartphones tablets automotive and industrial screens. Available at wholesale prices and sourced directly from the factory they offer customizable solutions to meet diverse needs.
IPS LCD Display
What Is an IPS LCD Display?
An IPS (In-Plane Switching) LCD display aligns liquid crystal molecules horizontally, improving color accuracy, wide viewing angles, and image stability. These displays provide consistent brightness and minimal distortion, making them ideal for smartphones, tablets, automotive systems, medical devices, and industrial applications.
What Are the Main Advantages of IPS Displays?
IPS displays deliver wide viewing angles, accurate color reproduction, stable brightness, and minimal image distortion. They maintain consistent image quality under pressure, reduce the “water ripple” effect, and enhance the visual experience for professional graphics, outdoor readability, and embedded systems.
Which Industries Use IPS LCD Modules?
IPS LCD modules are commonly used in industrial automation, automotive dashboards, medical equipment, consumer electronics, and embedded devices. Their reliability, color accuracy, and durability make them suitable for critical applications requiring high-quality displays and consistent performance.
What Sizes and Shapes Are Available for IPS LCD Panels?
IPS LCDs range from small 1.6-inch circular displays to large 8.9-inch high-resolution screens. They come in circular, square, and rectangular shapes, suitable for smart devices, tablets, industrial bars, automotive interfaces, and specialized embedded applications.
How Do IPS LCD Displays Handle High-Brightness Environments?
High-brightness IPS displays, with luminance up to 3000 nits, ensure readability in sunlight or outdoor settings. Combined with ruggedized cover glass and optical bonding, these panels maintain clear visuals, reduce reflections, and deliver reliable performance in industrial, automotive, and outdoor environments.
What Interface Options Are Supported by IPS LCD Modules?
IPS LCD panels support interfaces such as MIPI, LVDS, HDMI, eDP, SPI, and Type-C. This flexibility allows integration into tablets, Raspberry Pi systems, industrial panels, automotive dashboards, and embedded devices, ensuring compatibility with diverse applications.
Can IPS Displays Include Touch Functionality?
Yes, IPS LCD modules can integrate capacitive or resistive touch. Touch-enabled displays are used in smartphones, tablets, industrial control systems, medical devices, and consumer electronics, offering intuitive interaction without compromising visual quality or performance.
How Are Custom IPS LCD Solutions Developed?
Custom IPS LCD solutions combine controller board design, firmware optimization, optical bonding, and environmental testing. Manufacturers like Gesight provide scalable, reliable, and cost-effective displays for industrial, automotive, medical, and embedded markets, supporting OEM/ODM needs with full engineering and production services.
