Smart Watch

A smart watch is a wrist-worn wearable that extends the phone experience with glanceable information and quick actions—notifications, calls, fitness tracking, health metrics, navigation prompts, music control, and contactless payments. Because users interact in short, frequent moments (often while walking or outdoors), the display becomes the core interface and the visual centerpiece of the product. A good smartwatch screen must keep small text and icons crisp, maintain strong contrast, respond instantly to touch and gestures, and stay legible at varied viewing angles.
From a display and integration standpoint, smartwatch designs typically prioritize a compact form factor (often round or rounded-rectangle), high pixel density for “retina-like” sharpness, and power efficiency for all-day wear. Brightness and anti-reflective/anti-glare treatments improve sunlight readability, while a thin module stack and narrow bezels support a sleek profile and comfortable fit. Many smartwatch displays also support always-on behavior with low-power driving, stable color and uniformity across the face, and robust cover lens bonding to withstand daily wear, sweat, and repeated minor impacts—so reliability matters as much as aesthetics.
FREE SHIPPING
Fast and reliable delivery
50 DAYS RETURN
Consumer protection program
24/7 SUPPORT
If you have any questions
BEST QUALITY
Many years on the market
AR (5) FHD (8) High brightness (18) High Contrast Ratio (30) High ppi (24) Industrial Panel (7) Long Lifespan (3) Low Latency (3) Low Power Consumption (33) MIPI Interface (31) Round (8) Slim Design (38) Smart Watch (10) Stretched bar LCD (5) Sunlight readable (39) Tablet Display (7) Touch Screen Available (6) Ultra-High Resolution (26) Ultra-Thin Design (12) Vivid Colors (41) VR (8) Wearables (15) Wide color gamut (4) Wide Temperature (43) Wide viewing angle (30)
0.95-inch LTPS AMOLED Display 120×240 SPI
| Size |
0.95 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
88° Up/Down/Right/Left (Cr ≥ 10) |
| Outline L*W*H |
27.35 × 12.8 × 0.78 mm |
| Active Area L*W |
21.6 × 10.8 mm |
| Orientation | |
| Supply Voltage |
VCI_DIS_28: 2.7–3.6 V (typ 2.8); VDDIO: 1.65–3.3 V (typ 1.8); ELVDD: 4.55–4.65 V (typ 4.6); ELVSS: -2.25––2.15 V (typ -2.2) |
| Consumption |
Full white @ 450 nits, 60 Hz (typ current): IVCI_DIS_28 3.2 mA; IVDDIO 1 mA; IELVDD/ELVSS 7 mA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.0 mm; Top/Bottom: 2.875 mm |
| Aspect Ratio |
1:2 |
| Connection Type |
FPC, 30 pins (pin table shows 1–30) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
80 × 80 um |
| Sunlight Readable |
– |
| Model |
TR095A120SPC |
| PPI ( pixels per inch ) |
282.45 PPI |
| Application |
Smart Watch |
1.2-inch Circular 390×390 AMOLED Display
| Size |
1.2 inch |
|---|---|
| Pixels |
390 × 390 |
| Interface | , |
| Brightness |
300 min, 350 typ, nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
33.22 × 34.72 × 0.66 mm |
| Active Area L*W |
30.42 × 30.42 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65 / 1.8 / 1.95 V (min/typ/max); VCI: 3.27 / 3.3 / 3.33 V; ELVDD: 3.27 / 3.3 / 3.33 V; ELVSS: -3.33 / -3.3 / -3.27 V |
| Consumption |
Panel power (full white, 350 nits): 128.7 mW typ; IOLED: 19.5 mA typ; IC Normal: PVCI 5.3 mW typ, PVDDIO 3.5 mW typ; Idle: PVCI 4.5 mW typ, PVDDIO 2.4 mW typ; Sleep: PVCI < 0.075 mW, PVDDIO < 0.1 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Derived from outline vs active: (33.22-30.42)=2.80 mm; (34.72-30.42)=4.30 mm. Per-side bezel: Left/Right 1.40 mm; Top/Bottom 2.15 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 24-pin; recommended connector BM28B0.6-24DP/2-0.35V(51) / BM28B0.6-24DS/2-0.35V(51) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
Derived: 30.42 mm / 390 = 0.0780 mm (78.0 µm) |
| Sunlight Readable |
– |
| Model |
PO120F390MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.39-inch Circular AMOLED Display 454×454
| Size |
1.39 inch |
|---|---|
| Pixels |
454RGB × 454 |
| Interface | , |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
45 Hz (typ), 43–47 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (L/R/U/D, CR≥10) |
| Outline L*W*H |
≤ 42.0 × ≤ 42.0 × 0.733 mm (module outline ≤ φ42; max thickness 0.733 mm MDL) |
| Active Area L*W |
35.412 × 35.412 mm (AA = φ35.412 mm) |
| Orientation | |
| Supply Voltage |
VDDIO: 1.8 V (typ) [1.65–1.95 V]; Vbat: 3.7 V (typ) [2.9–4.8 V] |
| Consumption |
260 mW (typ) @ 100% on, 450 nits, 45 Hz; 38 mW (typ) all pixel off; 1.2 mW (typ) standby (Vci on/Vddio on); < 50 μW standby (Vci off/Vddio on) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
2.275 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
Board to Board Connection |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 µm |
| Sunlight Readable |
– |
| Model |
BO139A454SPI |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.43-inch 466×466 AMOLED Display
| Size |
1.43 inch |
|---|---|
| Pixels |
466 × 466 |
| Interface | |
| Brightness |
700 cd/m² (typ, Ta=25℃, all-white, θ=0) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS Glass |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency fFRM) |
| Viewing Angle Range |
88° (Up/Down/Right/Left, Cr≥200) |
| Outline L*W*H |
44.75 × 44.75 × 2.58 mm |
| Active Area L*W |
36.35 × 36.35 mm |
| Orientation | |
| Supply Voltage |
VCC 2.7–3.6 V; IOVCC 1.65–3.3 V; ELVDD 3.25–3.35 V; ELVSS -3.35–-3.25 V |
| Consumption |
Full white (Sleep out): IVCC 2 mA typ (4 mA max); IIOVCC 1.5 mA typ (3 mA max); IELVDD/ELVSS 13 mA typ (19.5 mA max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
4.20 mm per side |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
TR143R2404A |
| PPI ( pixels per inch ) |
461 PPI |
| Application |
Touch interface pins listed; Touch signals present |
1.47-inch AMOLED Touch Display 194×368
| Size |
1.47 inch |
|---|---|
| Pixels |
194 (W) × 368 (H) (Real RGB arrangement) |
| Interface | , |
| Brightness |
450 nits typ (Luminance: 400 min / 450 typ / 500 max cd/m²) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode); 15 Hz (Idle mode) |
| Viewing Angle Range |
Left/Right/Top/Bottom: 80° min / 85° typ (Cr ≥ 200) |
| Outline L*W*H |
LTPS Glass outline: 19.36 (V) × 36.17 (W) mm; Glass thickness (LTPS/Encap./POL): 0.2/0.3/0.147 mm |
| Active Area L*W |
17.46 × 33.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (3.2–3.4 V); VDDIO 1.8 V (1.7–1.9 V); ELVDD 3.3 V (3.2–3.4 V); ELVSS -3.3 V (-3.4–-3.2 V); TP_VDD 2.8 V (typ); TP_OPT_VDDIO 1.8 V (typ) |
| Consumption |
Normal: 110 typ / 130 max mW (450 nits @ 60 Hz); Idle: 6.5 typ / 8.2 max mW (50 nits @ 15 Hz); Standby: 50 µW max |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
1.90 mm (V total = 19.36 − 17.46); 3.05 mm (W total = 36.17 − 33.12) |
| Aspect Ratio |
194:368 |
| Connection Type |
FPC (Main FPC Bonding PAD), 34 pins |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
90 × 90 µm |
| Sunlight Readable |
– |
| Model |
E1473AC63.B |
| PPI ( pixels per inch ) |
283 PPI |
| Application |
Display/Touch terminals for Smart Watch |
1.5-inch Flexible/Bendable OLED Display 120×240 SPI/MIPI
| Size |
1.5 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | , |
| Brightness |
350 cd/m² typ (300 cd/m² min @ θ=0°) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Top/Bottom/Left/Right, condition CR > 1600) |
| Outline L*W*H |
20.12 × 38.94 × 0.71 mm (typ, Module Size w/o COF & FPCa & CAF; Thickness typ) |
| Active Area L*W |
16.92 × 33.84 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.8 V typ (2.7–3.6 V); VDDIO: 1.8 V typ (1.65–3.3 V); ELVDD: 4.6 V typ (4.55–4.65 V); ELVSS: −2.4 V typ (−2.35 to −2.45 V) |
| Consumption |
110 mW typ; IC: 14.24 mW typ |
| Operating Temperarure |
−20 to +60 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
H bezel total 3.20 mm (≈1.60 mm per side); V bezel total 5.10 mm (≈2.55 mm per side) |
| Aspect Ratio |
1:2 (120:240) |
| Connection Type |
I-PEX connector: 20641-024E (module); mating/user connector: 20642-024E |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.141(H) × 0.141(V) mm |
| Sunlight Readable |
– |
| Model |
GO15F120SPI |
| PPI ( pixels per inch ) |
180 PPI |
| Application |
Smart bracelet |

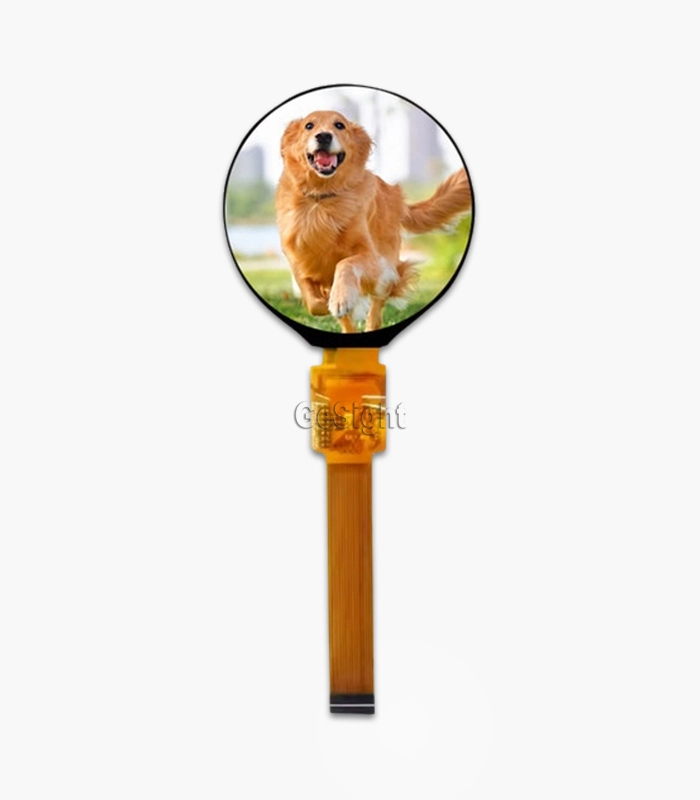

1.6 Inch 400×400 IPS TFT LCD Round Display
| Size |
1.6 inch |
|---|---|
| Pixels |
400 × 400 |
| Interface | |
| Brightness |
230 cd/m² (typical) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth |
16.7M |
| Refresh Rate |
30 Hz |
| Viewing Angle Range |
85° (L/R/U/D) |
| Outline L*W*H |
42.92 (H)×45.87 (V) ×2.2 (D) mm |
| Active Area L*W |
39.84 × 39.84 mm |
| Orientation | |
| Build-in Touch IC |
No Touch IC |
| Supply Voltage |
3.0 – 3.6 V (Typ. 3.3V) |
| Consumption |
16 mA (Typ.) |
| Operating Temperarure |
-20 ~ 70 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Bezel Area (mm) |
25.24 (H) × 19.4 (V) x 1.925(T) mm |
| Mass |
– |
| Aspect Ratio |
1:1 (H:V) |
| Connection Type |
Soldering |
| Viewing Area ( L*W) |
39.84 × 39.84 mm |
| IC package |
On Glass |
| Touch Panel |
Need to Be Customized |
| Pixel Pitch |
0.0996 x 0.0996 mm |
| Sunlight Readable |
No |
| Model |
PL016VI-I16Q |
| Color Depth | |
| PPI ( pixels per inch ) |
254 |
1.63-inch AMOLED Display 320×320 MIPI DSI
| Size |
1.63 inch |
|---|---|
| Pixels |
320 x RGB x 320 |
| Interface | |
| Brightness |
300 nits (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode) |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
32.08 (H) x 36.48 (V) x 0.7 (T) mm (cell + foam) |
| Active Area L*W |
29.28 (H) x 29.28 (V) mm |
| Orientation | |
| Supply Voltage |
IOVDD 1.65–1.95 V (Typ. 1.8 V); VDD 2.8–3.1 V (Typ. 3.0 V); ELVDD 4.57–4.63 V (Typ. 4.60 V); ELVSS -3.35 to -3.45 V (Typ. -3.40 V) |
| Consumption |
Panel Power 138.4 mW (Full white, 300 nits, 60 Hz CMD mode test condition); Idle PVDD 12.0 mW (30 Hz CMD mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 20 pins; Recommended connector: AXE520127 (Panasonic) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
H163QLN01.1 |
| PPI ( pixels per inch ) |
278 PPI |
| Application |
– |
1.78-inch 368×448 AMOLED Display
| Size |
1.78 inch |
|---|---|
| Pixels |
368(W) × 448(H) (Real RGB) |
| Interface | , |
| Brightness |
350 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode) |
| Viewing Angle Range |
80° (Top/Bottom/Right/Left, CR ≥ 1000) |
| Outline L*W*H |
LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm |
| Active Area L*W |
28.7 × 34.94 mm |
| Orientation | |
| Supply Voltage |
Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V) |
| Consumption |
Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 (368:448) |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
78 × 78 μm |
| Sunlight Readable |
– |
| Model |
ED178AM368MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Smart Watch |
2.04-inch 368×448 AMOLED Wearable Display
| Size |
2.04 inch |
|---|---|
| Pixels |
368 × 448 |
| Interface | |
| Brightness |
700 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency) |
| Viewing Angle Range |
Up/Down/Right/Left: 88 deg (Cr ≥ 200) |
| Outline L*W*H |
44.46 × 34.64 × 2.58 mm |
| Active Area L*W |
39.98 × 33.74 mm |
| Orientation | |
| Supply Voltage |
VCC: 2.7–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V); ELVDD: 3.25–3.35 V (typ. 3.3 V); ELVSS: -3.35–-3.25 V (typ. -3.3 V) |
| Consumption |
IVCC: 2 mA (typ., full white, sleep out); IIOVCC: 1.5 mA (typ.); IELVDD/ELVSS: 13 mA (typ.) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
PO204RT448S |
| PPI ( pixels per inch ) |
284 PPI |
| Application |
Smart Watch |
