Tablet Display

Tablet display refers to the screen modules used in tablets and similar large-format handheld devices, where the display must balance clarity, touch interaction, portability, and power efficiency. Compared with phones, tablets are viewed at longer distances and used for reading, browsing, drawing, note-taking, and media playback, so users expect sharp text, stable colors, and comfortable viewing over extended sessions. A strong tablet display also supports smooth scrolling and responsive touch, making the UI feel immediate whether used with fingers or a stylus.
From an engineering perspective, tablet displays are often optimized around wide viewing angles, consistent brightness uniformity, and robust front-surface construction for daily handling. Depending on the application, key considerations may include higher resolution (e.g., FHD to 4K-class), higher refresh rates for smoother motion, sunlight readability or anti-reflective coatings for mixed lighting, and low-power backlight/driver tuning to extend battery life. Integration choices such as thin module stacks, narrow bezels, and reliable bonding/touch structures help tablets remain slim while maintaining durability—suitable for education, healthcare, field work, and general consumer use.
FREE SHIPPING
Fast and reliable delivery
50 DAYS RETURN
Consumer protection program
24/7 SUPPORT
If you have any questions
BEST QUALITY
Many years on the market
AR (5) FHD (8) High brightness (18) High Contrast Ratio (30) High ppi (24) Industrial Panel (7) Long Lifespan (3) Low Latency (3) Low Power Consumption (33) MIPI Interface (31) Round (8) Slim Design (38) Smart Watch (10) Stretched bar LCD (5) Sunlight readable (39) Tablet Display (7) Touch Screen Available (6) Ultra-High Resolution (26) Ultra-Thin Design (12) Vivid Colors (41) VR (8) Wearables (15) Wide color gamut (4) Wide Temperature (43) Wide viewing angle (30)

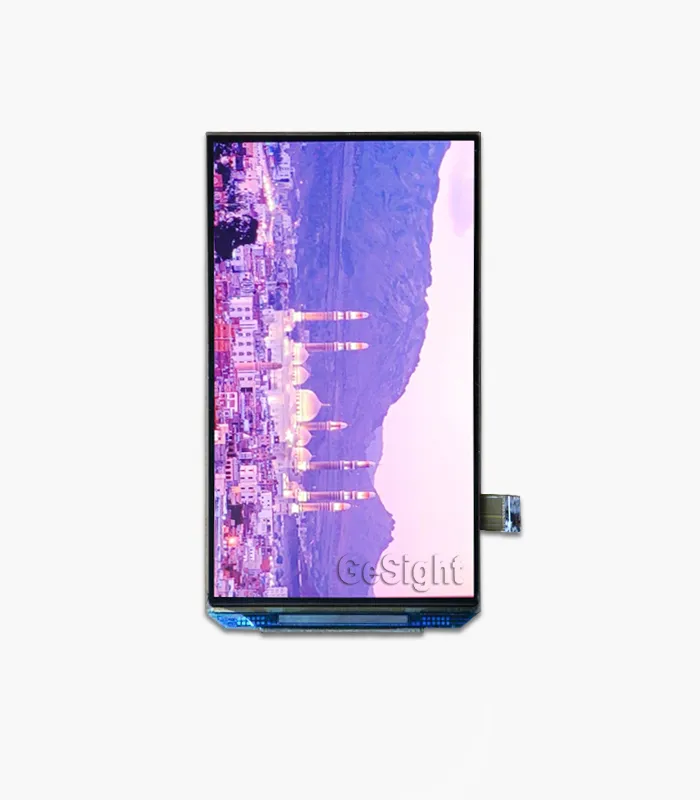

4.3-inch 540×960 AMOLED Display
| Size |
4.3 inch |
|---|---|
| Pixels |
540(RGB) × 960 |
| Interface | , |
| Brightness |
Recommend 250 nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
OLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
– |
| Outline L*W*H |
57.26 × 103.87 × 0.77 mm |
| Active Area L*W |
53.46(H) × 95.04(V) mm |
| Orientation | |
| Supply Voltage |
VDDIO: typ 1.80 V (min 1.65, max 3.30); VDD: typ 3.00 V (min 2.80, max 3.20); OVDD: typ 4.60 V (min 4.55, max 4.65); OVSS: typ -4.40 V (min -4.33, max -4.47) |
| Consumption |
Panel Power (P_EL): typ 405.0 mW, max 1350.0 mW; Panel Current (I_EL): typ 64.2 mA, max 150.0 mA; IC P_VDD: min 81.8 mW, typ 102.3 mW, max 122.7 mW; IC I_VDD: min 26.6 mA, typ 33.3 mA, max 39.9 mA; IC P_VDDIO: min 18.5 uW, typ 23.2 uW, max 27.8 uW; IC I_VDDIO: min 9.8 uA, typ 12.3 uA, max 14.7 uA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +105 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
9:16 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.033(H) × 0.099(V) mm |
| Sunlight Readable |
– |
| Model |
AUO429FN01P |
| PPI ( pixels per inch ) |
256 PPI |
| Application |
– |
5.48-inch 1080×1920 AMOLED Touch Display
| Size |
5.48 inch |
|---|---|
| Pixels |
1080(W) × 1920(H) |
| Interface | |
| Brightness |
350 cd/m² (typ), 280 (min), 420 (max) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
75° (min) / 85° (typ) for T/B/L/R (CR ≥ 10) |
| Outline L*W*H |
148.86 × 73.56 × 1.92 mm (including cover lens) |
| Active Area L*W |
121.344 × 68.256 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65–3.30 V; VCI: 2.65–3.60 V; ELVDD: 4.55–4.65 V; ELVSS: -1 (min) / TBD (typ) / -5 (max) V |
| Consumption |
Panel Power: TBD mW; INL: 191.80 mA (typ); IVCI (normal): 1.5 mA (min), TBD (typ/max); IIOVCC (normal): 42 mA (min), TBD (typ/max); Stand-by: IVCI 1 uA (min), TBD; IIOVCC 1 uA (min), TBD |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +70 °C |
| Bezel Area (mm) |
(69.902 − 68.256) × (127.904 − 121.344) = 1.646 × 6.560 mm total bezel |
| Aspect Ratio |
9:16 |
| Connection Type |
B-to-B connector (FPC connector: AXE340124; recommended: AXE440124) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
94.8(W) × 63.2(H) μm |
| Sunlight Readable |
– |
| Model |
G1548FH101GF-001 |
| PPI ( pixels per inch ) |
402 PPI |
| Application |
– |
5.99-inch Flexible/Bendable OLED Display 1080×2160 MIPI DSI
| Size |
5.99 inch |
|---|---|
| Pixels |
1080 × 2160 |
| Interface | |
| Brightness |
390 cd/m² (typ, Normal / W L255); 351 min, 429 max |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Color active matrix AMOLED module (LTPS TFT) |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left, CR ≥ 10: 80° (typ), 75° (min) |
| Outline L*W*H |
71.35 × 150.42 mm; Total thickness: 1.416 mm |
| Active Area L*W |
68.04 × 136.08 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.60–3.60 V (typ 3.00 V); VDDIO: 1.62–1.98 V (typ 1.80 V); AVDD: 5.40–7.70 V (typ 6.80 V); ELVDD: 4.40–4.80 V (typ 4.60 V); ELVSS: -5.00 to -1.40 V (typ -2.40 V); TSP VCC: 2.7–3.6 V |
| Consumption |
VCI 2.0 mA typ; VDDIO 30 mA typ; AVDD 20 mA typ; Panel EL 220 mA typ. Display sleep-in: VCI 0.1 mA typ; VDDIO 1.5 mA typ. Touch power: Active 82 mW; Standby 33 mW; Sleep 165 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
18:9 |
| Connection Type |
Main FPC, B-to-B contact pads; recommended connector: 24-5857-048 |
| IC package |
GT9286-BGA |
| Touch Panel | |
| Pixel Pitch |
63 µm |
| Sunlight Readable |
– |
| Model |
BO599FF2KM |
| PPI ( pixels per inch ) |
403 ppi |
| Application |
Smart Mobile Phone |

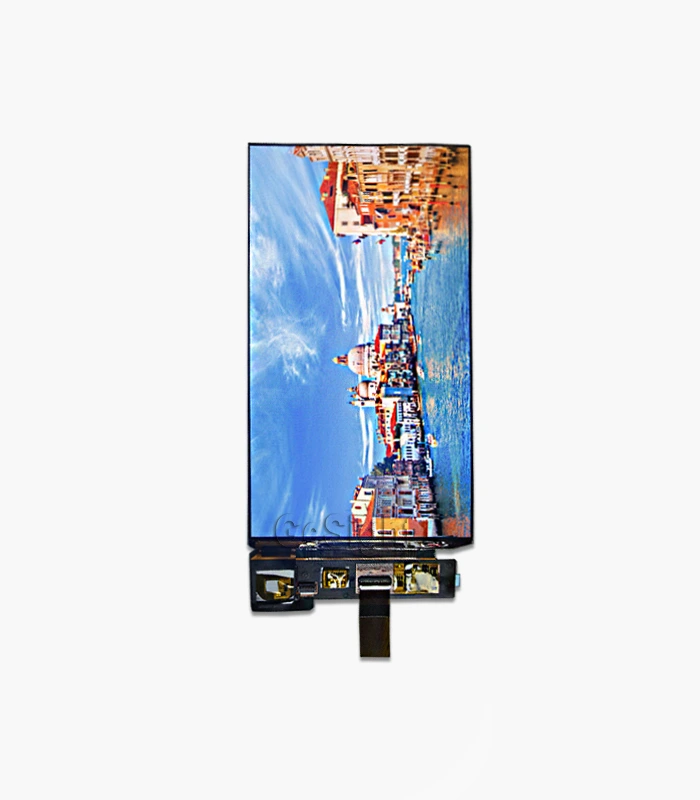

7.0-inch 1080×1920 AMOLED Touch Display
| Size |
7.0 inch |
|---|---|
| Pixels |
1080 × 1920 (FHD) |
| Interface | |
| Brightness |
800 cd/m² (typ, Normal); 1000 cd/m² (typ, HBM) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
50/60/120/165 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (T/B/L/R, CR ≥ 10) |
| Outline L*W*H |
89.13 × 160.91 × 1.095 mm (module, with R.T); 89.1344 × 160.9056 × 0.8 mm (panel outline) |
| Active Area L*W |
87.13 × 154.91 mm (AA) |
| Orientation | |
| Supply Voltage |
VBAT: 3.8–4.5 V; VCC: 3.3 V; IOVCC: 1.8 V |
| Consumption |
4.40 W (typ, Normal); 5.84 W (typ, HBM) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
AA: L/R ≈ 1.0 mm each; T/B ≈ 3.0 mm each |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC connector (FH26-39S-0.3SHW) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
≈ 0.0807 mm |
| Sunlight Readable |
– |
| Model |
PO700FH101GG |
| PPI ( pixels per inch ) |
315 PPI |
| Application |
Folding / Flexible AMOLED module (panel) |
7 Inch 1200 x 1920 TFT Tablet LCD Screen Raspberry Pi
| Size |
7 inch |
|---|---|
| Pixels |
1200 (H) × 1920 (V) (WUXGA) |
| Interface | |
| Brightness |
450 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
80/80/80/80 (Typ.)(CR≥10) |
| Outline L*W*H |
97.3 mm (W) × 159.4 mm (H) |
| Active Area L*W |
94.5 mm (W) × 151.2 mm (H) |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDDP) |
| Operating Temperarure |
-10°C ~60°C |
| Storage Temperature |
-30°C ~70°C |
| Aspect Ratio |
5:8 (H:V) |
| Connection Type |
Hirose DF19LA-20P-1H (signal), JST BHR-04VS-1 (backlight) |
| IC package |
COG Built-in ISL97692IRTZ |
| Touch Panel | |
| Sunlight Readable |
Yes |
| Model |
LT070ME05000 |
| PPI ( pixels per inch ) |
323 PPI |
8.0-inch TFT LCD 800×1280 MIPI Display
| Size |
8 inch |
|---|---|
| Pixels |
800(RGB) × 1280 dots |
| Interface | |
| Brightness |
Typ 250 cd/m² (Min 220) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz (Frame rate condition in DC characteristics note) |
| Viewing Angle Range |
L/R/U/D:Min 80°, Typ 85°(CR=10) |
| Outline L*W*H |
114.6 × 184.1 × 2.6 mm |
| Active Area L*W |
107.64(H) × 172.22(V) mm |
| Orientation | |
| Supply Voltage |
VCC(analog): 3.0–3.6V (Typ 3.3V);VDDIO(logic): 1.7–3.0V (Typ 1.8V) |
| Consumption |
– |
| Operating Temperarure |
-10 to +60 ℃ |
| Storage Temperature |
-20 to +70 ℃ |
| Bezel Area (mm) |
Bezel Area (mm): **L/R: 3.48 mm each; T/B: 5.94 mm each** |
| Aspect Ratio |
16:10 |
| Connection Type |
31-pin FPC (pinout: 1–31) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1506(H) × 0.1432(V) mm |
| Sunlight Readable |
– |
| Model |
PL801WXGAM |
| PPI ( pixels per inch ) |
≈188.68 PPI |
| Application |
– |
10.5-inch 2560×1600 AMOLED Touch Display
| Size |
10.5 inch |
|---|---|
| Pixels |
2560(H) × 1600(V) |
| Interface | |
| Brightness |
300 cd/m2 (Typ., with Window + TSP, Normal/White Mode) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
Normal |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Over 80° (Upper/Down/Right/Left, Contrast Ratio ≥ 100) |
| Outline L*W*H |
241.16 × 170.603 × 1.904 mm |
| Active Area L*W |
226.56 × 141.60 mm |
| Orientation | |
| Supply Voltage |
VDD_3.3V: 3.3 V; VDD_1.8V: 1.8 V; VBAT: 3.8 V; ELVDD: 5 V; ELVSS: ~ -3.2 V (adjustable); TSP_3.3V: 3.3 V; TSP_1.8V: 1.8 V |
| Consumption |
IBAT: 1632 mA (Typ., 300 cd/m2 Full White, VBAT=3.8 V); IVDD_3.3V: 307 mA (Typ.); IVDD_1.8V: 63 mA (Typ.) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
(233.19−226.56)/2 = 3.315 mm; (150.77−141.60)/2 = 4.585 mm |
| Aspect Ratio |
16:10 |
| Connection Type |
DDK FF10S-80A-R12B-3H-D3 (ZIF type) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.0885 mm |
| Sunlight Readable |
– |
| Model |
AMSA05BV07-0 |
| PPI ( pixels per inch ) |
287.01 PPI |
| Application |
Folding / Flexible AMOLED module (panel) |
