Touch Screen Available

Touch Screen Available means the display can be supplied with touch input capability, allowing users to interact directly through tapping, swiping, dragging, and multi-touch gestures. Depending on the project, touch can be integrated as a cover-lens touch panel, an on-cell touch solution, or a fully bonded touch stack to improve clarity and reduce reflections. This option turns a standard display into an interactive interface for faster, more intuitive control—especially for modern UIs where direct manipulation improves usability and reduces reliance on physical buttons.
Touch-enabled displays are widely used in HMI panels, handheld terminals, medical devices, POS systems, smart home controllers, kiosks, and automotive interiors. When selecting touch, key considerations typically include touch type (capacitive vs. resistive), supported gestures, sensitivity and accuracy, operation with gloves or wet fingers (if required), surface durability, and optical performance after bonding (e.g., haze, reflectance, and contrast). With the right touch integration, the display can deliver responsive interaction while maintaining readability, reliability, and long-term stability in real-world use.
FREE SHIPPING
Fast and reliable delivery
50 DAYS RETURN
Consumer protection program
24/7 SUPPORT
If you have any questions
BEST QUALITY
Many years on the market
AR (5) FHD (8) High brightness (18) High Contrast Ratio (30) High ppi (24) Industrial Panel (7) Long Lifespan (3) Low Latency (3) Low Power Consumption (33) MIPI Interface (31) Round (8) Slim Design (38) Smart Watch (10) Stretched bar LCD (5) Sunlight readable (39) Tablet Display (7) Touch Screen Available (6) Ultra-High Resolution (26) Ultra-Thin Design (12) Vivid Colors (41) VR (8) Wearables (15) Wide color gamut (4) Wide Temperature (43) Wide viewing angle (30)
1.43-inch 466×466 AMOLED Display
| Size |
1.43 inch |
|---|---|
| Pixels |
466 × 466 |
| Interface | |
| Brightness |
700 cd/m² (typ, Ta=25℃, all-white, θ=0) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS Glass |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency fFRM) |
| Viewing Angle Range |
88° (Up/Down/Right/Left, Cr≥200) |
| Outline L*W*H |
44.75 × 44.75 × 2.58 mm |
| Active Area L*W |
36.35 × 36.35 mm |
| Orientation | |
| Supply Voltage |
VCC 2.7–3.6 V; IOVCC 1.65–3.3 V; ELVDD 3.25–3.35 V; ELVSS -3.35–-3.25 V |
| Consumption |
Full white (Sleep out): IVCC 2 mA typ (4 mA max); IIOVCC 1.5 mA typ (3 mA max); IELVDD/ELVSS 13 mA typ (19.5 mA max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
4.20 mm per side |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
TR143R2404A |
| PPI ( pixels per inch ) |
461 PPI |
| Application |
Touch interface pins listed; Touch signals present |
1.47-inch AMOLED Touch Display 194×368
| Size |
1.47 inch |
|---|---|
| Pixels |
194 (W) × 368 (H) (Real RGB arrangement) |
| Interface | , |
| Brightness |
450 nits typ (Luminance: 400 min / 450 typ / 500 max cd/m²) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode); 15 Hz (Idle mode) |
| Viewing Angle Range |
Left/Right/Top/Bottom: 80° min / 85° typ (Cr ≥ 200) |
| Outline L*W*H |
LTPS Glass outline: 19.36 (V) × 36.17 (W) mm; Glass thickness (LTPS/Encap./POL): 0.2/0.3/0.147 mm |
| Active Area L*W |
17.46 × 33.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (3.2–3.4 V); VDDIO 1.8 V (1.7–1.9 V); ELVDD 3.3 V (3.2–3.4 V); ELVSS -3.3 V (-3.4–-3.2 V); TP_VDD 2.8 V (typ); TP_OPT_VDDIO 1.8 V (typ) |
| Consumption |
Normal: 110 typ / 130 max mW (450 nits @ 60 Hz); Idle: 6.5 typ / 8.2 max mW (50 nits @ 15 Hz); Standby: 50 µW max |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
1.90 mm (V total = 19.36 − 17.46); 3.05 mm (W total = 36.17 − 33.12) |
| Aspect Ratio |
194:368 |
| Connection Type |
FPC (Main FPC Bonding PAD), 34 pins |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
90 × 90 µm |
| Sunlight Readable |
– |
| Model |
E1473AC63.B |
| PPI ( pixels per inch ) |
283 PPI |
| Application |
Display/Touch terminals for Smart Watch |
1.63-inch AMOLED Display 320×320 MIPI DSI
| Size |
1.63 inch |
|---|---|
| Pixels |
320 x RGB x 320 |
| Interface | |
| Brightness |
300 nits (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode) |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
32.08 (H) x 36.48 (V) x 0.7 (T) mm (cell + foam) |
| Active Area L*W |
29.28 (H) x 29.28 (V) mm |
| Orientation | |
| Supply Voltage |
IOVDD 1.65–1.95 V (Typ. 1.8 V); VDD 2.8–3.1 V (Typ. 3.0 V); ELVDD 4.57–4.63 V (Typ. 4.60 V); ELVSS -3.35 to -3.45 V (Typ. -3.40 V) |
| Consumption |
Panel Power 138.4 mW (Full white, 300 nits, 60 Hz CMD mode test condition); Idle PVDD 12.0 mW (30 Hz CMD mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 20 pins; Recommended connector: AXE520127 (Panasonic) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
H163QLN01.1 |
| PPI ( pixels per inch ) |
278 PPI |
| Application |
– |
1.78-inch 368×448 AMOLED Display
| Size |
1.78 inch |
|---|---|
| Pixels |
368(W) × 448(H) (Real RGB) |
| Interface | , |
| Brightness |
350 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode) |
| Viewing Angle Range |
80° (Top/Bottom/Right/Left, CR ≥ 1000) |
| Outline L*W*H |
LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm |
| Active Area L*W |
28.7 × 34.94 mm |
| Orientation | |
| Supply Voltage |
Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V) |
| Consumption |
Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 (368:448) |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
78 × 78 μm |
| Sunlight Readable |
– |
| Model |
ED178AM368MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Smart Watch |
2.6-inch 240×320 AMOLED Display Module
| Size |
2.6 inch |
|---|---|
| Pixels |
240 × RGB × 320 |
| Interface | |
| Brightness |
200 cd/m² (Typ), 170 cd/m² (Min), 230 cd/m² (Max) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
80 Hz (Frame Rate setting in test condition) |
| Viewing Angle Range |
160° (Min), 170° (Typ) |
| Outline L*W*H |
44.7 × 62.2 × 1.65 mm (Typ) |
| Active Area L*W |
39.60 × 52.48 mm |
| Orientation | |
| Supply Voltage |
AR_VDD = +4.6 V; AR_VSS = -4.4 V; VCI = 2.5–3.3 V; IOVCC (VDD3) = 1.65–3.3 V |
| Consumption |
260 mW (Typ), 300 mW (Max) @ 30% pixels on |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
L/R = 2.55 mm; T/B = 4.86 mm (calculated from Outline vs Active Area) |
| Aspect Ratio |
3:4 (240:320) |
| Connection Type |
– |
| IC package |
COG assembly |
| Touch Panel | |
| Pixel Pitch |
0.055 × 0.164 mm |
| Sunlight Readable |
– |
| Model |
AMS260DN01 |
| PPI ( pixels per inch ) |
154 PPI |
| Application |
Cell phone etc. |

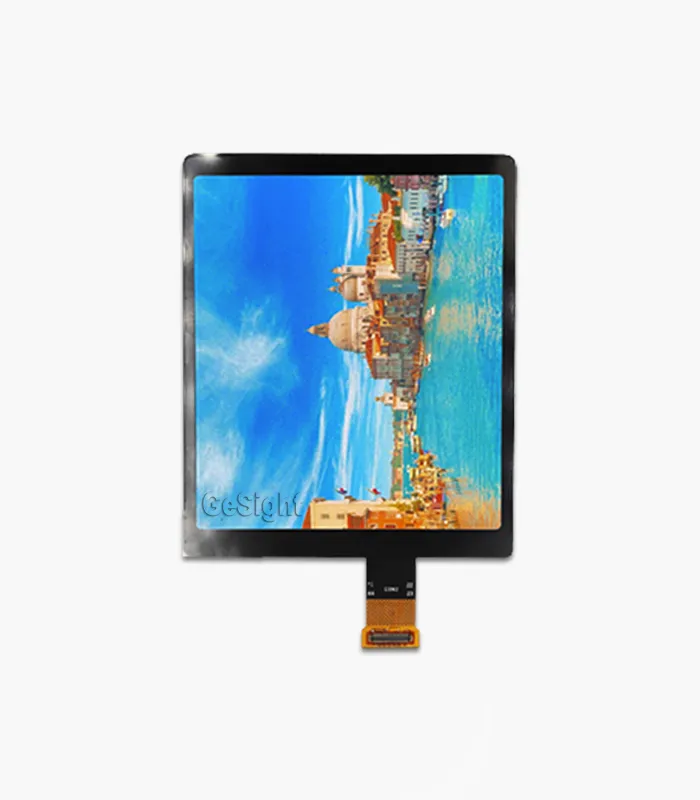

3.92-inch 1080×1240 AMOLED Touch Display
| Size |
3.92 inch |
|---|---|
| Pixels |
1080(H) × 1240(V) |
| Interface | |
| Brightness |
520 cd/m² (typ, white); 600 cd/m² (typ, HBM) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (typ) (Frame Frequency Ff: 57 / 60 / 63 Hz) |
| Viewing Angle Range |
85°/85°/85°/85° (U/D/R/L) |
| Outline L*W*H |
67.248 × 79.874 × 0.699 mm (W × H × T) |
| Active Area L*W |
65.448 × 75.144 mm (W × H) |
| Orientation | |
| Supply Voltage |
VDDIO 1.8 V (typ); VCI 3.0 V (typ); AVDD 7.0 V; ELVDD 4.6 V; ELVSS -3.0 V; TP_DVDD 1.8 V (typ); TP_AVDD 3.3 V (typ) |
| Consumption |
Total 1103.9 mW (typ), 1578.2 mW (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
W bezel total 1.800 mm (0.900 mm each side); H bezel total 4.730 mm (~2.365 mm top/bottom) |
| Aspect Ratio |
27:31 |
| Connection Type |
BM23PF0.8-44DP-0.35V(43) |
| IC package |
Driver IC: COG package; Touch IC: BGA116 (6×6×0.5 mm) |
| Touch Panel | |
| Pixel Pitch |
0.0606 × 0.0606 mm |
| Sunlight Readable |
– |
| Model |
VSX392A101GG |
| PPI ( pixels per inch ) |
419 PPI |
| Application |
– |
