Wide Temperature

Wide Temperature refers to displays designed to operate reliably across a broad ambient temperature range, maintaining stable brightness, contrast, response time, and touch performance in both cold and hot environments. In low temperatures, standard LCDs can suffer from slower response, motion blur, and reduced fluidity, while batteries and electronics may also behave differently. In high temperatures, panels may face brightness drift, color shift, increased power draw, and long-term material stress. Wide-temperature displays address these challenges through temperature-rated components, optimized optical stacks and adhesives, reinforced mechanical structure, and carefully tuned driving parameters that keep image quality consistent when conditions change.
This capability is especially important for products used outdoors, in vehicles, and in industrial or field deployments where climate is unpredictable—such as automotive dashboards, logistics terminals, rugged handhelds, agricultural equipment, marine devices, charging stations, and outdoor kiosks. A wide-temperature design is not just about “surviving” extremes; it’s about keeping the UI readable, responsive, and dependable during startup in the cold, under sun-heated enclosures, and through long continuous operation.
FREE SHIPPING
Fast and reliable delivery
50 DAYS RETURN
Consumer protection program
24/7 SUPPORT
If you have any questions
BEST QUALITY
Many years on the market
AR (5) FHD (8) High brightness (18) High Contrast Ratio (30) High ppi (24) Industrial Panel (7) Long Lifespan (3) Low Latency (3) Low Power Consumption (33) MIPI Interface (31) Round (8) Slim Design (38) Smart Watch (10) Stretched bar LCD (5) Sunlight readable (39) Tablet Display (7) Touch Screen Available (6) Ultra-High Resolution (26) Ultra-Thin Design (12) Vivid Colors (41) VR (8) Wearables (15) Wide color gamut (4) Wide Temperature (43) Wide viewing angle (30)
0.39-inch FHD Micro OLED Display Module
| Size |
0.39 inch (Type 0.39) |
|---|---|
| Pixels |
1920 × 1080 |
| Interface | , |
| Brightness |
1500 cd/m² (White brightness, center) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active matrix color OLED (Micro OLED); full color; 16.7M colors |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
-55° to +55° (white) |
| Outline L*W*H |
16.6 × 17.0 × 4.75 mm (PCB module; 4.75 mm max) |
| Active Area L*W |
8.7495 × 4.9689 mm |
| Orientation | |
| Supply Voltage |
VDDI: 1.8 V (typ); AVDD: 5.4 V (typ); AVEE: -5.4 V (typ); VIN (for PCB): 4.4 V (typ) |
| Consumption |
– |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
7.8505 × 12.0311 mm (derived: Outline – Active Area) |
| Aspect Ratio |
16:9 (derived from 1920×1080) |
| Connection Type |
FPC/connector, 60-pin |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
~4.56 × 4.60 µm (derived: Active Area / Pixels) |
| Sunlight Readable |
– |
| Model |
BO039M1920M |
| PPI ( pixels per inch ) |
5644 PPI |
| Application |
AR/VR; head mounted displays; near-eye displays |
0.49-inch 1920×1080 Micro OLED Display
| Size |
0.49 inch |
|---|---|
| Pixels |
1920(H) × 1080(V) |
| Interface | |
| Brightness |
700 cd/m² (White brightness, typ., ±20%) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
AMOLED (Active Matrix OLED microdisplay panel module) |
| Color Depth | |
| Refresh Rate |
50–100 Hz |
| Viewing Angle Range |
-20° to +20° (luminance / color shift criteria in optical spec) |
| Outline L*W*H |
15.65 ±0.15 mm × 9.09 ±0.25 mm × 1.50 ±0.04 mm |
| Active Area L*W |
11.053 mm × 6.337 mm |
| Orientation | |
| Supply Voltage |
VCI 2.8 V; VDD1 1.8 V; VDD2 1.2 V |
| Consumption |
180 mW (50 Hz); 360 mW (100 Hz); 450 mW (max in table) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
W total 2.753 mm (≈1.3765 mm each side); L total 4.597 mm (≈2.2985 mm each side) |
| Aspect Ratio |
16:9 |
| Connection Type |
FPC (flex cable) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
BO049FHPMO |
| PPI ( pixels per inch ) |
4496 PPI |
| Application |
VR/AR near-eye microdisplay |
0.5-inch XGA Micro OLED display 1024×768
| Size |
0.5 inch |
|---|---|
| Pixels |
1024 × 768 dots (RGB) |
| Interface | |
| Brightness |
200 cd/m² (Mode 0); 120 cd/m² (Mode 2); 300 cd/m² (Mode 3); 500 cd/m² (Mode 4) |
| Manufacturer |
Gesight |
| Display Type |
Micro OLED |
| Display Mode |
Active matrix color OLED panel |
| Color Depth | |
| Refresh Rate |
59.94 Hz (XGA); 50 Hz (XGA) |
| Viewing Angle Range |
– |
| Outline L*W*H |
51.1 × 17.8 × 2.125 mm (as shown in package outline drawing) |
| Active Area L*W |
10.336 × 7.801 mm |
| Orientation | |
| Supply Voltage |
VDD1: 2.7–3.3 V (Typ. 3.0 V); VDD2: 12.0–13.0 V (Typ. 12.5 V); VDD4: 9.7–10.3 V (Typ. 10.0 V); DS_H: 12.0–13.0 V (Typ. 12.5 V); Vcath: -0.3–0.3 V (Typ. 0 V) |
| Consumption |
Total (Typ., Tpnl=40℃, all-white, 60 Hz, 54 MHz): 480/345/280/225 mW (for 500/300/200/120 cd/m²); Standby: 3.3 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
4:3 |
| Connection Type |
FPC (61-pin) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
ECX331DB-6 |
| PPI ( pixels per inch ) |
2510 PPI |
| Application |
View finders; head mounted displays; very small monitors |
0.95-inch LTPS AMOLED Display 120×240 SPI
| Size |
0.95 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
88° Up/Down/Right/Left (Cr ≥ 10) |
| Outline L*W*H |
27.35 × 12.8 × 0.78 mm |
| Active Area L*W |
21.6 × 10.8 mm |
| Orientation | |
| Supply Voltage |
VCI_DIS_28: 2.7–3.6 V (typ 2.8); VDDIO: 1.65–3.3 V (typ 1.8); ELVDD: 4.55–4.65 V (typ 4.6); ELVSS: -2.25––2.15 V (typ -2.2) |
| Consumption |
Full white @ 450 nits, 60 Hz (typ current): IVCI_DIS_28 3.2 mA; IVDDIO 1 mA; IELVDD/ELVSS 7 mA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.0 mm; Top/Bottom: 2.875 mm |
| Aspect Ratio |
1:2 |
| Connection Type |
FPC, 30 pins (pin table shows 1–30) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
80 × 80 um |
| Sunlight Readable |
– |
| Model |
TR095A120SPC |
| PPI ( pixels per inch ) |
282.45 PPI |
| Application |
Smart Watch |
1.2-inch Circular 390×390 AMOLED Display
| Size |
1.2 inch |
|---|---|
| Pixels |
390 × 390 |
| Interface | , |
| Brightness |
300 min, 350 typ, nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
33.22 × 34.72 × 0.66 mm |
| Active Area L*W |
30.42 × 30.42 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65 / 1.8 / 1.95 V (min/typ/max); VCI: 3.27 / 3.3 / 3.33 V; ELVDD: 3.27 / 3.3 / 3.33 V; ELVSS: -3.33 / -3.3 / -3.27 V |
| Consumption |
Panel power (full white, 350 nits): 128.7 mW typ; IOLED: 19.5 mA typ; IC Normal: PVCI 5.3 mW typ, PVDDIO 3.5 mW typ; Idle: PVCI 4.5 mW typ, PVDDIO 2.4 mW typ; Sleep: PVCI < 0.075 mW, PVDDIO < 0.1 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Derived from outline vs active: (33.22-30.42)=2.80 mm; (34.72-30.42)=4.30 mm. Per-side bezel: Left/Right 1.40 mm; Top/Bottom 2.15 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 24-pin; recommended connector BM28B0.6-24DP/2-0.35V(51) / BM28B0.6-24DS/2-0.35V(51) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
Derived: 30.42 mm / 390 = 0.0780 mm (78.0 µm) |
| Sunlight Readable |
– |
| Model |
PO120F390MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.39-inch Circular AMOLED Display 454×454
| Size |
1.39 inch |
|---|---|
| Pixels |
454RGB × 454 |
| Interface | , |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
45 Hz (typ), 43–47 Hz |
| Viewing Angle Range |
80°/80°/80°/80° (L/R/U/D, CR≥10) |
| Outline L*W*H |
≤ 42.0 × ≤ 42.0 × 0.733 mm (module outline ≤ φ42; max thickness 0.733 mm MDL) |
| Active Area L*W |
35.412 × 35.412 mm (AA = φ35.412 mm) |
| Orientation | |
| Supply Voltage |
VDDIO: 1.8 V (typ) [1.65–1.95 V]; Vbat: 3.7 V (typ) [2.9–4.8 V] |
| Consumption |
260 mW (typ) @ 100% on, 450 nits, 45 Hz; 38 mW (typ) all pixel off; 1.2 mW (typ) standby (Vci on/Vddio on); < 50 μW standby (Vci off/Vddio on) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
2.275 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
Board to Board Connection |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 µm |
| Sunlight Readable |
– |
| Model |
BO139A454SPI |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.43-inch 466×466 AMOLED Display
| Size |
1.43 inch |
|---|---|
| Pixels |
466 × 466 |
| Interface | |
| Brightness |
700 cd/m² (typ, Ta=25℃, all-white, θ=0) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS Glass |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency fFRM) |
| Viewing Angle Range |
88° (Up/Down/Right/Left, Cr≥200) |
| Outline L*W*H |
44.75 × 44.75 × 2.58 mm |
| Active Area L*W |
36.35 × 36.35 mm |
| Orientation | |
| Supply Voltage |
VCC 2.7–3.6 V; IOVCC 1.65–3.3 V; ELVDD 3.25–3.35 V; ELVSS -3.35–-3.25 V |
| Consumption |
Full white (Sleep out): IVCC 2 mA typ (4 mA max); IIOVCC 1.5 mA typ (3 mA max); IELVDD/ELVSS 13 mA typ (19.5 mA max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
4.20 mm per side |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
TR143R2404A |
| PPI ( pixels per inch ) |
461 PPI |
| Application |
Touch interface pins listed; Touch signals present |
1.47-inch AMOLED Touch Display 194×368
| Size |
1.47 inch |
|---|---|
| Pixels |
194 (W) × 368 (H) (Real RGB arrangement) |
| Interface | , |
| Brightness |
450 nits typ (Luminance: 400 min / 450 typ / 500 max cd/m²) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode); 15 Hz (Idle mode) |
| Viewing Angle Range |
Left/Right/Top/Bottom: 80° min / 85° typ (Cr ≥ 200) |
| Outline L*W*H |
LTPS Glass outline: 19.36 (V) × 36.17 (W) mm; Glass thickness (LTPS/Encap./POL): 0.2/0.3/0.147 mm |
| Active Area L*W |
17.46 × 33.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (3.2–3.4 V); VDDIO 1.8 V (1.7–1.9 V); ELVDD 3.3 V (3.2–3.4 V); ELVSS -3.3 V (-3.4–-3.2 V); TP_VDD 2.8 V (typ); TP_OPT_VDDIO 1.8 V (typ) |
| Consumption |
Normal: 110 typ / 130 max mW (450 nits @ 60 Hz); Idle: 6.5 typ / 8.2 max mW (50 nits @ 15 Hz); Standby: 50 µW max |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
1.90 mm (V total = 19.36 − 17.46); 3.05 mm (W total = 36.17 − 33.12) |
| Aspect Ratio |
194:368 |
| Connection Type |
FPC (Main FPC Bonding PAD), 34 pins |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
90 × 90 µm |
| Sunlight Readable |
– |
| Model |
E1473AC63.B |
| PPI ( pixels per inch ) |
283 PPI |
| Application |
Display/Touch terminals for Smart Watch |
1.5-inch Flexible/Bendable OLED Display 120×240 SPI/MIPI
| Size |
1.5 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | , |
| Brightness |
350 cd/m² typ (300 cd/m² min @ θ=0°) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Top/Bottom/Left/Right, condition CR > 1600) |
| Outline L*W*H |
20.12 × 38.94 × 0.71 mm (typ, Module Size w/o COF & FPCa & CAF; Thickness typ) |
| Active Area L*W |
16.92 × 33.84 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.8 V typ (2.7–3.6 V); VDDIO: 1.8 V typ (1.65–3.3 V); ELVDD: 4.6 V typ (4.55–4.65 V); ELVSS: −2.4 V typ (−2.35 to −2.45 V) |
| Consumption |
110 mW typ; IC: 14.24 mW typ |
| Operating Temperarure |
−20 to +60 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
H bezel total 3.20 mm (≈1.60 mm per side); V bezel total 5.10 mm (≈2.55 mm per side) |
| Aspect Ratio |
1:2 (120:240) |
| Connection Type |
I-PEX connector: 20641-024E (module); mating/user connector: 20642-024E |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.141(H) × 0.141(V) mm |
| Sunlight Readable |
– |
| Model |
GO15F120SPI |
| PPI ( pixels per inch ) |
180 PPI |
| Application |
Smart bracelet |
1.63-inch AMOLED Display 320×320 MIPI DSI
| Size |
1.63 inch |
|---|---|
| Pixels |
320 x RGB x 320 |
| Interface | |
| Brightness |
300 nits (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode) |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
32.08 (H) x 36.48 (V) x 0.7 (T) mm (cell + foam) |
| Active Area L*W |
29.28 (H) x 29.28 (V) mm |
| Orientation | |
| Supply Voltage |
IOVDD 1.65–1.95 V (Typ. 1.8 V); VDD 2.8–3.1 V (Typ. 3.0 V); ELVDD 4.57–4.63 V (Typ. 4.60 V); ELVSS -3.35 to -3.45 V (Typ. -3.40 V) |
| Consumption |
Panel Power 138.4 mW (Full white, 300 nits, 60 Hz CMD mode test condition); Idle PVDD 12.0 mW (30 Hz CMD mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 20 pins; Recommended connector: AXE520127 (Panasonic) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
H163QLN01.1 |
| PPI ( pixels per inch ) |
278 PPI |
| Application |
– |
1.78-inch 368×448 AMOLED Display
| Size |
1.78 inch |
|---|---|
| Pixels |
368(W) × 448(H) (Real RGB) |
| Interface | , |
| Brightness |
350 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode) |
| Viewing Angle Range |
80° (Top/Bottom/Right/Left, CR ≥ 1000) |
| Outline L*W*H |
LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm |
| Active Area L*W |
28.7 × 34.94 mm |
| Orientation | |
| Supply Voltage |
Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V) |
| Consumption |
Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 (368:448) |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
78 × 78 μm |
| Sunlight Readable |
– |
| Model |
ED178AM368MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Smart Watch |

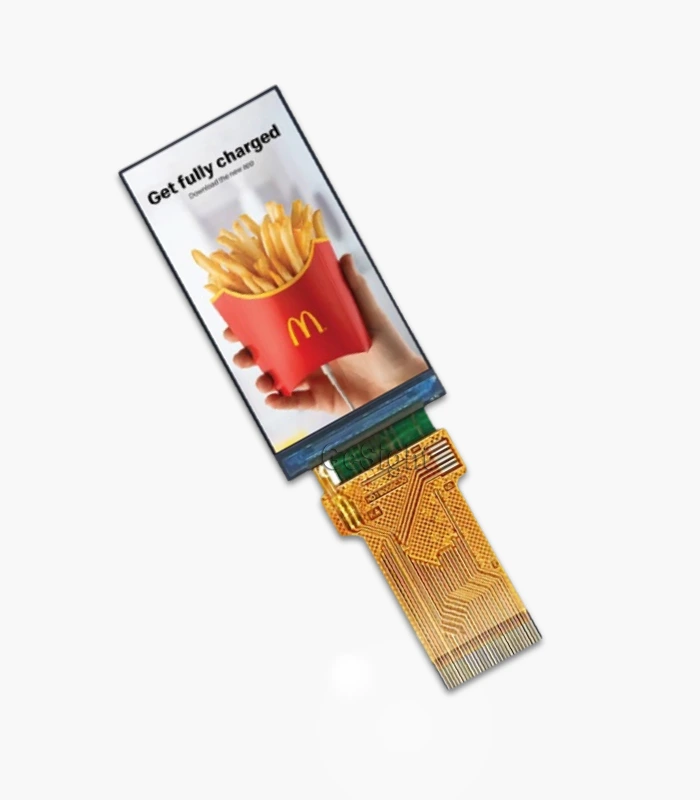

1.9-inch TFT-LCD Display Module 170×320 4-SPI
| Size |
1.9 inch |
|---|---|
| Pixels |
170(RGB) × 320 |
| Interface | |
| Brightness |
Typ. 330 cd/m²(If=20mA) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
IPS / Transmissive / Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
H: 80°/80°,V: 80°/80°(CR≥10) |
| Outline L*W*H |
25.8(H) × 49.72(V) × 1.43(T) mm |
| Active Area L*W |
22.7(H) × 42.72(V) mm |
| Supply Voltage |
VDD: 2.4–3.3V(Typ 2.8V); VCI: 2.4–3.3V(Typ 2.8V); IOVDD: 1.65–3.3V(Typ 1.8/2.8V) |
| Consumption |
Normal display Ivdd: Typ 50 mA;Standby Ivdd: Typ 20 µA |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
17:32 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
≈ 0.1335 mm |
| Sunlight Readable |
– |
| Model |
PL19006C30 |
| PPI ( pixels per inch ) |
≈ 191 PPI |
| Application |
– |
1.91-inch 240×536 AMOLED Long Strip Shape
| Size |
1.91 inch |
|---|---|
| Pixels |
240(W) × 536(H) |
| Interface | |
| Brightness |
350 cd/m² (Typ., Br0, θ=0°); 315 cd/m² (Min.); 385 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode, test condition); 15 Hz (Idle mode, test condition) |
| Viewing Angle Range |
ALL angle: θ = 0° to 88°, φ = 0° to 360° |
| Outline L*W*H |
51.32 ± 0.15 mm × 22.40 ± 0.15 mm × 0.753 ± 0.10 mm (module outline / side view) |
| Active Area L*W |
44.22 mm × 19.80 mm |
| Orientation | |
| Supply Voltage |
VBAT: 2.5 / 3.7 / 4.5 V (Min/Typ/Max); VDDIO: 1.65 / 1.8 / 1.95 V; VCI: 2.65 / 2.8 / 3.6 V |
| Consumption |
Ivbat: 42 mA (Typ), 50.4 mA (Max); Ivddio: 6.5 mA (Typ), 7.8 mA (Max); Ivci: 12 mA (Typ), 14 mA (Max) (Normal mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right bezel: (22.40−19.80)/2 = 1.30 mm each; Top/Bottom bezel: (51.32−44.22)/2 = 3.55 mm each |
| Aspect Ratio |
240:536 |
| Connection Type |
BTB connector, 51 pins, 0.4 mm pitch (BM25R-0.4DP-0.35V(51)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
82.5 × 82.5 μm |
| Sunlight Readable |
– |
| Model |
E191AM8M0 |
| PPI ( pixels per inch ) |
307 PPI |
| Application |
Smart Phone |
2.45 Inch TFT LCD Display High Brightness Wide Viewing Angle
| Size |
2.45" (Diagonal) |
|---|---|
| Pixels |
240× 432 |
| Interface | |
| Brightness |
450 ~ 500 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
ECB, Normally White |
| Color Depth | |
| Refresh Rate |
30 fps (typical at 240 Mbps MIPI) |
| Viewing Angle Range |
≥50° each direction (CR≥10) |
| Outline L*W*H |
31.82 × 33.72 × 1.242 mm |
| Active Area L*W |
30.24 × 54.432 mm |
| Orientation | |
| Supply Voltage |
Logic: 1.8 V, Analog: 3.0 V |
| Consumption |
Backlight: ~252 mW, MIPI logic: up to 40 mW |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Bezel Area (mm) |
(Not explicitly listed; approx. outline – active area margins) |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC (flex cable) |
| IC package |
COG (Chip on Glass) |
| Touch Panel | |
| Pixel Pitch |
0.042 × 0.126 mm |
| Sunlight Readable |
Partial (≥500 cd/m², but not full outdoor readability) |
| Model |
H245QBN02.0 |
| PPI ( pixels per inch ) |
~180 PPI |
| Application |
Handheld devices, portable instruments, smart appliances |
2.04-inch 368×448 AMOLED Wearable Display
| Size |
2.04 inch |
|---|---|
| Pixels |
368 × 448 |
| Interface | |
| Brightness |
700 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED / LTPS |
| Color Depth | |
| Refresh Rate |
45 Hz (Frame Frequency) |
| Viewing Angle Range |
Up/Down/Right/Left: 88 deg (Cr ≥ 200) |
| Outline L*W*H |
44.46 × 34.64 × 2.58 mm |
| Active Area L*W |
39.98 × 33.74 mm |
| Orientation | |
| Supply Voltage |
VCC: 2.7–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V); ELVDD: 3.25–3.35 V (typ. 3.3 V); ELVSS: -3.35–-3.25 V (typ. -3.3 V) |
| Consumption |
IVCC: 2 mA (typ., full white, sleep out); IIOVCC: 1.5 mA (typ.); IELVDD/ELVSS: 13 mA (typ.) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
23:28 |
| Connection Type |
FPC |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
78 × 78 µm |
| Sunlight Readable |
– |
| Model |
PO204RT448S |
| PPI ( pixels per inch ) |
284 PPI |
| Application |
Smart Watch |
2.4-inch 450×600 AMOLED Display Module
| Size |
2.4 inch |
|---|---|
| Pixels |
450RGB × 600 |
| Interface | , , |
| Brightness |
800 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Left/Right/Top/Bottom, CR ≥ 10) |
| Outline L*W*H |
38.72 × 51.56 × 0.5 mm |
| Active Area L*W |
36.72 × 48.96 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.7–3.6 V (typ. 3.3 V); VDDIO: 1.65–3.3 V (typ. 1.8 V); ELVDD: 2.0–6.0 V (typ. 3.6 V); ELVSS: -4.7–-0.4 V (typ. -3.6 V) |
| Consumption |
TBD (spec lists power as TBD; IELVSS typ. 72.2 mA in on-mode condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
3:4 |
| Connection Type |
FPC (mating connector: Molex 502598-4591) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
81.6 um |
| Sunlight Readable |
– |
| Model |
B024JMV-N50-6DP0 |
| PPI ( pixels per inch ) |
311 PPI |
| Application |
Sports camera; Smart home |
2.6-inch 240×320 AMOLED Display Module
| Size |
2.6 inch |
|---|---|
| Pixels |
240 × RGB × 320 |
| Interface | |
| Brightness |
200 cd/m² (Typ), 170 cd/m² (Min), 230 cd/m² (Max) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
80 Hz (Frame Rate setting in test condition) |
| Viewing Angle Range |
160° (Min), 170° (Typ) |
| Outline L*W*H |
44.7 × 62.2 × 1.65 mm (Typ) |
| Active Area L*W |
39.60 × 52.48 mm |
| Orientation | |
| Supply Voltage |
AR_VDD = +4.6 V; AR_VSS = -4.4 V; VCI = 2.5–3.3 V; IOVCC (VDD3) = 1.65–3.3 V |
| Consumption |
260 mW (Typ), 300 mW (Max) @ 30% pixels on |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
L/R = 2.55 mm; T/B = 4.86 mm (calculated from Outline vs Active Area) |
| Aspect Ratio |
3:4 (240:320) |
| Connection Type |
– |
| IC package |
COG assembly |
| Touch Panel | |
| Pixel Pitch |
0.055 × 0.164 mm |
| Sunlight Readable |
– |
| Model |
AMS260DN01 |
| PPI ( pixels per inch ) |
154 PPI |
| Application |
Cell phone etc. |
2.69-inch 800×600 AMOLED Display Module
| Size |
2.69 inch |
|---|---|
| Pixels |
800 × 600 |
| Interface | |
| Brightness |
420 nit (Typ.), 380 nit (Min.), 460 nit (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Typ.), 58–62 Hz |
| Viewing Angle Range |
≥80° (CR ≥ 1600) |
| Outline L*W*H |
56.6 × 47.25 × 0.505 mm |
| Active Area L*W |
54.6 × 40.95 mm |
| Orientation | |
| Supply Voltage |
VCI 2.7–3.6 V (Typ. 3.0 V); VDDIO 1.62–1.98 V (Typ. 1.8 V); AVDD 6.8–7.8 V (Typ. 6.8 V); ELVDD 4.6 V; ELVSS -3.0 to -1.4 V (Typ. -2.0 V) |
| Consumption |
TBD |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +125 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
4:3 |
| Connection Type |
FPC (Recommended connector: Molex 5052743040) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
68.25 × 68.25 µm |
| Sunlight Readable |
– |
| Model |
BO269FM800 |
| PPI ( pixels per inch ) |
372 PPI |
| Application |
Smart Mobile Phone |
