All productsWide viewing angle
Wide Viewing Angle refers to display panels engineered to maintain consistent brightness, contrast, and color accuracy even when viewed from the sides or from above/below—rather than only looking “correct” straight-on. This is especially important for shared viewing and multi-operator setups, where users may stand at different positions and still need clear, reliable information.
Panels with wide viewing angles reduce common off-axis issues such as color shifting, washed-out blacks, and contrast drop. In real products, this is often achieved through panel modes like IPS (for LCD) or the inherently strong off-axis performance of OLED, combined with optical films and optimized cell design. Wide viewing angles are ideal for industrial HMIs, medical displays, kiosks, vehicle cockpits, point-of-sale systems, and any application where the screen must stay readable from multiple directions.
FREE SHIPPING
Fast and reliable delivery
50 DAYS RETURN
Consumer protection program
24/7 SUPPORT
If you have any questions
BEST QUALITY
Many years on the market
0.95-inch LTPS AMOLED Display 120×240 SPI
| Size |
0.95 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | |
| Brightness |
450 cd/m² (typ) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
88° Up/Down/Right/Left (Cr ≥ 10) |
| Outline L*W*H |
27.35 × 12.8 × 0.78 mm |
| Active Area L*W |
21.6 × 10.8 mm |
| Orientation | |
| Supply Voltage |
VCI_DIS_28: 2.7–3.6 V (typ 2.8); VDDIO: 1.65–3.3 V (typ 1.8); ELVDD: 4.55–4.65 V (typ 4.6); ELVSS: -2.25––2.15 V (typ -2.2) |
| Consumption |
Full white @ 450 nits, 60 Hz (typ current): IVCI_DIS_28 3.2 mA; IVDDIO 1 mA; IELVDD/ELVSS 7 mA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.0 mm; Top/Bottom: 2.875 mm |
| Aspect Ratio |
1:2 |
| Connection Type |
FPC, 30 pins (pin table shows 1–30) |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
80 × 80 um |
| Sunlight Readable |
– |
| Model |
TR095A120SPC |
| PPI ( pixels per inch ) |
282.45 PPI |
| Application |
Smart Watch |
1.2-inch Circular 390×390 AMOLED Display
| Size |
1.2 inch |
|---|---|
| Pixels |
390 × 390 |
| Interface | , |
| Brightness |
300 min, 350 typ, nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600) |
| Outline L*W*H |
33.22 × 34.72 × 0.66 mm |
| Active Area L*W |
30.42 × 30.42 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65 / 1.8 / 1.95 V (min/typ/max); VCI: 3.27 / 3.3 / 3.33 V; ELVDD: 3.27 / 3.3 / 3.33 V; ELVSS: -3.33 / -3.3 / -3.27 V |
| Consumption |
Panel power (full white, 350 nits): 128.7 mW typ; IOLED: 19.5 mA typ; IC Normal: PVCI 5.3 mW typ, PVDDIO 3.5 mW typ; Idle: PVCI 4.5 mW typ, PVDDIO 2.4 mW typ; Sleep: PVCI < 0.075 mW, PVDDIO < 0.1 mW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Derived from outline vs active: (33.22-30.42)=2.80 mm; (34.72-30.42)=4.30 mm. Per-side bezel: Left/Right 1.40 mm; Top/Bottom 2.15 mm |
| Aspect Ratio |
1:1 |
| Connection Type |
FPC, 24-pin; recommended connector BM28B0.6-24DP/2-0.35V(51) / BM28B0.6-24DS/2-0.35V(51) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
Derived: 30.42 mm / 390 = 0.0780 mm (78.0 µm) |
| Sunlight Readable |
– |
| Model |
PO120F390MS |
| PPI ( pixels per inch ) |
326 PPI |
| Application |
Display terminals for Round Watch |
1.5-inch Flexible/Bendable OLED Display 120×240 SPI/MIPI
| Size |
1.5 inch |
|---|---|
| Pixels |
120 × 240 |
| Interface | , |
| Brightness |
350 cd/m² typ (300 cd/m² min @ θ=0°) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
– |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (Top/Bottom/Left/Right, condition CR > 1600) |
| Outline L*W*H |
20.12 × 38.94 × 0.71 mm (typ, Module Size w/o COF & FPCa & CAF; Thickness typ) |
| Active Area L*W |
16.92 × 33.84 mm |
| Orientation | |
| Supply Voltage |
VCI: 2.8 V typ (2.7–3.6 V); VDDIO: 1.8 V typ (1.65–3.3 V); ELVDD: 4.6 V typ (4.55–4.65 V); ELVSS: −2.4 V typ (−2.35 to −2.45 V) |
| Consumption |
110 mW typ; IC: 14.24 mW typ |
| Operating Temperarure |
−20 to +60 °C |
| Storage Temperature |
−30 to +70 °C |
| Bezel Area (mm) |
H bezel total 3.20 mm (≈1.60 mm per side); V bezel total 5.10 mm (≈2.55 mm per side) |
| Aspect Ratio |
1:2 (120:240) |
| Connection Type |
I-PEX connector: 20641-024E (module); mating/user connector: 20642-024E |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
0.141(H) × 0.141(V) mm |
| Sunlight Readable |
– |
| Model |
GO15F120SPI |
| PPI ( pixels per inch ) |
180 PPI |
| Application |
Smart bracelet |
1.9-inch TFT-LCD Display Module 170×320 4-SPI
| Size |
1.9 inch |
|---|---|
| Pixels |
170(RGB) × 320 |
| Interface | |
| Brightness |
Typ. 330 cd/m²（If=20mA) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
IPS / Transmissive / Normally Black |
| Color Depth | |
| Refresh Rate |
60Hz |
| Viewing Angle Range |
H: 80°/80°，V: 80°/80°（CR≥10） |
| Outline L*W*H |
25.8(H) × 49.72(V) × 1.43(T) mm |
| Active Area L*W |
22.7(H) × 42.72(V) mm |
| Supply Voltage |
VDD: 2.4–3.3V（Typ 2.8V）; VCI: 2.4–3.3V（Typ 2.8V）; IOVDD: 1.65–3.3V（Typ 1.8/2.8V） |
| Consumption |
Normal display Ivdd: Typ 50 mA；Standby Ivdd: Typ 20 µA |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
17:32 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
≈ 0.1335 mm |
| Sunlight Readable |
– |
| Model |
PL19006C30 |
| PPI ( pixels per inch ) |
≈ 191 PPI |
| Application |
– |
1.91-inch 240×536 AMOLED Long Strip Shape
| Size |
1.91 inch |
|---|---|
| Pixels |
240(W) × 536(H) |
| Interface | |
| Brightness |
350 cd/m² (Typ., Br0, θ=0°); 315 cd/m² (Min.); 385 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (Normal mode, test condition); 15 Hz (Idle mode, test condition) |
| Viewing Angle Range |
ALL angle: θ = 0° to 88°, φ = 0° to 360° |
| Outline L*W*H |
51.32 ± 0.15 mm × 22.40 ± 0.15 mm × 0.753 ± 0.10 mm (module outline / side view) |
| Active Area L*W |
44.22 mm × 19.80 mm |
| Orientation | |
| Supply Voltage |
VBAT: 2.5 / 3.7 / 4.5 V (Min/Typ/Max); VDDIO: 1.65 / 1.8 / 1.95 V; VCI: 2.65 / 2.8 / 3.6 V |
| Consumption |
Ivbat: 42 mA (Typ), 50.4 mA (Max); Ivddio: 6.5 mA (Typ), 7.8 mA (Max); Ivci: 12 mA (Typ), 14 mA (Max) (Normal mode test condition) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +80 °C |
| Bezel Area (mm) |
Left/Right bezel: (22.40−19.80)/2 = 1.30 mm each; Top/Bottom bezel: (51.32−44.22)/2 = 3.55 mm each |
| Aspect Ratio |
240:536 |
| Connection Type |
BTB connector, 51 pins, 0.4 mm pitch (BM25R-0.4DP-0.35V(51)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
82.5 × 82.5 μm |
| Sunlight Readable |
– |
| Model |
E191AM8M0 |
| PPI ( pixels per inch ) |
307 PPI |
| Application |
Smart Phone |
2.1-inch Circular TFT LCD 480×480 RGB+SPI
| Size |
2.1 inch |
|---|---|
| Pixels |
480(RGB) × 480 |
| Interface | , |
| Brightness |
Min 280 / Typ 300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
U/D/L/R 80°（CR≥10） |
| Outline L*W*H |
56.18 × 59.71 × 2.3 mm |
| Active Area L*W |
53.28 × 53.28 mm |
| Orientation | |
| Supply Voltage |
VDD：2.5 ~ 4.8 V（Typ 2.8 V） |
| Consumption |
Backlight power Typ 80 / Max 88 mA |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
Left/Right bezel: ~1.45 mm each |
| Aspect Ratio |
1:1 |
| Connection Type |
0.5 PITCH 40PIN |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.111 mm（≈111 µm） |
| Sunlight Readable |
– |
| Model |
PL021WQI-B40TP |
| PPI ( pixels per inch ) |
≈323.25 |
| Application |
– |
3.16-inch TFT-LCD Display Module 820×320 Parallel RGB
| Size |
3.16 inch |
|---|---|
| Pixels |
820 RGB × 320 |
| Interface | |
| Brightness |
550 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Transmission mode, Normally black |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (CR ≥ 10) for each direction (U/D/L/R) |
| Outline L*W*H |
76.6 × 31.2 × 2.4 mm |
| Active Area L*W |
65.65 × 26.4 mm |
| Supply Voltage |
VCI: 2.8–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V) |
| Consumption |
Idd: 40 mA (typ.) |
| Operating Temperarure |
-20 to 70 °C |
| Storage Temperature |
-30 to 80 °C |
| Bezel Area (mm) |
5.475 mm (left/right), 2.4 mm (top/bottom) |
| Aspect Ratio |
820:320 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
0.0825 × 0.0285 mm |
| Sunlight Readable |
– |
| Model |
PL0316IV0-SV1-RGB |
| PPI ( pixels per inch ) |
278.6 PPI (≈279 PPI) |
| Application |
Virtual Reality Device；Augmented Reality Device |
3.7-inch 480×800 AMOLED Display (RGB-24bit + 3-Wire SPI)
| Size |
3.69 inch |
|---|---|
| Pixels |
480 × 800 |
| Interface | , |
| Brightness |
250 cd/m² (Typ.), 200 cd/m² (Min.), 300 cd/m² (Max.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
±30° (inspection tolerance) |
| Outline L*W*H |
90.0 × 53.94 × 1.5 mm |
| Active Area L*W |
80.4 × 48.24 mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.65–3.3 V (Typ. 1.8 V); VCI: 2.5–3.3 V (Typ. 2.9 V); VBAT: 2.5–4.5 V (Typ. 3.8 V) |
| Consumption |
IBAT: 320 mA (Typ.), 380 mA (Max.) @ 250 cd/m², full white, VBAT=3.8 V |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−30 to +85 °C |
| Bezel Area (mm) |
Left/Right: 2.85 mm; Top/Bottom: 4.80 mm (calculated from outline vs active area) |
| Aspect Ratio |
3:5 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1005 × 0.1005 mm |
| Sunlight Readable |
– |
| Model |
AMS369FG06-0 |
| PPI ( pixels per inch ) |
253 PPI |
| Application |
– |
3.71-inch Bar TFT-LCD Display Module 240×960 MIPI DSI
| Size |
3.71 inch |
|---|---|
| Pixels |
240 (RGB) × 960 |
| Interface | |
| Brightness |
350 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
IPS |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
Horizontal: -80° to +80° (CR ≥ 10); Vertical: -80° to +80° (CR ≥ 10) |
| Outline L*W*H |
98.89 × 25.3 × 2.3 mm (datasheet lists as W×H×T = 25.3 × 98.89 × 2.3 mm) |
| Active Area L*W |
91.44 × 22.86 mm (datasheet lists as W×H = 22.86 × 91.44 mm) |
| Supply Voltage |
VCC (logic): 3.3 V; IOVCC (I/O): 1.8 V |
| Consumption |
Idd (input current): Not specified in datasheet; Backlight: If = 20 mA (constant current), Vf = 19.8 V |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:4 |
| Connection Type |
FPC |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
0.09525 × 0.09525 mm |
| Sunlight Readable |
– |
| Model |
PL037L960 |
| PPI ( pixels per inch ) |
≈ 266.7 PPI |
| Application |
– |
3.81-inch 1080×1200 90Hz AMOLED Display
| Size |
3.81 inch |
|---|---|
| Pixels |
1080(H) × 1200(V) |
| Interface | |
| Brightness |
100 nits (Typ.), 80 nits (Min.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
90 Hz |
| Viewing Angle Range |
Top/Bottom/Left/Right: 80 Deg. (CR > 480) |
| Outline L*W*H |
67.60 (H) × 78.95 (V) × 1.14 (T) mm |
| Active Area L*W |
64.80 (H) × 72.0 (V) mm |
| Orientation | |
| Supply Voltage |
IOVCC: 1.8 V (Typ., 1.65–1.95 V); VCI: 3.0 V (Typ., 2.8–3.2 V); OVDD: 4.6 V; OVSS: -2.9 V; AVDD: 5.8 V |
| Consumption |
Normal mode current (Typ.): IAVDD 15 mA; IVCI 3 mA; IIOVCC 38 mA; IOVDD 16 mA; IOVSS 16 mA (Condition: 25℃, 100 nits White) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right: 1.40 mm each; Top/Bottom: 3.48 mm each |
| Aspect Ratio |
9:10 |
| Connection Type |
39-pin FPC connector (Recommended: Hirose FH35C-39S-0.3HW(50)) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
60 um |
| Sunlight Readable |
– |
| Model |
H381DLN01.0 |
| PPI ( pixels per inch ) |
424 PPI |
| Application |
– |
3.92-inch 1080×1240 AMOLED Touch Display
| Size |
3.92 inch |
|---|---|
| Pixels |
1080(H) × 1240(V) |
| Interface | |
| Brightness |
520 cd/m² (typ, white); 600 cd/m² (typ, HBM) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz (typ) (Frame Frequency Ff: 57 / 60 / 63 Hz) |
| Viewing Angle Range |
85°/85°/85°/85° (U/D/R/L) |
| Outline L*W*H |
67.248 × 79.874 × 0.699 mm (W × H × T) |
| Active Area L*W |
65.448 × 75.144 mm (W × H) |
| Orientation | |
| Supply Voltage |
VDDIO 1.8 V (typ); VCI 3.0 V (typ); AVDD 7.0 V; ELVDD 4.6 V; ELVSS -3.0 V; TP_DVDD 1.8 V (typ); TP_AVDD 3.3 V (typ) |
| Consumption |
Total 1103.9 mW (typ), 1578.2 mW (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
W bezel total 1.800 mm (0.900 mm each side); H bezel total 4.730 mm (~2.365 mm top/bottom) |
| Aspect Ratio |
27:31 |
| Connection Type |
BM23PF0.8-44DP-0.35V(43) |
| IC package |
Driver IC: COG package; Touch IC: BGA116 (6×6×0.5 mm) |
| Touch Panel | |
| Pixel Pitch |
0.0606 × 0.0606 mm |
| Sunlight Readable |
– |
| Model |
VSX392A101GG |
| PPI ( pixels per inch ) |
419 PPI |
| Application |
– |

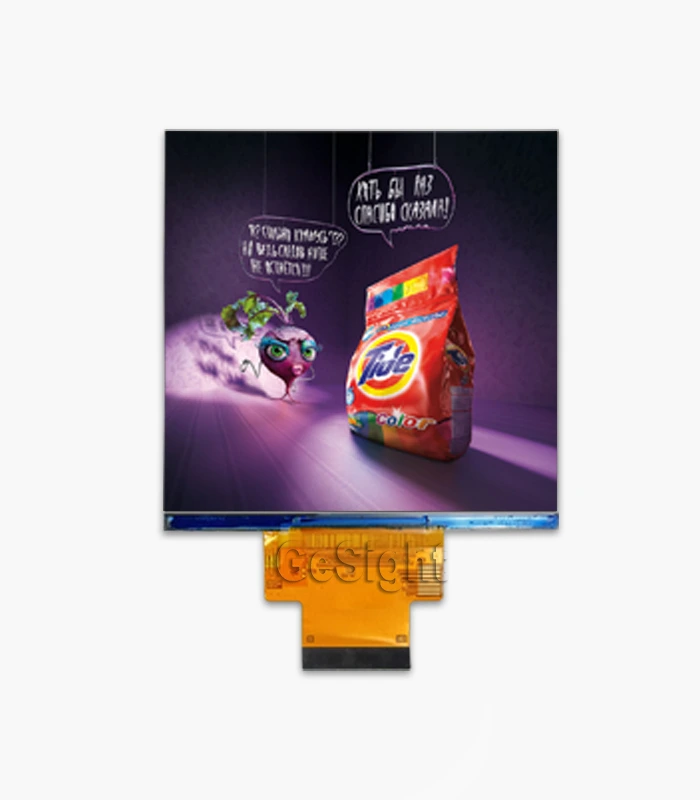

4.0-inch Square TFT-LCD Display Module 480×480 SPI+RGB
| Size |
4.0inch |
|---|---|
| Pixels |
480(RGB) × 480 |
| Interface | , |
| Brightness |
420 min / 450 typ cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Normally Black |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
80° (T) / 80° (B) / 80° (L) / 80° (R), CR ≥ 10 |
| Outline L*W*H |
84.3 * 84.3 * 3.2 mm |
| Active Area L*W |
71.86 * 70.18 mm |
| Supply Voltage |
VDD = 2.8 min / 3.3 typ / 3.6 max V |
| Consumption |
IDD = 50 mA max (VDD = 2.8 V, Ta = 25°C); Backlight IF = 40 typ / 45 max mA, VF = 12.8 V (typ) |
| Operating Temperarure |
-20 ~ 70 ℃ |
| Storage Temperature |
-30 ~ 80 ℃ |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
0.5 PITCH connector |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
– |
| Sunlight Readable |
– |
| Model |
PL040WQI-H401-R4018 |
| PPI ( pixels per inch ) |
– |
| Application |
– |
4.3-inch 540×960 AMOLED Display
| Size |
4.3 inch |
|---|---|
| Pixels |
540(RGB) × 960 |
| Interface | , |
| Brightness |
Recommend 250 nits |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
OLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
– |
| Outline L*W*H |
57.26 × 103.87 × 0.77 mm |
| Active Area L*W |
53.46(H) × 95.04(V) mm |
| Orientation | |
| Supply Voltage |
VDDIO: typ 1.80 V (min 1.65, max 3.30); VDD: typ 3.00 V (min 2.80, max 3.20); OVDD: typ 4.60 V (min 4.55, max 4.65); OVSS: typ -4.40 V (min -4.33, max -4.47) |
| Consumption |
Panel Power (P_EL): typ 405.0 mW, max 1350.0 mW; Panel Current (I_EL): typ 64.2 mA, max 150.0 mA; IC P_VDD: min 81.8 mW, typ 102.3 mW, max 122.7 mW; IC I_VDD: min 26.6 mA, typ 33.3 mA, max 39.9 mA; IC P_VDDIO: min 18.5 uW, typ 23.2 uW, max 27.8 uW; IC I_VDDIO: min 9.8 uA, typ 12.3 uA, max 14.7 uA |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−55 to +105 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
9:16 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.033(H) × 0.099(V) mm |
| Sunlight Readable |
– |
| Model |
AUO429FN01P |
| PPI ( pixels per inch ) |
256 PPI |
| Application |
– |
5.0-inch Circular TFT LCD 1080×1080 MIPI DSI
| Size |
5.0 inch |
|---|---|
| Pixels |
1080(RGB) × 1080 |
| Interface | |
| Brightness |
400 cd/m² (Typ.) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCD |
| Display Mode |
Normally Black, Transmissive mode |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
U/D/L/R free viewing direction |
| Outline L*W*H |
136.531 × 132.208 × 1.98 mm |
| Active Area L*W |
127.008 × 127.008 mm (circle) |
| Orientation | |
| Supply Voltage |
IOVCC 1.8 V (typ); VSP +5.0 V (typ); VSN -5.0 V (typ); LED VF 38.4 V (typ); LED IF 20 mA (typ) |
| Consumption |
Backlight power 0.744 W (typ); 0.768 W (max) |
| Operating Temperarure |
-20 to +60 °C |
| Storage Temperature |
-30 to +75 °C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
1:1 |
| Connection Type |
Board-to-board connector |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
0.1176 × 0.1176 mm |
| Sunlight Readable |
– |
| Model |
PL050HDC |
| PPI ( pixels per inch ) |
305 |
| Application |
– |
5.1-inch Flexible/Bendable OLED Display 720×1520 MIPI DSI
| Size |
5.1 inch |
|---|---|
| Pixels |
720 × 1520 |
| Interface | |
| Brightness |
390 cd/m² (typ, with CG, center); 886 cd/m² (typ, without CG, center) |
| Manufacturer |
Gesight |
| Display Type |
Flexible OLED |
| Display Mode |
Active matrix AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
Up/Down/Right/Left: 80° (typ) @ CR ≥ 10 (min 75°) |
| Outline L*W*H |
70.78 × 151.31 × 1.343 mm (module outline × total thickness) |
| Active Area L*W |
55.404 × 116.964 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.62–1.98 V; VCI: 2.60–3.60 V; ELVDD: 4.40–4.80 V; ELVSS: −5.00 to −1.40 V; VCC (TSP): 2.7–3.6 V; AVDD: 5.40–7.60 V |
| Consumption |
Display (Full White, 886 nit w/o CG): VCI 3.5 mA (typ), VDDIO 22.0 mA (typ), AVDD 13.5 mA (typ), Panel EL 147 mA (typ); Touch power: Active 49.5 mW, Standby 4.29 mW, Sleep 409 µW |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +80 °C |
| Bezel Area (mm) |
Left/Right 1.10 mm each, Top/Bottom 1.80 mm each |
| Aspect Ratio |
19:9 |
| Connection Type |
Board-to-board connector (Recommended: AXE640124); Touch connector type: FOF |
| IC package |
COF |
| Touch Panel | |
| Pixel Pitch |
76.95 × 76.95 µm |
| Sunlight Readable |
– |
| Model |
BF051FBM-AK0- |
| PPI ( pixels per inch ) |
329.8 PPI |
| Application |
Smart Mobile Phone |
5.48-inch 1080×1920 AMOLED Touch Display
| Size |
5.48 inch |
|---|---|
| Pixels |
1080(W) × 1920(H) |
| Interface | |
| Brightness |
350 cd/m² (typ), 280 (min), 420 (max) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
60 Hz |
| Viewing Angle Range |
75° (min) / 85° (typ) for T/B/L/R (CR ≥ 10) |
| Outline L*W*H |
148.86 × 73.56 × 1.92 mm (including cover lens) |
| Active Area L*W |
121.344 × 68.256 mm |
| Orientation | |
| Supply Voltage |
VDDIO: 1.65–3.30 V; VCI: 2.65–3.60 V; ELVDD: 4.55–4.65 V; ELVSS: -1 (min) / TBD (typ) / -5 (max) V |
| Consumption |
Panel Power: TBD mW; INL: 191.80 mA (typ); IVCI (normal): 1.5 mA (min), TBD (typ/max); IIOVCC (normal): 42 mA (min), TBD (typ/max); Stand-by: IVCI 1 uA (min), TBD; IIOVCC 1 uA (min), TBD |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +70 °C |
| Bezel Area (mm) |
(69.902 − 68.256) × (127.904 − 121.344) = 1.646 × 6.560 mm total bezel |
| Aspect Ratio |
9:16 |
| Connection Type |
B-to-B connector (FPC connector: AXE340124; recommended: AXE440124) |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
94.8(W) × 63.2(H) μm |
| Sunlight Readable |
– |
| Model |
G1548FH101GF-001 |
| PPI ( pixels per inch ) |
402 PPI |
| Application |
– |
5.5 Inch TFT LCD HD IPS switch Lite replacement
| Size |
5.5 inch |
|---|---|
| Pixels |
720 × 1280 |
| Interface | |
| Brightness |
300 cd/m² |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Color Depth | |
| Viewing Angle Range |
80° (H) / 80° (V) |
| Outline L*W*H |
73.8 × 132.6 × 1.5 mm |
| Active Area L*W |
68.04 × 120.96 mm |
| Orientation | |
| Build-in Touch IC |
Not included |
| Supply Voltage |
1.8V / 3.3V |
| Consumption |
Max 100 mA |
| Operating Temperarure |
–20°C ~ 70°C |
| Storage Temperature |
–30°C ~ 80°C |
| Aspect Ratio |
9:16 |
| Connection Type |
45-pin connector |
| IC package |
ST7703 |
| Touch Panel | |
| Sunlight Readable |
NO |
| Model |
PL055F720PM |
| PPI ( pixels per inch ) |
293 |
5.55-inch 720×1280 AMOLED Display MIPI
| Size |
5.551 inch |
|---|---|
| Pixels |
720(W) × RGB × 1280(H) |
| Interface | |
| Brightness |
300 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
AMOLED |
| Display Mode |
AMOLED |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (U/D/L/R, CR ≥ 200) |
| Outline L*W*H |
131.20 × 72.80 × 1.181 mm (w/o cushion) |
| Active Area L*W |
122.88 × 69.12 mm |
| Orientation | |
| Supply Voltage |
VCI 3.3 V (typ., 2.5–4.8 V); VDDI 1.8 V (typ., 1.65–3.6 V); ELVDD 4.6 V (typ.); ELVSS -3.5 V (typ.); VSP 6.5 V; VPP(NC) 7.6 V (typ., 7.4–7.8 V) |
| Consumption |
IELVDD/ELVSS 200 mA (typ.) / 260 mA (max); IVCI 70 mA (typ.) / 110 mA (max); IVSP 15 mA (typ.) / 25 mA (max) |
| Operating Temperarure |
−30 to +70 °C |
| Storage Temperature |
−40 to +70 °C |
| Bezel Area (mm) |
3.68 (W) × 8.32 (H) mm (derived: outline − active); per-side: 1.84 mm (L/R), 4.16 mm (T/B) |
| Aspect Ratio |
9:16 |
| Connection Type |
FPC |
| IC package |
– |
| Touch Panel | |
| Pixel Pitch |
32 × 96 μm |
| Sunlight Readable |
– |
| Model |
555HDC2 |
| PPI ( pixels per inch ) |
265 PPI |
| Application |
Mobile phone; portable GPS; handheld game console |
