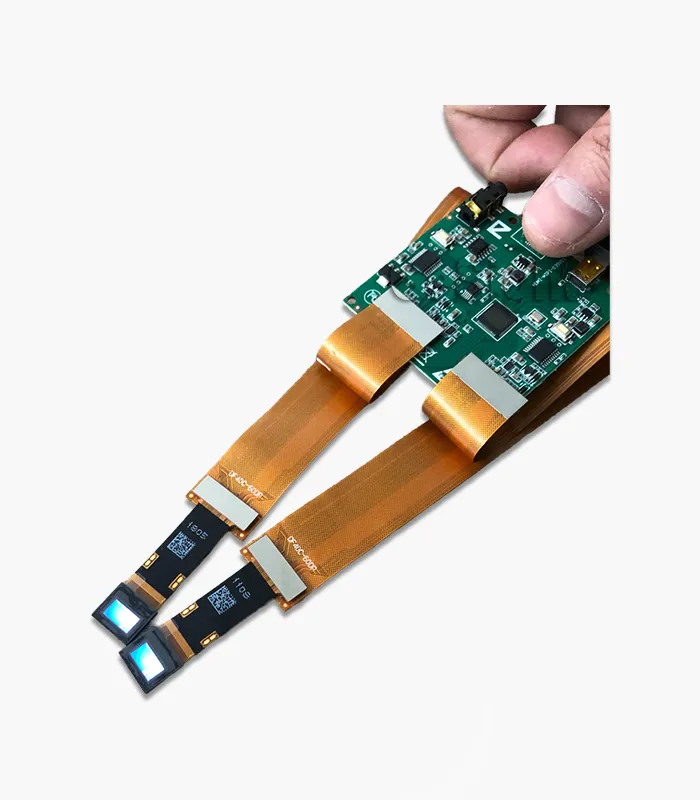

Dual Micro OLED setup with two 0.39-inch FHD modules connected to a controller board.

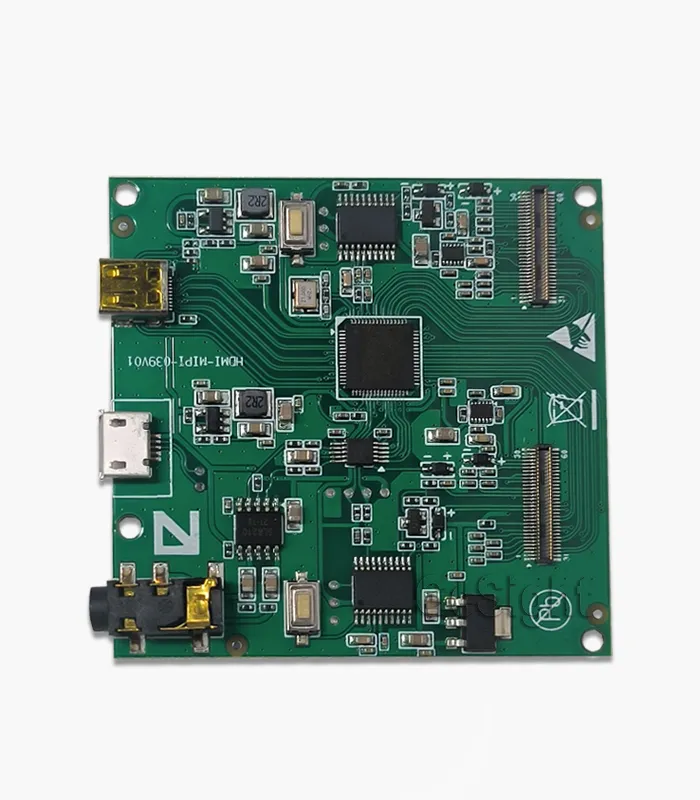

HDMI controller board for driving the 0.39-inch FHD Micro OLED module.
Click to enlarge
USB-C development board with a 0.39-inch FHD Micro OLED module attached.
Dual Micro OLED setup with two 0.39-inch FHD modules connected to a controller board.
HDMI controller board for driving the 0.39-inch FHD Micro OLED module.

0.39-inch FHD Micro OLED Display Module

Tags: , , , , , , , , ,

$116.30piece

Add to wishlist
Compare
16 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: BO039M1920M

The 0.39-inch FHD Micro OLED Microdisplay is built for ultra-compact near-eye optical engines where extreme pixel density, true blacks, and crisp UI rendering matter. With a 1920 × 1080 (FHD) resolution on a tiny microdisplay, it delivers exceptionally sharp text edges and fine image detail for space-constrained AR/VR designs.

Designed for stable system integration, this module supports a MIPI data interface (with optional I2C command) and provides a typical center white brightness of 1500 cd/m² for clear, high-contrast visuals through optics. With an 8.7495 × 4.9689 mm active area, a compact 16.6 × 17.0 × 4.75 mm outline, and a 60-pin FPC/connector connection, it fits neatly into slim headset architectures and prototype rigs.

Application

AR/VR Near-Eye Displays | Optical Engines | Viewfinders | Head-Mounted Displays

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

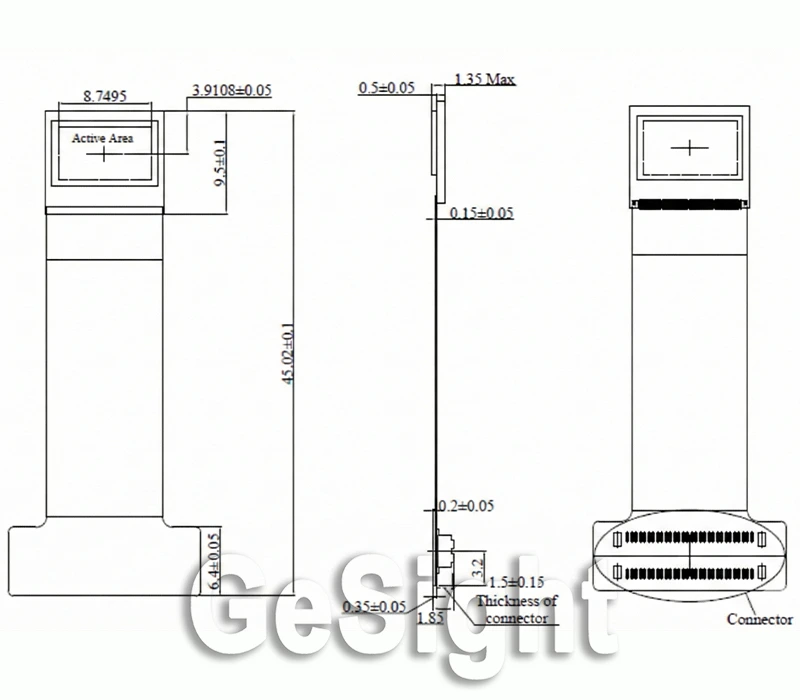

Outline drawing and connector dimensions for the 0.39-inch Micro OLED FPC module.

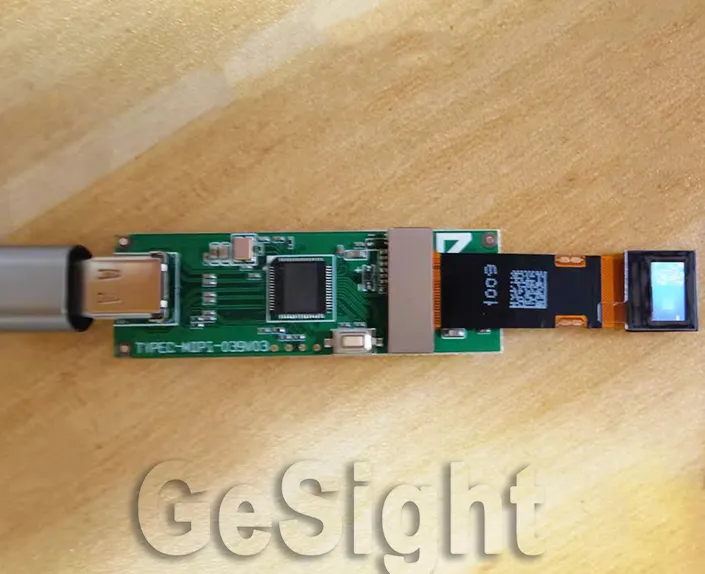

0.39-inch FHD Micro OLED module connected to a USB-C evaluation board.

Type-C Controller Board — Plug-and-Play Evaluation Path

The Type-C controller board offers a clean, compact evaluation path for BO039M1920M bring-up. With a simple Type-C connection, it’s convenient for bench testing and rapid demonstrations when you want the hardware setup to stay minimal and portable. This approach is well-suited for engineering evaluation, quick content playback checks, and iterative validation during development—especially when you need a ready-to-use control platform before final system integration. It helps shorten the time from “module received” to “image on screen,” supporting faster prototyping cycles with fewer setup steps.

Real Content Playback — Perceived Sharpness Under Optics

Near-eye microdisplays should be judged by what users actually see, not only by spec. This close-up playback view helps verify how BO039M1920M renders fine UI elements, thin lines, and small text when viewed through magnification. You can quickly spot whether edges stay clean, whether details hold up in motion, and whether bright highlights wash out nearby content. It’s especially useful for confirming perceived clarity and readability during early prototyping—when you’re tuning UI scale, checking image stability, and making sure the display output looks “crisp” in a headset-style viewing environment.

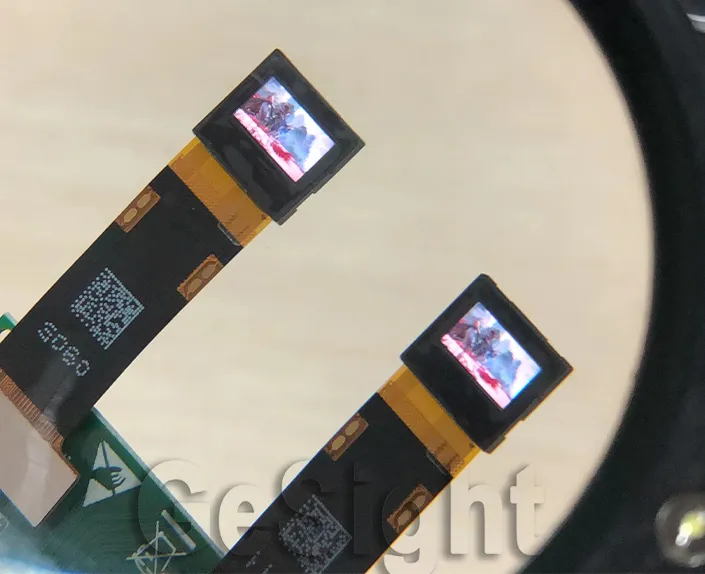

Close-up demo of two 0.39-inch FHD Micro OLED screens showing video content.

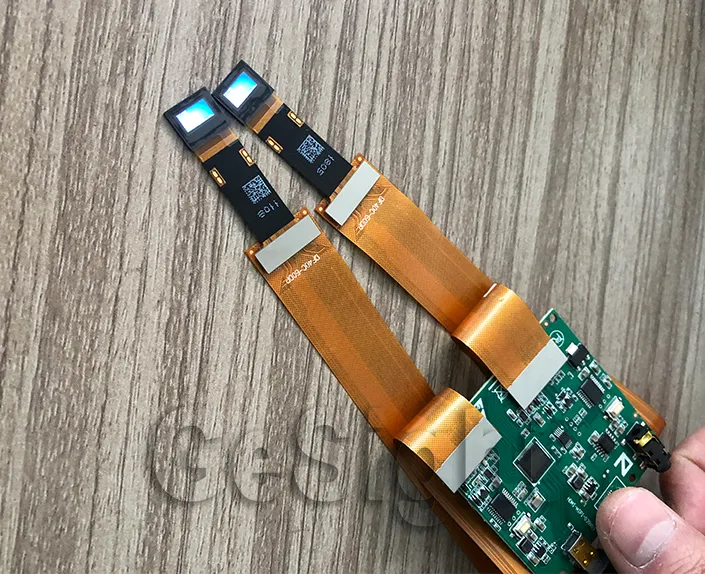

Dual 0.39-inch FHD Micro OLED modules connected to a demo controller board.

Dual Micro OLED Demo Setup — Dual-Screen Consistency Check

This dual-module setup is built for evaluating binocular AR/VR designs where two displays must look the same to the eye. Driving two BO039M1920M Micro OLED panels simultaneously makes it easy to check brightness balance, color matching, and uniformity between the left and right channels before you commit to a full optical assembly. The long FPC routing gives more freedom for fixture placement, so you can quickly test different lens distances and module positions during mechanical iteration. It’s a practical way to validate stereo consistency early, reducing rework when you move from single-panel tests to a real dual-display optical engine.

Specifications
Size

0.39 inch (Type 0.39)
Pixels

1920 × 1080
Interface

,

Brightness

1500 cd/m² (White brightness, center)
Manufacturer

Gesight
Display Type

Micro OLED
Display Mode

Active matrix color OLED (Micro OLED); full color; 16.7M colors
Color Depth

Refresh Rate

–
Viewing Angle Range

-55° to +55° (white)
Outline L*W*H

16.6 × 17.0 × 4.75 mm (PCB module; 4.75 mm max)
Active Area L*W

8.7495 × 4.9689 mm
Orientation

Supply Voltage

VDDI: 1.8 V (typ); AVDD: 5.4 V (typ); AVEE: -5.4 V (typ); VIN (for PCB): 4.4 V (typ)
Consumption

–
Operating Temperarure

−30 to +70 °C
Storage Temperature

−55 to +125 °C
Bezel Area (mm)

7.8505 × 12.0311 mm (derived: Outline – Active Area)
Aspect Ratio

16:9 (derived from 1920×1080)
Connection Type

FPC/connector, 60-pin
IC package

–
Touch Panel

Pixel Pitch

~4.56 × 4.60 µm (derived: Active Area / Pixels)
Sunlight Readable

–
Model

BO039M1920M
PPI ( pixels per inch )

5644 PPI
Application

AR/VR; head mounted displays; near-eye displays
Pins Description

1) FPC Module — Pin Name Form (60 pins)

Pin No. Pin Name
1 GND
2 GND
3 TEST PIN 1
4 VREF2
5 VREF3
6 VGMP
7 VGSP
8 AVEE
9 VREF1
10 IM [0]
11 OTP_SEL
12 OCP_OUT
13 TEST PIN 2
14 SDA
15 SCL_WRX
16 TEST PIN 3
17 TEST PIN 4
18 RESX
19 MVDDL
20 MVDDA
21 GND
22 VDDI
23 DVDD
24 DVDD
25 AVDD
26 ELVDD
27 VCOM
28 VCOM
29 GND
30 GND
31 GND
32 DATAP2_PTA
33 DATAN2_PTA
34 GND
35 DATAP1_PTA
36 DATAN1_PTA
37 GND
38 CLKP_PTA
39 CLKN_PTA
40 GND
41 DATAP0_PTA
42 DATAN0_PTA
43 GND
44 DATAP3_PTA
45 DATAN3_PTA
46 GND
47 DATAP2_PTB
48 DATAN2_PTB
49 GND
50 DATAP1_PTB
51 DATAN1_PTB
52 GND
53 CLKP_PTB
54 CLKN_PTB
55 GND
56 DATAP0_PTB
57 DATAN0_PTB
58 GND
59 DATAP3_PTB
60 DATAN3_PTB

2) PCB Module — Pin Name Form (60 pins)

Pin No. Pin Name
1 GND
2 GND
3 TEST PIN 1
4 IM [0]
5 OTP_SEL
6 OCP_OUT
7 TEST PIN 2
8 SDA
9 SCL_WRX
10 RESX
11 VDDI
12 VDDI
13 VIN
14 VIN
15 ENP
16 ENN
17 GND
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
26 GND
27 GND
28 GND
29 GND
30 GND
31 GND
32 DATAP2_PTA
33 DATAN2_PTA
34 GND
35 DATAP1_PTA
36 DATAN1_PTA
37 GND
38 CLKP_PTA
39 CLKN_PTA
40 GND
41 DATAP0_PTA
42 DATAN0_PTA
43 GND
44 DATAP3_PTA
45 DATAN3_PTA
46 GND
47 DATAP2_PTB
48 DATAN2_PTB
49 GND
50 DATAP1_PTB
51 DATAN1_PTB
52 GND
53 CLKP_PTB
54 CLKN_PTB
55 GND
56 DATAP0_PTB
57 DATAN0_PTB
58 GND
59 DATAP3_PTB
60 DATAN3_PTB



Electrical Characteristics

1) Electrical Characteristics (BO039M1920M)

A. Absolute Maximum Ratings

Item Symbol Min. Max. Unit
External power supply VDDI 1.65 1.95 V
External power supply (for PCB) VIN 2.5 5.5 V
OLED power supply AVDD 5.0 6.0 V
OLED power supply AVEE -5.0 -6.0 V
Logic input voltage Vi 1.65 1.95 V
Operating temperature Topr -40 85 °C
Storage temperature Tstg -55 125 °C

B. Power & Operation Voltage (Recommended)

Item Symbol Min. Typ. Max. Unit
External power supply VDDI 1.65 1.8 1.95 V
External power supply (for PCB) VIN 2.5 4.4 5.5 V
OLED power supply AVDD 5.0 5.4 6.0 V
OLED power supply AVEE -5.0 -5.4 -6.0 V
Logic input voltage Vi 1.65 1.8 1.95 V
Operating temperature Topr -10 Not specified in document 80 °C

C. Digital Input Levels (VDDI = 1.65–1.95 V)

Parameter Symbol Condition Min. Typ. Max. Unit
Digital I/O input level (Logic High) VIH VDDI = 1.65–1.95 V 0.7×VDDI - VDDI V
Digital I/O input level (Logic Low) VIL VDDI = 1.65–1.95 V 0 - 0.3×VDDI V

2) Back-light Specification Form (BO039M1920M)

Item Spec
Backlight Type Not applicable (OLED, self-emissive)
LED Color Not applicable
Backlight Configuration Not applicable
Forward Voltage (VF) Not applicable
Forward Current (IF) Not applicable
Power Consumption (Backlight) Not applicable
Dimming Method Not applicable
Lifetime Not specified in document
Backlight Connector / Pin Not applicable
