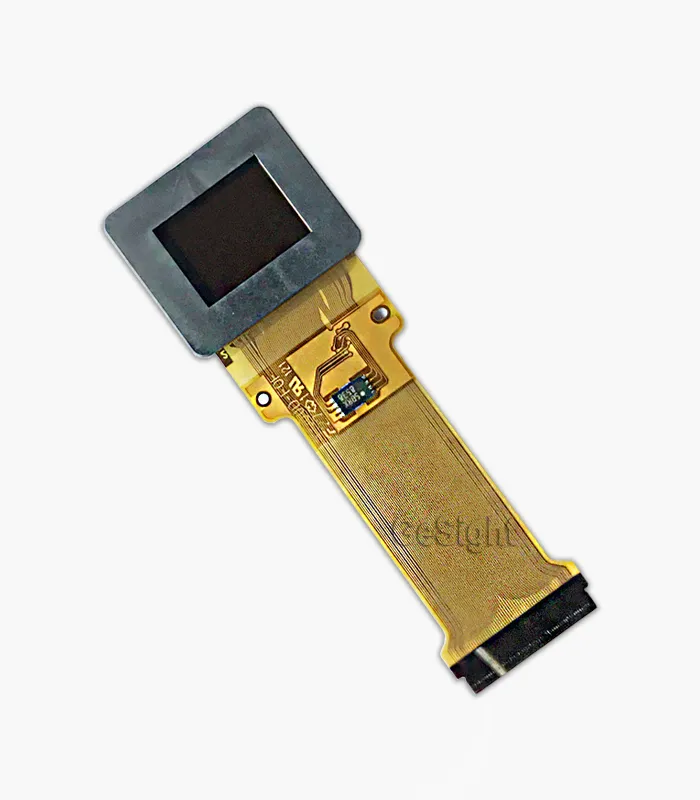

0.5-inch XGA OLED microdisplay module with FPC, front view (screen off)

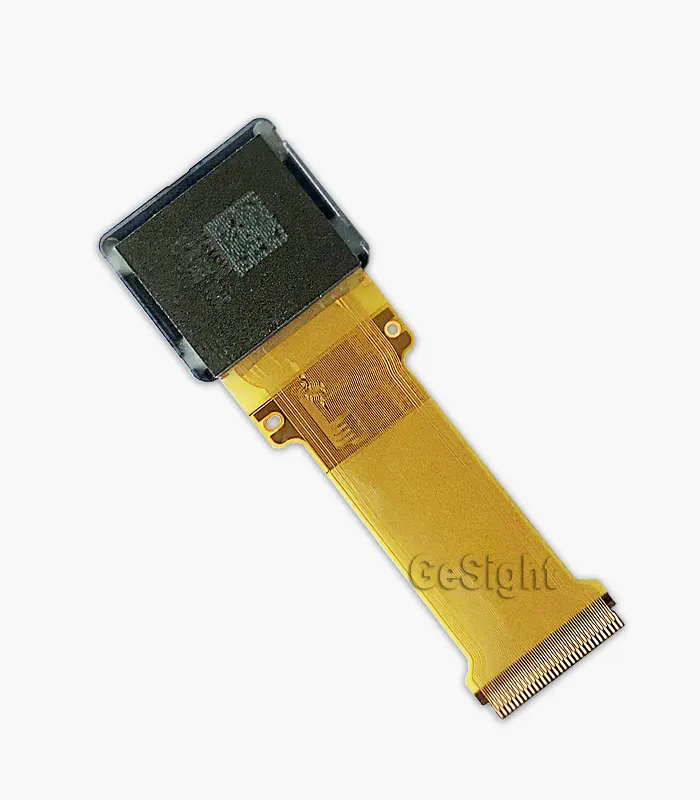

0.5-inch XGA OLED microdisplay module rear view with FPC tail

0.5-inch XGA Micro OLED display 1024×768

Tags: , , , , , , , , ,

$165.74piece

Add to wishlist
Compare
15 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: ECX331DB-6

The 0.5-inch XGA OLED Microdisplay is engineered for ultra-compact near-eye and viewfinder systems where high pixel density, deep blacks, and precise UI rendering matter. With a 1024 × 768 (RGB) resolution on a tiny optical-format panel, it delivers crisp text edges and fine image detail for space-constrained display engines.

Designed for stable system integration, this module supports a 24-bit Parallel RGB video interface (R[7:0]/G[7:0]/B[7:0] with sync/clock signals) and provides a serial control interface for configuration. It supports 59.94 Hz and 50 Hz frame rates, and offers multiple luminance operating modes with typical luminance up to 500 cd/m² (mode-dependent). With a compact 10.336 × 7.801 mm active area, a lightweight ~1.0 g build, and integrated driver circuitry, it is ideal for tightly packaged optical modules that demand reliability and clean signal routing.

Application

Viewfinders | Head Mounted Displays | Very Small Monitors

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

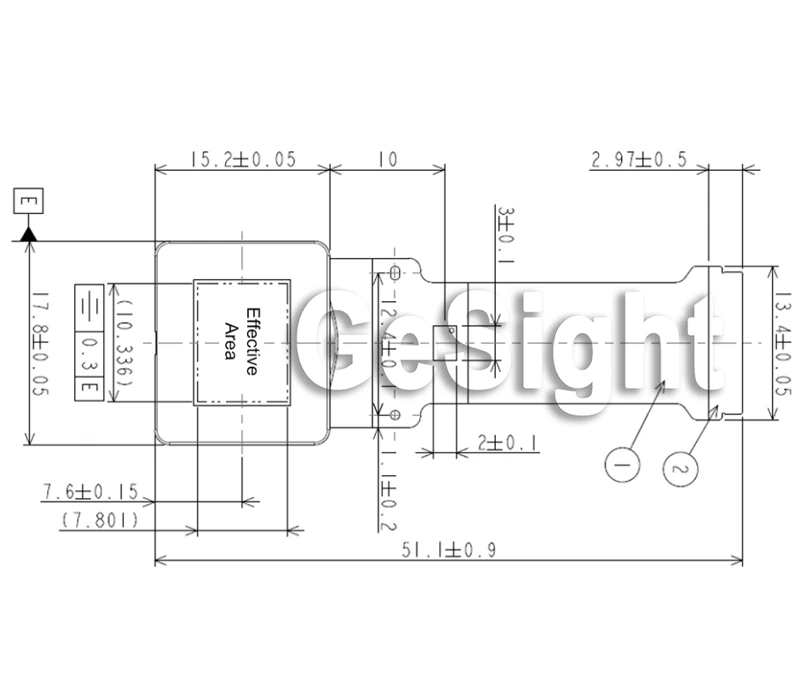

Outline and mounting dimensions drawing for 0.5-inch XGA OLED microdisplay module
0.5-inch XGA OLED microdisplay connected to controller board demo setup

Stable Signal Connection for Prototyping & Integration

For early-stage evaluation and system bring-up, the ECX331DB-6 can be paired with a compact controller board through its FPC connection, making it easier to verify image output and timing without building a full custom carrier from day one. The flexible tail provides clean routing in tight spaces, while the board-side connector helps maintain a stable mechanical fit during bench testing and repeated plug/unplug cycles.

This setup is especially useful when you need to quickly validate parallel RGB timing, confirm correct sync/clock behavior, and iterate firmware or driving parameters via the module’s serial control interface. It’s a practical path to shorten development cycles—start with a working signal chain, then migrate to your own compact PCB once the optical and electrical design is locked in.

HDMI Controller Board Available (Gesight Provide)

To speed up evaluation and shorten your integration cycle, Gesight can provide an HDMI controller board for this 0.5-inch XGA OLED microdisplay. The setup shown here combines the microdisplay module and a compact driver board, giving you a practical way to bring the panel up quickly for bench testing, demo builds, and optical engine verification—without designing your own interface PCB at the very beginning.

With the HDMI board solution, you can focus on validating image quality, timing stability, and optical alignment first, then move to a custom design once your system parameters are confirmed. This is especially helpful for prototype stages where fast iteration matters: plug in the module, establish a stable signal path, and start testing immediately.

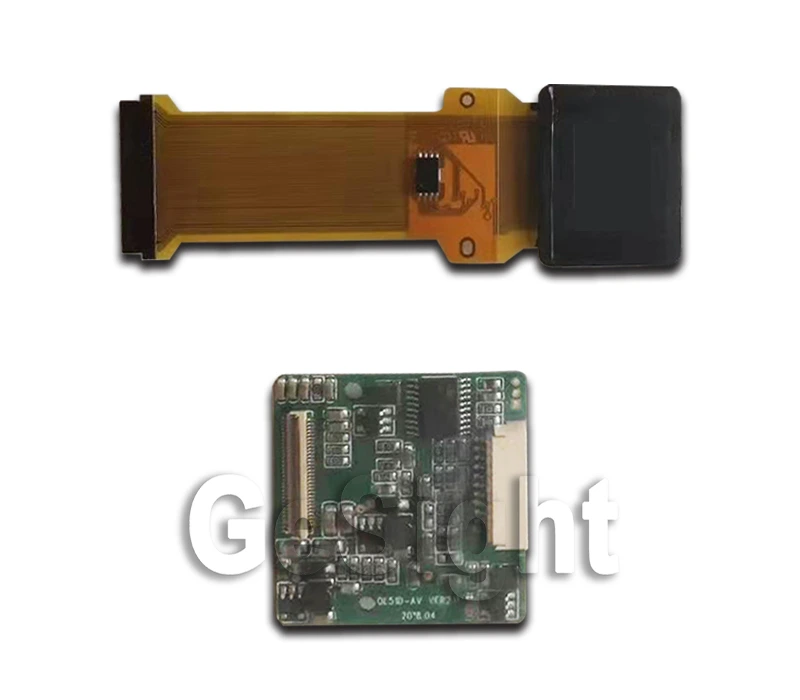

0.5-inch XGA OLED microdisplay module and controller board on foam packaging
Specifications
Size

0.5 inch
Pixels

1024 × 768 dots (RGB)
Interface

Brightness

200 cd/m² (Mode 0); 120 cd/m² (Mode 2); 300 cd/m² (Mode 3); 500 cd/m² (Mode 4)
Manufacturer

Gesight
Display Type

Micro OLED
Display Mode

Active matrix color OLED panel
Color Depth

Refresh Rate

59.94 Hz (XGA); 50 Hz (XGA)
Viewing Angle Range

–
Outline L*W*H

51.1 × 17.8 × 2.125 mm (as shown in package outline drawing)
Active Area L*W

10.336 × 7.801 mm
Orientation

Supply Voltage

VDD1: 2.7–3.3 V (Typ. 3.0 V); VDD2: 12.0–13.0 V (Typ. 12.5 V); VDD4: 9.7–10.3 V (Typ. 10.0 V); DS_H: 12.0–13.0 V (Typ. 12.5 V); Vcath: -0.3–0.3 V (Typ. 0 V)
Consumption

Total (Typ., Tpnl=40℃, all-white, 60 Hz, 54 MHz): 480/345/280/225 mW (for 500/300/200/120 cd/m²); Standby: 3.3 mW
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

–
Aspect Ratio

4:3
Connection Type

FPC (61-pin)
IC package

–
Touch Panel

Pixel Pitch

–
Sunlight Readable

–
Model

ECX331DB-6
PPI ( pixels per inch )

2510 PPI
Application

View finders; head mounted displays; very small monitors
Pins Description
Pin No. Symbol Type Description
1 VSS Power supply GND
2 VDD4 Power supply 10V power supply
3 DS_H Power supply DS-High power supply
4 VDD2 Power supply DAC input stage / Data input level shifter / DAC selector / Output selector / Gamma generation / V driver / Amplifier output stage power supply
5 VDD2 Power supply DAC input stage / Data input level shifter / DAC selector / Output selector / Gamma generation / V driver / Amplifier output stage power supply
6 Vcath Power supply EL cathode power supply
7 VSS Power supply GND
8 VDD1 Power supply 3 V power supply
9 MCLK Input Clock
10 XHD Input Horizontal sync signal
11 XVD Input Vertical sync signal
12 XCLR Input System reset
13 Rin7 Input Digital R signal
14 Rin6 Input Digital R signal
15 Rin5 Input Digital R signal
16 Rin4 Input Digital R signal
17 Rin3 Input Digital R signal
18 Rin2 Input Digital R signal
19 Rin1 Input Digital R signal
20 Rin0 Input Digital R signal
21 Gin7 Input Digital G signal
22 Gin6 Input Digital G signal
23 Gin5 Input Digital G signal
24 Gin4 Input Digital G signal
25 Gin3 Input Digital G signal
26 Gin2 Input Digital G signal
27 Gin1 Input Digital G signal
28 Gin0 Input Digital G signal
29 VDD1 Power supply 3 V power supply
30 VSS Power supply GND
31 Bin7 Input Digital B signal
32 Bin6 Input Digital B signal
33 Bin5 Input Digital B signal
34 Bin4 Input Digital B signal
35 Bin3 Input Digital B signal
36 Bin2 Input Digital B signal
37 Bin1 Input Digital B signal
38 Bin0 Input Digital B signal
39 XSCAN_MODE Input Serial communication mode — Low: MSB First / High: LSB First
40 E2PROM_XCS Input Serial communication chip select for EEP ROM
41 E2PROM_WP Input Serial communication data write control signal for EEP ROM
42 XCS Input Serial communication — Chip select
43 XSCK Input Serial communication — Serial clock (shared with EEP ROM XSCK)
44 SI Input Serial communication — Input data (shared with EEP ROM SI)
45 E2PROM_SO Output SO for EEP ROM — Serial communication output data
46 SO Output Panel SO — Serial communication output data
47 VDD1 Power supply 3 V power supply
48 VSS Power supply GND
49 VCAL Output Correction voltage output in temperature compensation circuit
50 VGAM4 Output Gamma top reference voltage (255)
51 VGAM3 Output Gamma reference voltage (128)
52 VGAM2 Output Gamma reference voltage (32)
53 VGAM1 Output Gamma bottom reference voltage (1)
54 VGAM0 Output Vofs voltage (0)
55 VSS Power supply GND
56 Vcath Power supply EL cathode power supply
57 VDD2 Power supply DAC input stage / Data input level shifter / DAC selector / Output selector / Gamma generation / V driver / Amplifier output stage power supply
58 VDD2 Power supply DAC input stage / Data input level shifter / DAC selector / Output selector / Gamma generation / V driver / Amplifier output stage power supply
59 DS_H Power supply DS-High power supply
60 VDD4 Power supply 10V power supply
61 VSS Power supply GND



Electrical Characteristics

1) Electrical Characteristics (ECX331DB-6)

A. Absolute Maximum Ratings

Item Symbol Min. Max. Unit
3 V power supply VDD1 -0.3 4.0 V
12.5 V power supply VDD2 -0.3 18.5 V
10 V power supply VDD4 -0.3 10.3 V
DS-High power supply DS_H -0.3 VDD2 V
EL cathode voltage Vcath -0.3 VDD2 V
Logic input voltage Vi -0.3 VDD1 + 0.3 V
Storage temperature Tpnl -30 +80 °C

B. Recommended Operating Conditions

Item Symbol Min. Typ. Max. Unit
3 V power supply VDD1 2.7 3.0 3.3 V
12.5 V power supply VDD2 12.0 12.5 13.0 V
10 V power supply VDD4 9.7 10.0 10.3 V
DS-High power supply DS_H 12.0 12.5 13.0 V
EL cathode voltage Vcath -0.3 0 0.3 V
Clock frequency fCLK 54.0 54.5 — MHz
Operating temperature range Tpnl -10 — 70 °C

C. DC Characteristics

Item Symbol Conditions Min. Typ. Max. Unit
High-level input voltage VIH — 0.7VDD1 — VDD1 V
Low-level input voltage VIL — 0 — 0.3VDD1 V
High-level input voltage Vt+ Schmitt input 0.7VDD1 — VDD1 V
Low-level input voltage Vt- Schmitt input 0 — 0.3VDD1 V
Vt+ - Vt- Vhys Schmitt input — 0.50 — V
Logic High-level output voltage VOH — VDD1-0.4 — — V
Logic Low-level output voltage VOL — — — 0.4 V

D. AC Characteristics

Item Symbol Conditions Min. Typ. Max. Unit
Clock pulse cycle t_CLK — 15.3 18.5 — ns
Clock duty t_CLK_duty All mode (54 MHz/40.5 MHz/32.4 MHz) common 40 50 60 %
Data setup time st_Data Vi = 2.7 to 3.6 V 2.5 — — ns
Data hold time hd_Data Vi = 2.7 to 3.6 V 1.8 — — ns
Control pulse setup time st_PLS Vi = 2.7 to 3.6 V 2.5 — — ns
Control pulse hold time hd_PLS Vi = 2.7 to 3.6 V 1.8 — — ns
XSCK frequency f_SCLK — — 0.8 2.5 MHz
XCS setup time st_XCS — — 0.4 — μs
XCS hold time hd_XCS — — 0.2 — μs
SI setup time st_SI — — 0.2 — μs
SI hold time hd_SI — — 0.2 — μs

E. Power Consumption

Condition: Tpnl = 40°C, All white raster, Frame rate = 60 Hz, Clock = 54 MHz

Item Symbol 500 cd/m² 300 cd/m² 200 cd/m² 120 cd/m² Standby Unit
VDD1 power consumption PDD1 — — 43 — 0 mW
VDD2 power consumption PDD2 — — 107 — 3.3 mW
VDD4 power consumption PDD4 — — 0 — 0 mW
DS-High power consumption PDS_H 330 195 130 75 0 mW
Total PTTL 480 345 280 225 3.3 mW

2) Back-light Specification Form (ECX331DB-6)

Field Specification
Backlight Type N/A (OLED, self-emissive)
Backlight Color N/A
Backlight Driver IC N/A
Backlight Input Voltage N/A
Backlight Current N/A
Backlight Power N/A
Dimming Method N/A
LED Lifetime N/A
Connector / Pin N/A

Reference luminance (panel, not backlight): Mode 2: Typ. 120 cd/m²; Mode 0: Typ. 200 cd/m²; Mode 3: Typ. 300 cd/m²; Mode 4: Typ. 500 cd/m².
