1.2-inch Circular 390×390 AMOLED Display

Tags: , , , , , , , , , , ,

$37.10piece

Add to wishlist
Compare
12 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PO120F390MS

The 1.20-inch Circular AMOLED Display is built for compact smartwatch and wearable interfaces where sharp UI, vivid color, and low power matter. With a 390 × 390 resolution and 16.7M colors, it delivers clean icons, crisp text, and smooth dial graphics in a space-efficient round form factor.

Designed for stable system integration, this module supports MIPI (command mode) + SPI connectivity and provides a 350 nits (typ.) luminance for clear indoor-to-bright-room visibility. It offers wide viewing angles of 80° in all directions (CR > 1600) and achieves a fine 326 PPI for detailed rendering on small screens. With an Active Area 30.42 × 30.42 mm and an ultra-slim 33.22 × 34.72 × 0.66 mm outline, it fits slim device designs while keeping the display footprint premium. The module uses the AUO W022 ASIC and connects via a 24-pin FPC with a recommended BM28 series connector. Typical power consumption is 128.7 mW under full white at 350 nits, supporting efficient always-on style UIs.

Application

Smart Watch UI | Wearable Devices | Round Display Terminals | Embedded HMI | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

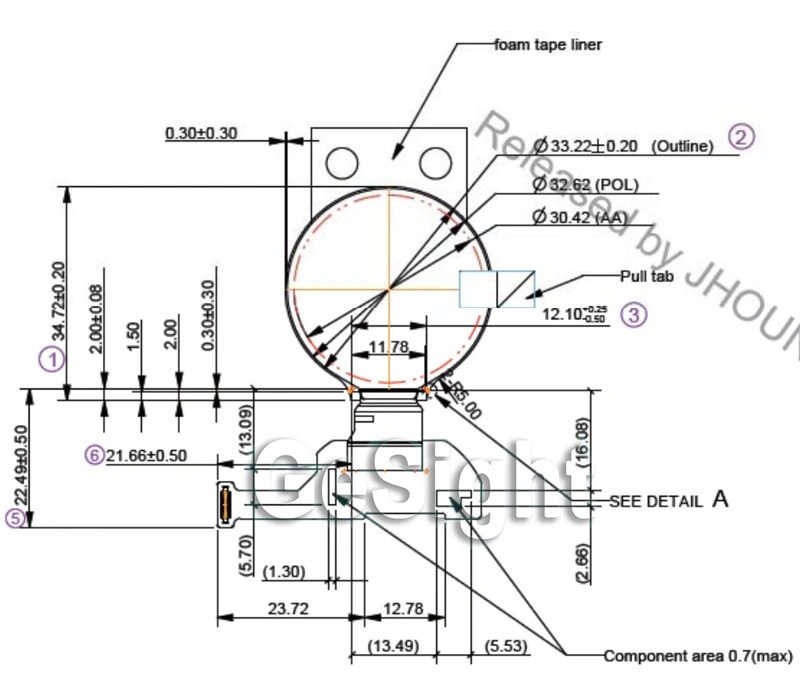

Outline and mechanical dimensions drawing for a 1.2-inch 390x390 circular AMOLED display module.
1.2-inch 390x390 circular AMOLED display running a color bar test pattern on an evaluation board.

Demo Kit for Quick Evaluation & Color Test

The PO120F390MS demo kit is built to make first-time bring-up simple: connect the display module, load test patterns, and verify performance in minutes. As shown in the image, the screen is running a color bar test, which is commonly used to quickly check color accuracy, channel balance, and uniformity across the full circular active area—before you move on to real UI content.

With a demo kit workflow, you can validate key points early, such as clean RGB transitions, stable image output during continuous refresh, and consistent brightness across different patterns. It’s a practical setup for engineering evaluation, incoming inspection, and fast proof-of-concept builds—so you can focus on firmware and product integration instead of building a driver environment from scratch.

Protective Tray Packaging for Safe Handling & Shipping

To keep the PO120F390MS modules safe during transport and assembly, the displays are packed in a dedicated tray + cushioning foam format that separates each unit and prevents surface contact. This packaging helps protect the round AMOLED active area and the FPC from scratches, bending, or pressure marks—especially important for ultra-thin modules used in wearable designs.

The tray layout also improves production efficiency: modules are neatly positioned and easy to pick, making incoming inspection, sampling tests, and line-side feeding smoother and faster. For projects that require reliable logistics and consistent quality, this packaging method supports stable delivery and reduces the risk of handling-related damage.

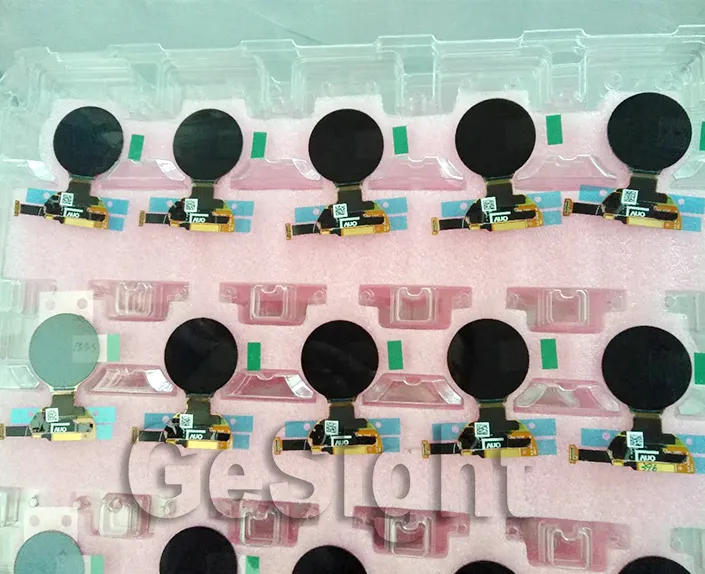

Multiple 1.2-inch 390x390 circular AMOLED display modules arranged in a tray.

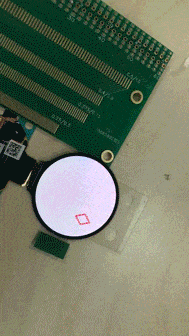

Animated demo of a 1.2-inch 390x390 circular AMOLED display switching between different images on screen.

Dynamic Content Switching Demo for UI Validation

This animated demo highlights the PO120F390MS in a real switching scenario, where the circular AMOLED continuously changes images and UI content to verify display stability in motion. Rapid content transitions help confirm clean edge rendering on the round active area, smooth picture changes, and consistent color presentation—useful when you’re tuning watch faces, widgets, notifications, or compact HMI screens.

During bring-up and evaluation, this type of demo is especially practical for checking frame-to-frame consistency (no obvious flicker or tearing in normal viewing), fine-detail clarity (icons/text edges), and overall visual uniformity when the screen is driven continuously. It’s a straightforward way to validate real-world UI behavior before committing to full system integration.

Specifications
Size

1.2 inch
Pixels

390 × 390
Interface

,

Brightness

300 min, 350 typ, nits
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

–
Viewing Angle Range

Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600)
Outline L*W*H

33.22 × 34.72 × 0.66 mm
Active Area L*W

30.42 × 30.42 mm
Orientation

Supply Voltage

VDDIO: 1.65 / 1.8 / 1.95 V (min/typ/max); VCI: 3.27 / 3.3 / 3.33 V; ELVDD: 3.27 / 3.3 / 3.33 V; ELVSS: -3.33 / -3.3 / -3.27 V
Consumption

Panel power (full white, 350 nits): 128.7 mW typ; IOLED: 19.5 mA typ; IC Normal: PVCI 5.3 mW typ, PVDDIO 3.5 mW typ; Idle: PVCI 4.5 mW typ, PVDDIO 2.4 mW typ; Sleep: PVCI < 0.075 mW, PVDDIO < 0.1 mW
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

Derived from outline vs active: (33.22-30.42)=2.80 mm; (34.72-30.42)=4.30 mm. Per-side bezel: Left/Right 1.40 mm; Top/Bottom 2.15 mm
Aspect Ratio

1:1
Connection Type

FPC, 24-pin; recommended connector BM28B0.6-24DP/2-0.35V(51) / BM28B0.6-24DS/2-0.35V(51)
IC package

–
Touch Panel

Pixel Pitch

Derived: 30.42 mm / 390 = 0.0780 mm (78.0 µm)
Sunlight Readable

–
Model

PO120F390MS
PPI ( pixels per inch )

326 PPI
Application

Display terminals for Round Watch
Pins Description
Pin # Pin Name I/O Description
1 ELVSS Power AMOLED negative power supply (Power IC need to follow AUO’s suggestion)
2 ELVDD Power AMOLED positive power supply (Power IC need to follow AUO’s suggestion)
3 ELVSS Power AMOLED negative power supply (Power IC need to follow AUO’s suggestion)
4 ELVDD Power AMOLED positive power supply (Power IC need to follow AUO’s suggestion)
5 RESX I Device reset signal (0 : enable ; 1 : Disable)
6 SWIRE O SWIRE signal for PWR IC control
7 NC - Floating
8 GND Power Ground
9 TE I Vsync (vertical sync) signal output from panel to avoid tearing effect
10 DSI_D0N I/O MIPI negative data signal
11 CSX I SPI Enable Signal
12 DSI_D0P I/O MIPI positive data signal
13 SCL I SPI Clock signal
14 GND Power Ground
15 DCX I SPI CMD/Data selection signal
16 DSI_CLKN I MIPI negative clock signal
17 SDI I/O SPI data signal
18 DSI_CLKP I MIPI positive clock signal
19 SDO O SPI Output signal
20 GND Power Ground
21 VCI Power Driver analog power supply (Power IC need to follow AUO’s suggestion)
22 VDDIO Power Power supply for interface system except MIPI interface
23 VCI Power Driver analog power supply (Power IC need to follow AUO’s suggestion)
24 VDDIO Power Power supply for interface system except MIPI interface
Electrical Characteristics

1) Electrical Characteristics (DC)

A. Typical Operating Conditions

Item Symbol Min Typ Max Unit Remark
Digital Power Supply VDDIO 1.65 1.8 1.95 V Note 1
Analog Power Voltage VCI 3.27 3.3 3.33 V Note 1
ELVDD Power Supply ELVDD 3.27 3.3 3.33 V Note 1
ELVSS Power Supply ELVSS -3.33 -3.3 -3.27 V Note 1
Input Signal Voltage (H Level) VIH 0.8*VDDIO — VDDIO V Note 1
Input Signal Voltage (L Level) VIL 0 — 0.2*VDDIO V Note 1
Output Signal Voltage (H Level) VOH 0.8*VDDIO — VDDIO V Note 1
Output Signal Voltage (L Level) VOL 0 — 0.2*VDDIO V Note 1

Note 1: Operation guaranteed only under recommended operating conditions; avoid quick voltage changes; add bypass capacitor near power pin.

B. Display Current Consumption

Item Symbol Condition Min Typ Max Unit Remark
Panel Power POLED ELVDD: 3.3V, ELVSS: -3.3V — — 128.7 mW Note 1
Panel Current IOLED — — — 19.5 mA Note 1
IC Normal Power PVCI VCI: 3.3V — 5.3 — mW Note 2
IC Normal Current IVCI — — 1.6 — mA Note 2
IC Normal Power PVDDIO VDDIO: 1.8V — 3.5 — mW Note 2
IC Normal Current IVDDIO — — 1.9 — mA Note 2
IC Idle Power PVCI VCI: 3.3V — 4.5 — mW Note 3/4
IC Idle Current IVCI — — 1.4 — mA Note 3/4
IC Idle Power PVDDIO VDDIO: 1.8V — 2.4 — mW Note 3/4
IC Idle Current IVDDIO — — 1.3 — mA Note 3/4
IC Sleep Power PVCI VCI: 3.3V — 0.075< — mW —
IC Sleep Current IVCI — — 22.6< — uA —
IC Sleep Power PVDDIO VDDIO: 1.8V — 0.1< — mW —
IC Sleep Current IVDDIO — — 55< — uA —

Notes:

  • Note 1: Based on L255 (350 nits) full white pattern
  • Note 2: Based on black pattern / command mode
  • Note 3: Based on black pattern / MIPI command mode or SPI interface
  • Note 4: IVCI < 8 mA at Idle mode

2) Back-light Specification Form

Item Specification
Backlight Type N/A (AMOLED, self-emissive)
Backlight Color N/A
LED Qty N/A
LED Forward Voltage N/A
LED Forward Current N/A
Backlight Power Consumption N/A
Backlight Connector / Pins N/A
Dimming Method N/A
