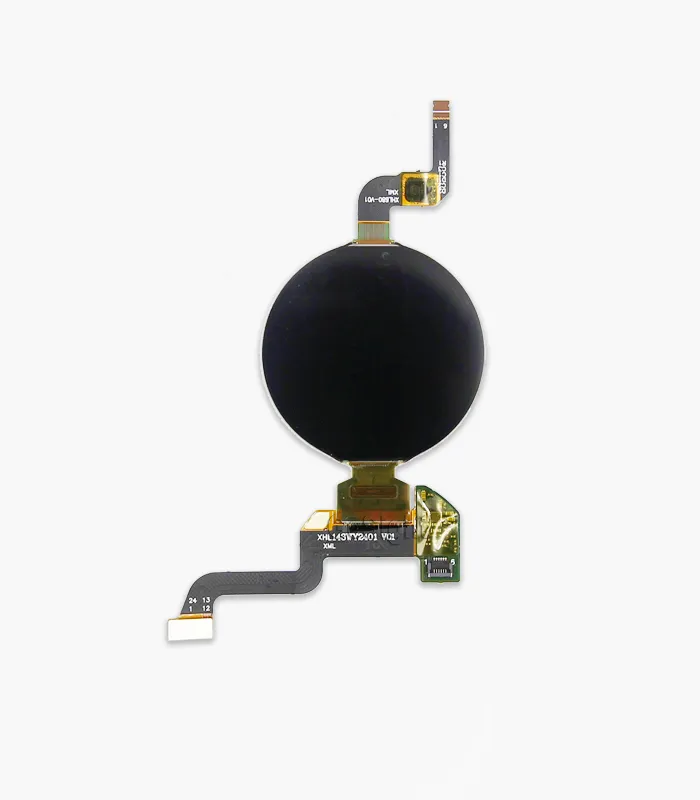

Front view of a 1.43-inch round 466×466 AMOLED display module with on-cell touch and FPC.

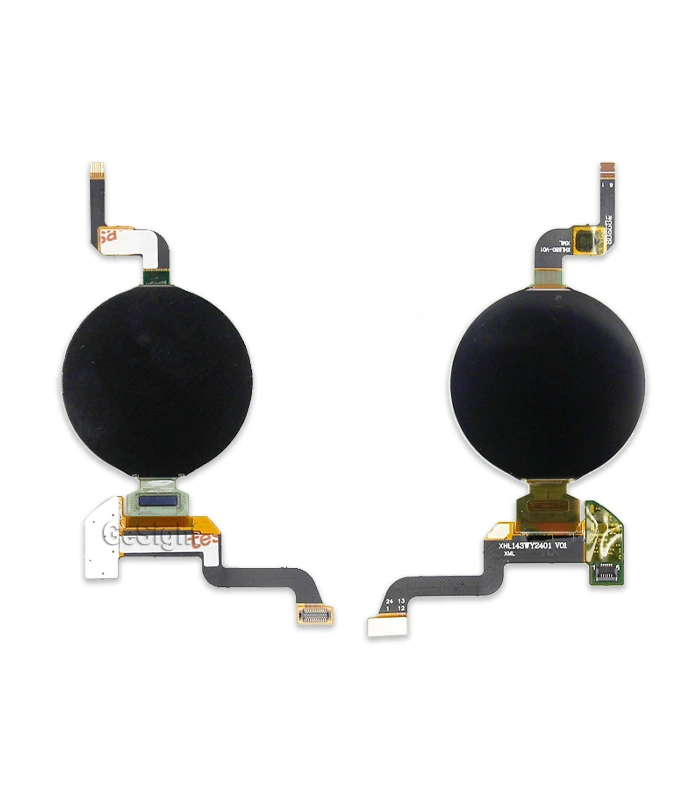

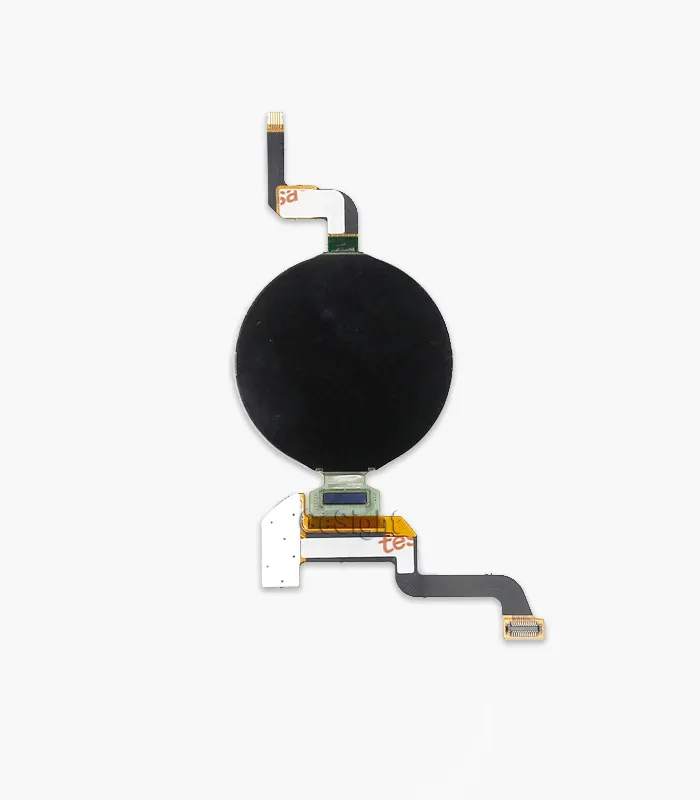

Side-by-side front and rear views of a 1.43-inch round AMOLED on-cell touch display module.
Click to enlarge
1.43-inch round AMOLED display module showing a sample image on screen with integrated on-cell touch.
Front view of a 1.43-inch round 466×466 AMOLED display module with on-cell touch and FPC.
Side-by-side front and rear views of a 1.43-inch round AMOLED on-cell touch display module.

1.43-inch 466×466 AMOLED Display

Tags: , , , , , , , , , ,

$24.85piece

Add to wishlist
Compare
17 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: TR143R2404A

The 1.43-inch AMOLED Display is built for modern smartwatch and wearable interfaces where clarity, color, and low power matter. With a 466 × 466 resolution and 16.7M colors (24-bit), it delivers crisp UI elements and smooth graphic detail in a compact circular dial form factor.

Designed for reliable system integration, this module supports a QSPI interface and runs at a 45 Hz frame frequency for stable everyday performance. It reaches 700 cd/m² (typ.) luminance and provides a wide viewing specification of 88° (U/D/L/R, Cr ≥ 200) to keep content consistent across different wrist-viewing angles. With a 36.35 × 36.35 mm active area and a slim 44.75 × 44.75 × 2.58 mm outline, it fits space-constrained wearable designs. The module integrates on-cell touch with CHSC6417 touch IC, and includes the CO5300AF-08 driver IC plus 6802 power IC. Electrical operation supports VCC 2.7–3.6 V, IOVCC 1.65–3.3 V, ELVDD 3.25–3.35 V, and ELVSS -3.35–-3.25 V.

Application

Smart Watch UI | Wearable Devices | Compact HMI | Embedded Display | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

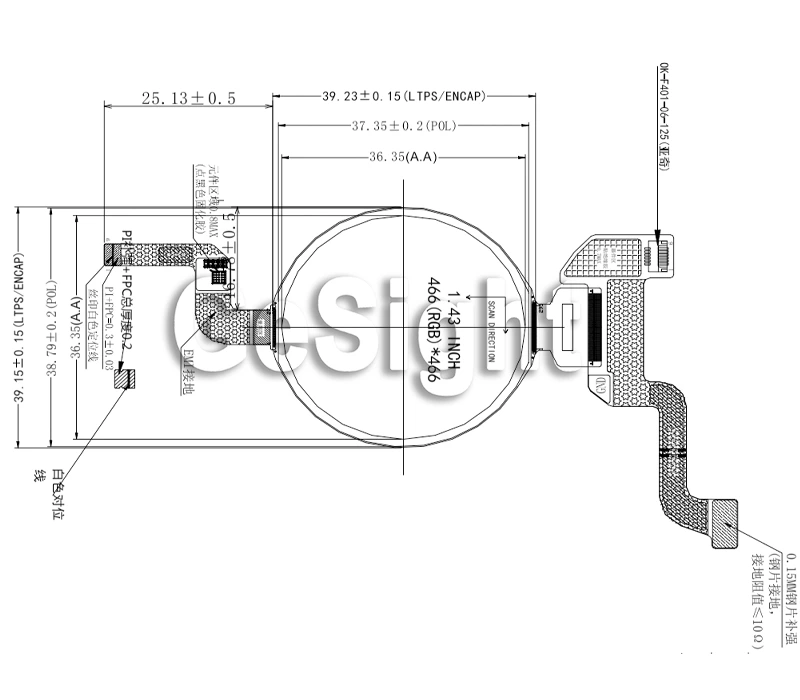

Mechanical dimension drawing of a 1.43-inch round AMOLED module with flex layout and key measurements.

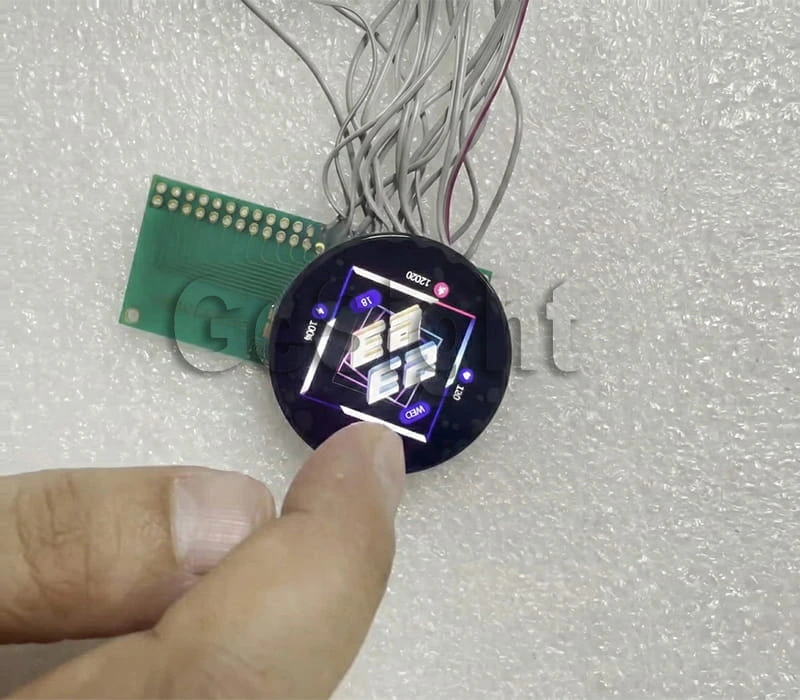

Finger touch test on a 1.43-inch round AMOLED display module during demo operation.

On-Cell Touch for Wearables

This module integrates an on-cell touch screen, combining touch sensing and display into a single stack to keep the overall structure slim and lightweight—a practical advantage for circular wearable designs where every millimeter matters. By reducing extra layers and assembly complexity, on-cell touch helps improve optical clarity while supporting a cleaner, more compact mechanical build.

In real use, the on-cell touch solution enables direct interaction on the display surface for common smartwatch gestures such as tap, swipe, and quick selection. It’s well-suited for UI development and functional verification, allowing teams to evaluate touch accuracy, response consistency, and UI interaction flow early in the prototyping stage, while maintaining the vivid color and sharp detail expected from an AMOLED panel.

Demo Kit & Evaluation Setup

For fast prototyping and validation, this 1.43-inch AMOLED module can be brought up through a simple demo kit + controller fixture setup, allowing engineers to verify display output, interface stability, and system timing before committing to a full product PCB. The test configuration shown is ideal for early-stage development—power rails, signal routing, and connector handling can be evaluated in a controlled environment while the panel runs real UI content.

This kind of bench setup helps teams quickly check key integration items such as QSPI communication, frame refresh behavior (45 Hz), and overall image consistency during continuous operation. It also provides a practical way to assess touch-enabled workflows when paired with the module’s on-cell touch solution, making it easier to validate UI responsiveness and interaction flow during firmware bring-up.

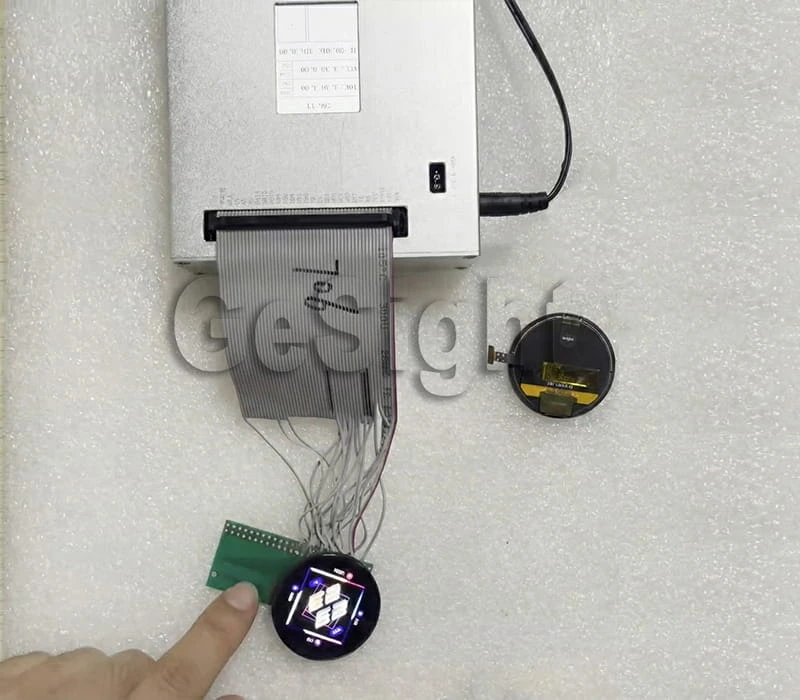

Demo kit setup showing a round AMOLED display connected to a controller board and ribbon cable.
Specifications
Size

1.43 inch
Pixels

466 × 466
Interface

Brightness

700 cd/m² (typ, Ta=25℃, all-white, θ=0)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED / LTPS Glass
Color Depth

Refresh Rate

45 Hz (Frame Frequency fFRM)
Viewing Angle Range

88° (Up/Down/Right/Left, Cr≥200)
Outline L*W*H

44.75 × 44.75 × 2.58 mm
Active Area L*W

36.35 × 36.35 mm
Orientation

Supply Voltage

VCC 2.7–3.6 V; IOVCC 1.65–3.3 V; ELVDD 3.25–3.35 V; ELVSS -3.35–-3.25 V
Consumption

Full white (Sleep out): IVCC 2 mA typ (4 mA max); IIOVCC 1.5 mA typ (3 mA max); IELVDD/ELVSS 13 mA typ (19.5 mA max)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

4.20 mm per side
Aspect Ratio

1:1
Connection Type

FPC
IC package

COF
Touch Panel

Pixel Pitch

78 × 78 µm
Sunlight Readable

–
Model

TR143R2404A
PPI ( pixels per inch )

461 PPI
Application

Touch interface pins listed; Touch signals present
Pins Description
Pin No. Symbol Type Description
1 TP_SDA Input TP I²C input signal
2 TP_SCL Not specified TP I²C clock signal
3 TP_INT Not specified TP interrupt signal
4 TP_RST Not specified TP reset pin
5 VCI-EN Not specified Swire protocol setting pin of Power IC
6 TE Output Output a frame head pulse signal
7 RESET Not specified A reset pin
8 MTP Not specified LCM burn in pin
9 CLK Not specified Serial interface clock
10 NC NC NC
11 NC NC NC
12 NC NC NC
13 GND GND Ground
14 QSPI_SI03 Input Input data bus for QSPI
15 VCC Power Power supply for analog, digital system and booster circuit
16 NC NC NC
17 VBAT Power Power supply for pixel circuit
18 GND GND Ground
19 QSPI_SI00 Input Input data bus for QSPI
20 CS Input Chip select signal input
21 QSPI_SI01 Input Input data bus for QSPI
22 QSPI_SI02 Input Input data bus for QSPI
23 TP_VCC Power TP power supply for analog, digital system and booster circuit
24 GND GND Ground
Electrical Characteristics

1) Electrical Characteristics (TR143R2404A)



Parameter Symbol Condition Min Typ Max Unit
Supply voltage (Display) VCC — 2.7 3.3 3.6 V
Supply voltage (Display) IOVCC — 1.65 1.8 3.3 V
Supply voltage (Display) ELVDD — — 3.3 3.35 V
Supply voltage (Display) ELVSS — -3.35 -3.3 -3.25 V
Input voltage “L” level VIL IOVCC = 1.65V ~ 3.3V GND — 0.2*IOVCC V
Input voltage “H” level VIH — 0.8*IOVCC — IOVCC V
Output voltage “L” level VOL I(OH)=-1mA, I(OL)=+1mA GND — 0.2*IOVCC V
Output voltage “H” level VOH — 0.8*IOVCC — IOVCC V
Current (Display) Sleep out mode (Full white display) IVCC — — 2 4 mA
Current (Display) Sleep out mode IIOVCC — — 1.5 3 mA
Current (Display) Sleep out mode IELVDD/ELVSS — — 13 19.5 mA
Current (Display) Sleep in mode IVCC — — 20 40 uA
Current (Display) Sleep in mode IIOVCC — — 50 100 uA
Current (Display) Deep standby mode IVCC — — 1 3 uA
Current (Display) Deep standby mode IIOVCC — — 1 3 uA
Frame frequency fFRM — — 45 — Hz

2) Back-light Specification Form (TR143R2404A)

Item Specification
Backlight Type N/A (AMOLED, no backlight)
Backlight Color N/A
Backlight Driver N/A
LED Current N/A
LED Voltage N/A
Power Consumption (Backlight) N/A
PWM Dimming N/A
Connector / Pins for Backlight N/A



FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
