Description

Model: E1473AC63.B

The 1.47-inch AMOLED Touch Display delivers sharp, high-contrast visuals for compact smartwatch and wearable interfaces where clarity and low power matter. With a 194 × 368 (Real RGB) resolution and 16.7M colors, it renders clean UI details at 283 PPI, making text and icons look crisp on a slim, wrist-friendly form factor.

Built for reliable system integration, this module supports a Quad SPI display interface and integrates an on-cell touch sensor with I2C touch communication. It runs at 60 Hz in normal mode and can drop to 15 Hz in idle mode for power saving. Typical luminance is 450 nits (400 min / 450 typ / 500 max), and viewing angles reach 80° min / 85° typ (T/B/L/R, CR ≥ 200) for consistent readability across everyday viewing angles. The panel provides a 17.46 × 33.12 mm active area within a 19.36 × 36.17 mm outline and uses a 34-pin FPC bonding pad connection. Power rails include VCI 3.2–3.4 V, VDDIO 1.7–1.9 V, ELVDD 3.2–3.4 V, and ELVSS -3.4–-3.2 V, with typical panel consumption of 110 mW (450 nits @ 60 Hz) and 6.5 mW in idle mode (50 nits @ 15 Hz).

Application

Smart Watch UI | Wearable Devices | Compact HMI | Embedded Display | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

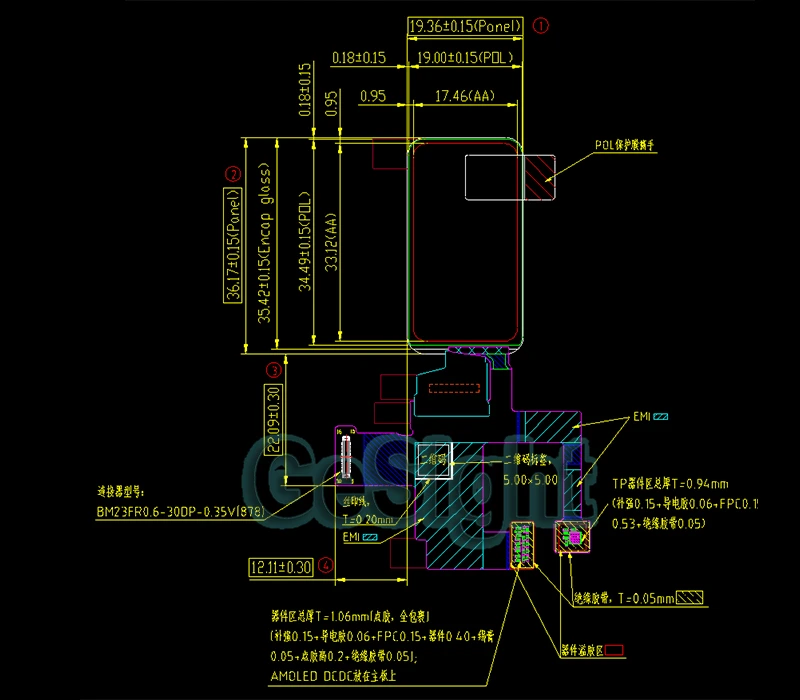

mechanical drawing showing outline, active area, and FPC layout dimensions

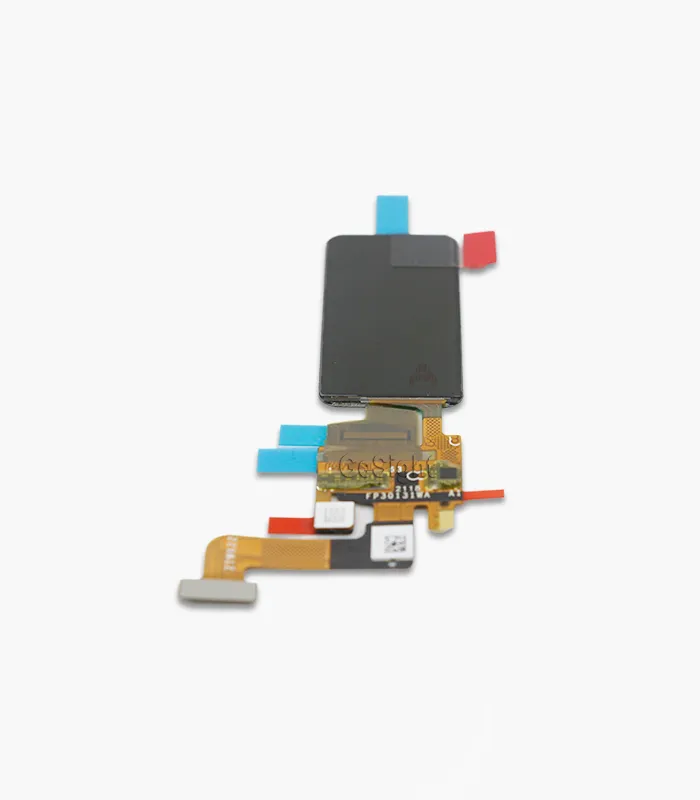

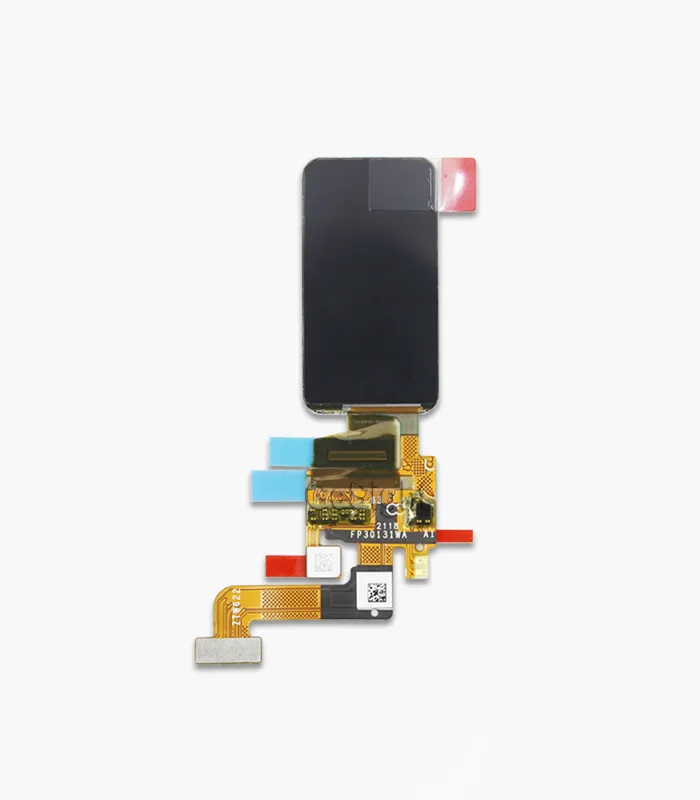

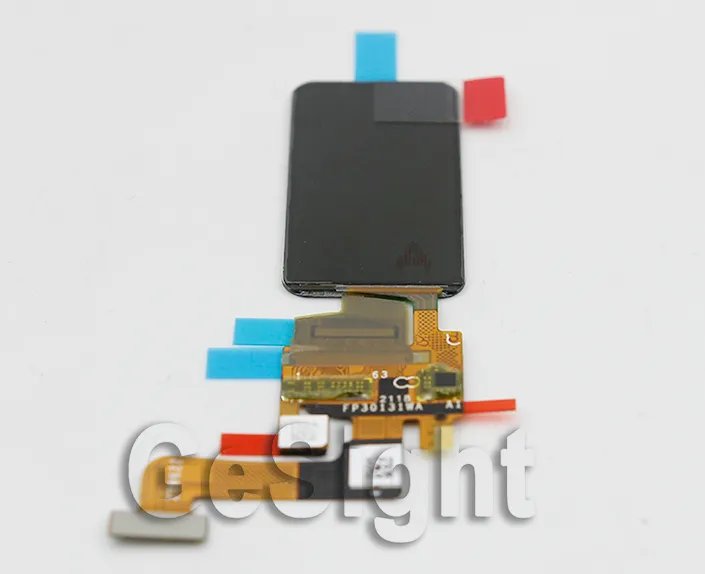

AMOLED touch display module front view with flex cable

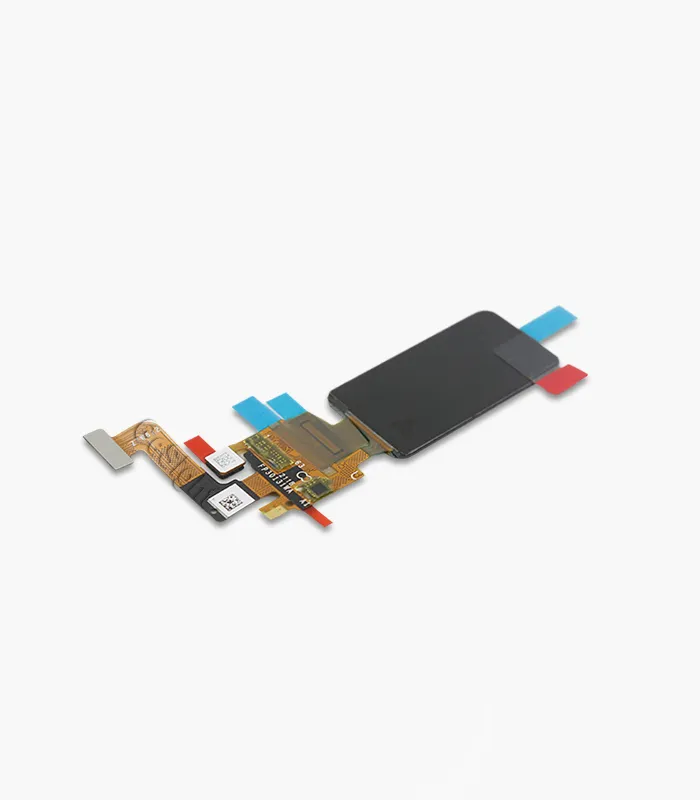

On-cell Touch Screen, Built for Wearable Interaction

E1473AC63.B integrates an on-cell touch sensor directly on the AMOLED stack, reducing extra layers compared with add-on touch panels. This helps keep the module thin and lightweight, while improving optical clarity for small UI elements—icons look cleaner and text edges stay crisp because there’s less gap and fewer interfaces for reflection.

Touch data is handled through the built-in ZTW622 touch IC, communicating to the host via I2C, with dedicated TP_INT and TP_RST signals for stable event reporting and reliable recovery. For smartwatch and wearable controls, this on-cell architecture supports responsive taps and swipes while simplifying system design: you get a compact display + touch solution without needing an additional external touch module or extra bonding steps.

Specifications
Size

1.47 inch
Pixels

194 (W) × 368 (H) (Real RGB arrangement)
Interface

,

Brightness

450 nits typ (Luminance: 400 min / 450 typ / 500 max cd/m²)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz (Normal mode); 15 Hz (Idle mode)
Viewing Angle Range

Left/Right/Top/Bottom: 80° min / 85° typ (Cr ≥ 200)
Outline L*W*H

LTPS Glass outline: 19.36 (V) × 36.17 (W) mm; Glass thickness (LTPS/Encap./POL): 0.2/0.3/0.147 mm
Active Area L*W

17.46 × 33.12 mm
Orientation

Supply Voltage

VCI 3.3 V (3.2–3.4 V); VDDIO 1.8 V (1.7–1.9 V); ELVDD 3.3 V (3.2–3.4 V); ELVSS -3.3 V (-3.4–-3.2 V); TP_VDD 2.8 V (typ); TP_OPT_VDDIO 1.8 V (typ)
Consumption

Normal: 110 typ / 130 max mW (450 nits @ 60 Hz); Idle: 6.5 typ / 8.2 max mW (50 nits @ 15 Hz); Standby: 50 µW max
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

1.90 mm (V total = 19.36 − 17.46); 3.05 mm (W total = 36.17 − 33.12)
Aspect Ratio

194:368
Connection Type

FPC (Main FPC Bonding PAD), 34 pins
IC package

COF
Touch Panel

Pixel Pitch

90 × 90 µm
Sunlight Readable

–
Model

E1473AC63.B
PPI ( pixels per inch )

283 PPI
Application

Display/Touch terminals for Smart Watch
Pins Description
Pin No. Symbol I/O Function Description
1 TP_OPT_VDDIO I/O 1.8V power for TP&OPTIC
2 GND Power Ground
3 OPTIC_INT I/O ALS INT
4 TP_OPT_I2C_SDA I/O TP & OPT I2C DATA
5 TP_OPT_I2C_SCL I/O TP & OPT I2C CLK
6 TP_VDD Power 2.8V power for TP
7 GND Power Ground
8 AM_SPI_CSX I OLED QSPI interface
9 AM_SPI_SCL I OLED QSPI interface
10 REST I OLED Device reset signal (0: enable; 1: Disable)
11 GND Power Ground
12 TE O Synchronous signal output from panel to avoid tearing effect
13 VDDIO Power OLED Power supply for interface system
14 GND Power Ground
15 ELVDD Power OLED Power Supply
16 ELVDD Power OLED Power Supply
17 GND Power Ground
18 GND Power Ground
19 ELVSS Power OLED Power Supply
20 ELVSS Power OLED Power Supply
21 SWDIO(NC) - Floating
22 VCI Power AMOLED power
23 GND Power Ground
24 Swire I Swire control interface
25 AM_SPI_SD0 I/O OLED QSPI interface
26 AM_SPI_SD1 I/O OLED QSPI interface
27 AM_SPI_SD2 I/O OLED QSPI interface
28 AM_SPI_SD3 I/O OLED QSPI interface
29 NC（MTP） -- Floating
30 TP_RST I/O TP Reset
31 TP_INT I/O TP INT
32 GND Power Ground
33 NFC_P I/O NFC TX1
34 NFC_N I/O NFC TX2
Electrical Characteristics

1) Electrical Characteristics (E1473AC63.B)

5.1.1 Power Characteristic

Item Symbol Min Typ Max Unit Remark
AMOLED Power positive ELVDD 3.2 3.3 3.4 V -
AMOLED power Negative ELVSS -3.4 -3.3 -3.2 V Ref
Digital Power supply VDDIO 1.7 1.8 1.9 V Ref
Analog Power supply VCI 3.2 3.3 3.4 V Ref

Power Consumption (Typ/Max)

Mode Test Condition Min Typ Max Unit Remark
Normal mode VDDIO=1.8V, VCI=3.3V, ELVDD=3.3V, ELVSS=-3.3V; Fframe=60Hz; 25°C; 100% Pixel On; 450 nits - 110 130 mW Ref
Idle mode VDDIO=1.8V, VCI=3.3V; Fframe=15Hz; 25°C; 10% Pixel On; 50 nits - 6.5 8.2 mW Ref
Standby mode All Pixel Off; 0 nits; VCI off; VDDIO on - - 50 μW -

2) Back-light Specification Form (E1473AC63.B)

Item Specification
Backlight Type Not applicable (AMOLED, self-emissive)
Backlight Driver Not applicable
LED Configuration Not applicable
Backlight Input Voltage Not applicable
Backlight Current Not applicable
Backlight Power Consumption Not applicable
Dimming Method Not specified (panel luminance controlled by AMOLED driving, not BLU)
Luminance (Panel) 400 min / 450 typ / 500 max cd/m² @ θ=0° (for reference)
