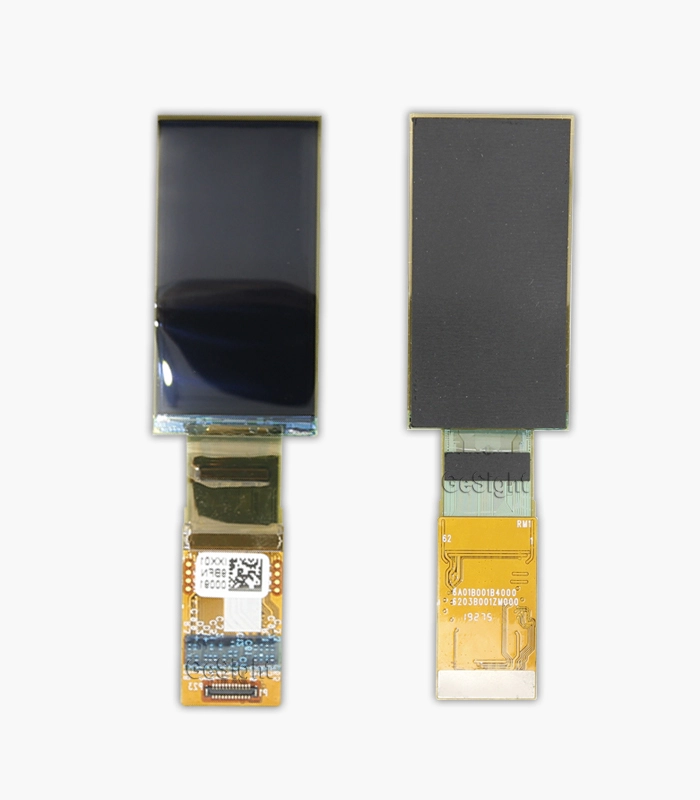

1.5-inch flexible AMOLED module front and back views, showing display side and rear structure.
FPC connector close-up, showing contact pins and labeling area.
flexible AMOLED module shown alongside the MCU driver board (product and controller board).

1.5-inch Flexible/Bendable OLED Display 120×240 SPI/MIPI

Tags: , , , , , , , ,

$25.00piece

Add to wishlist
Compare
17 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: GO15F120SPI

The 1.5-inch Flexible/Bendable OLED Module delivers vibrant, high-contrast visuals in a slim form factor, featuring a 120×240 resolution and 16.7M colors for clean UI rendering and smooth gradients. With typ. 350 cd/m² luminance and wide viewing performance (80° L/R/U/D, CR > 1600), it maintains consistent readability across different angles. Supporting SPI / MIPI (CMD mode) and a 60 Hz frame frequency, it’s ideal for compact, low-power designs with typical panel power of 110 mW. Its ultra-thin outline of 20.12 × 38.94 × 0.71 mm (typ.) and 16.92 × 33.84 mm active area simplify integration in space-constrained products, while the -20 to +60°C operating range supports dependable real-world use.

Application

Smart Bands | Wearable Devices | Portable Instruments | IoT UI Modules | Compact Embedded Displays

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

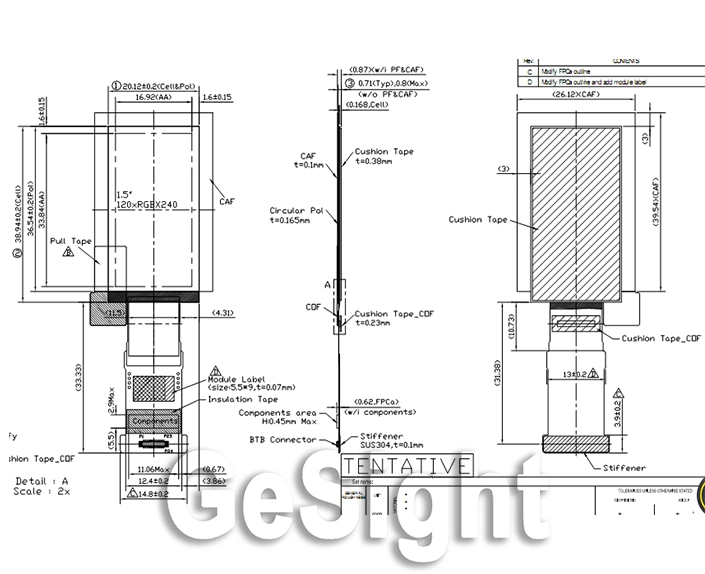

mechanical outline drawing with dimensions and component layout (tentative).

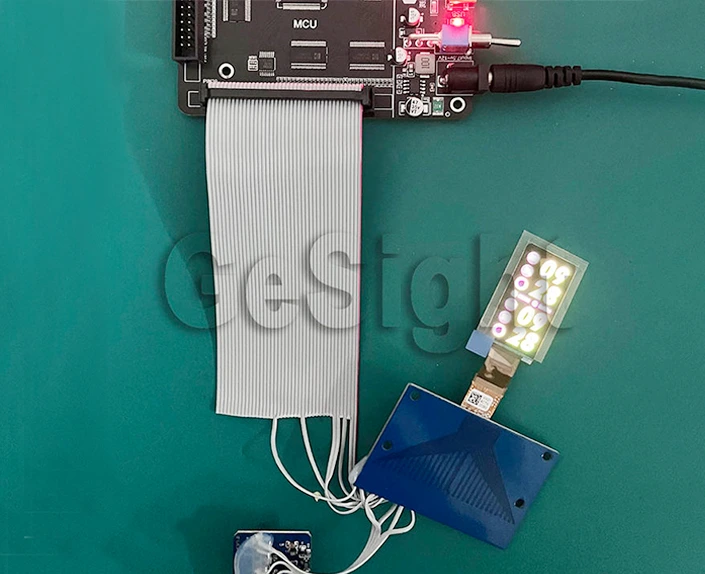

flexible AMOLED demo setup connected to an MCU board via ribbon cable, screen showing test pattern.

Flexible/Bendable 1.5" OLED Demo Setup for Fast Bring-Up and UI Validation

Gesight’s GO15F120SPI is built for projects that need a compact Flexible/Bendable OLED with a clean path from bench test to product integration. The demo setup shown connects the module to an MCU platform via a ribbon cable, making it easy to validate UI layouts, icon clarity, and color rendering on a 120×240 panel with 16.7M colors—ideal for early-stage wearable UI tuning and quick firmware iteration.

For practical integration, GO15F120SPI supports SPI / MIPI (CMD mode) and a typical 60 Hz frame frequency for smooth UI updates. The AMOLED’s high perceived contrast, 80° L/R/U/D viewing performance, and typ. 350 cd/m² luminance help keep key UI elements readable across different angles. With an ultra-thin outline (0.71 mm typ.) and a small active area (16.92 × 33.84 mm), it fits naturally into smart bands, portable instruments, and other space-limited embedded designs.

Gesight also provides an HDMI controller board for convenient video input and rapid evaluation, helping teams accelerate prototyping and shorten development cycles.

MCU Controller Board for Rapid GO15F120SPI Evaluation and Firmware Bring-Up

The controller board shown is designed to make GO15F120SPI development straightforward—from first power-on to stable UI output. By providing a clean hardware base for signal routing and power management, it helps teams quickly verify display initialization, command sequences, frame updates, and color behavior without spending time building a custom carrier board in the early stage.

With a practical layout for lab work—multiple expansion headers, easy-access connectors, and onboard peripherals (such as a card socket and status indicators as shown)—the board supports fast iteration during debugging and performance tuning. It’s an ideal companion for prototyping wearable-class UIs, validating interface timing, and accelerating integration into space-limited products.

Gesight can also provide an HDMI controller board for convenient video input and quick visual validation when you need a plug-and-play evaluation setup.

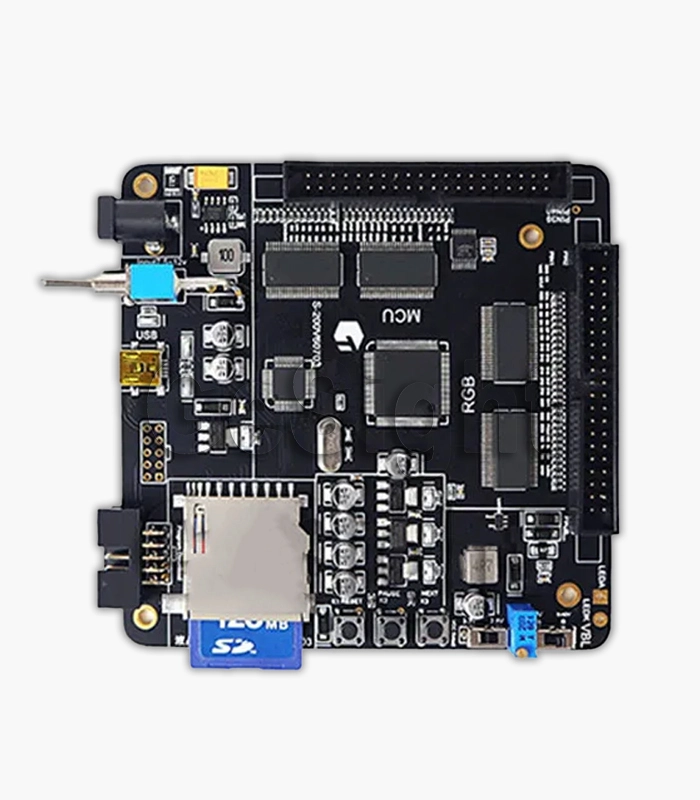

MCU controller board for GO15F120SPI display testing, with connectors and SD card slot (top view).
1.5-inch flexible AMOLED display shown live in hand with a color gradient test on screen and folded FPC cable.

Real-World Visual Check for Flexible/Bendable AMOLED Integration

This live shot highlights how compact and integration-friendly the Gesight GO15F120SPI is in real handling—ideal for wearable-class designs where every millimeter matters. The flexible FPC can be routed and folded to match tight internal layouts, while the 1.5-inch AMOLED panel delivers vivid, high-contrast output for quick visual confirmation during bring-up and assembly.

For practical validation, GO15F120SPI supports 120×240 resolution with 16.7M colors, making it easy to check color gradients, UI blocks, and icon visibility at a glance. With a typical 60 Hz frame frequency and wide viewing performance (80° L/R/U/D), it helps maintain a consistent on-screen appearance when the device is viewed from different angles—useful for wrist-worn and handheld products during real-world use.

Specifications
Size

1.5 inch
Pixels

120 × 240
Interface

,

Brightness

350 cd/m² typ (300 cd/m² min @ θ=0°)
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

–
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

80° (Top/Bottom/Left/Right, condition CR > 1600)
Outline L*W*H

20.12 × 38.94 × 0.71 mm (typ, Module Size w/o COF & FPCa & CAF; Thickness typ)
Active Area L*W

16.92 × 33.84 mm
Orientation

Supply Voltage

VCI: 2.8 V typ (2.7–3.6 V); VDDIO: 1.8 V typ (1.65–3.3 V); ELVDD: 4.6 V typ (4.55–4.65 V); ELVSS: −2.4 V typ (−2.35 to −2.45 V)
Consumption

110 mW typ; IC: 14.24 mW typ
Operating Temperarure

−20 to +60 °C
Storage Temperature

−30 to +70 °C
Bezel Area (mm)

H bezel total 3.20 mm (≈1.60 mm per side); V bezel total 5.10 mm (≈2.55 mm per side)
Aspect Ratio

1:2 (120:240)
Connection Type

I-PEX connector: 20641-024E (module); mating/user connector: 20642-024E
IC package

COF
Touch Panel

Pixel Pitch

0.141(H) × 0.141(V) mm
Sunlight Readable

–
Model

GO15F120SPI
PPI ( pixels per inch )

180 PPI
Application

Smart bracelet
Pins Description
Pin No. Pin Name (Symbol) I/O Function
1 GND P GND
2 RESX I Device reset signal (0: Enable; 1: Disable)
3 HSSI_CLK_P I MIPI positive clock signal
4 SWIRE O SWIRE signal for PWR IC control
5 HSSI_CLK_N I MIPI negative clock signal
6 MTP_PWR P MTP (need to indicate to connect GND or NC)
7 GND P GND
8 TE O Vsync (vertical sync) signal output from panel to avoid tearing effect
9 HSSI_D0_P I/O MIPI data positive signal
10 GND P GND
11 HSSI_D0_N I/O MIPI data negative signal
12 SDI I/O Serial input signal in SPI I/F
13 GND P GND
14 SCL I Synchronous clock signal in SPI I/F
15 SDO O Serial output signal in SPI I/F
16 CSX I Chip select input pin in SPI I/F
17 DCX I Display data/command selection in SPI I/F
18 VDDIO P Power supply for Interface system
19 VCI P Power supply for analog
20 GND P GND
21 ELVSS P AMOLED power negative
22 ELVDD P AMOLED power positive
23 ELVSS P AMOLED power negative
24 ELVDD P AMOLED power positive



Electrical Characteristics

Electrical Characteristics

Category Item Symbol Conditions Min. Typ. Max. Unit
Absolute Max Ratings Power Supply Voltage VCI Ta = 25 ± 2°C -0.3 — 5.5 V
Absolute Max Ratings Interface Supply Voltage VDDIO Ta = 25 ± 2°C -0.3 — 5.5 V
Absolute Max Ratings ELVDD Power Supply ELVDD Ta = 25 ± 2°C — — 5.0 V
Absolute Max Ratings ELVSS Power Supply ELVSS Ta = 25 ± 2°C -5.0 — — V
Absolute Max Ratings Storage Temperature Tstg — -30 — +70 °C
Absolute Max Ratings Operating Temperature Topr — -20 — +60 °C
Recommended Operating Driver Driving Voltage VCI Ta = 25 ± 2°C 2.7 2.8 3.6 V
Recommended Operating Interface Driving Voltage VDDIO Ta = 25 ± 2°C 1.65 1.8 3.3 V
Recommended Operating OLED Driving Voltage ELVDD Ta = 25 ± 2°C 4.55 4.6 4.65 V
Recommended Operating OLED Driving Voltage ELVSS Ta = 25 ± 2°C -2.35 -2.4 -2.45 V
Power Consumption Panel Power — — — 110 — mW
Power Consumption IC Power — — — 14.24 — mW
Current (Normal, 100% On) Current of VDDIO Ivddio Ta = 25 ± 2°C — 2.0 — mA
Current (Normal, 100% On) Current of VCI Ivci Ta = 25 ± 2°C — 3.8 — mA
Current (Normal, 100% On) Current of ELVSS Ielvss Ta = 25 ± 2°C — 15.71 — mA
Current (Normal, 50% On) Current of VDDIO Ivddio Ta = 25 ± 2°C — 2.0 — mA
Current (Normal, 50% On) Current of VCI Ivci Ta = 25 ± 2°C — 3.8 — mA
Current (Normal, 50% On) Current of ELVSS Ielvss Ta = 25 ± 2°C — 7.9 — mA
Current (Normal, All Off) Current of VDDIO Ivddio Ta = 25 ± 2°C — 2.0 — mA
Current (Normal, All Off) Current of VCI Ivci Ta = 25 ± 2°C — 3.7 — mA
Current (Normal, All Off) Current of ELVSS Ielvss Ta = 25 ± 2°C — 0.0 — mA
Current (Standby, All Off) Current of VDDIO Ivddio Ta = 25 ± 2°C — — <50 µA
Current (Standby, All Off) Current of VCI Ivci Ta = 25 ± 2°C — — <20 µA
Current (Standby, All Off) Current of ELVSS Ielvss Ta = 25 ± 2°C — 0 — mA
Current (Idle, 10% On) Current of VDDIO Ivddio Ta = 25 ± 2°C — 1.8 — mA
Current (Idle, 10% On) Current of VCI Ivci Ta = 25 involved — 2.1 — mA
Current (Idle, 10% On) Current of ELVSS Ielvss Ta = 25 ± 2°C — 0.1 — mA
DC Characteristics High Level Input Voltage VIH VDDIO = 1.65–3.3 V 0.8×VDDIO — VDDIO V
DC Characteristics Low Level Input Voltage VIL VDDIO = 1.65–3.3 V 0 — 0.2×VDDIO V
DC Characteristics High Level Output Voltage VOH VDDIO = 1.65–3.3 V 0.8×VDDIO — VDDIO V
DC Characteristics Low Level Output Voltage VOL VDDIO = 1.65–3.3 V 0-8 — 0.2×VDDIO V

Backlight Specification

Item Specification
Backlight Type N/A (AMOLED, self-emissive)
LED Color N/A
LED Configuration N/A
Forward Voltage N/A
Forward Current N/A
Backlight Power Consumption N/A
Lifetime N/A
Dimming Method N/A
