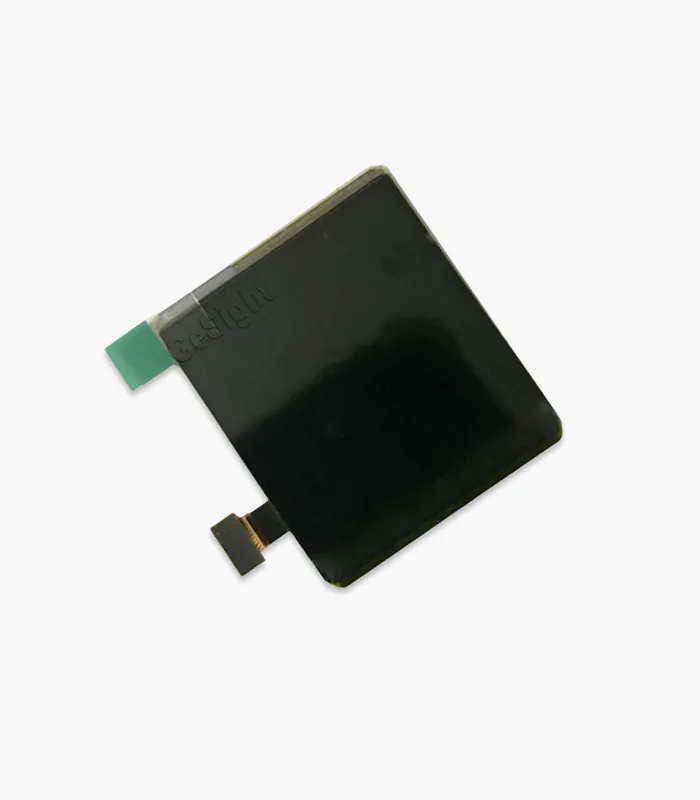

square AMOLED panel front, black screen

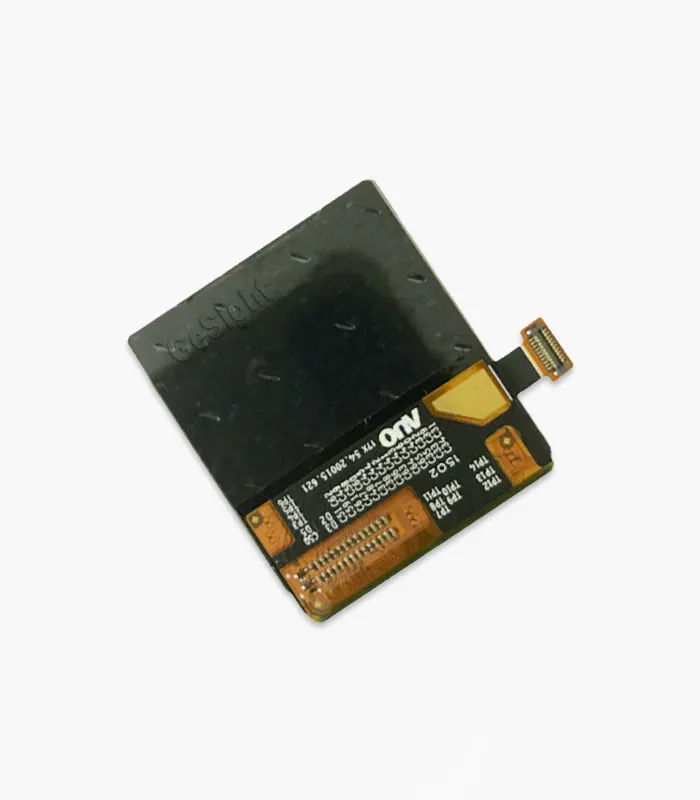

AMOLED panel back side, flex cable
Click to enlarge
square AMOLED display front view, FPC board
square AMOLED panel front, black screen
AMOLED panel back side, flex cable

1.63-inch AMOLED Display 320×320 MIPI DSI

Tags: , , , , , , , , ,

$20.00piece

Add to wishlist
Compare
16 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: H163QLN01.1

The 1.63-inch AMOLED Display delivers sharp, high-contrast visuals for compact smartwatch and wearable interfaces where clarity and low power matter. With a 320 × 320 (RGB) resolution and 16.7M colors, it renders clean icons and UI details at 278 PPI, giving a crisp, modern look for round-the-clock display use.

Built for reliable system integration, this panel supports a MIPI DSI interface and achieves 300 nits (typ.) luminance. It offers a wide viewing specification of 80° (T/B/L/R, CR > 1600) to maintain consistent readability across everyday wrist-viewing angles. With a 29.28 × 29.28 mm active area and an ultra-slim outline of 32.08 × 36.48 × 0.7 mm (cell + foam), it’s well-suited for space-constrained product designs. The module uses a 20-pin FPC connection (recommended connector: AXE520127, Panasonic) and operates on IOVDD 1.65–1.95 V (typ. 1.8 V), VDD 2.8–3.1 V (typ. 3.0 V), ELVDD 4.57–4.63 V (typ. 4.60 V), and ELVSS -3.35 to -3.45 V (typ. -3.40 V), with 138.4 mW panel power under full-white 300-nits test condition.

Application

Smart Watch UI | Wearable Devices | Compact HMI | Embedded Display | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

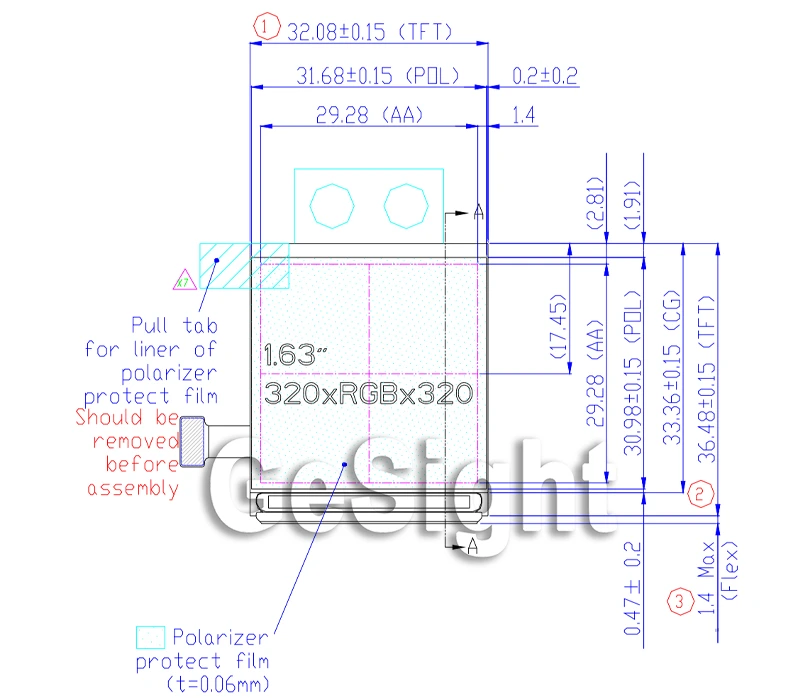

display dimension drawing, outline and active area

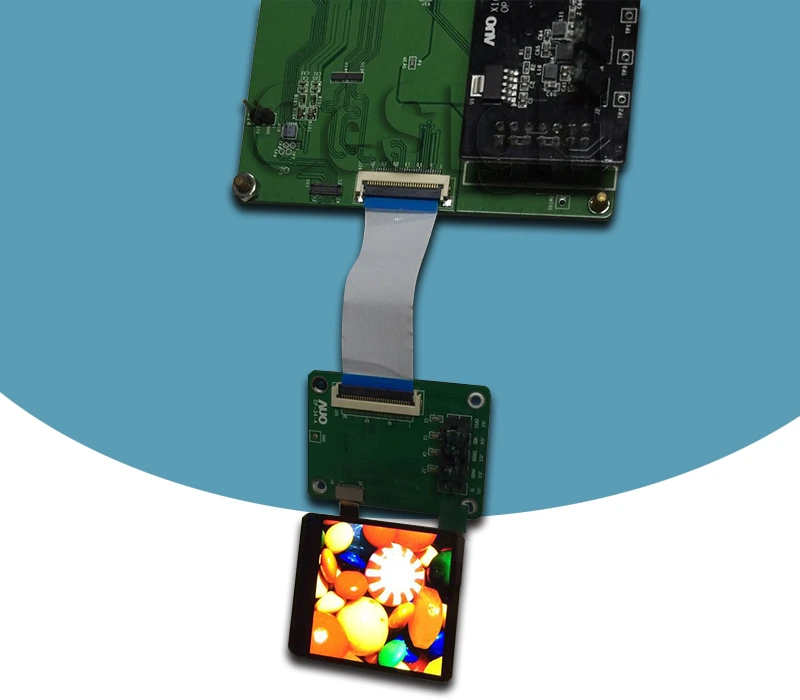

display test setup, controller board connection

Demo Kit & Controller Board Integration

To speed up prototyping and reduce bring-up risk, this display can be paired with a compact demo kit that includes a controller/adapter board and an FPC connection path for stable signal routing. The setup is designed to help engineers quickly verify panel initialization, MIPI DSI link stability, brightness behavior, and color rendering without building a custom carrier board from scratch.

With the demo kit, you can run fast checks on image refresh, UI rendering, and viewing performance, making it ideal for early-stage smartwatch UI, wearable prototypes, and embedded HMI evaluations. It’s also a practical option for lab testing and production sampling, allowing quick iteration on firmware and interface tuning before final hardware integration.

Touch Screen Available

For interactive wearable and compact HMI designs, this display can be configured with an optional touch solution to enable smooth tap-and-swipe control in a small form factor. With touch support, it becomes easier to build watch-style UIs, quick setting panels, menu navigation, and lightweight gesture interactions—ideal for prototypes and product concepts that require direct user input.

The touch option can be implemented as an external capacitive touch panel (CTP) matched to the square active area, allowing you to keep the display module unchanged while adding a responsive touch layer on top. This approach helps shorten development time and keeps integration flexible across different enclosure designs, cover-lens styles, and UI interaction requirements.

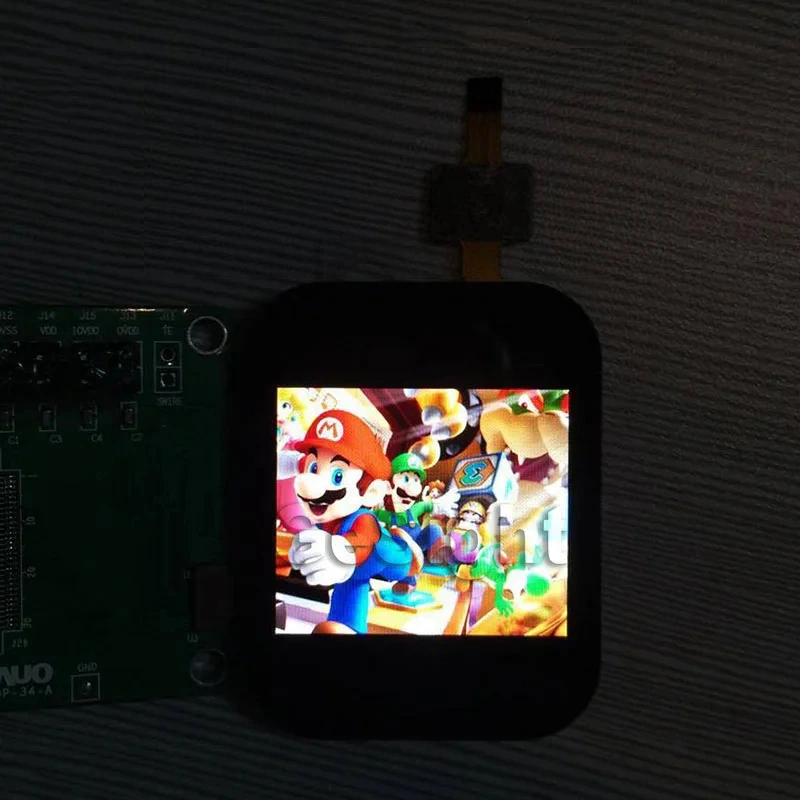

AMOLED display demo, vivid colors

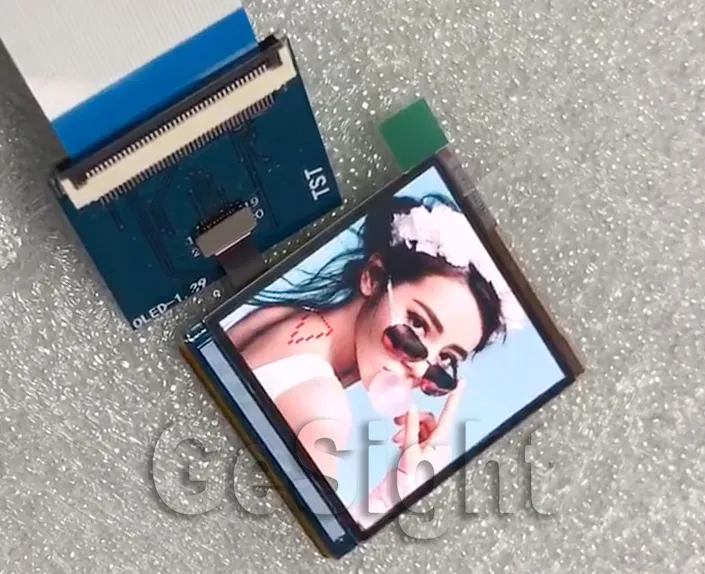

1.63 inch square AMOLED display module, adapter board

Compact Module with Adapter Board

This image highlights a practical integration format: the AMOLED panel paired with a small adapter board, making it easier to route signals and power in tight spaces. The adapter board provides a stable transition from the panel’s fine-pitch flex connection to a more development-friendly interface, which is especially helpful when you’re validating bring-up sequences, checking signal integrity, or iterating on early hardware layouts.

For wearable prototypes and compact embedded devices, this structure also improves handling during assembly—reducing stress on the flex cable and keeping the display easier to mount, test, and swap during repeated revisions. It’s a clean, engineering-oriented setup for teams that want to move fast from panel sampling to functional demos without overcommitting to a custom PCB too early.

Specifications
Size

1.63 inch
Pixels

320 x RGB x 320
Interface

Brightness

300 nits (Typ.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz (Typ., Normal Mode)
Viewing Angle Range

Top 80°, Bottom 80°, Left 80°, Right 80° (CR > 1600)
Outline L*W*H

32.08 (H) x 36.48 (V) x 0.7 (T) mm (cell + foam)
Active Area L*W

29.28 (H) x 29.28 (V) mm
Orientation

Supply Voltage

IOVDD 1.65–1.95 V (Typ. 1.8 V); VDD 2.8–3.1 V (Typ. 3.0 V); ELVDD 4.57–4.63 V (Typ. 4.60 V); ELVSS -3.35 to -3.45 V (Typ. -3.40 V)
Consumption

Panel Power 138.4 mW (Full white, 300 nits, 60 Hz CMD mode test condition); Idle PVDD 12.0 mW (30 Hz CMD mode test condition)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +70 °C
Bezel Area (mm)

–
Aspect Ratio

1:1
Connection Type

FPC, 20 pins; Recommended connector: AXE520127 (Panasonic)
IC package

–
Touch Panel

Pixel Pitch

–
Sunlight Readable

–
Model

H163QLN01.1
PPI ( pixels per inch )

278 PPI
Application

–
Pins Description
FPC Pin Pin Name I/O Description
1 ELVSS P AMOLED power Negative
2 ELVSS P AMOLED power Negative
3 ELVSS P AMOLED power Negative
4 VDD P Power supply for analog
5 IOVDD P Power supply for Interface system excep MIPI interface
6 GND P GND
7 TE O Vsync (vertical sync) signal output from panel to avoid tearing effect
8 MTP I MTP (need to indicate to connect GND or NC)
9 RESX I Device reset signal (0 : Enable ; 1: Disable )
10 SWIRE O SWIRE signal for PWR IC control
11 ELVDD P AMOLED power positive
12 ELVDD P AMOLED power positive
13 ELVDD P AMOLED power positive
14 GND P GND
15 DSI_D0N I/O MIPI data negative signal
16 DSI_D0P I/O MIPI data positive signal
17 GND P GND
18 DSI_CLKN I MIPI strobe negative signal
19 DSI_CLKP I MIPI strobe postive signal
20 GND P GND



Electrical Characteristics



1) Electrical Characteristics (from spec)

1.1 DC Operating Conditions

Item Symbol Min. Typ. Max. Unit Remark
Digital Power supply IOVDD 1.65 1.8 1.95 V Note 1
Analog Power supply VDD 2.8 3.0 3.1 V Note 1
ELVDD power supply ELVDD 4.57 4.60 4.63 V Note 1, 2
ELVSS power supply ELVSS -3.35 -3.40 -3.45 V Note 1
Input Signal Voltage (H Level) VIH 0.8*IOVDD -- IOVDD V Note 1
Input Signal Voltage (L Level) VIL 0 -- 0.2*IOVDD V Note 1
Output Signal Voltage (H Level) VOH 0.8*IOVDD -- IOVDD V Note 1
Output Signal Voltage (L Level) VOL 0 -- 0.2*IOVDD V Note 1

1.2 Display Current Consumption

Normal (ELVDD: 4.6 V, ELVSS: -3.4 V, testing in MIPI-DSI frame rate 60 Hz CMD mode)

Item Symbol Condition Min. Typ. Max. Unit Remark
Panel Power PNL Based on L255 (300 nits) full white pattern -- -- 138.4 mW Note 1, 2
Panel Current INL ELVDD: 4.6 V, ELVSS: -3.4 V -- -- 17.3 mA Note 1, 2
VDD Power PVDD -- -- 25.2 39.3 mW Note 2
VDD Current IVDD VDD: 3.0 V -- 8.4 13.1 mA Note 2
IOVDD Power PIOVDD -- -- 18.0 19.8 uW Note 2
IOVDD Current IIOVDD IOVDD: 1.8 V -- 10.0 11.0 uA Note 2

Idle (testing in MIPI-DSI frame rate 30 Hz CMD mode)

Item Symbol Condition Min. Typ. Max. Unit Remark
VDD Power PVDD -- -- 12.0 15.3 mW Note 3
VDD Current IVDD VDD: 3.0 V -- 4.0 5.1 mA Note 3
IOVDD Power PIOVDD -- -- 18.0 19.8 uW Note 3
IOVDD Current IIOVDD IOVDD: 1.8 V -- 10.0 11.0 uA Note 3

2) Back-light Specification Form

Back-light Item Specification
Backlight Type N/A (AMOLED, self-emissive)
LED Color N/A
LED Quantity N/A
Forward Voltage N/A
Forward Current N/A
Backlight Power Consumption N/A
Driver / Booster N/A
Dimming Method N/A
Backlight Connector N/A
Lifetime N/A
