1.78-inch 368×448 AMOLED Display

Tags: , , , , , , , , , ,

$23.80piece

Add to wishlist
Compare
14 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: ED178AM368MS

The 1.78-inch AMOLED Display delivers sharp, high-contrast visuals for compact smartwatch and wearable interfaces where clarity and power efficiency matter. With a 368 × 448 Real RGB resolution and 16.7M colors (RGB 8-bit), it renders clean text, icons, and UI details at 326 PPI, helping small screens look refined and crisp.

Designed for flexible system integration, this panel supports MIPI / SPI interfaces and runs at a typical 60 Hz refresh rate, with an idle mode down to 15 Hz for power-aware operation. It provides 350 cd/m² (typ.) luminance and a wide viewing specification of 80° (T/B/L/R, CR ≥ 1000) to maintain consistent readability across everyday wrist-viewing angles. With a 28.7 × 34.94 mm active area and compact glass outlines (LTPS: 30.6 × 37.99 mm; Encap: 30.6 × 37.24 mm, thickness 0.2 / 0.3 mm), it’s built for slim wearable assemblies. The module integrates RM69090 and a built-in touch solution (Touch IC: TMA525C), operating on Vbat 2.9–4.8 V (typ. 3.7 V) and VDDIO 1.65–1.95 V (typ. 1.8 V), with typical consumption of 186–210 mW (normal) and 12–16 mW (idle).

Application

Smart Watch UI | Wearable Devices | Compact HMI | Embedded Display | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

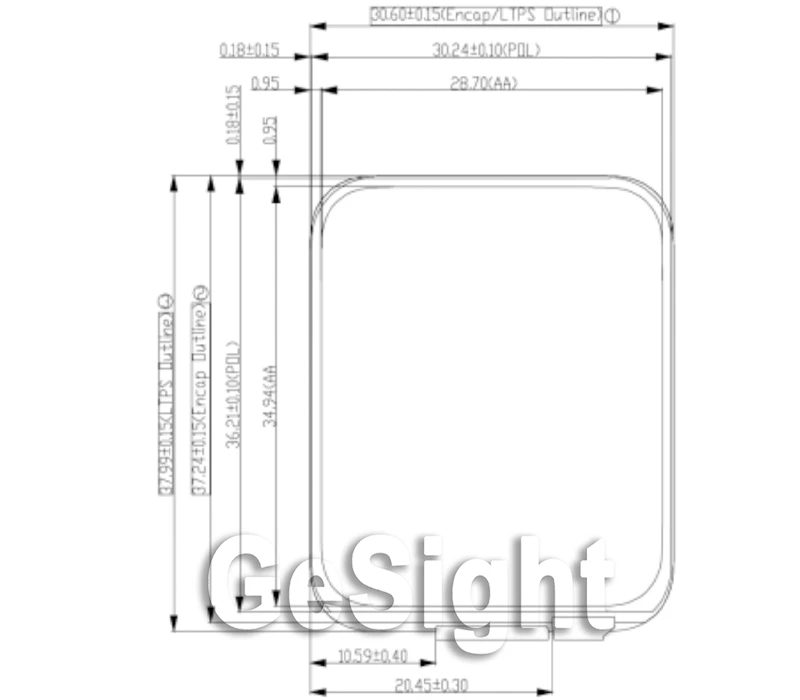

mechanical drawing, outline dimensions, active area
display test setup, controller board, signal test

Demo Kit for Quick Bring-Up & Lab Validation

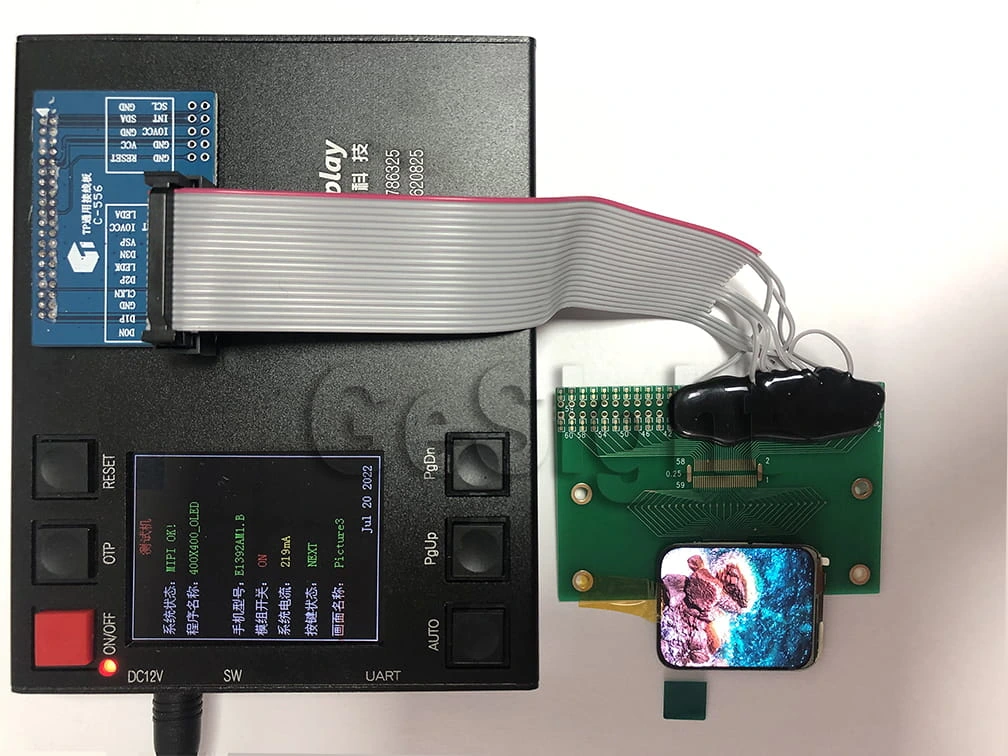

For ED178AM368MS development, the demo kit provides a ready-to-use test setup that helps you power up the panel and verify basic performance without designing a custom mainboard first. The kit typically includes a control unit, a signal adapter board, and a flat cable connection, forming a stable bench-top environment for early-stage evaluation.

This setup is ideal when you need to confirm key behaviors such as startup stability, reset/TE response, touch communication readiness, and continuous playback under fixed conditions. It also supports fast iteration during UI tuning—engineers can quickly switch content, observe rendering behavior on the actual module, and reduce “unknown variables” caused by early prototype hardware. For teams moving toward sampling or small-batch builds, the demo kit works well as a repeatable test fixture, improving consistency across engineering, QA, and production checks.

Compact Module Structure for Wearable Integration

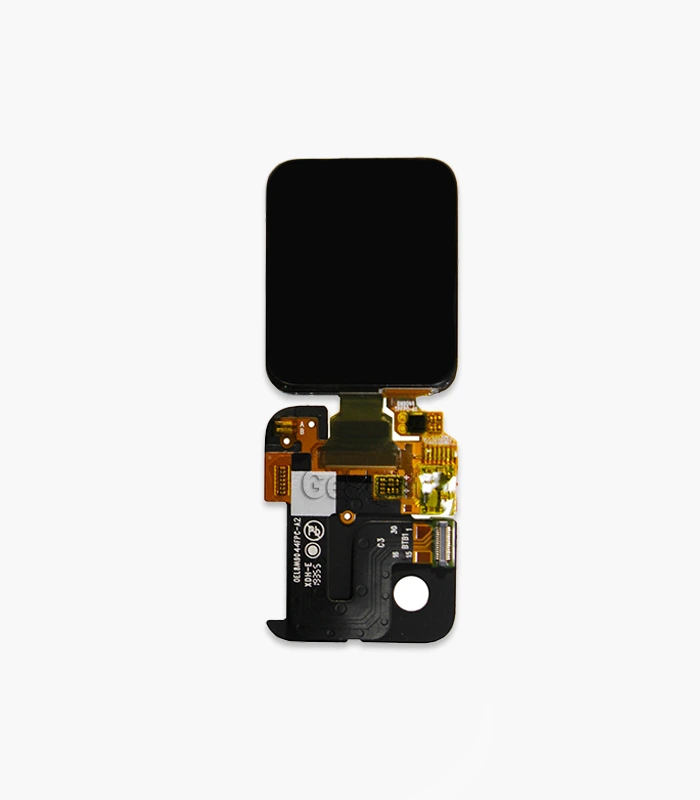

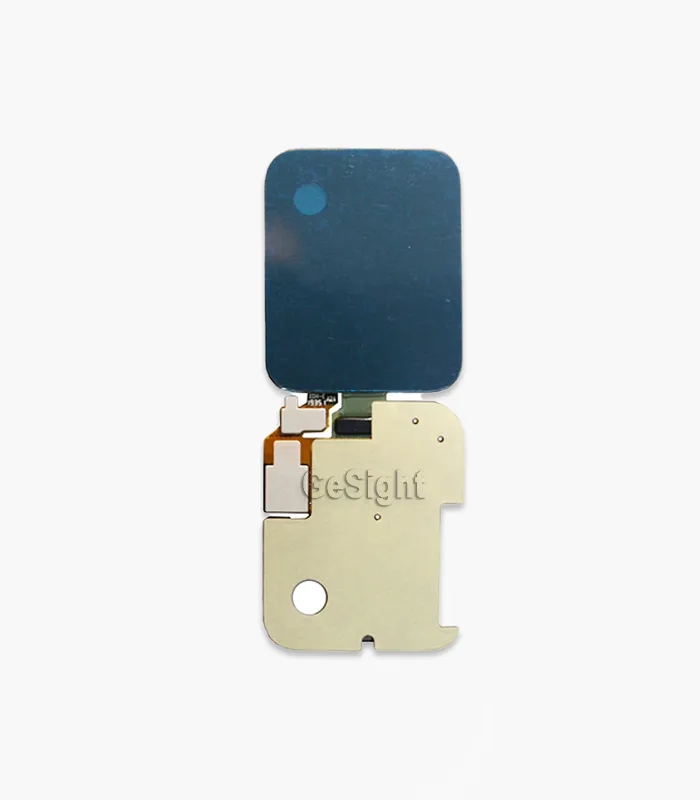

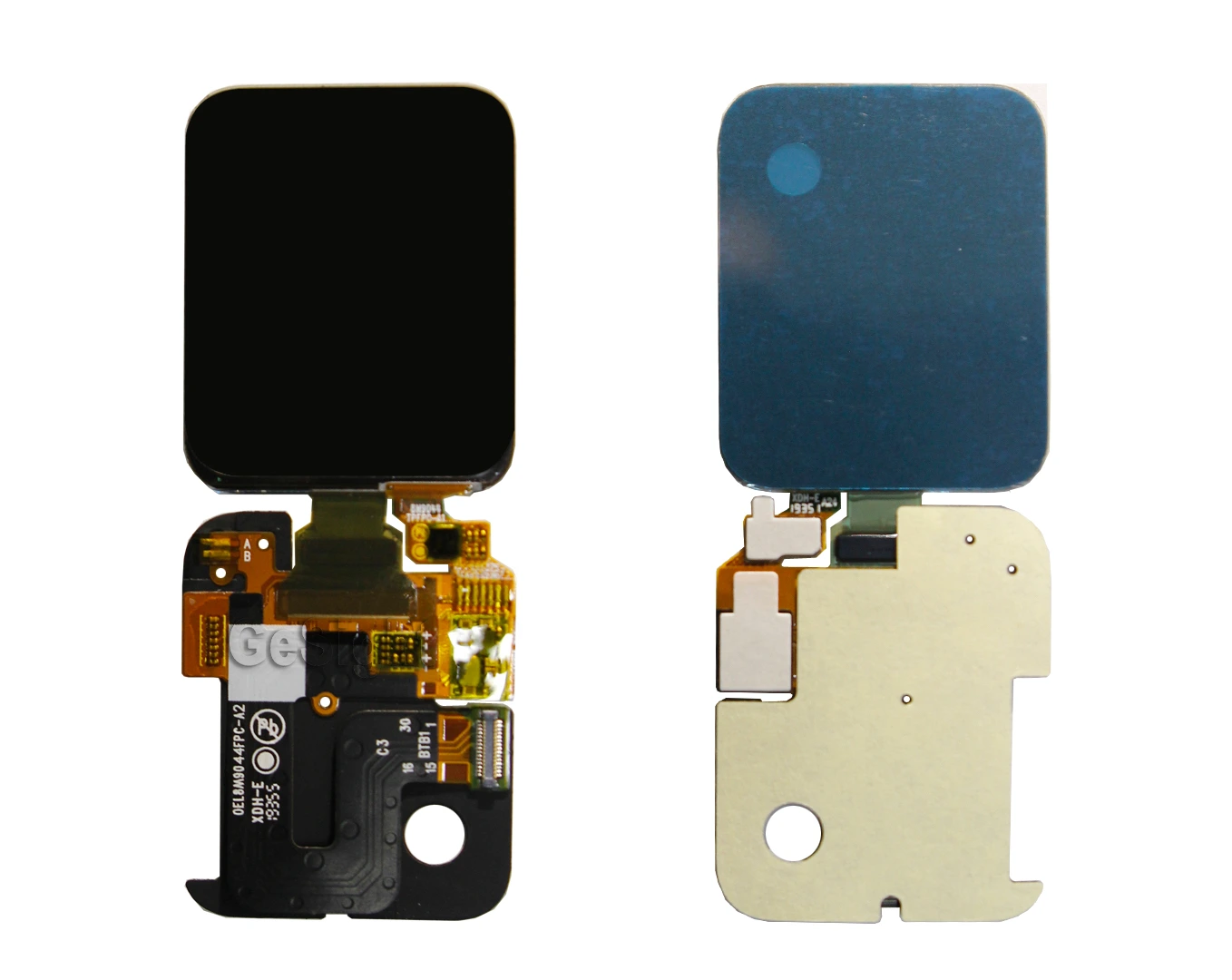

This front-and-back view highlights a watch-size AMOLED module built for tight wearable assemblies. The front side uses a clean, square active window with rounded corners, while the rear layout combines flex PCB routing and a protected component area to keep the module slim and integration-friendly. The extended flex tail provides room for signal routing and mechanical alignment, helping reduce stress on the display area during installation.

For engineering and assembly, the visible pad/connector region on the flex makes it easier to align with your mainboard, while the reinforced backing section supports stable mounting inside compact housings. This construction is especially useful when space is limited and you need a reliable stack-up for smartwatch frames, demo fixtures, or small-batch prototypes—keeping the module tidy, protected, and ready for fast integration without bulky add-ons.

AMOLED module, front and back, flex PCB
Specifications
Size

1.78 inch
Pixels

368(W) × 448(H) (Real RGB)
Interface

,

Brightness

350 cd/m² (Typ.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz (Typ., Normal Mode); 15 Hz (Idle Mode)
Viewing Angle Range

80° (Top/Bottom/Right/Left, CR ≥ 1000)
Outline L*W*H

LTPS glass outline: 30.6 × 37.99 mm; Encapsulation glass outline: 30.6 × 37.24 mm; Glass thickness (LTPS/Encap.): 0.2 / 0.3 mm
Active Area L*W

28.7 × 34.94 mm
Orientation

Supply Voltage

Vbat: 2.9–4.8 V (Typ. 3.7 V); VDDIO: 1.65–1.95 V (Typ. 1.8 V)
Consumption

Normal mode: 186–210 mW; Idle mode: 12–16 mW; Standby mode: Max 50 μW
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

–
Aspect Ratio

23:28 (368:448)
Connection Type

–
IC package

–
Touch Panel

Pixel Pitch

78 × 78 μm
Sunlight Readable

–
Model

ED178AM368MS
PPI ( pixels per inch )

326 PPI
Application

Smart Watch
Pins Description
Pin No. Pin Name Type Notes
1 VCI_EN Signal Power enable control
2 GND GND Ground
3 TP_I2C_SDA I/O Touch I2C data
4 TP_I2C_SCL Input Touch I2C clock
5 NC(TP_SWDIO) NC Not connected (SWDIO reserved)
6 TP_RST Signal Touch reset
7 TP_INT Output Touch interrupt
8 TP_VDD(2.8V) Power Touch power
9 GND GND Ground
10 LCD_RST Signal Display reset
11 LCD_TE Output Tearing effect (TE) signal
12 GND GND Ground
13 VIO1(1.8V) Power I/O power
14 VIO1(1.8V) Power I/O power
15 NC(VPP) NC Not connected (VPP reserved)
16 NFC_ANT2 Signal NFC antenna
17 NFC_ANT1 Signal NFC antenna
18 GND GND Ground
19 SPI_SDO Output SPI data out
20 SPI_SDI Input SPI data in
21 SPI_DCX Signal SPI D/C (Data/Command)
22 SPI_CLK Input SPI clock
23 SPI_CS Input SPI chip select
24 GND GND Ground
25 MIPI_CLKP HS Diff+ MIPI DSI clock +
26 MIPI_CLKN HS Diff- MIPI DSI clock -
27 GND GND Ground
28 MIPI_D0P HS Diff+ MIPI DSI data lane 0 +
29 MIPI_D0N HS Diff- MIPI DSI data lane 0 -
30 GND GND Ground
31 VPH_PWR(3.8V) Power Main power
32 VPH_PWR(3.8V) Power Main power
33 GND GND Ground
34 GND GND Ground
Electrical Characteristics

Electrical Characteristics (ED178AM368MS)

Parameter Symbol Min Typ Max Unit Test Condition / Notes
Battery Supply Voltage Vbat 2.9 3.7 4.8 V Power supply
I/O Supply Voltage VDDIO 1.65 1.8 1.95 V Logic / interface I/O supply
Power Consumption (Normal Mode) P — 186 210 mW Normal mode consumption
Power Consumption (Idle Mode) P — 12 16 mW Idle mode consumption
Power Consumption (Standby Mode) P — — 50 μW Standby mode Max



Back-light Specification Form

Item Specification
Backlight Type N/A (AMOLED self-emissive, no backlight)
Backlight Luminance N/A
LED Color N/A
Forward Voltage (Vf) N/A
Forward Current (If) N/A
Connector / Pins N/A
Backlight Lifetime N/A
