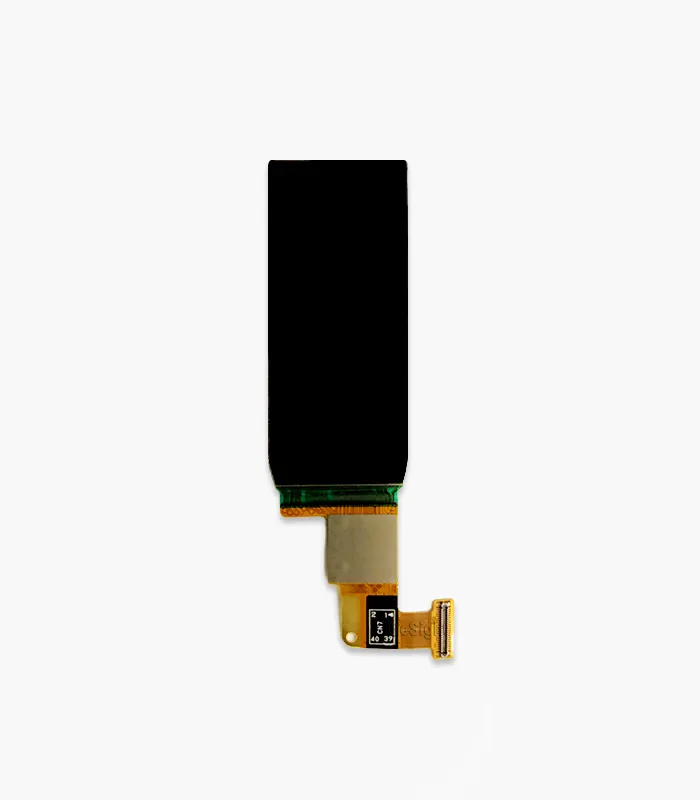

slim amoled display front view

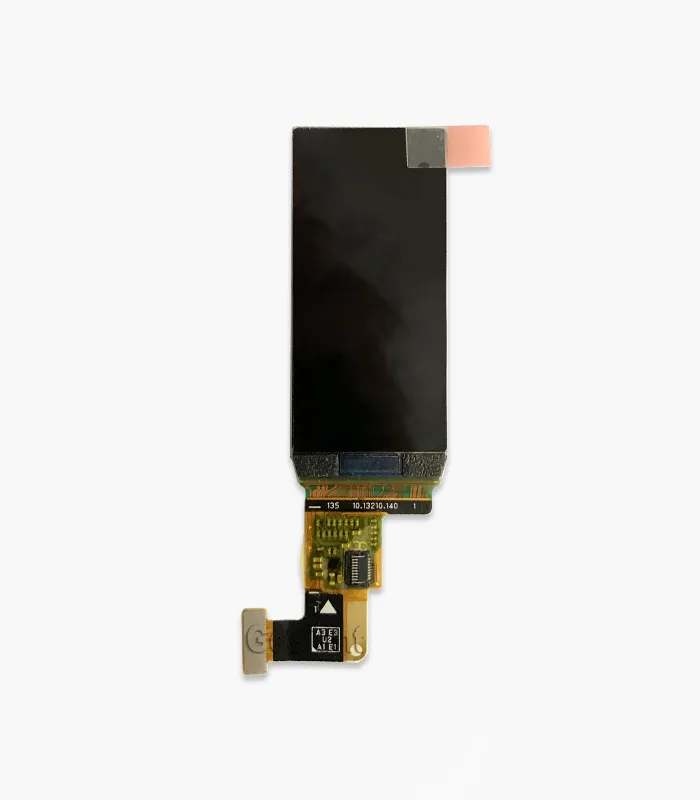

slim amoled display back view with flex cable

1.91-inch 240×536 AMOLED Long Strip Shape

Tags: , , , , , , , , ,

$17.85piece

Add to wishlist
Compare
11 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: E191AM8M0

The 1.91-inch AMOLED Display delivers crisp, high-contrast visuals for compact smart devices where a slim profile and clear UI matter. With a 240 × 536 resolution and 16.7M colors (RGB 8-bit), it renders clean text, icons, and interface elements at 307 PPI, ensuring a refined look on small screens.

Designed for efficient integration, this panel supports a MIPI (1 lane) interface and runs at a typical 60 Hz refresh rate, with an idle mode down to 15 Hz for power-aware operation. It provides 350 cd/m² (typ.) luminance (Br0, θ=0°) and an ALL-angle viewing specification (θ 0°–88°, φ 0°–360°), helping maintain consistent readability from different angles. With a 44.22 × 19.80 mm active area in an ultra-thin 51.32 × 22.40 × 0.753 mm outline, it fits space-limited designs that prioritize thickness control. The module uses a 51-pin BTB connector (0.4 mm pitch) and is rated for -30 to +70°C operating and -30 to +80°C storage temperatures.

Application

Smart Device UI | Compact HMI | Embedded Display | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

amoled display mechanical drawing with dimensions

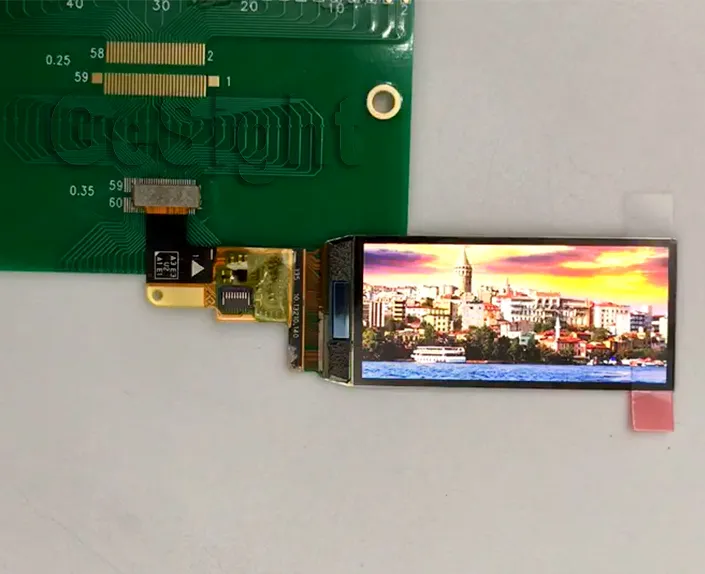

amoled display demo on controller board

HDMI Controller Board (Plug-and-Play Evaluation)

To simplify prototyping and evaluation, Gesight provides an HDMI controller board that drives the E191AM8M0 through a stable HDMI-to-MIPI conversion path, letting you verify panel performance without writing display drivers from scratch. Connect an HDMI video source (PC / media player / test equipment), supply power, and you can quickly bring up the panel for image quality checks, refresh behavior validation, and long-run stability tests.

The board is ideal for early-stage development when you need a fast, repeatable setup for demo builds, firmware bring-up, and production line inspection. It also helps teams shorten the debug loop by providing a known-good signal chain, making it easier to focus on system integration and UI tuning rather than interface troubleshooting.

Test Kit for Fast Bench Validation

For teams that need a quicker, more “lab-ready” setup, the E191AM8M0 can be evaluated with a complete test kit that combines the controller board, wiring harness, and power adapter in one package. This setup is built for bench testing and repeated plug/unplug cycles, making it practical for engineering verification, sample reviews, and internal demos without extra fixtures.

The kit also supports a smoother evaluation workflow: you can switch sources quickly, compare different image patterns, and run longer stability checks while keeping the panel connection secure. It’s a straightforward option when you want to validate display behavior early and keep your prototype iteration moving.

amoled display test kit with controller board
Specifications
Size

1.91 inch
Pixels

240(W) × 536(H)
Interface

Brightness

350 cd/m² (Typ., Br0, θ=0°); 315 cd/m² (Min.); 385 cd/m² (Max.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz (Normal mode, test condition); 15 Hz (Idle mode, test condition)
Viewing Angle Range

ALL angle: θ = 0° to 88°, φ = 0° to 360°
Outline L*W*H

51.32 ± 0.15 mm × 22.40 ± 0.15 mm × 0.753 ± 0.10 mm (module outline / side view)
Active Area L*W

44.22 mm × 19.80 mm
Orientation

Supply Voltage

VBAT: 2.5 / 3.7 / 4.5 V (Min/Typ/Max); VDDIO: 1.65 / 1.8 / 1.95 V; VCI: 2.65 / 2.8 / 3.6 V
Consumption

Ivbat: 42 mA (Typ), 50.4 mA (Max); Ivddio: 6.5 mA (Typ), 7.8 mA (Max); Ivci: 12 mA (Typ), 14 mA (Max) (Normal mode test condition)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

Left/Right bezel: (22.40−19.80)/2 = 1.30 mm each; Top/Bottom bezel: (51.32−44.22)/2 = 3.55 mm each
Aspect Ratio

240:536
Connection Type

BTB connector, 51 pins, 0.4 mm pitch (BM25R-0.4DP-0.35V(51))
IC package

–
Touch Panel

Pixel Pitch

82.5 × 82.5 μm
Sunlight Readable

–
Model

E191AM8M0
PPI ( pixels per inch )

307 PPI
Application

Smart Phone
Pins Description
Pin No. Pin Name
1 GND10
2 GND11
3 VPP (internal: NCO)
4 GND0
5 TE
6 D0_N (DSI_D0N)
7 GND12
8 D0_P (DSI_D0P)
9 GND13
10 GND1
11 GND14
12 CLK_N (DSI_CLKN)
13 GND15
14 CLK_P (DSI_CLKP)
15 GND16
16 GND2
17 NC1
18 VDDIO1
19 VBAT2
20 VDDIO2
21 VBAT4
22 VBAT1
23 VBAT5
24 VBAT3
25 GND3
26 GND4
27 VDD01
28 VDD02
29 RESET (XRES)
30 NC
31 GND6
32 GND5
33 TP_SCL
34 TP_SDA
35 TP_INT
36 TP_RESET
37 TP_VDD
38 GND7
39 GND8
40 GND9
41 GND_Fix03
42 GND_Fix04
43 GND_Fix01
44 GND_Fix02



Electrical Characteristics

Electrical Characteristics (PO204RT448S)

Electrical Characteristics (E191AM8M0) Item Symbol Min Typ Max Unit Condition / Remark
Absolute Maximum Ratings Battery supply VBAT -0.3 - 6.0 V -
Absolute Maximum Ratings Power supply for Logic VDDIO -0.3 - 5.5 V -
Absolute Maximum Ratings Power supply for Analog VCI -0.3 - 5.5 V -
Recommended Operating Conditions Battery supply VBAT 2.5 3.7 4.5 V -
Recommended Operating Conditions Power supply for Logic VDDIO 1.65 1.8 1.95 V -
Recommended Operating Conditions Power supply for Analog VCI 2.65 2.8 3.6 V -
Normal Mode (Power) Current for OLED Ivbat - 42 50.4 mA VDDIO=1.8V, VCI=2.8V, VBAT=3.7V; Fframe=60Hz @25°C; 350 nits; Command Mode
Normal Mode (Power) Current for VDDIO Ivddio - 6.5 7.8 mA Same as above
Normal Mode (Power) Current for VCI Ivci - 12 14 mA Same as above
Idle Mode Current for OLED Ivbat - - - mA Supplied by Driver IC; Fframe=15Hz @25°C; 50 nits; 10% Pixel On
Idle Mode Current for VCI IVCI - 6 7.2 mA Ref
Idle Mode Current for VDDIO IVDDIO - 1 1.2 mA Ref
Sleep IN Mode Sleep IN (VCI) IVCI - 0.25 0.30 mA -
Sleep IN Mode Sleep IN (VDDIO) IVDDIO - 0.10 0.12 mA -
Deep Standby Mode Deep Standby (VCI) IVCI - - 2 uA -
Deep Standby Mode Deep Standby (VDDIO) IVDDIO - - 1 uA -

Back-light Specification Form

Back-light Specification Form (E191AM8M0) Specification
Backlight Type None (AMOLED self-emissive)
LED Color N/A
Backlight Input Voltage N/A
Backlight Current N/A
Luminance (Panel) 315 / 350 / 385 cd/m² (Min / Typ / Max, Br0, θ=0°)
Dimming Brightness command level Br000–Br255
