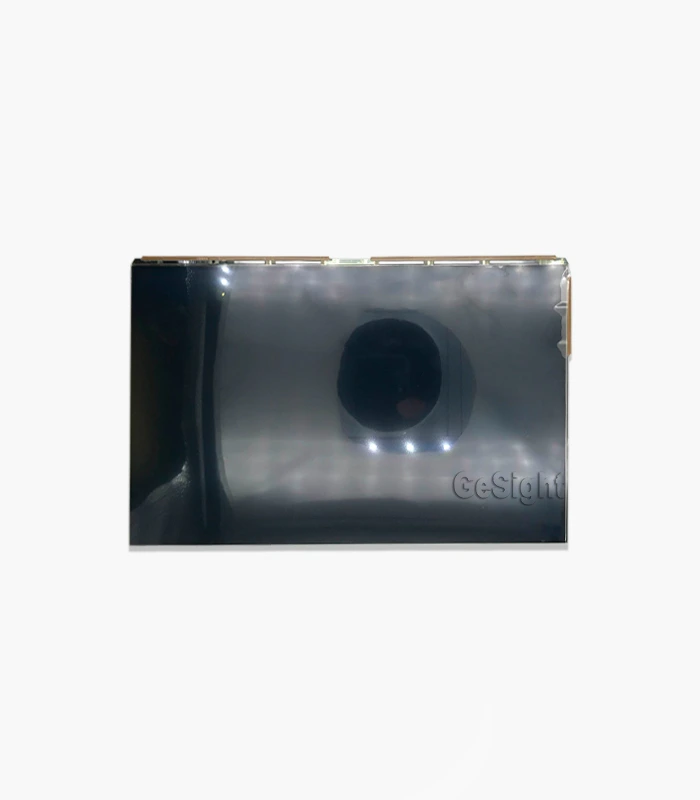

10.5-inch AMOLED touch display front view protective film

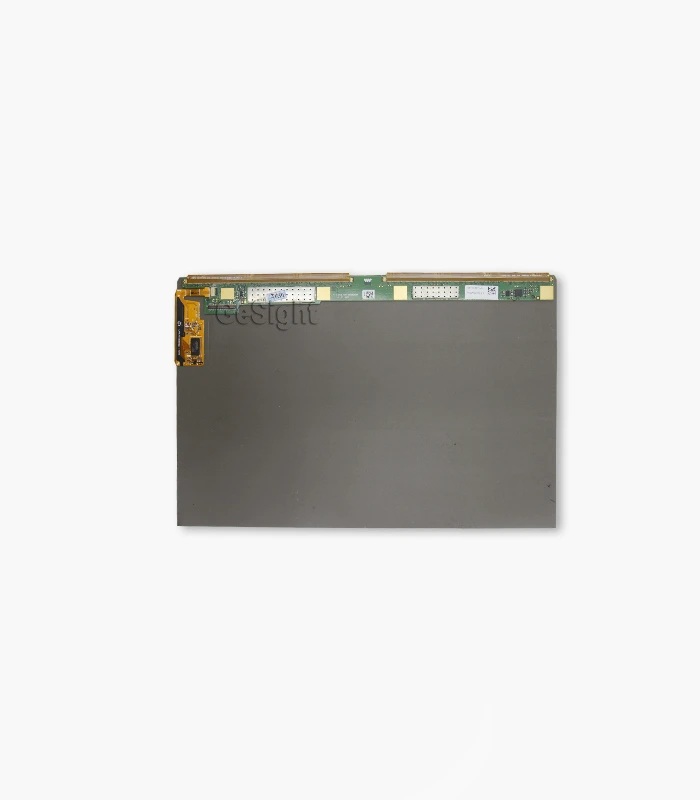

AMOLED display back view connector flex cable

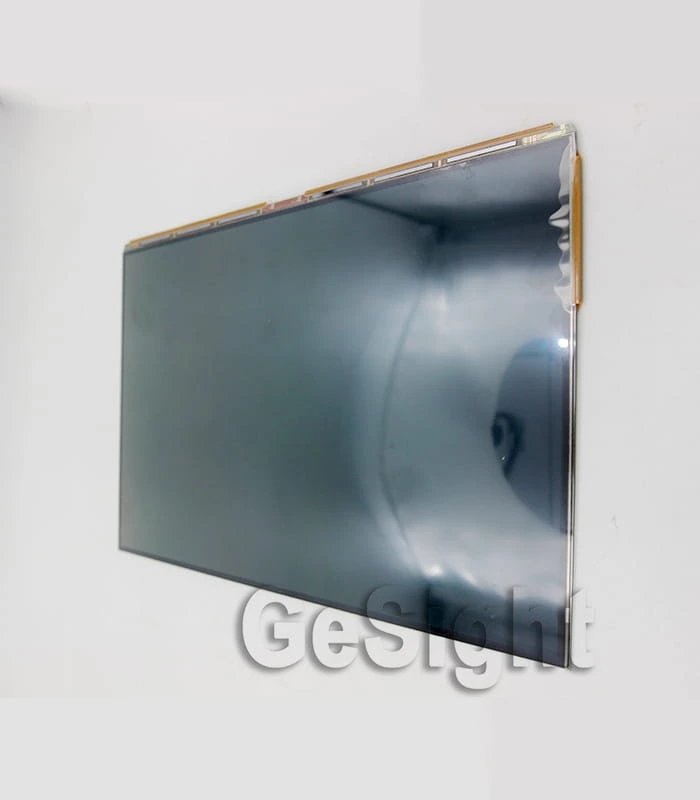

AMOLED display angled view slim panel edge

10.5-inch 2560×1600 AMOLED Touch Display

Tags: , , , , , , , ,

$100.00piece

Add to wishlist
Compare
13 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: AMSA05BV07-0

The 10.5-inch AMOLED Touch Display delivers sharp, high-resolution visuals in a slim 16:10 format, featuring a 2560 × 1600 resolution and 16M colors. With a 0.0885 mm pixel pitch (≈ 287 PPI, calculated), it renders fine UI elements and text with clean edges, while a 300 cd/m² (typ) luminance (with Window + TSP, Normal/White Mode) supports clear indoor viewing for space-efficient product designs.

The module uses a MIPI Dual-DSI (8-lane Dual DSI) interface and supports a 60 Hz (typ) refresh rate. It maintains wide viewing performance rated Over 80° (U/D/L/R) under Contrast Ratio ≥ 100 conditions. Touch is integrated as OCTA (On-Cell Touch AMOLED) with a built-in Synaptics S7501 touch IC, and the display side uses S6TNMR7 (Tcon) plus D53D5EA8002SA (Source IC). Its 241.16 × 170.603 × 1.904 mm outline and 226.56 × 141.60 mm active area streamline integration, using a DDK FF10S-80A-R12B-3H-D3 (ZIF type) connector. Gesight supplies this module for dependable real-world use with a -30 to +70°C operating range.

Application

Tablet-Size Embedded Displays | Control Panels & HMI | Portable Terminals | Demo & Evaluation Setups

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

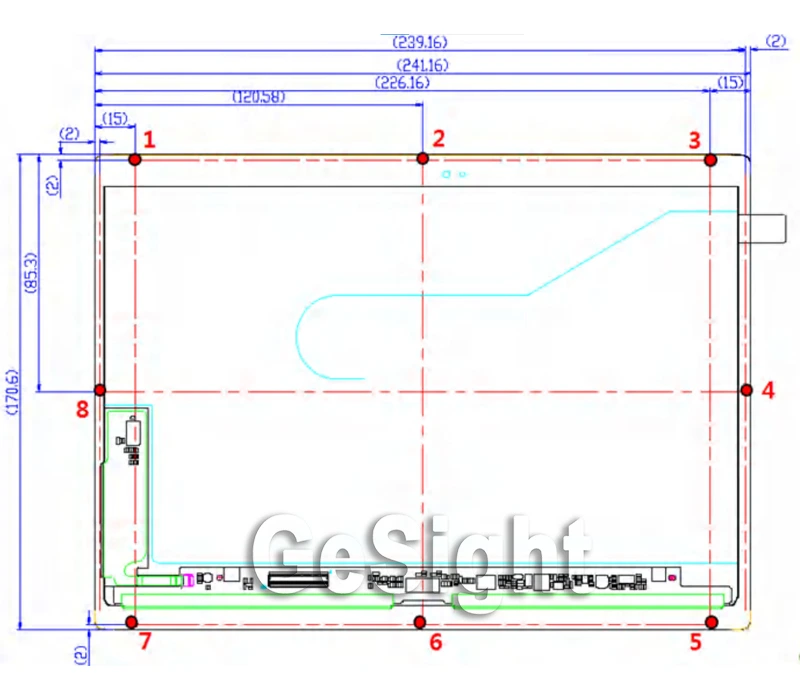

AMOLED touch display mechanical drawing outline dimensions

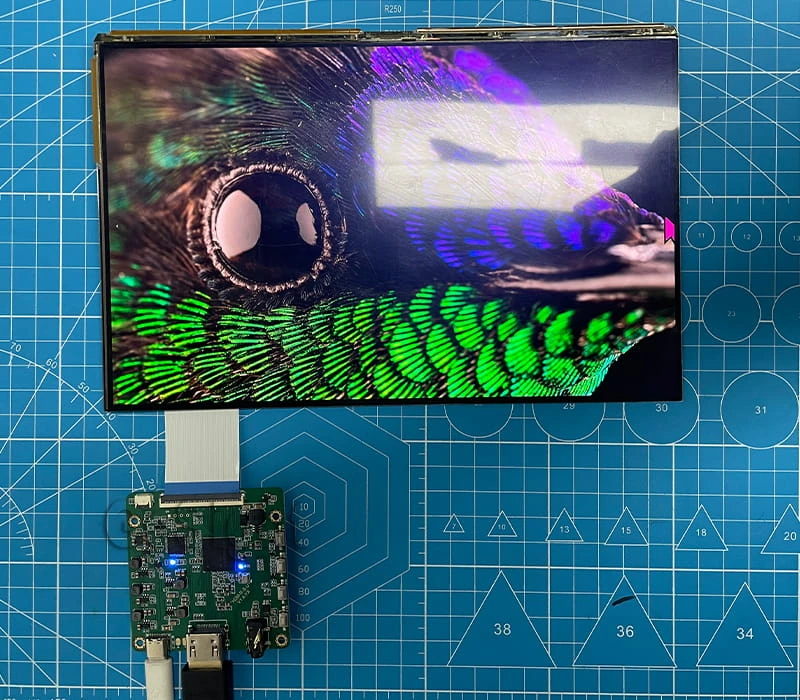

AMOLED touch display HDMI board demo test setup

HDMI Controller Board for AMSA05BV07-0 Integration

To accelerate prototyping and video input evaluation, AMSA05BV07-0 can be paired with an HDMI controller board that bridges standard HDMI sources to the panel’s MIPI Dual-DSI interface. This makes it easy to run real video content, validate signal stability, and verify basic operation without designing a custom mainboard at the early stage. The board-to-panel link is delivered through an FPC connection, helping keep wiring clean and setup time short.

With the HDMI board in place, teams can focus on what matters most during bring-up—display performance checks, touch interaction verification, and system-level validation under real working conditions. It’s a practical path from bench testing to product integration, especially when you need repeatable results for demos, debugging, and firmware/UI tuning.

Gesight provides HDMI controller boards to support AMSA05BV07-0 evaluation and development.

Vivid AMOLED Visuals for Real-Content Evaluation

AMSA05BV07-0 delivers the kind of image quality you want to see in real video and graphics, not just on a spec sheet. In HDMI-board demos, the panel shows rich color rendering, clean edge detail, and smooth tonal transitions, helping textures, highlights, and shadow areas stay readable at the same time. This makes it easier to judge UI clarity and content fidelity when you’re tuning visuals for end products.

With its 2560×1600 resolution and AMOLED contrast characteristics, the display keeps scenes looking crisp and punchy, while maintaining stable visibility across typical viewing positions. It’s a practical choice for teams who need a reliable screen for live demo playback, image-quality checks, and early-stage visual verification before final system integration.

AMOLED touch display HDMI board demo video playback test
Specifications
Size

10.5 inch
Pixels

2560(H) × 1600(V)
Interface

Brightness

300 cd/m2 (Typ., with Window + TSP, Normal/White Mode)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

Normal
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

Over 80° (Upper/Down/Right/Left, Contrast Ratio ≥ 100)
Outline L*W*H

241.16 × 170.603 × 1.904 mm
Active Area L*W

226.56 × 141.60 mm
Orientation

Supply Voltage

VDD_3.3V: 3.3 V; VDD_1.8V: 1.8 V; VBAT: 3.8 V; ELVDD: 5 V; ELVSS: ~ -3.2 V (adjustable); TSP_3.3V: 3.3 V; TSP_1.8V: 1.8 V
Consumption

IBAT: 1632 mA (Typ., 300 cd/m2 Full White, VBAT=3.8 V); IVDD_3.3V: 307 mA (Typ.); IVDD_1.8V: 63 mA (Typ.)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

(233.19−226.56)/2 = 3.315 mm; (150.77−141.60)/2 = 4.585 mm
Aspect Ratio

16:10
Connection Type

DDK FF10S-80A-R12B-3H-D3 (ZIF type)
IC package

–
Touch Panel

Pixel Pitch

0.0885 mm
Sunlight Readable

–
Model

AMSA05BV07-0
PPI ( pixels per inch )

287.01 PPI
Application

Folding / Flexible AMOLED module (panel)
Pins Description
Pin Signal name (Symbol) Pin Signal name (Symbol)
1 GNO 2 GND
3 EN 4 ING
5 TTO 6 MM
7 GLVUU 8 ELVDD
9 ELYDO 10 EVDO
11 EVD 12 BVDD
13 TCONADYV7 14 I
15 GAB 16 GND
17 QBLONT 18 TS
19 LY 20 NC
21 _VEOS3V 22 VWOR_SIV
23 VDD_33V 24 NC
25 RR 26 NC
27 P_03P 28 P_03N
29 GRU 30 PUP
31 PGIN 32 GNO
33 TO6U 34 NC
35 HS 36 NC
37 GRD 38 NC
39 PDI 40 MRR
41 P_DBOP 42 D3P
43 SO3N 44 GAD
45 OGP 46 S_DZ
47 GND 48 S_D3P
49 P_DIP 50 S_D3N
51 P_D1P 52 S_D2P
53 P_D1N 54 S_D2N
55 P_D2P 56 S_D1P
57 P_D2N 58 S_D1N
59 P_D3P 60 S_D0P
61 P_D3N 62 S_D0N
63 P_CLKP 64 S_CLKP
65 P_CLKN 66 S_CLKN
67 NC 68 NC
69 NC 70 NC
71 NC 72 NC
73 GND 74 GND
75 GND 76 GY50
77 OOALINTR 78 ATCUT
79 GND 80 GND
Electrical Characteristics

1) Electrical Characteristics (AMOLED)

Conditions: Temp. = 25℃

Item Symbol Condition Min Typ Max Unit Note
System Analog/Logic VDD_3.3V – 3.1 3.3 3.5 V –
Logic VDD_1.8V – 1.7 1.8 2.0 V –
Main Analog ELVDD – – 5.0 – V (1)
Main Analog ELVSS Individual driving (Variable) – Variable – V (1)
Input Voltage “H” VIH – 0.7×VDD_1.8V – VDD_1.8V V –
Input Voltage “L” VIL – VSS – 0.3×VDD_1.8V V –
Output Voltage “H” VOH IOUT = -2/4/8/12 mA 0.8×VDD_1.8V – VDD_1.8V V –
Output Voltage “L” VOL IOUT = -2/4/8/12 mA VSS – 0.2×VDD_1.8V V –
Supply Current IBAT DCDC Power (300 cd/m², Full White), VBAT=3.8V – 1632 – mA (1)(2)
Supply Current IVDD_3.3V Full White (Normal Operation) – 307 – mA (1)(2)
Supply Current IVDD_1.8V Full White (Normal Operation) – 63 – mA (1)(2)
Frame Frequency Fframe – – (60) – Hz (3)

2) Electrical Characteristics (TSP)

Item Symbol Min Typ Max Unit Note
Supply Voltage (Logic) TSP_1.8V 1.71 1.8 1.98 V –
Supply Voltage (Analog) TSP_3.0V 2.7 3.3 3.6 V Touch driver IC: S7501 (Synaptics)

3) Back-light Specification Form

Item Spec
Backlight Type N/A (AMOLED, self-emissive)
LED Part No. N/A
Backlight Driver N/A
Luminance / Current vs. Backlight N/A

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.


lcd_connectors

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

ship_express
specification_lcd

Specification

Panox Display offers the following specifications for most LCD/OLED products:

  • Display datasheet

  • Mechanical drawing

  • IC datasheet

  • Circuit schematic

Readable Under Sun

Compare to LCD, OLED has many advantages as follows:

Thin Like Paper:More than 50% thinner and lighter than LCD, creating an edgy form factor in style.

Green Power:Clock-mode standby can be up to 60 hours, much lower consumption compare to LCD displays.

"Wow" Effect:High contrast ratio and wide color gamut offer sharp and vivid image, and consistent display from any angle.

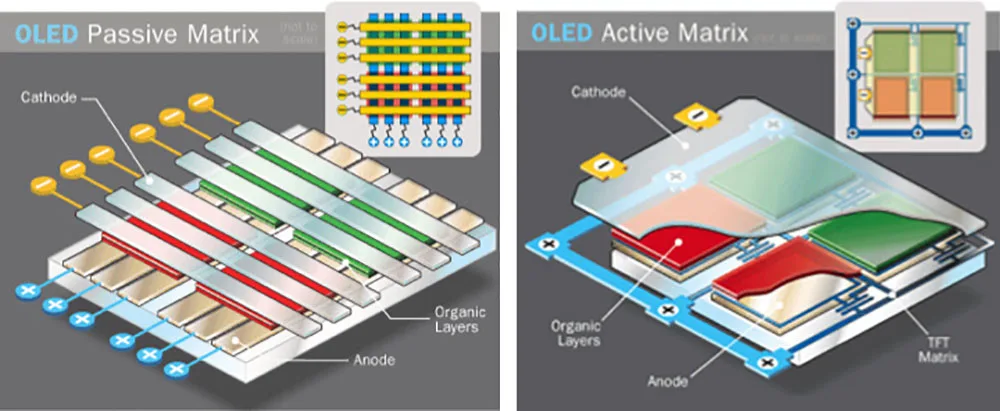

OLED Type Structures
