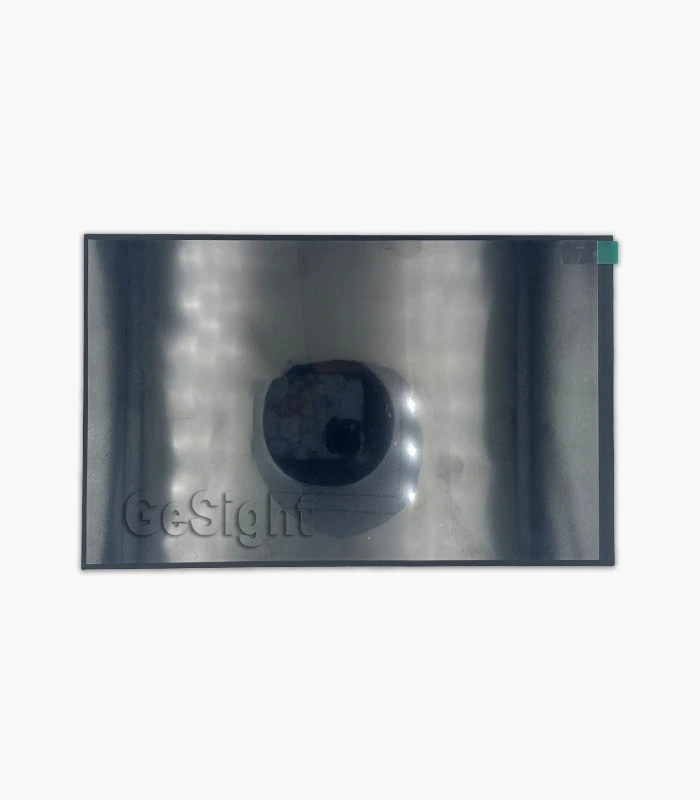

GL10PHDM800 10.1-inch TFT LCD back metal plate close-up (module rear side)

Click to enlarge

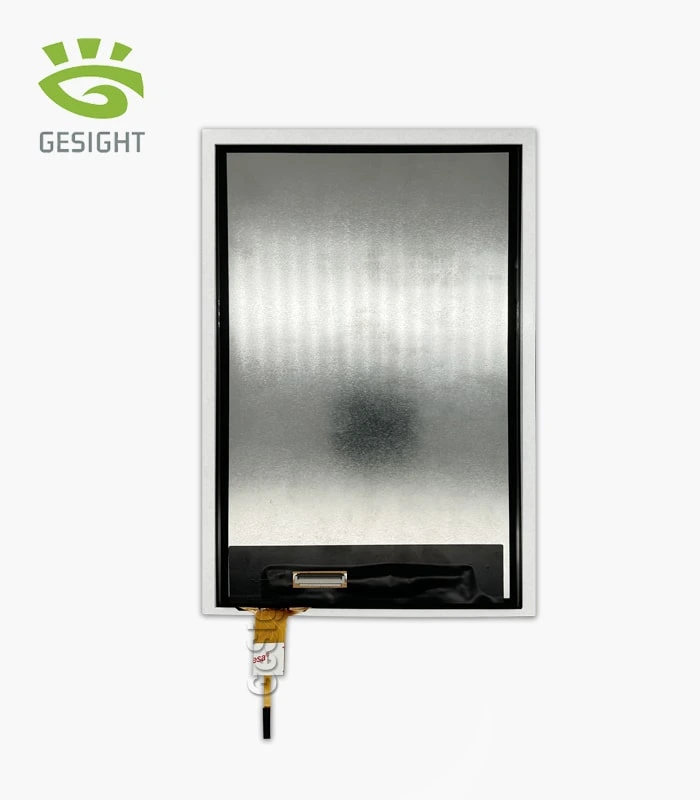

10.1-inch High-Brightness TFT LCD 800×1280 MIPI Display

Name: 10.1-inch High-Brightness TFT LCD 800×1280 MIPI Display
SKU: 811566-1-1-1-6-1-2-1
Availability: InStock

Tags: High brightness, High Contrast Ratio, Industrial Panel, MIPI Interface, Ultra-Thin Design, Vivid Colors, Wide viewing angle

$100.00piece

Add to wishlist

Compare

18 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: GL10PHDM800

The 10.1-inch TFT-LCD Module delivers clear, high-contrast visuals with an 800×1280 resolution and 16.7M colors, making it a strong choice for bright-environment embedded displays and vertical UI layouts. Featuring a MIPI DSI (4-lane) interface and a normally black transmissive panel, it provides stable image performance with wide viewing angles (typ. 85°) and high brightness up to 800 cd/m² (typ.). Its ultra-slim 2.7 mm outline helps simplify integration in space-limited designs, while the -10 to +60°C operating temperature range supports reliable use in real-world conditions.

Application

Embedded HMI | Portable Terminals | Industrial Control Panels | Handheld Devices

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

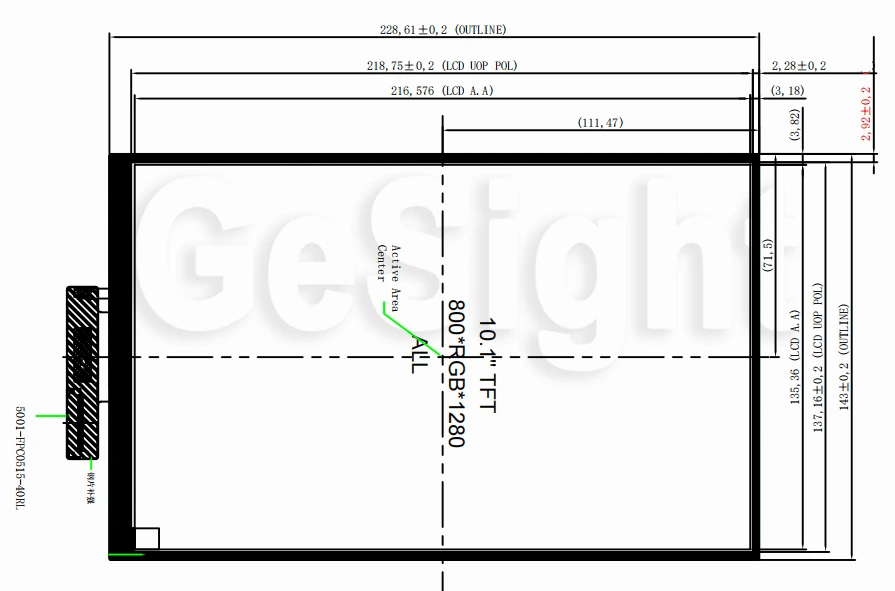

GL10PHDM800 10.1-inch 800x1280 MIPI TFT LCD outline drawing with dimensions

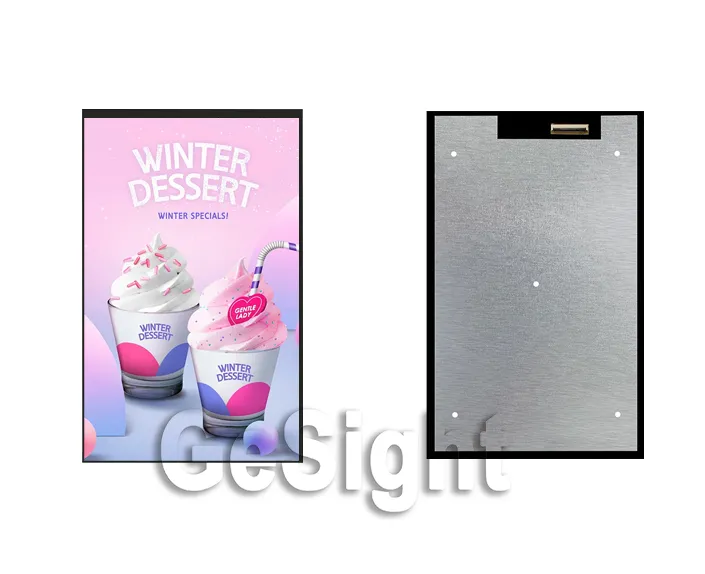

GL10PHDM800 10.1-inch 800x1280 MIPI TFT LCD showing front display and back metal plate view

High-Brightness 10.1" TFT-LCD for Readable UIs in Harsh Lighting

Gesight’s GL10PHDM800 is built for projects that struggle with washout, reflections, and uneven visibility. With a typical luminance of 800 cd/m² (specified under the backlight condition), it keeps key UI elements—icons, text, and status colors—clear in bright indoor spaces and near-window environments. The panel’s normally black transmissive structure helps maintain a darker “rest” state, improving perceived contrast for modern UI themes.

To support practical integration, GL10PHDM800 pairs wide viewing performance (CR=10, typ. 85° in all directions) with a slim 2.7 mm module profile, giving designers more freedom on enclosure thickness, front glass stack-up, and internal cable routing. The module also uses a MIPI DSI 4-lane signal path and includes the ILI9881C-0H driver IC, making it a strong fit for compact embedded platforms that need a clean, high-speed display link without bulky parallel interfaces.

Touch Panel Integration Options for Interactive 10.1" Interfaces

For applications that need direct user interaction—menu navigation, parameter input, or kiosk-style control—GL10PHDM800 can be paired with an optional touch panel solution to match your front-glass design and usability targets. The module’s slim mechanical profile leaves room in the stack-up for a cover lens + touch sensor combination, helping you achieve a clean, modern “full-front” look while keeping the display area prominent.

Gesight can support capacitive touch panel (CTP) integration for multi-touch gestures and smoother UI response, with options for custom sensor size, tail position, and cover lens thickness to suit your enclosure constraints. For projects that prioritize outdoor readability and durability, touch solutions can also be combined with optical bonding approaches to reduce internal reflections and improve perceived contrast—especially useful when the display is driven at high luminance.

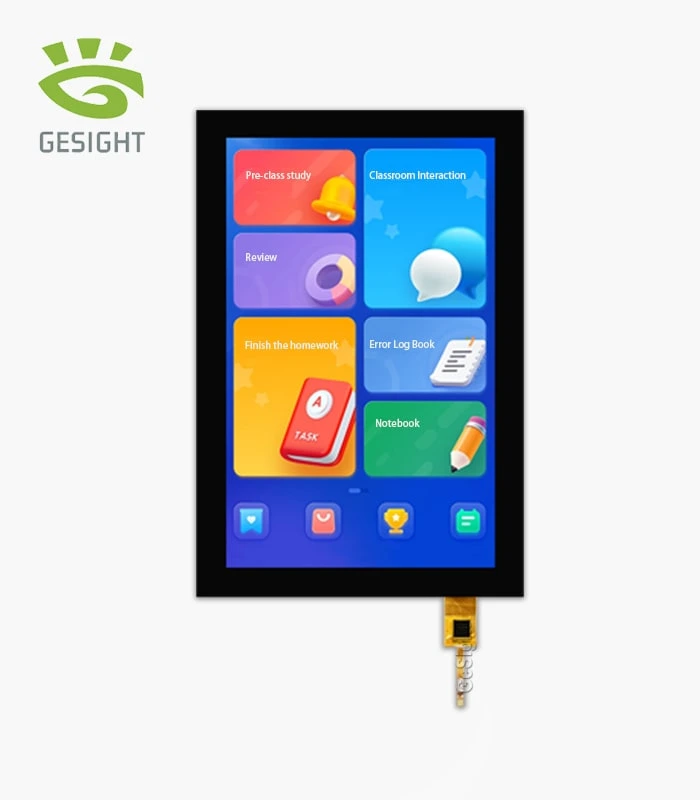

GL10PHDM800 10.1-inch 800x1280 MIPI TFT LCD front view with screen on and FPC tail

Specifications

Size	10.1 inch
Pixels	800(RGB) × 1280 dots
Interface	MIPI DSI
Brightness	Typ 800 cd/m² (Min 750 cd/m²) @ Ib=160mA
Manufacturer	Gesight
Display Type	TFT-LCD
Display Mode	Normally Black
Color Depth	16.7M colors
Refresh Rate	60 Hz (Frame rate condition in DC characteristics note)
Viewing Angle Range	CR=10: Horizontal (R/L) Min 80°, Typ 85°; Vertical (U/D) Min 80°, Typ 85°
Outline LWH	143 × 228.61 × 2.7 mm (Typ, tolerance ±0.2)
Active Area L*W	135.36 × 216.576 mm
Orientation	Landscape
Supply Voltage	Logic (VDDIO / IOVCC): 1.7–3.0 V (Typ 1.8 V); Analog (Vcc): 3.0–3.6 V (Typ 3.3 V)
Consumption	–
Operating Temperarure	-10 to +60 ℃
Storage Temperature	-20 to +70 ℃
Bezel Area (mm)	–
Aspect Ratio	800:1280 = 5:8
Connection Type	FPC connector, 40 pins; Connector model: 5001-FPC0515-40RL
IC package	–
Touch Panel	Need to make
Pixel Pitch	0.1692(H) × 0.11692(V) mm
Sunlight Readable	–
Model	GL10PHDM800
PPI ( pixels per inch )	–
Application	–

Pins Description

Pin No.	Symbol	Level	Remark
1	NC	-	Not Connect
2	VDD	H	Logic power 3.3V
3	VDDIO/VDD	H	Logic power 1.8V / Logic power 3.3V
4	GND	L	Ground
5	RESET	H/L	Reset Pin
6	NC	-	Not Connect
7	GND	L	Ground
8	MIPI_D0-	H/L	MIPI data positive signal (0-)
9	MIPI_D0+	H/L	MIPI data positive signal (0+)
10	GND	L	Ground
11	MIPI_D1-	H/L	MIPI data positive signal (1-)
12	MIPI_D1+	H/L	MIPI data positive signal (1+)
13	GND	H	Ground
14	MIPI_CLK-	H/L	MIPI CLK positive signal (CLK -)
15	MIPI_CLK+	H/L	MIPI CLK positive signal (CLK+)
16	GND	H	Ground
17	MIPI_D2-	H/L	MIPI data positive signal (2-)
18	MIPI_D2+	H/L	MIPI data positive signal (2+)
19	GND	H	Ground
20	MIPI_D3-	H/L	MIPI data positive signal (3-)
21	MIPI_D3+	H/L	MIPI data positive signal (3+)
22	GND	L	Ground
23	NC	-	Not Connect
24	NC	-	Not Connect
25	NC	-	Not Connect
26	NC	-	Not Connect
27	NC	-	Not Connect
28	NC	-	Not Connect
29	NC	-	Not Connect
30	GND	L	Ground
31	LED-	L	Power supply for LED [Cathode]
32	LED-	L	Power supply for LED [Cathode]
33	NC	-	Not Connect
34	NC	-	Not Connect
35	NC	-	Not Connect
36	NC	-	Not Connect
37	NC	-	Not Connect
38	NC	-	Not Connect
39	LED+	H	Power supply for LED [Anode]
40	LED+	H	Power supply for LED [Anode]

Electrical Characteristics

Electrical Characteristics(DC Electrical Characteristics – Power Specification)

Item	Parameter	Min	Typ	Max	Unit
VCI	Vcc	3.0	3.3	3.6	V
VDD3	Iovcc	1.7	1.8	3.0	V
Pixel turn on	TFT Gate ON Voltage voltage	14	15	16	V
Pixel turn off	TFT Gate OFF Voltage voltage	-14	-13	-12	V
Negative VSP	AVEE voltage	4.8	5	6	V
Postive AVDD	VSN voltage	-6	-5	-4.8	V

Backlight Specification(Backlight Unit, GND = 0V)

Item	Symbol	Min	Typ	Max	Unit	Remark
Forward supply Voltage	Vf	23.2	24.6	25.6	V
Forward supply Current	If	-	160	-	mA
LCM Luminance	Lv	750	800	-	cd/m²	Ib = 160 mA
Uniformity	/	75	80	-	%	-

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
