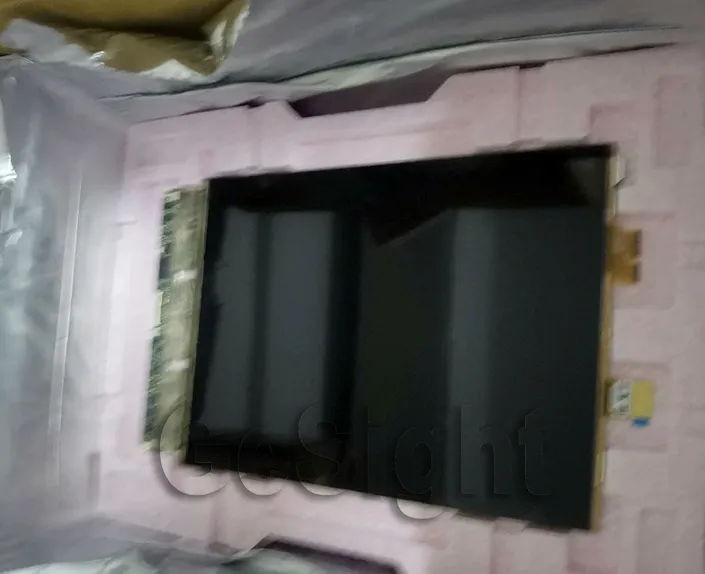

13.3inchflexibleOLED1536X204eDP
13.3inchCurvedOLED1536X204eDP

13.3 Inch 1536 x 2048 Rollable OLED Touch Panel

Tags: , , , ,

$400.00piece

Add to wishlist
Compare
12 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

POF133F2048E: The Ultimate Foldable OLED Display

-13.3" QXGA (1536 × 2048) – Pin-sharp clarity at 192 PPI, perfect for creative workflows.
-True bendable OLED – Engineered for 50,000+ folds with a 3R bending radius (as thin as 0.53mm).
-Cinematic Color – 111% NTSC, 95% DCI-P3 coverage and 5,000:1 contrast for studio-grade accuracy.
-Advanced On-Cell Touch – Wacom AES 1.0 stylus support with 61 × 46 sensor grid.
-Ultra-Efficient – Only 10.44W power (eDP 1.3 + PSR for dynamic power savings).
-Military-Grade Tough – Operates in -20°C to 60°C, survives ±15kV ESD, and altitude extremes.

Application

Foldable tablets/ Notebooks, portable monitors

Customized Options

Cover Glass | Controller Board

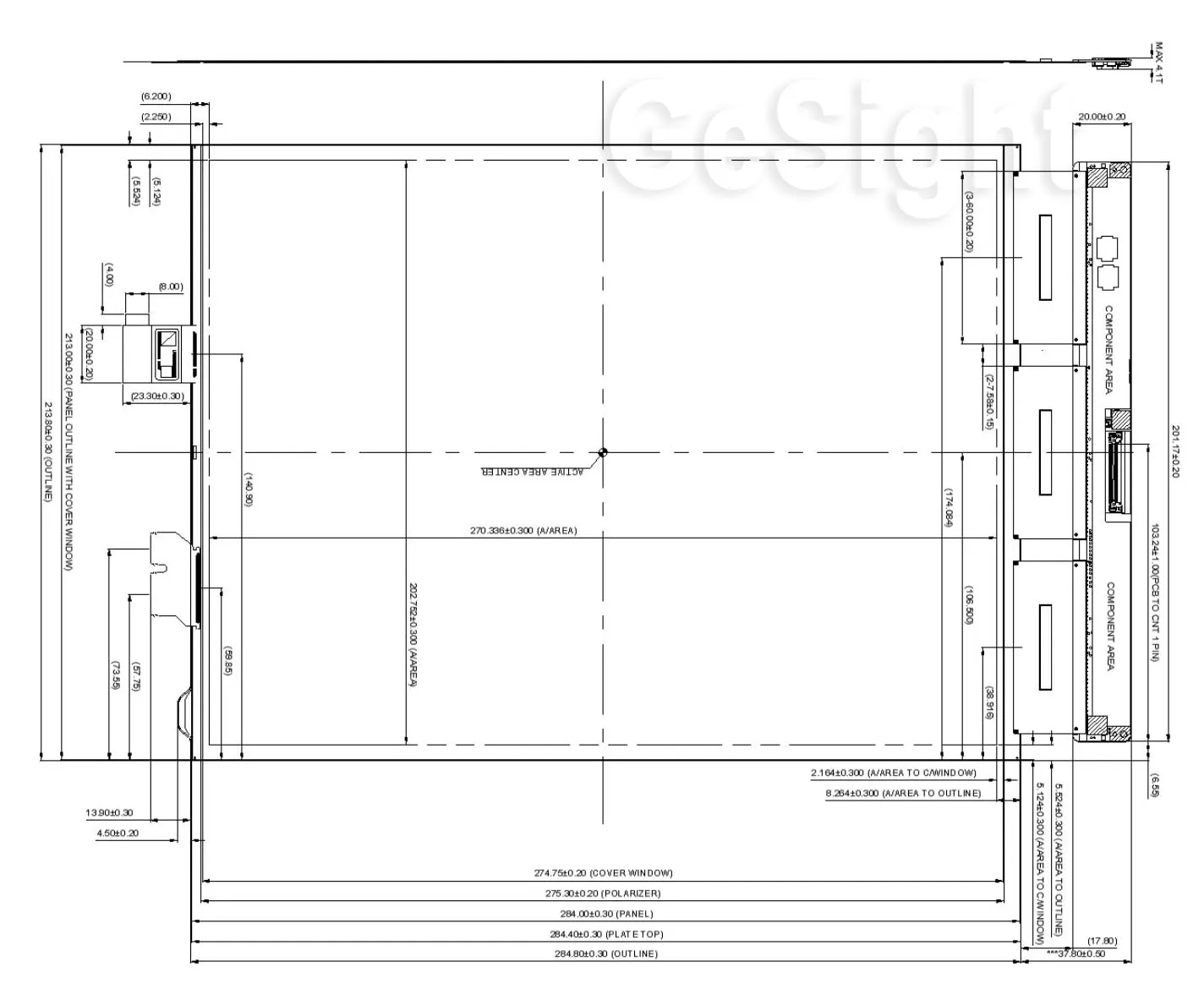

13.3inchBendableOLED1536X204outline

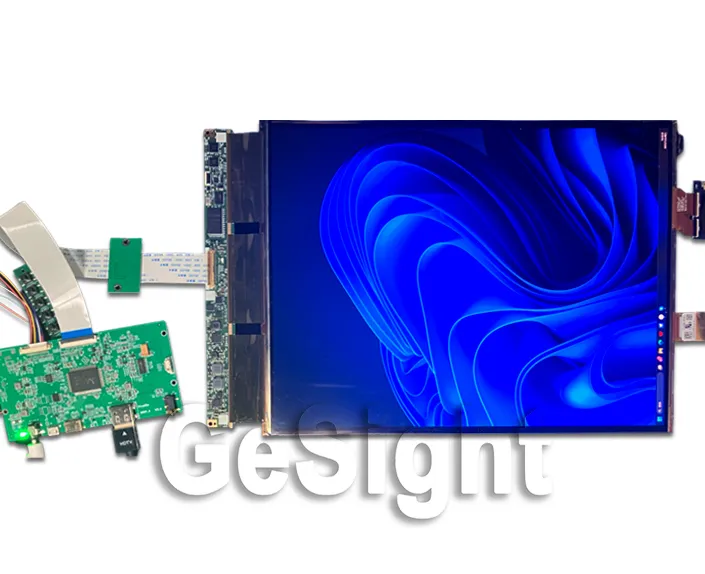

13.3inchRollableOLED1536X204ControllerBoard

Unlock Your Bendable OLED's Potential: Gesight HDMI Controller Board with Touch Integration

HDMI → eDP Conversion

  • Drives LG's 13.3" QXGA (1536×2048) OLED at 60Hz via native 40-pin Hirose connector.
    Touch Integration

  • USB touch input to OLED's I²C interface (supports 10-point capacitive + Wacom AES stylus).
    Power Simplified

  • Generates 3.3V logic + 7.4V OLED power from single 12V input.
    Bend-Aware Calibration

  • Auto-adjusts touch coordinates for 3R folding.

Specs

| Interface | HDMI 2.0 + USB 2.0 |
| Touch | 10-point + Wacom AES |
| Dimming | 8-bit PWM (200–1000Hz) |
| Temp Range | -10°C to 70°C (beyond OLED's 0–50°C) |

If you need a HDMI controller board for this LCD, also feel free to contact us.

Why Choose Gesight For Customized Controller Board Solution ?

  • Zero Coding: Works with any HDMI source (PC, Raspberry Pi, consoles).

  • Industrial Ready: Harsher environment tolerance.

  • Cost Saver: 60% cheaper vs. custom solutions.

Why It’s Revolutionary Bendable Display

This isn’t just a display—it’s a paradigm shift. Designed for foldable laptops, tablets, and premium portables, it merges OLED’s infinite contrast (2ms response) with unmatched flexibility. The 6H-hardened anti-glare surface withstands daily rigors, while ultra-slim profile (120g) enables designs once deemed impossible. From digital artists needing color-perfect stroked to field engineers demanding reliability, it’s the canvas for tomorrow’s innovations

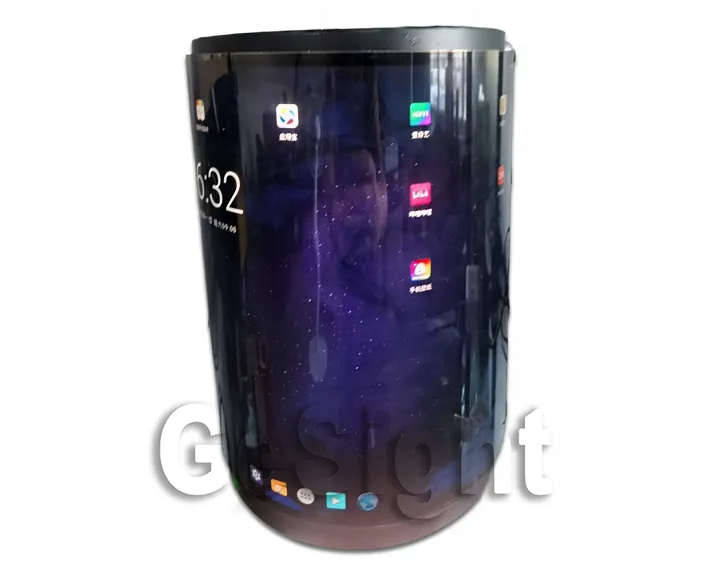

13.3inchBendableOLED1536X204Cylinder

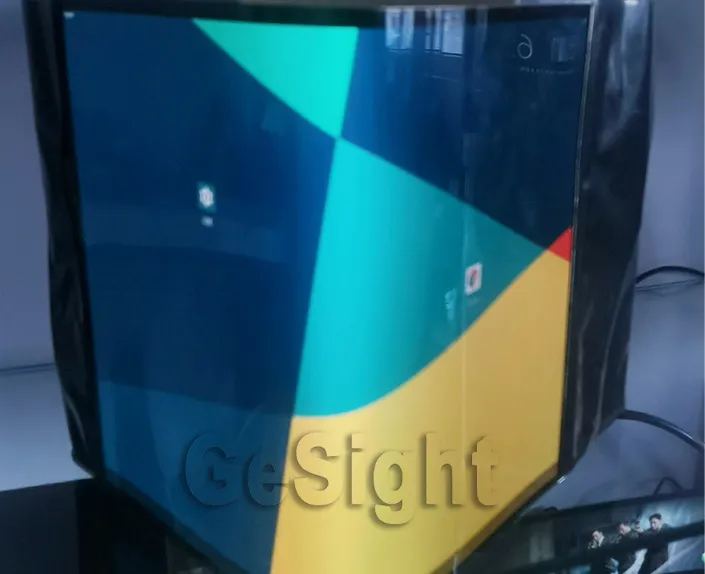

13.3inchCurvedOLED1536X204eDP

Bendable OLED Display Ideal For

  • Next-gen foldable PCs (e.g., Lenovo ThinkPad X1 Fold successors)

  • Professional pen displays & portable monitors

  • Aviation/medical devices requiring sunlight-independent clarity

  • Luxury signage and ultra-slim kiosks

HDMI Board for Micro OLED Integration

Gesight offers a compact HDMI board (40 x 25 mm) with single HDMI input and USB for power—ideal for plug-and-play use with the ECX335AF micro OLED. Need customization? We provide tailored HDMI or Type-C controller boards for your micro OLED screen projects.

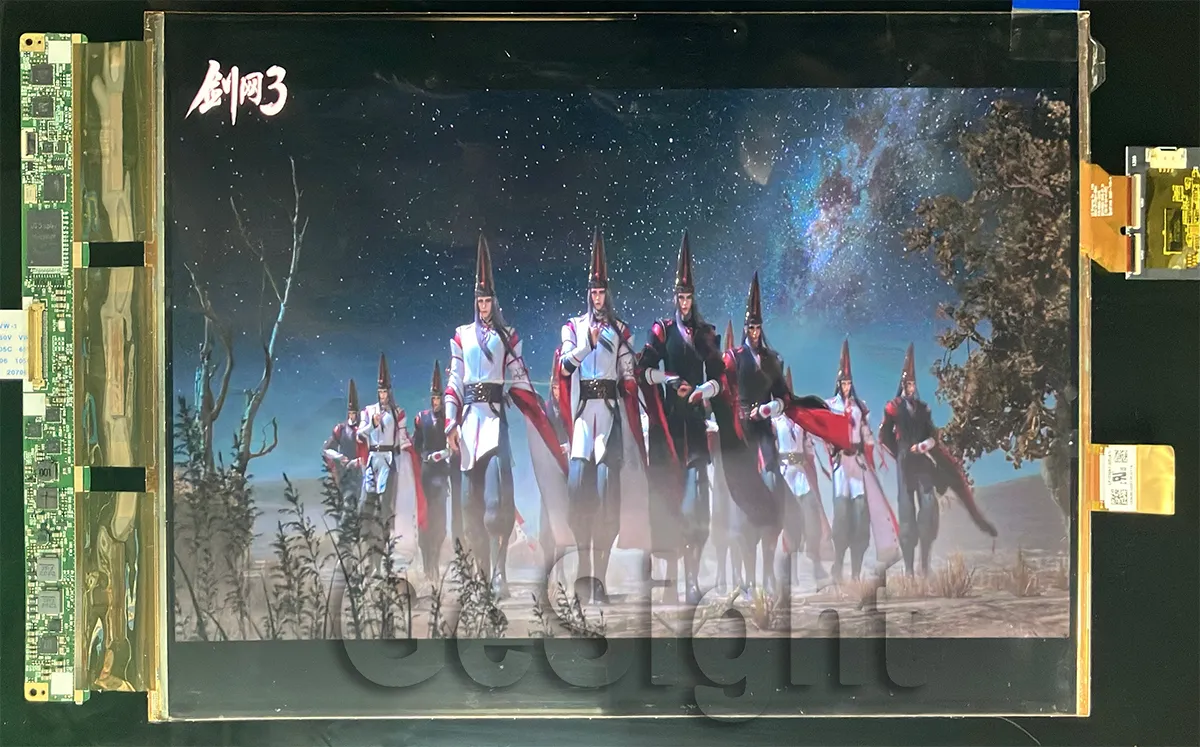

13.3inchBendableOLED1536X204thinLCD
13.3inchBendableOLED1536X204eLG

Stock & Supply Advantages

✅ Ready to Ship:

  • 10k + units in stock

  • 48-hour dispatch from Shenzhen warehouse (global air shipping).
    ✅ Stable Supply Chain:

  • Direct LG Display partnership with quarterly allocation guarantees.

  • Buffer stock for urgent OEM/ODM projects.

Key Differentiators vs. Rigid Displays

  1. Fold to Fit – Seamlessly transitions between laptop, tablet, and stand modes.

  2. OLED Visual Superiority – Self-emissive pixels for true blacks, zero backlight bleed.

  3. All-Environment Ready – Functions flawlessly from creative studios to challenging industrial sites.

  4. Power-Sipping Brilliance – 30% lower consumption than comparable LCDs.

For integration guides, mechanical drawings, or reliability data, refer to the full specification sheet.

Why Procure from Gesight?

  1. Tested & Certified:

    • Every panel pre-tested for:

      • 50K folding cycles (per §5 Mechanical Specs)

      • Color uniformity (Δxy ≤ 0.07 at 45°)

      • Touch sensor functionality (Wacom AES 1.0 compliant)

    • Includes LG’s 12-month warranty.

  2. Complete Kits Available:

    BundleIncludes
    OLED Panel OnlyLG POF133F2048E + ESD packaging
    Premium Kit (Bestseller)OLED Panel + Gesight HDMI Controller Board + FPC Cables
    Developer BundlePanel + Controller + Touch Calibration Tools

  3. Value-Added Services:

    • Free Technical Support: Schematics review, power sequencing validation.

    • Custom Reel Packaging: For automated assembly lines.

    • Folding Mechanism Design: Co-engineer hinges/frames (3R bending guidance).

Technical Stock Specifications

ParameterValueVerification
RevisionVer 1.3 (Nov 2020)LG’s final release
Touch CompatibilityWacom G14T (AES 1.0)Pre-flashed firmware
Color Gamut111% NTSC, 95% DCI-P3Post-production calibration
PackagingESD-safe trays (7 units/box)MIL-STD-883 compliant

Target Applications

  • Urgent-Replacement Projects: Medical tablets, field-service devices.

  • Foldable Product Launches: Laptops, digital signage, VR interfaces.

  • R&D Prototyping: 5-piece MOQ for concept validation.

Ordering Information

  • Lead Time: 2 days (stock items) / 4 weeks (bulk 500+ units).

  • Sample Request: [Contact Form Link]

  • Compliance: RoHS, REACH, IEC 62368-1 certified.

"We solve supply chain chaos" – Gesight guarantees no allocation shortages through 2019

Specifications
Size

13.3 inch
Pixels

1536 x 2048
Interface

Brightness

300 cd/m² (typical)
Manufacturer

Gesight
Display Type

AMOLED

,

Flexible OLED
Display Mode

Active Matrix OLED, Top Emission
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

85° (all directions: L/R/U/D)
Outline L*W*H

284.8 mm × 213.8 mm × 0.53 mm (w/o PCB)
Active Area L*W

270.336 mm × 202.752 mm
Orientation

Supply Voltage

Logic: 3.3V (3.0–3.6V), OLED: 7.4V (4.8–9.0V)
Consumption

Total: 10.44W (Logic: 1.7W, OLED: 8.74W)
Operating Temperarure

0°C to 50°C
Storage Temperature

-20°C to 60°C
Bezel Area (mm)

–
Aspect Ratio

3:4
Connection Type

40-pin Hirose connector (KN38A-40S-0.5H)
IC package

COF Chip on FPC
Touch Panel

Pixel Pitch

0.132 mm
Sunlight Readable

Yes, OLED are Readable Under Sun
Model

POF133F2048E
PPI ( pixels per inch )

192
Pins Description
Pin Symbol Function Type
1-4 VCC_logic Logic Power (3.3V) Power
5 SEN_INT Touch Interrupt Digital I/O
6 SEN_SCL Touch I²C Clock Digital I/O
7 SEN_SDA Touch I²C Data Digital I/O
8,11,14,17,20,23 GND High-Speed Ground Ground
9 LANE3_N eDP Lane 3 (-) Differential
10 LANE3_P eDP Lane 3 (+) Differential
12 LANE2_N eDP Lane 2 (-) Differential
13 LANE2_P eDP Lane 2 (+) Differential
15 LANE1_N eDP Lane 1 (-) Differential
16 LANE1_P eDP Lane 1 (+) Differential
18 LANE0_N eDP Lane 0 (-) Differential
19 LANE0_P eDP Lane 0 (+) Differential
21 AUX_CH_P AUX Channel (+) Differential
22 AUX_CH_N AUX Channel (-) Differential
24 HPD Hot Plug Detect Digital Output
25 EL_EN OLED Power Enable Digital Input
26 EL_PWM OLED Dimming Control Digital Input
27 BIST/NC Self-Test / No Connect Test/Reserved
28-31 GND OLED Ground Ground
32 NC Reserved Reserved
33-40 VEL OLED Power (7.4V) Power
Electrical Characteristics

OLED Electrical Characteristics

Parameter Symbol Min Typ Max Unit Notes
Power Supply Input Voltage Vcc 3.0 3.3 3.6 V 1
Permissive Power Supply Input Ripple VCCrp - - 100 mVpp
Power Supply Input Current (Mosaic) Icc - 515 605 mA 2
Power Consumption Pcc - 1.7 2.0 W
Power Supply Inrush Current Icc_P - - 2.5 A 3
Differential Impedance ZeDP 90 100 110 Ohm

Notes:
1. Measured at connector; 25°C, 60Hz
2. Vcc=3.3V, 25°C, 60Hz, Mosaic pattern
3. Vcc rising time = T1 min (Power-On Sequence)

EL Electrical Characteristics

Parameter Symbol Min Typ Max Unit Notes
EL Power Input Voltage VEL 4.8 7.4 9.0 V 1
Permissive EL Power Input Ripple VELp - - 100 mVpp
EL Power Input Current IEL - 1180 1475 mA 2
EL Power Consumption PEL - 8.74 11.0 W
EL Power Inrush Current IELP - - 5.0 A 3
PWM Duty Ratio - 1 - 100 % 4
PWM resolution - - 8 - bit 5
PWM Frequency FPWM 200 - 1000 Hz 6
PWM High Level Voltage VPWM_H 2.5 - 3.6 V
PWM Low Level Voltage VPWM_L 0 - 0.3 V
PWM Rising Time TT_PWM - - 500 ns
PWM Falling Time Tf_PWM - - 500 ns
EL_EN High Voltage VEL_EN_H 2.5 - 3.6 V
EL_EN Low Voltage VEL_EN_L 0 - 0.3 V
Life Time (B10) - - - 15,000 Hrs 7

Notes:
1. Measured at connector; 25°C
2. VEL=7.4V, 25°C, PWM 100%, White pattern
3. VEL rising time = T13 min (Power-On Sequence)
4. Min duty below 1% may cause flickering
5. 0.4% duty control step
6. Fixed frequency required for stable dimming
7. Time to 50% brightness under typical use

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.


lcd_connectors

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

ship_express
specification_lcd

Specification

Panox Display offers the following specifications for most LCD/OLED products:

  • Display datasheet

  • Mechanical drawing

  • IC datasheet

  • Circuit schematic

Readable Under Sun

Compare to LCD, OLED has many advantages as follows:

Thin Like Paper:More than 50% thinner and lighter than LCD, creating an edgy form factor in style.

Green Power:Clock-mode standby can be up to 60 hours, much lower consumption compare to LCD displays.

"Wow" Effect:High contrast ratio and wide color gamut offer sharp and vivid image, and consistent display from any angle.

OLED Type Structures

        OLED driver as well as two divided into passive (PMOLED) active (AMOLED), which PMOLED simple structure, each pixel is represented by a separate cathode and anode control, no additional driver circuit, but too much control lines restrict its application of high-resolution large screen; AMOLED entire cathode surface electrode via a drive circuit driving the light emitting anode, significantly reducing the number of control lines, it has a low-power, high-resolution, fast response and other characteristics, AMOLED therefore gradually become the mainstream OLED display.

About Us

Gesight is a high-tech company specializing in OLED, LCD displays. Integrated with display marketing and sales, customized LCD OEM manufacturing, driver board development, customized TP, etc.

After six years of effort and development, we have grown up to a certain size, now we have a service team with excellent service quality, professional technical service.

After several years of steady development, Gesight has served hundreds of customers from different places all over the world. Including big companies such as Bosch, Nokia, Garmin, Circuits, and countless small and medium-size companies or electronics DIYers.

gesight_lcd_company
strict_quality_gesight

Say No to any bright/dart dots on screen !!
Strict Quality Control


We implement strict quality control through every stage of production and inspection. Each display undergoes rigorous testing to eliminate any pixel defects, including bright, dark, or stuck dots. Our professional QC team uses advanced optical equipment to ensure flawless screen performance, delivering only high-reliability LCD and OLED panels to our customers.

strict quality control

rigorous testing

flawless screen performance

high-reliability

gesight_factory
