14″ Ultra-Wide 4K LCD Bar for Notebook Touch Bars & Industrial Displays

Name: 14" Ultra-Wide 4K LCD Bar for Notebook Touch Bars &amp; Industrial Displays
SKU: 811566-1-1-1-2-1
Availability: InStock

Tags: High ppi, Ultra-High Resolution, UltraWide, Wide color gamut

$70.00piece

Add to wishlist

Compare

18 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: NV140XTM-N52

Introducing the NV140XTM-N52 14-inch Ultra-Wide 4K TFT- LCD Bar Display, featuring an exceptional 3840×1100 resolution (282 PPI) for crystal-clear visuals. This high-performance panel delivers 72% NTSC color gamut and 300 cd/m² brightness with anti-glare coating, perfect for precision applications. Engineered for durability with 3H hardness surface and shock-resistant construction, it meets rigorous industrial standards while remaining RoHS compliant.

The integrated eDP 1.3 interface ensures high-speed data transfer with minimal cabling, complemented by energy-saving CABC/PSR technology and onboard LED driver. Ultra-lightweight and side-mountable, this space-saving solution is ideal for:

Application

Notebook Touch Bars | Industrial Control Panels | Secondary Displays in slim devices

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

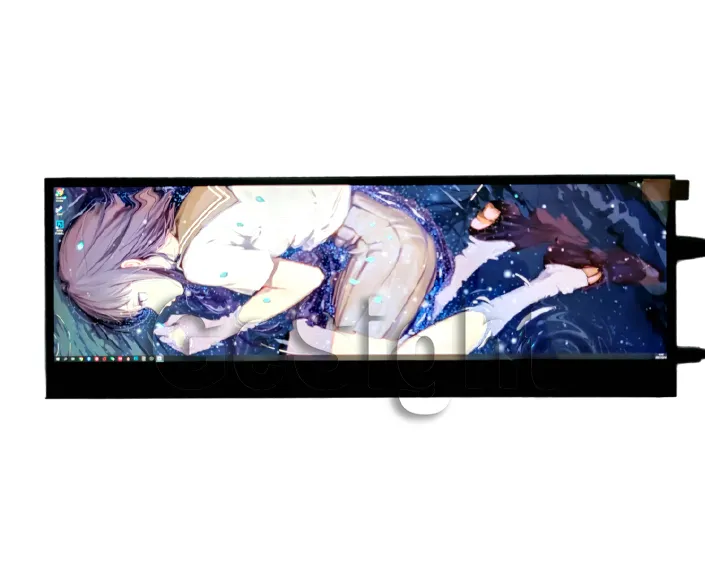

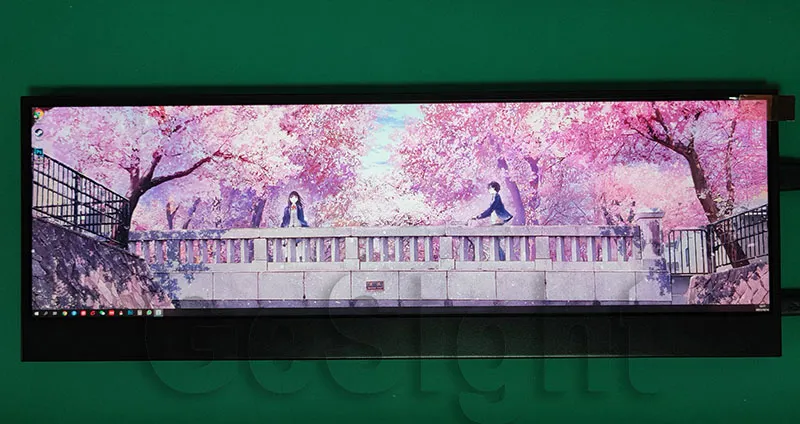

Ultra-Wide 4K LCD Bar Display with Integrated eDP Controller

This 14-inch Ultra-Wide 4K LCD Bar is a cutting-edge TFT-LCD display designed for seamless integration into Notebook Touch Bars, Industrial Control Panels, and Secondary Displays in slim devices. Featuring an embedded eDP 1.3 interface, it ensures high-speed data transmission with minimal cabling, reducing system complexity while maintaining signal integrity. The bar LCD form factor (3840×1100 resolution) provides an expansive horizontal workspace, ideal for multi-tasking and real-time monitoring. Its shock-resistant construction and industrial-grade durability make it suitable for harsh environments, while the ultra-wide aspect ratio enhances visibility in compact installations. With onboard LED driver support, this display simplifies integration and reduces power consumption, making it a versatile solution for both consumer and industrial applications.

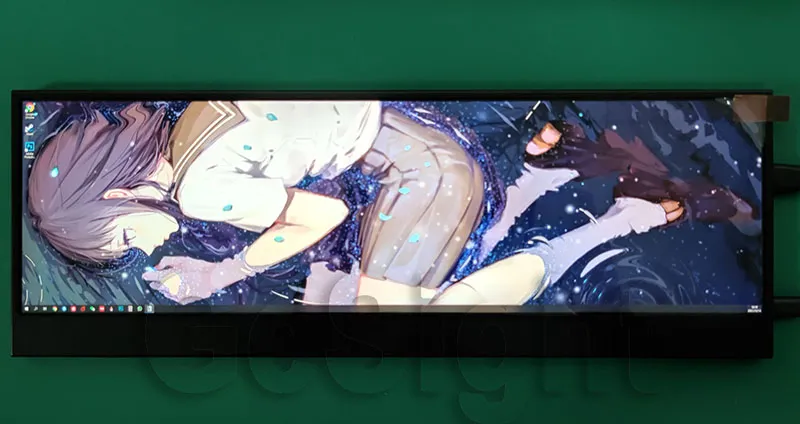

72% NTSC Color Gamut for True-to-Life Visuals

Engineered for precision color reproduction, this 4K LCD panel delivers a wide color gamut covering 72% NTSC, ensuring vibrant and accurate visuals for professional and industrial use. The TFT-LCD display leverages advanced backlighting technology to achieve consistent brightness (300 cd/m²) and anti-glare coating for readability under bright lighting. Whether used in Notebook Touch Bars for creative workflows or Industrial Control Panels requiring exact color matching, this bar LCD excels in applications demanding true-to-life color fidelity. Its shock-resistant design and RoHS compliance further enhance reliability, making it a top choice for high-performance environments.

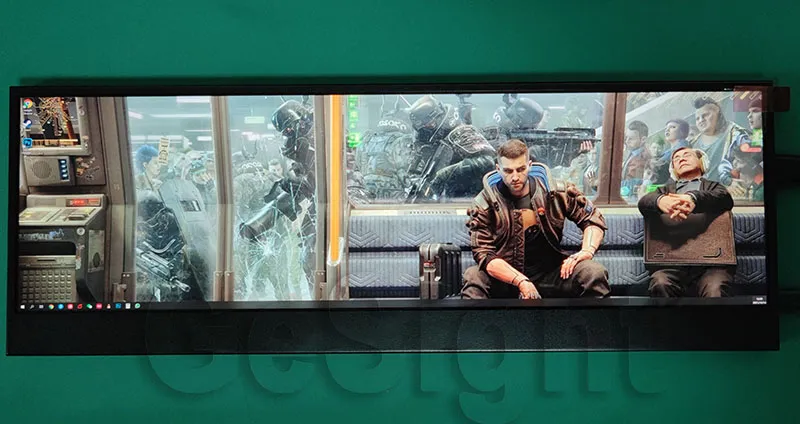

Crisp 4K Clarity: 282 PPI Ultra-High Resolution

Experience unmatched detail with this Ultra-High Resolution 4K LCD (3840×1100), boasting an impressive 282 PPI for razor-sharp text and graphics. The TFT-LCD display combines high PPI density with an ultra-wide format, making it perfect for Notebook Touch Bars that require fine UI elements or Industrial Control Panels displaying complex data. The shock-resistant 3H hardness surface protects against scratches, while the anti-glare layer ensures clarity in high-ambient-light conditions. Optimized for slim devices, this bar LCD is a space-saving solution without compromising visual performance, ideal for secondary displays in compact setups.

Energy-Efficient LED Backlight with Onboard Driver

This Ultra-Wide 4K LCD bar display combines efficiency with rugged performance. Featuring an energy-efficient LED backlight (300 cd/m²) and integrated driver, it reduces power consumption while maintaining brightness. CABC/PSR technology extends battery life in Notebook Touch Bars, while its shock-resistant, industrial-grade design ensures reliability for Industrial Control Panels.

Specifications

Size	14.09 inches
Pixels	3840 (H) × 1100 (V)
Interface	eDP
Brightness	300 cd/m² (typical)
Manufacturer	Gesight
Display Mode	Normally Black
Color Depth	16.7 M (8-bit)
Refresh Rate	60 Hz
Viewing Angle Range	80°–85° (CR > 10, all directions)

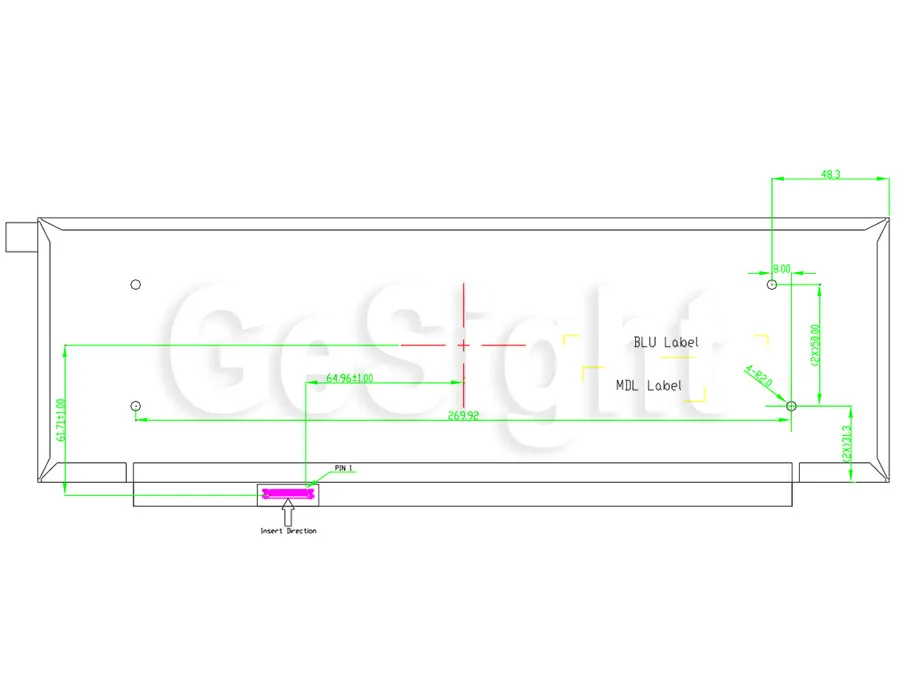

Outline LWH	350.52 × 108.75 × ~3.0 mm (w/o PCBA)
Active Area L*W	344.22 × 98.60 mm
Orientation	Landscape
Supply Voltage	3.3V (logic), 5–21V (LED backlight)
Consumption	3.1W (max: 1.1W logic + 2W backlight)
Operating Temperarure	0°C to +60°C
Storage Temperature	-20°C to +65°C
Aspect Ratio	~3.5:1 (3840:1100)
Connection Type	30-pin UJU IS050-L30B-C10 connector
IC package	Integrated eDP receiver (not specified)
Build-in IC	LED driver, EDID chip (DPCD v1.4)
Touch Panel	Need to make
Pixel Size	0.08964 × 0.08964 mm (H×V)
Pixel Pitch	0.08964 mm
Sunlight Readable	Not specified (HC+APF coating for anti-glare)
Model	NV140XTM-N52 V3.1
PPI (pixels per inch )	~282 PPI (calculated)
Application	Notebook Touch Bar (Wide type)

Pins Description

Pin	Name	Function
1	CABC	CABC function control
2	H_GND	Ground
3–4	LANE1_N/P	eDP RX channel 1 (differential)
5	H_GND	Ground
6–7	LANE0_N/P	eDP RX channel 0 (differential)
8	H_GND	Ground
9–10	AUX_CH_P/N	eDP AUX channel (differential)
11–16	H_GND	Ground
12–13	LCD_VCC	3.3V logic power
14	LCD_Self_Test	Panel self-test enable
17	ASUSD	Hot plug detect (HPD) output
18–21	BL_GND	LED ground
22	BL_ENABLE	Backlight enable (3.3V)
23	BL_PWM	PWM dimming control
24–25	NC	No connection
26–29	BL_POWER	LED power supply (5–21V)
30	NC	No connection

Electrical Characteristics

Parameter	Min	Typ	Max	Unit	Notes
Logic Supply (VDD)	3.0	3.3	3.6	V	Ripple ≤100mV
LED Forward Voltage (VF)	-	-	2.9	V	Per LED
LED Current (IF)	-	9.5	-	mA	60-LED array
LED Power Input (VLED)	5	12	21	V	Driver input
PWM Frequency (FPWM)	200	-	2000	Hz	Duty: 1–100%
Inrush Current	-	-	2	A	Rising time ≤0.5ms

Backlight Specifications

Parameter	Value
Type	Single edge-lit LED bar (bottom side)
LED Configuration	60 LEDs (horizontal array)
Luminance	300 cd/m² (typical)
Color Gamut	72% NTSC
Lifetime	15,000 hours (to 50% brightness)
Dimming Control	PWM (200–2000 Hz)

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

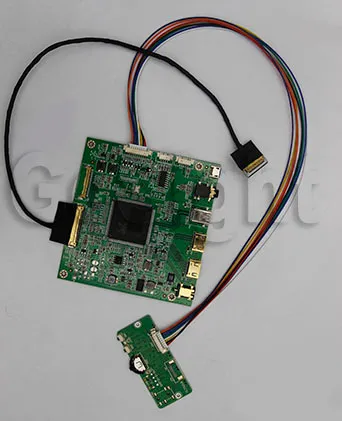

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
