Model: PO204RT448S

The 2.04-inch AMOLED Display delivers vivid, high-contrast visuals for smartwatch and wearable devices where a compact form factor and crisp UI matter. With a 368 × 448 resolution and 16.7M colors (24-bit), it renders clean text, icons, and watch-face graphics at 284 PPI, supporting a refined look on small screens.

This module is designed for efficient integration, supporting a QSPI interface and a typical 45 Hz frame frequency for smooth everyday interactions. It features a 700 cd/m² (typ.) luminance and wide viewing performance (88° in all directions at CR ≥ 200), helping maintain consistent readability from different angles. With a 39.98 × 33.74 mm active area in a compact 44.46 × 34.64 × 2.58 mm outline, it fits space-limited wearable enclosures. Gesight supplies this display with the CH13613-35XKA_R0 built-in driver IC (COF) and an on-cell touch solution using the CHSC6417 touch IC via FPC connection, rated for -30 to +70℃ operating and -30 to +80℃ storage temperatures.

Application

Smart Watch | Wearables | Watch Face UI | Compact HMI | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

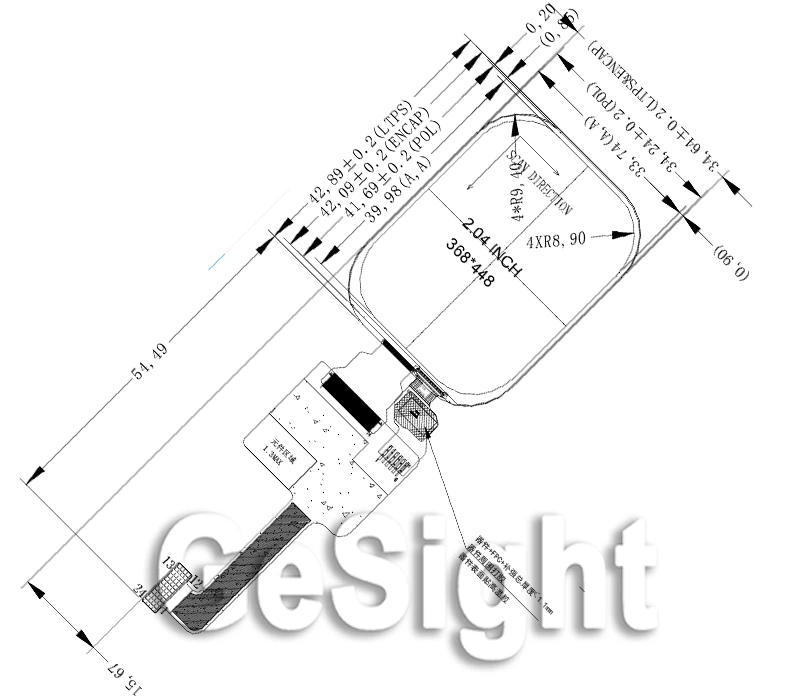

2.04-inch AMOLED display mechanical drawing dimensions

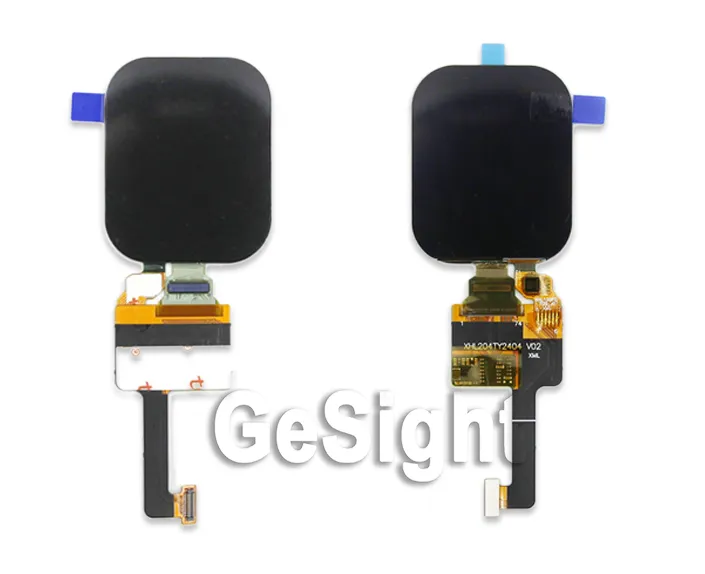

2.04-inch 368×448 AMOLED display front and back view

Compact On-Cell Touch Structure for Wearable Integration

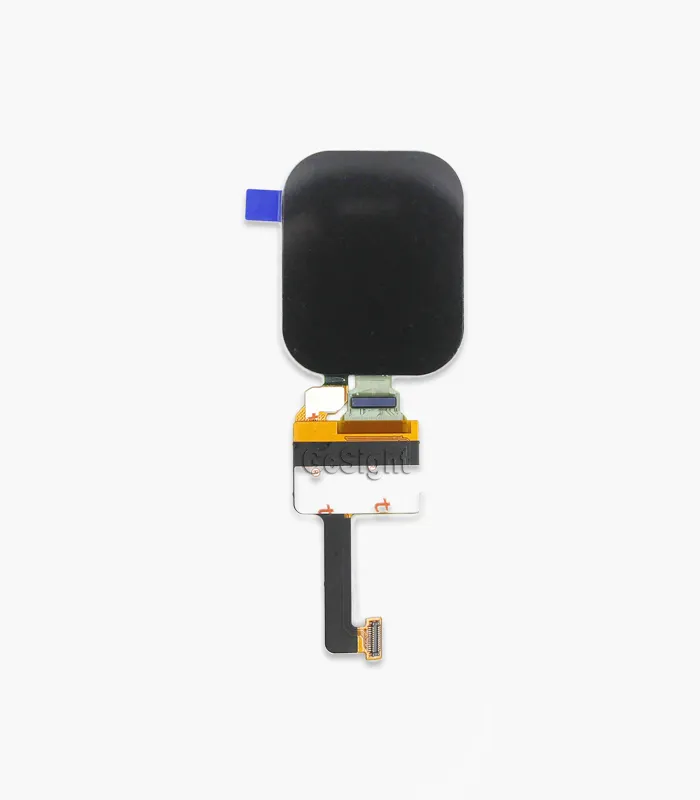

This on-cell touch AMOLED module is engineered for clean, space-saving integration in smartwatch and wearable enclosures. The front side features a rounded-corner active window suited to watch-face layouts, while the back side shows a compact FPC layout designed to reduce internal footprint and simplify assembly. The integrated touch structure keeps the module thin and streamlined, helping product teams maintain a slim device profile while ensuring stable electrical connection to the mainboard.

For prototyping and fast validation, Gesight can also provide a compatible controller board solution to speed up evaluation and shorten the development cycle.

Specifications
Size

2.04 inch
Pixels

368 × 448
Interface

Brightness

700 cd/m² (typ.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED / LTPS
Color Depth

Refresh Rate

45 Hz (Frame Frequency)
Viewing Angle Range

Up/Down/Right/Left: 88 deg (Cr ≥ 200)
Outline L*W*H

44.46 × 34.64 × 2.58 mm
Active Area L*W

39.98 × 33.74 mm
Orientation

Supply Voltage

VCC: 2.7–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V); ELVDD: 3.25–3.35 V (typ. 3.3 V); ELVSS: -3.35–-3.25 V (typ. -3.3 V)
Consumption

IVCC: 2 mA (typ., full white, sleep out); IIOVCC: 1.5 mA (typ.); IELVDD/ELVSS: 13 mA (typ.)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

–
Aspect Ratio

23:28
Connection Type

FPC
IC package

COF
Touch Panel

Pixel Pitch

78 × 78 µm
Sunlight Readable

–
Model

PO204RT448S
PPI ( pixels per inch )

284 PPI
Application

Smart Watch
Pins Description
Pin No. Pin Name (Symbol) Type Description
1 CS Input Chip select signal input
2 SDA (QSPI_SI00) I/O Serial input/output signal in serial interface mode (Input data bus for QSPI)
3 DC (QSPI_SI01) Input Chip reset signal (Input data bus for QSPI)
4 CLK Input Serial interface clock
5 QSPI_SI03 Input Input data bus for QSPI
6 QSPI_SI02 Input Input data bus for QSPI
7 GND GND Ground
8 VCI-EN Input Swire protocol setting pin of Power IC
9 RESET Input Reset pin
10 MTP (NC) NC NC
11 IM1 (IOVCC) Power Power supply for I/O system (1.8V or VCC)
12 IMO (GND) GND Ground
13 GND GND Ground
14 TE Output Frame head pulse signal output
15 IOVCC Power Power supply for I/O system (1.8V or VCC)
16 NC NC NC
17 VBAT Power Power supply for pixel circuit
18 GND GND Ground
19 TP_SCL Input TP I2C clock signal
20 TP_SDA I/O TP I2C input signal
21 TP_RST Input TP reset pin
22 TP_INT Output TP interrupt signal
23 TP_VCC Power TP power supply for Analog, Digital System and Booster Circuit
24 GND GND Ground
Electrical Characteristics

Electrical Characteristics (PO204RT448S)

Parameter Symbol Condition Min Typ Max Unit
Supply voltage (Display) VCC — 2.7 3.3 3.6 V
Supply voltage (I/O) IOVCC — 1.65 1.8 3.3 V
Positive analog supply ELVDD — 3.25 3.3 3.35 V
Negative analog supply ELVSS — -3.35 -3.3 -3.25 V
Input voltage “L” level VIL IOVCC = 1.65V ~ 3.3V GND — 0.2×IOVCC V
Input voltage “H” level VIH — 0.8×IOVCC — IOVCC V
Output voltage “L” level VOL I(OH) = -1 mA, I(OL) = +1 mA GND — 0.2×IOVCC V
Output voltage “H” level VOH — 0.8×IOVCC — IOVCC V
Current (Display), Sleep out mode, Full white display IVCC — — 2 4 mA
Current (I/O), Sleep out mode IIOVCC — — 1.5 3 mA
Current (ELVDD/ELVSS), Sleep out mode IELVDD/ELVSS — — 13 19.5 mA
Current (Display), Sleep in mode IVCC — — 20 40 uA
Current (I/O), Sleep in mode IIOVCC — — 50 100 uA
Current (Display), Deep standby mode IVCC — — 1 3 uA
Current (I/O), Deep standby mode IIOVCC — — 1 3 uA
Frame frequency fFRM — — 45 — Hz

Back-light Specification Form

Item Spec
Backlight Type N/A (AMOLED, no backlight)
LED Color N/A
LED Forward Voltage N/A
LED Forward Current N/A
Backlight Power / Consumption N/A
Backlight Connector / Pins N/A

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
