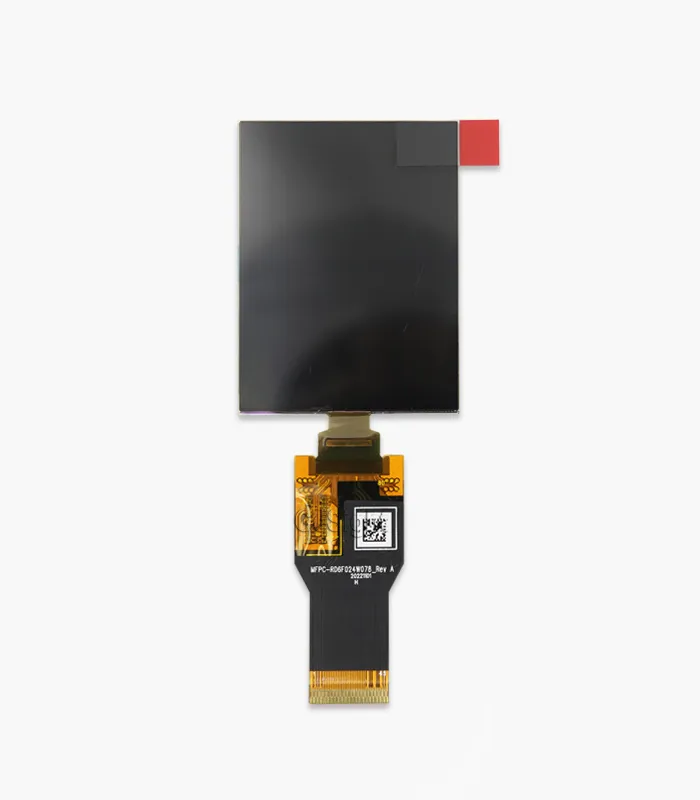

2.4-inch AMOLED display module front view
2.4-inch AMOLED display module rear view

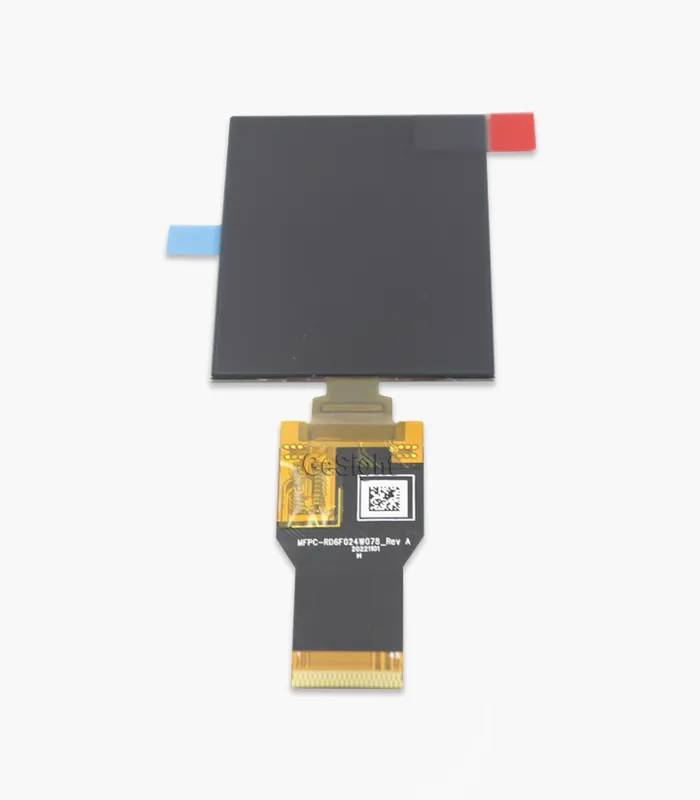

2.4-inch AMOLED display module angled view

2.4-inch 450×600 AMOLED Display Module

Tags: , , , , , , ,

$41.22piece

Add to wishlist
Compare
15 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: B024JMV-N50-6DP0

The 2.4-inch Rigid AMOLED Display Module delivers vivid, high-contrast visuals for compact embedded products where a slim form factor and crisp UI matter. With a 450 × RGB × 600 resolution and 16.7M colors (24-bit), it renders clean text, icons, and interface elements at 311 PPI, making it a solid fit for small-footprint device designs.

This module offers flexible integration options, supporting MIPI-DSI (1-lane, Command Mode) as well as SPI / MCU control for different host platforms. It features a 36.72 × 48.96 mm active area in an ultra-thin 38.72 × 51.56 × 0.5 mm outline, and uses COF assembly with the RM690B0 driver IC for streamlined system design. Gesight supplies this display for sports cameras and smart home applications, rated for -30 to +70℃ operating and -40 to +80℃ storage temperatures—and can provide it with a good price.

Application

Sports Camera | Smart Home | Compact Embedded Systems | Handheld UI Panels | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

2.4-inch AMOLED outline and active area dimensions
2.4-inch AMOLED module front and rear comparison

Front & Rear Structure for Easy Integration

This module is provided with both front and rear-side views to support faster mechanical and harness design. The rigid AMOLED panel keeps the display area clean and flat, while the extended FPC tail simplifies routing in compact housings and helps reduce stress on the active area during assembly. Protective films and tabs are applied for handling, making it easier to position the module without touching the display surface.

On the rear side, the reinforced back structure and FPC layout are optimized for stable connection and repeatable production builds—useful for small embedded products where every millimeter of clearance matters. Combined with the module’s ultra-thin profile, it’s a practical choice for designs that need a sleek stack-up, tidy cable management, and consistent assembly results.

Specifications
Size

2.4 inch
Pixels

450RGB × 600
Interface

,

,

Brightness

800 cd/m² (typ.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

80° (Left/Right/Top/Bottom, CR ≥ 10)
Outline L*W*H

38.72 × 51.56 × 0.5 mm
Active Area L*W

36.72 × 48.96 mm
Orientation

Supply Voltage

VCI: 2.7–3.6 V (typ. 3.3 V); VDDIO: 1.65–3.3 V (typ. 1.8 V); ELVDD: 2.0–6.0 V (typ. 3.6 V); ELVSS: -4.7–-0.4 V (typ. -3.6 V)
Consumption

TBD (spec lists power as TBD; IELVSS typ. 72.2 mA in on-mode condition)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

–
Aspect Ratio

3:4
Connection Type

FPC (mating connector: Molex 502598-4591)
IC package

COF
Touch Panel

Pixel Pitch

81.6 um
Sunlight Readable

–
Model

B024JMV-N50-6DP0
PPI ( pixels per inch )

311 PPI
Application

Sports camera; Smart home
Pins Description
Pin No. Symbol I/O Function
1 GND Power Ground
2 GND Power Ground
3 ELVSS Power Negative power supply for panel
4 ELVSS Power Negative power supply for panel
5 GND Power Ground
6 ELVDD Power Positive power supply for panel
7 ELVDD Power Positive power supply for panel
8 GND Power Ground
9 VCI Power Power supply for display driver IC analog system
10 GND Power Ground
11 VDDIO Power Power supply for display driver IC interface and logic system
12 GND Power Ground
13 TE1 O IC status active reporting pin
14 SWIRE O Swire protocol setting pin of Power IC
15 TE O Tearing effect output pin to synchronize MCU to frame writing; low when not activated
16 RESX I Display driver reset (active low)
17 GND Power Ground
18 SDI_RDX I/O SDI: serial input in SPI I/F (data latched on SCL rising edge). RDX: read strobe in 80-series MPU I/F (low active)
19 DCX I Display data / command selection in 80-series MPU I/F and 4-wire SPI I/F
20 SCL I WRX: write strobe in 80-series MPU I/F (low active). SCL: synchronous clock in SPI I/F
21 CSX I Chip select input (low enable) in 80-series MPU I/F and SPI I/F
22 D0 I/O 8-bit bi-directional data bus for 80-series MPU I/F
23 D1 I/O 8-bit data bus signal (per table: for 80-series MPU I/F and RGB I/F data bus)
24 D2 I/O Data bus
25 D3 I/O Data bus
26 D4 I/O Data bus
27 D5 I/O Data bus
28 D6 I/O Data bus
29 D7 I/O Data bus
30 GND Power Ground
31 IM1 I Interface type selection
32 IM0 I Interface type selection
33 GND Power Ground
34 GND Power Ground
35 D0P I/O Differential data signal (MIPI interface)
36 D0N I/O Differential data signal (MIPI interface)
37 GND Power Ground
38 GND Power Ground
39 CLKP I Differential clock signal (MIPI interface)
40 CLKN I Differential clock signal (MIPI interface)
41 GND Power Ground
42 GND Power Ground
43 MTP Power MTP programming power supply (leave open or connect to GND in normal condition)
44 GND Power Ground
45 GND Power Ground



Electrical Characteristics

Electrical Characteristics (DC Characteristics)

Item Symbol Min Typ Max Unit Remark
Analog power supply voltage VCI 2.7 3.3 3.6 V
I/O supply voltage VDDIO 1.65 1.8 3.3 V
OLED input voltage ELVDD 2.0 3.6 6.0 V
OLED input voltage ELVSS -4.7 -3.6 -0.4 V
VCI_EN voltage VCI enable signal — — — V VIL: 0.4 V / VIH: 1.2 V
Input high voltage VIH 0.8*VDDI — VDDI V
Input low voltage VIL 0 — 0.2*VDDI V
Output high voltage VOH 0.8*VDDI — VDDI V
Output low voltage VOL 0 — 0.2*VDDI V
Frame frequency (60 Hz) frame 58 60 62 Hz

Power Consumption (as listed in spec)

Power Supply condition: VDDIO = 1.8 V, VCI = 3.3 V

Item Symbol Value Unit Remark
VCI power Pvci TBD mW
VDDIO current Ivddio TBD mA
VDDIO power Pvddio TBD mW
Panel EL current IELVDD TBD mA
Panel EL current IELVSS 72.2 mA
Panel power Pnl TBD mW
Frame rate (Ta = -40℃ to 80℃) Ffrm 55.2 / 60 / 64.8 Hz Min / Typ / Max
Frame rate (Ta = 25℃) Ffrm 58.2 / 60 / 61.8 Hz Min / Typ / Max

Back-light Specification Form

Back-light Parameter Specification
Backlight Type N/A (AMOLED, no backlight specified)
LED Color N/A
LED Quantity N/A
Forward Voltage (VF) N/A
Forward Current (IF) N/A
Backlight Power N/A
Lifetime N/A
Dimming / Driver N/A
