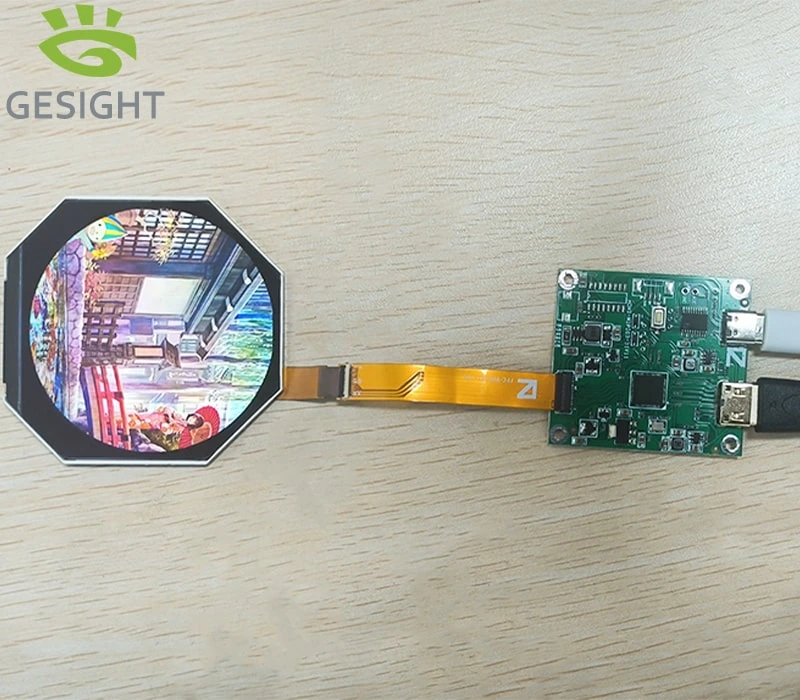

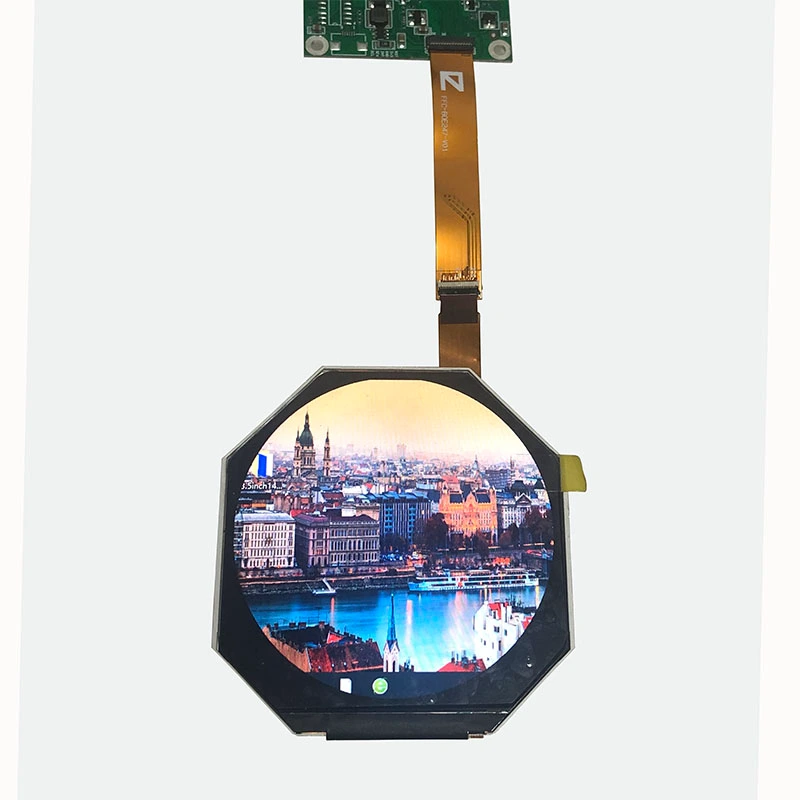

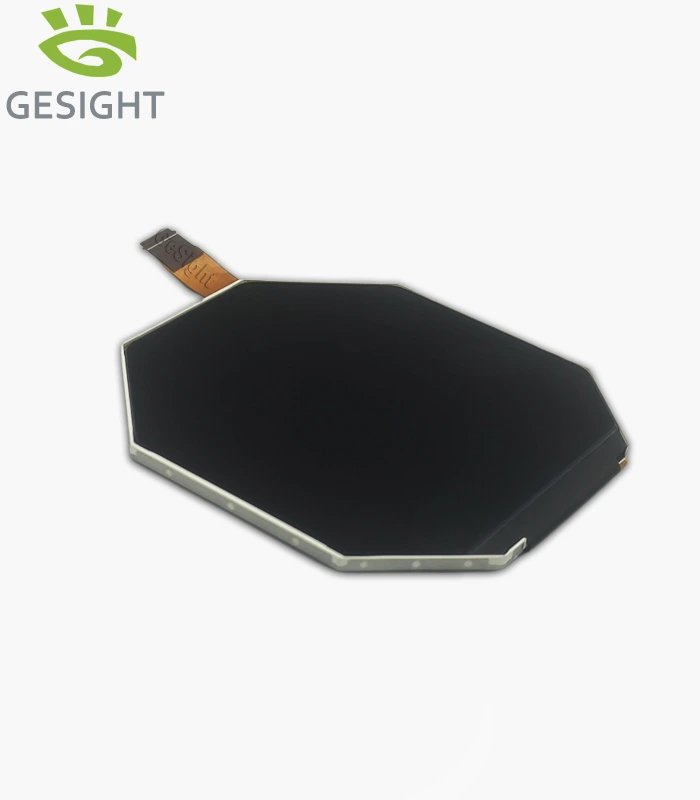

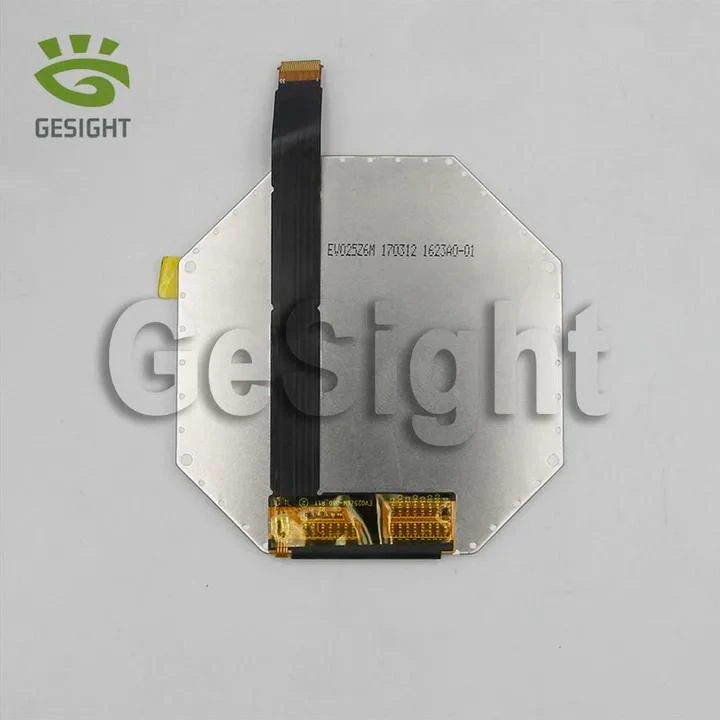

2.47-inch 480×480 TFT-LCD module powered on, showing a demo image on the screen.

Front view of the PL025C480M 2.47-inch 480×480 TFT-LCD module on a neutral background.

Click to enlarge

2.47-inch Circular TFT LCD 480×480 MIPI DSI

Name: 2.47-inch Circular TFT LCD 480x480 MIPI DSI
SKU: 811566-1-1-1-6-1
Availability: InStock

Tags: Industrial Panel, MIPI Interface, Round, Vivid Colors

$47.08piece

Add to wishlist

Compare

17 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PL025C480M

The 2.47-inch TFT-LCD Display delivers clear, balanced visuals with a 480×480 circular resolution and 16.7M colors, making it a solid choice for compact medical and industrial interfaces. With a typical brightness of 400 cd/m² and a MIPI DSI (2-lane) interface, this module supports efficient integration for embedded systems. Its low power consumption (typ. 80 mW in normal mode) and wide operating temperature range (-10 to +60°C) help ensure stable performance in practical deployment environments.

Application

Healthcare Devices | Industrial Equipment | Embedded HMI | Instrumentation

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

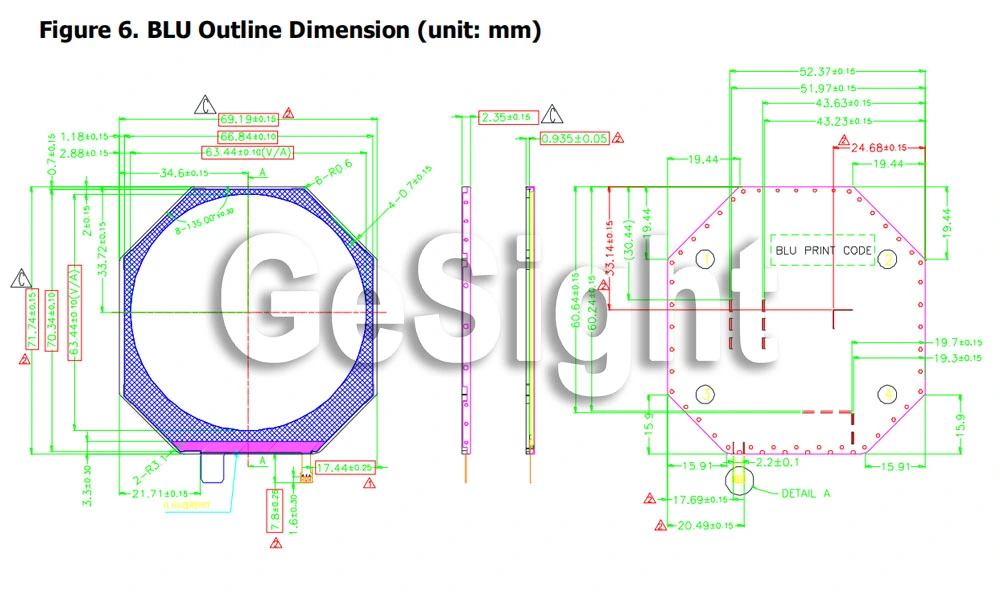

Backlight (BLU) outline dimension drawing for the PL025C480M display module, unit in millimeters.

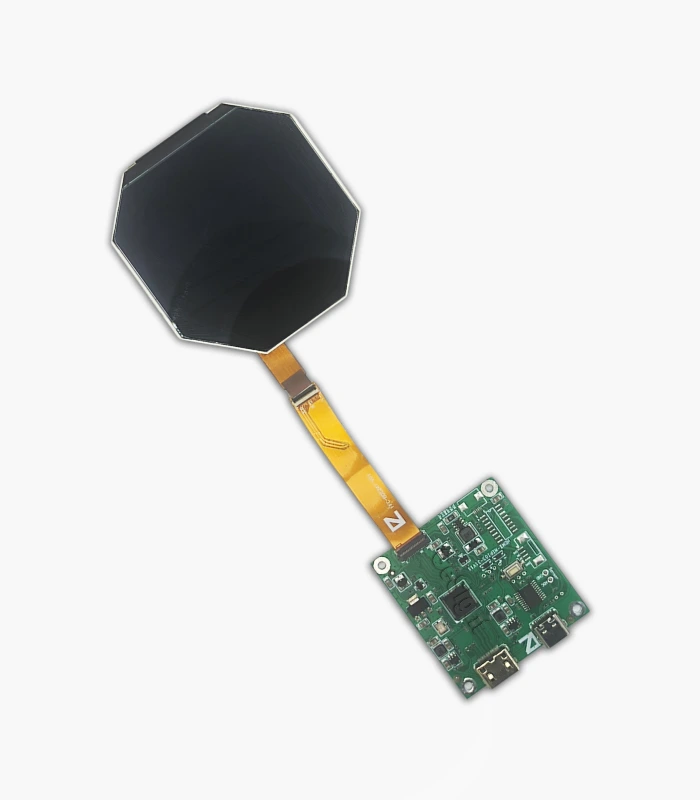

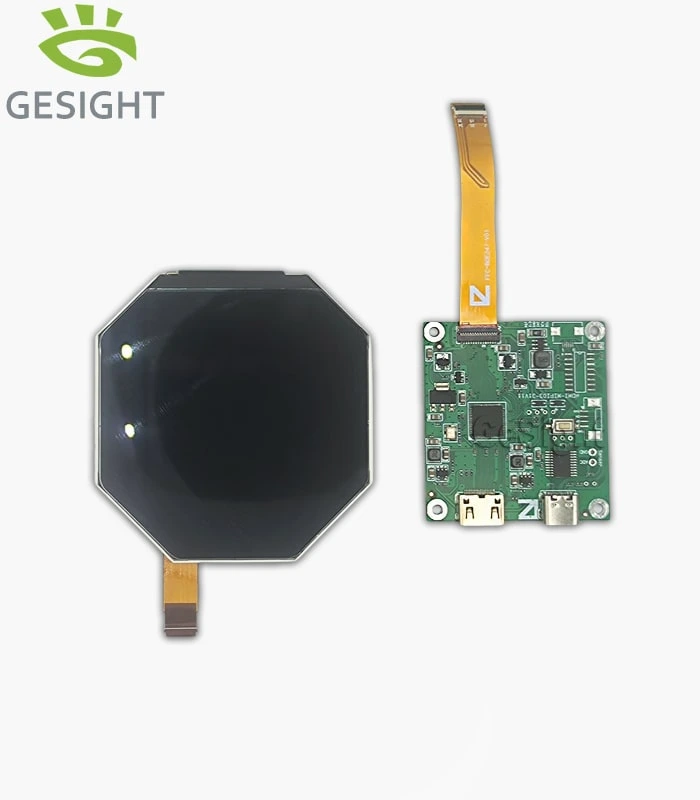

HDMI Controller Board for 2.47" 480×480 TFT-LCD Integration

Gesight provides a compact HDMI-to-MIPI DSI controller board to support fast evaluation and integration of 2.47-inch 480×480 TFT-LCD modules. With micro HDMI for video input and USB Type-C for power, the board enables quick bring-up and stable signal conversion from common HDMI sources to MIPI DSI displays—ideal for prototyping, validation, and product development.

If your project requires a different board outline or connector placement, Gesight can provide customized controller board services to better match your mechanical and integration requirements.

Discover the Ideal Balance of Clarity and Low Power

This 2.47-inch 480×480 TFT-LCD module is built for applications that require dependable visual quality with efficient power usage. With 16.7M colors and a circular resolution optimized for compact UIs, it delivers clean, vivid imagery while keeping system power budgets under control.

Efficient Performance for Real-World Devices

Designed for practical embedded integration, the module operates with a typical power consumption of 80 mW in normal mode and only 260 µW in standby, supporting longer operating time in portable or battery-powered designs. A typical luminance of 400 cd/m² helps maintain visibility across common lighting conditions, while the MIPI DSI (2-lane) interface enables streamlined connection to modern host platforms.

With a typical viewing angle of 85° (CR>10) and an operating temperature range of -10 to +60°C, this display module is well-suited for healthcare devices and industrial equipment where stability and efficiency matter.

Specifications

Size	2.47 inch (diagonally measured active area)
Pixels	480RGB × 480
Interface	MIPI DSI
Brightness	350 min / 400 typ cd/m² (nit)
Manufacturer	Gesight
Display Type	IPS LCD , TFT-LCD
Display Mode	Normally Black, Transmissive mode
Color Depth	16.7M colors
Refresh Rate	60 Hz (Frame rate condition in DC characteristics note)
Viewing Angle Range	CR>10: 70 min / 85 typ (H/V, U/D/L/R same)
Outline LWH	69.19 ±0.2 (H) × 71.74 ±0.2 (V) × 2.45 ±0.15 (D) mm (no component & FPC)
Active Area L*W	62.64 × 62.64 (circle) mm
Orientation	Landscape
Supply Voltage	IOVCC: 1.65–3.3 V (typ 1.8 V); VCI: 2.5–3.6 V (typ 3.3 V)
Consumption	Normal: 80 typ / 100 max mW; Standby: 260 typ µW
Operating Temperarure	-10 to +60 ℃
Storage Temperature	-30 to +70 ℃
Bezel Area (mm)	–
Aspect Ratio	1:1
Connection Type	FPC connector, 35-pin pin map
IC package	–
Touch Panel	Need to make
Pixel Pitch	130.5 (H) × 130.5 (V) µm
Sunlight Readable	–
Model	PL025C480M
PPI ( pixels per inch )	≈ 275 PPI
Application	Healthcare & Industrial

Pins Description

Pin	Pin Name	Description
1	GND	Ground
2	DSI_D1P	MIPI DSI data lane 1 (positive)
3	NC	No connection
4	DSI_D1N	MIPI DSI data lane 1 (negative)
5	GND	Ground
6	GND	Ground
7	GND	Ground
8	DSI_CP	MIPI DSI clock lane (positive)
9	NC	No connection
10	DSI_CN	MIPI DSI clock lane (negative)
11	GND	Ground
12	GND	Ground
13	GND	Ground
14	DSI_D0P	MIPI DSI data lane 0 (positive)
15	NC	No connection
16	DSI_D0N	MIPI DSI data lane 0 (negative)
17	GND	Ground
18	GND	Ground
19	ID0	Display ID0 (0 V / 1.8 V), add pull up/down resistor
20	ID1	Display ID1 (0 V / 1.8 V), add pull up/down resistor
21	RST	Display reset
22	NC	Vendor to use as OTP
23	THERM	Thermistor readout
24	IOVCC	1.8 V logic/I/O supply
25	GND	Ground (noise reduction)
26	VCI	3.3 V analog supply
27	—	Blank in the pin map (not specified)
28	GND	Ground (noise reduction)
29	LED1-	LED1- (backlight negative)
30	LED2-	LED2- (backlight negative)
31	NC	No connection
32	LED+	Backlight LED+
33	—	Blank in the pin map (not specified)
34	NC	No connection
35	GND	Ground

Electrical Characteristics

Electrical Characteristics (TFT LCD Module DC Characteristics)

Test conditions: Frame rate = 60 Hz, Pattern = White, Temperature = 25°C.

Parameter	Symbol	Min	Typ	Max	Unit	Remark
I/O & interface supply voltage	IOVCC	1.65	1.8	3.3	V	—
Logic & analog supply voltage	VCI	2.5	3.3	3.6	V	—
Logic low voltage	VIL	0	—	0.3×IOVCC	V	—
Logic high voltage	VIH	0.7×IOVCC	—	IOVCC	V	—
Power consumption (Normal mode)	—	—	80	100	mW	Note in table
Power consumption (Standby mode)	—	—	260	—	µW	—

Backlight Specification

Parameter	Symbol	Min	Typ	Max	Unit	Remark
LED forward voltage	VF	8.8	9.0	9.2	V	VF = 3×3V
LED forward current	IF	35.8	36.0	36.2	mA	IF = 2×18mA
LED power consumption	PLED	—	330	350	mW	Note: PLED = IF × VF
LED quantity	—	—	6	—	LEDs	2 lines × 3 LEDs/line

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
