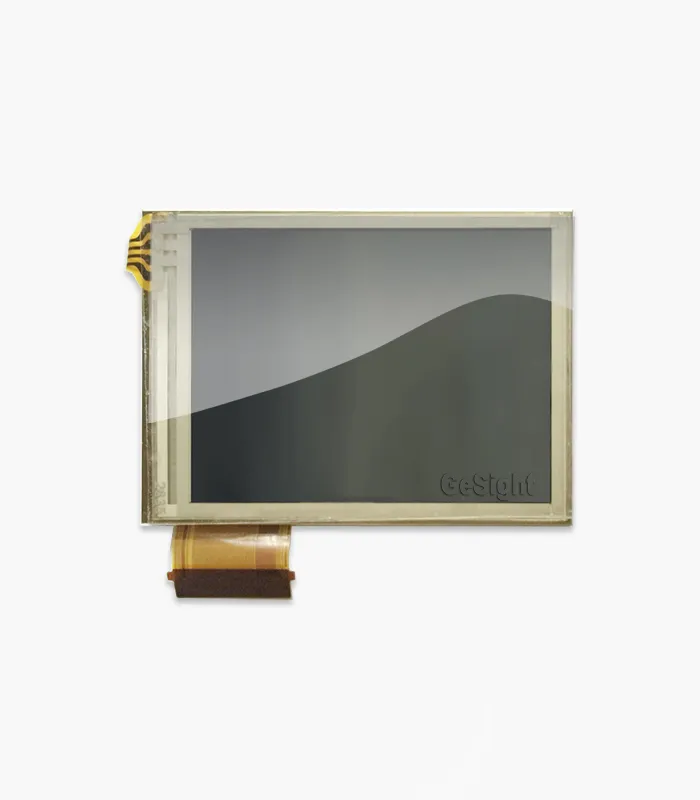

2.6-inch 240x320 AMOLED display front view
AMOLED module back view FPC and driver area
AMOLED display demo on board red screen test

2.6-inch 240×320 AMOLED Display Module

Tags: , , , , , , ,

$59.97piece

Add to wishlist
Compare
18 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: AMS260DN01

The 2.6-inch AMOLED Display Module delivers vivid, high-contrast visuals for compact embedded products where a slim form factor and responsive UI matter. With a 240 × RGB × 320 resolution and 262K colors, it renders clear icons, text, and interface elements on a small footprint, ideal for lightweight handheld and control-display designs.

This module supports both SPI control and a 16-bit RGB parallel (DOTCLK) interface (VSYNC/HSYNC/DE), giving you flexible options for MCU- or host-driven integration. It features a 39.60 × 52.48 mm active area in a compact 44.7 × 62.2 × 1.65 mm outline, and uses COG assembly with the S6E63D6 driver IC for streamlined integration. Gesight supplies this display for portable device applications, rated for -30 to +70℃ operating and -40 to +80℃ storage temperatures—and can provide it with a good price.

Application

Industrial Panel | Compact Embedded Systems | Handheld UI Panels | Test & Evaluation Fixtures

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

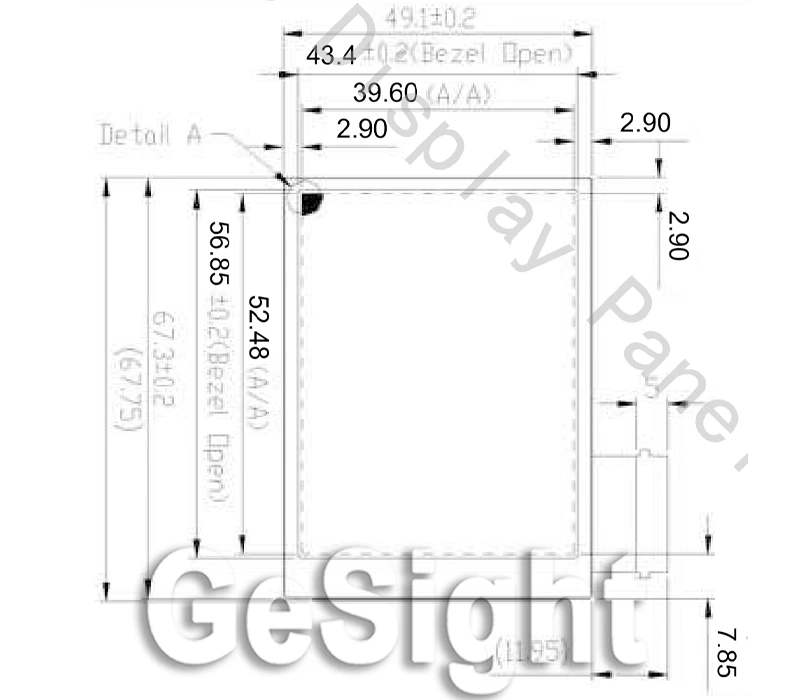

AMOLED display mechanical drawing active area and bezel

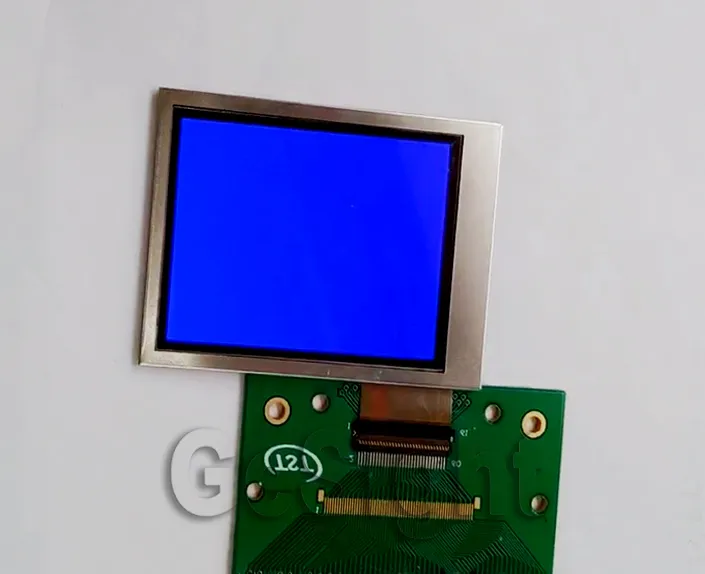

AMOLED display demo on board blue screen test

HDMI-to-RGB Demo Board for AMS260DN01 Quick Evaluation

Want to validate AMS260DN01 without building a full MCU/mainboard first? An HDMI demo board can act as a ready-to-use video source, converting HDMI input into the panel’s 16-bit RGB (DOTCLK/HSYNC/VSYNC/DE) signals, so you can power up and start testing immediately. It’s perfect for checking 262K color rendering, grayscale smoothness, UI sharpness, and screen behavior under real video and graphic patterns—fast, consistent, and repeatable.

For bring-up and debugging, the board also makes integration cleaner: it lets you verify power sequence stability, interface timing margins, and cable/connector reliability on the bench before committing to your final hardware design. That means fewer unknowns, quicker issue isolation, and faster iteration from prototype to mass production.

Gesight provide HDMI Board for AMS260DN01 evaluation, and can offer a good price.

Specifications
Size

2.6 inch
Pixels

240 × RGB × 320
Interface

Brightness

200 cd/m² (Typ), 170 cd/m² (Min), 230 cd/m² (Max)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

80 Hz (Frame Rate setting in test condition)
Viewing Angle Range

160° (Min), 170° (Typ)
Outline L*W*H

44.7 × 62.2 × 1.65 mm (Typ)
Active Area L*W

39.60 × 52.48 mm
Orientation

Supply Voltage

AR_VDD = +4.6 V; AR_VSS = -4.4 V; VCI = 2.5–3.3 V; IOVCC (VDD3) = 1.65–3.3 V
Consumption

260 mW (Typ), 300 mW (Max) @ 30% pixels on
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

L/R = 2.55 mm; T/B = 4.86 mm (calculated from Outline vs Active Area)
Aspect Ratio

3:4 (240:320)
Connection Type

–
IC package

COG assembly
Touch Panel

Pixel Pitch

0.055 × 0.164 mm
Sunlight Readable

–
Model

AMS260DN01
PPI ( pixels per inch )

154 PPI
Application

Cell phone etc.
Pins Description
Pin Symbol I/O Description / Remarks
1 AR_VDD I Positive OLED supply
2 AR_VSS I Negative OLED supply
3 VCI I Analog power (2.5–3.3 V)
4 NC — Not connected
5 GND I Ground
6 NC — Not connected
7 NC — Not connected
8 NC — Not connected
9 NC — Not connected
10 NC — Not connected
11 NC — Not connected
12 NC — Not connected
13 NC — Not connected
14 NC — Not connected
15 NC — Not connected
16 NC — Not connected
17 NC — Not connected
18 NC — Not connected
19 VGS I Grayscale reference; connect to GND
20 IOVCC I I/O power supply
21 SPB I Interface select: 0=parallel, 1=serial
22 ID_MIB I CPU type: 0=Intel 80x, 1=Motorola 68x
23 DB17 I/O Bi-directional data bus (RGB 18-bit uses DB17–0)
24 DB16 I/O Data bus
25 DB15 I/O Data bus
26 DB14 I/O Data bus
27 DB13 I/O Data bus
28 DB12 I/O Data bus
29 DB11 I/O Data bus
30 DB10 I/O Data bus
31 DB9 I/O Data bus
32 DB8 I/O Data bus
33 DB7 I/O Data bus (16-bit mode uses DB17–10 & DB8–1)
34 DB6 I/O Data bus
35 DB5 I/O Data bus
36 DB4 I/O Data bus
37 DB3 I/O Data bus
38 DB2 I/O Data bus
39 DB1 I/O Data bus
40 DB0 I/O Data bus
41 VSYNC I Frame sync; fix to VSS if unused
42 HSYNC I Line sync; fix to VSS if unused
43 DOTCLK I RGB dot clock; data latch edge selectable; fix to VSS if unused
44 ENABLE I RGB DE (data enable) signal
45 SDI (SDIN) I SPI data input; fix to VSS if unused
46 SDO (SDOUT) O SPI data output
47 CSB (CS/NCS) I Chip select: 0=selected, 1=not selected
48 RW_WRB (SCL) I 68xx: RW; 80xx: WRB; SPI: SCL clock
49 RS I Register select: 0=index/status, 1=parameter/GRAM; fix to VDD3 if unused
50 E_RDB I 68xx: E; 80xx: RDB; SPI mode: fix to VDD3
51 RESETB I Reset (active low); reset after power-on
52 NC O Internal RAM power; connect capacitor (1 µF/10 V) to GND
53 NC O Grayscale reference; connect capacitor (1 µF/10 V) to GND
54 VCI I Analog power (2.5–3.3 V)
55 NC O Gate driver positive voltage node; connect capacitor (1 µF/10 V) to GND
56 NC O Gate driver negative voltage node; connect capacitor (1 µF/10 V) to GND
57 GND — Ground
58 X- — Touch related pin label
59 Y- — Touch related pin label
60 X+ — Touch related pin label
61 Y+ — Touch related pin label
Electrical Characteristics

1) Electrical Characteristics (DC Characteristics)

Characteristic Symbol Condition Min Typ Max Unit Note
Driving voltage VGH — 3.0 — 8.0 V
Driving voltage VGL — -8.0 — -3.0 V
Driving voltage VINT — -4.0 — -1.0 V
Logic Operating Voltage RVDD — 1.45 1.5 1.55 V
Operating frequency fosc Frame frequency = 60Hz; Display line = 320 line 1161.1 1290.2 1419.3 kHz
1st booster input voltage VCI1 — 2.1 — 2.75 V
1st booster output voltage VLOUT1 Without load +4.6 — +5.5 V
1st booster output efficiency VLOUT1 I_VLOUT1_LOAD = 2.3mA 90 95 — %
2nd booster output voltage VLOUT2 Without load — 7.8 — V
2nd booster output efficiency VLOUT2 I_VLOUT2_LOAD = 0.1mA 90 93 — %
3rd booster output voltage VLOUT3 Without load — -10.6 — V
3rd booster output efficiency VLOUT3 I_VLOUT3_LOAD = 0.1mA 90 93 — %
Source output voltage deviation (channel to channel) — — — ±5 — mV
Source output voltage difference (nearest channel) — 20 Gray Pattern — 5 — mV
Output voltage deviation (Chip to Chip) — — — ±15 — mV
Output voltage deviation (Chip to Chip) — — — ±15 — mV
Source driver output voltage range Vso — 0.3 — 4.2 V
Driving voltage deviation dVGH voltage deviation — 300 — mV
Driving voltage deviation dVGL voltage deviation — 300 — mV
Current consumption during normal operation IVDD3 No load, Ta = 25°C — 1.0 5.0 uA *1
Current consumption during normal operation IVCI No load, Ta = 25°C — 3.5 4.0 mA
Stand by mode current IVDD3 Ta = 25°C — 0.1 5.0 uA
Stand by mode current IVCI Ta = 25°C — 10 20 uA

2) Back-light Specification Form

Item Specification
Backlight Type N/A (Self-emissive AMOLED)
LED Color N/A
LED Quantity N/A
Forward Voltage (Vf) N/A
Forward Current (If) N/A
Backlight Power N/A
Backlight Luminance N/A (use panel luminance instead)
Backlight Lifetime N/A
