Model: BO269FM800

The 2.69-inch AMOLED Display Module delivers crisp, high-clarity visuals for compact embedded and smart device designs where a thin stack and clean UI rendering matter. With an 800 × 600 resolution, 16.7M colors (8-bit), and an ultra-fine 372 PPI, it displays sharp text edges and smooth gradients for polished interface detail. The panel reaches 420 nit (typ.) brightness and supports a 60 Hz (typ.) refresh rate for stable motion performance.

This module uses a MIPI DSI 2-lane interface for streamlined integration in space-limited hardware. Its ultra-slim 56.6 × 47.25 × 0.505 mm outline and 54.6 × 40.95 mm active area help it fit into tight mechanical layouts. Gesight supplies this display with the RM69700 driver IC, built-in touch solution (S3601 touch IC), a 30-pin FPC (recommended connector: Molex 5052743040), a -30 to +70°C operating range, and a -55 to +125°C storage rating—and can provide it with a good price.

Application

Smart Mobile Devices | Compact Embedded Systems | Handheld UI Panels | Test & Evaluation Kits

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

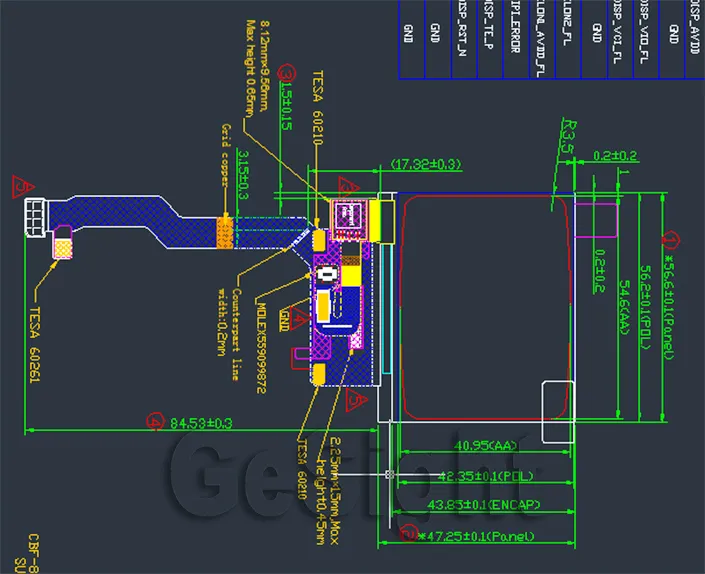

2.69-inch AMOLED outline drawing, 800×600, dimensions

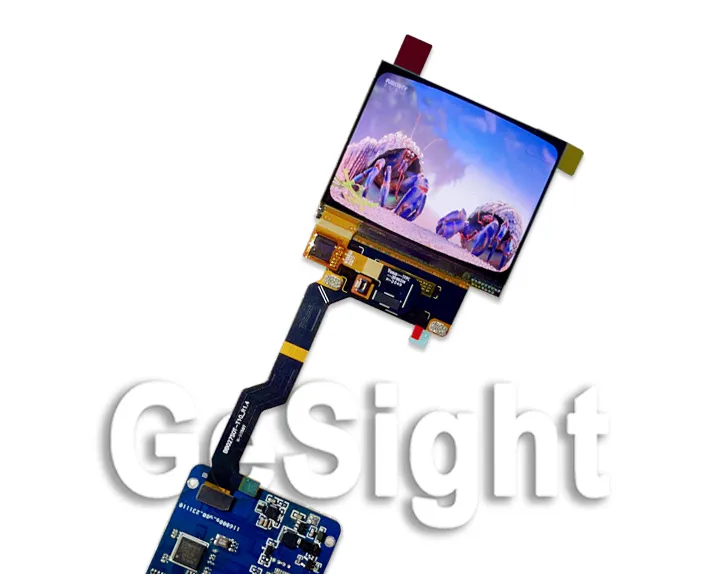

AMOLED display with HDMI controller board demo

HDMI-to-MIPI Demo Board for BO269FM800 Bring-Up

Need to light up BO269FM800 fast? An HDMI demo board lets you skip the long custom-mainboard loop and start testing immediately. Plug in an HDMI source and the board handles the video path so you can verify 800×600 scaling, check 60 Hz playback stability, and review color/grayscale performance under real content—perfect for quick proof-of-concept and first articles.

For engineering teams, this setup is also a practical debugging tool during integration. It provides a repeatable bench environment to validate MIPI DSI (2-lane) communication, shorten troubleshooting time, and speed up demo iteration before the final hardware is ready.

Gesight can supply an HDMI controller board for BO269FM800 evaluation at a competitive price.

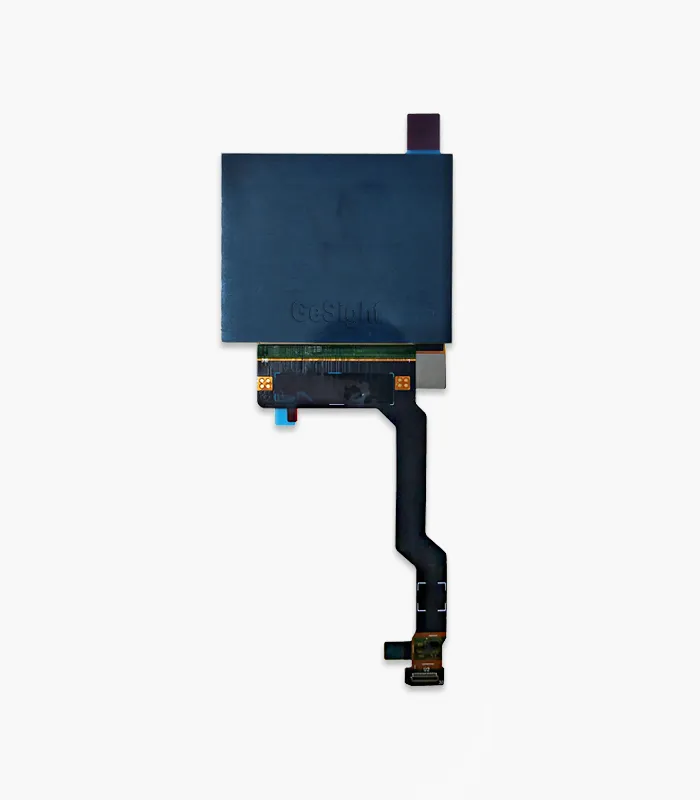

Compact FPC Layout for Easier Integration

BO269FM800 is built with a clean, space-saving FPC structure that keeps the module footprint tidy while leaving room for surrounding components. The flex tail provides a practical routing path for tight housings, helping reduce cable stress and simplifying mechanical stacking in compact assemblies.

With a 30-pin main FPC (recommended connector: Molex 5052743040) and clearly separated power/signal lines, the module is well-suited for stable bring-up and repeatable assembly—especially when you’re building small form-factor prototypes or space-constrained embedded products.

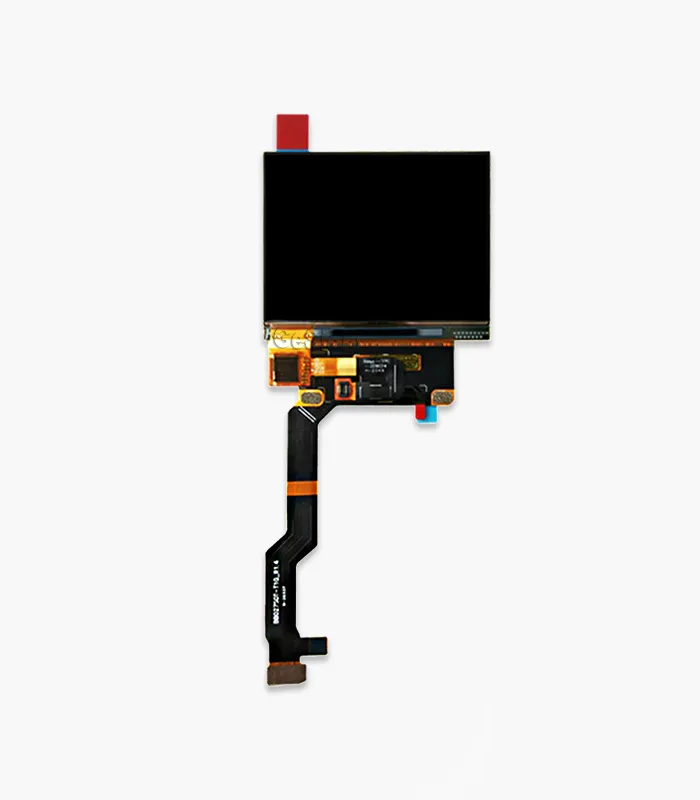

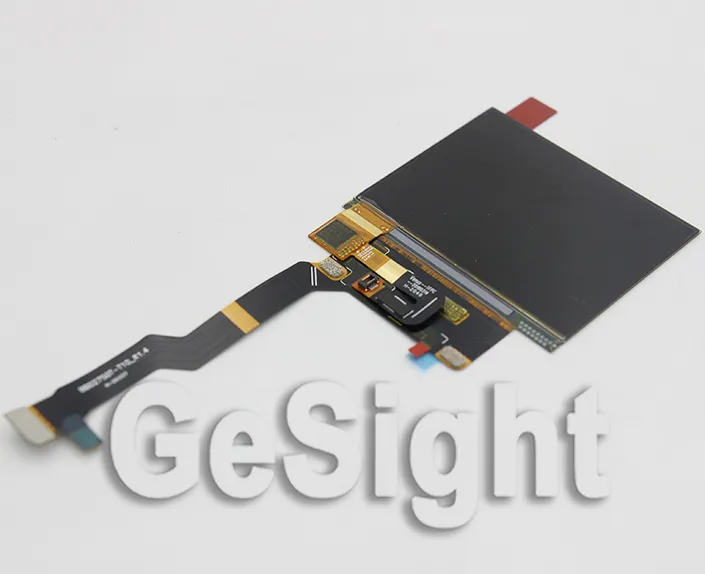

2.69-inch AMOLED module angled view, flex cable
2.69-inch AMOLED display module front view, 800×600

Clean Front Appearance for Product-Facing Designs

BO269FM800 delivers a neat, product-ready front view that’s well-suited for devices where the display is a key visual element. The compact panel format supports dense UI layouts, while the AMOLED architecture helps achieve deep blacks and clear contrast for a polished on-screen look.

For integration, the module’s layout keeps the active display area visually dominant, making it easier to align with bezels, windows, and front housings during mechanical design. It’s a solid choice for compact smart devices that require a tidy appearance without sacrificing image clarity.

Specifications
Size

2.69 inch
Pixels

800 × 600
Interface

Brightness

420 nit (Typ.), 380 nit (Min.), 460 nit (Max.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz (Typ.), 58–62 Hz
Viewing Angle Range

≥80° (CR ≥ 1600)
Outline L*W*H

56.6 × 47.25 × 0.505 mm
Active Area L*W

54.6 × 40.95 mm
Orientation

Supply Voltage

VCI 2.7–3.6 V (Typ. 3.0 V); VDDIO 1.62–1.98 V (Typ. 1.8 V); AVDD 6.8–7.8 V (Typ. 6.8 V); ELVDD 4.6 V; ELVSS -3.0 to -1.4 V (Typ. -2.0 V)
Consumption

TBD
Operating Temperarure

−30 to +70 °C
Storage Temperature

−55 to +125 °C
Bezel Area (mm)

–
Aspect Ratio

4:3
Connection Type

FPC (Recommended connector: Molex 5052743040)
IC package

–
Touch Panel

Pixel Pitch

68.25 × 68.25 µm
Sunlight Readable

–
Model

BO269FM800
PPI ( pixels per inch )

372 PPI
Application

Smart Mobile Phone
Pins Description
Pin No. Pin Name
1 NC
2 GND
3 NC
4 ELVDD
5 NC
6 ELVDD
7 NC
8 ELVSS
9 GND
10 ELVSS
11 D1N
12 AVDD
13 D1P
14 GND
15 GND
16 VDDIO
17 CLKN
18 VCI
19 CLKP
20 GND
21 GND
22 SWIRE
23 D0N
24 OLED_EN
25 D0P
26 ERR_FG
27 GND
28 TE
29 MTP_PWR
30 RESX



Electrical Characteristics

1) Electrical Characteristics (DC Characteristics)

Item Symbol Min Typ Max Unit Remark
Logic Power — TBD TBD TBD W TBD in spec
ELVDD ELVDD 4.6 4.6 4.6 V
ELVSS ELVSS -3.0 -2.0 -1.4 V 100 mV step
Analog Supply AVDD 6.8 6.8 7.8 V
Core Supply VCI 2.7 3.0 3.6 V
I/O Supply VDDIO 1.62 1.8 1.98 V
Logic Current — TBD TBD TBD mA TBD in spec
Frame Frequency Freq 58 60 62 Hz
Gate High Voltage VGH 5.7 6.0 7.0 V
Gate Low Voltage VGL -7.0 -6.0 -5.4 V

2) Back-light Specification Form

Backlight Item Spec
Backlight Type N/A (AMOLED, self-emissive)
LED Color N/A
Forward Voltage N/A
LED Current N/A
Backlight Power N/A
Lifetime N/A
