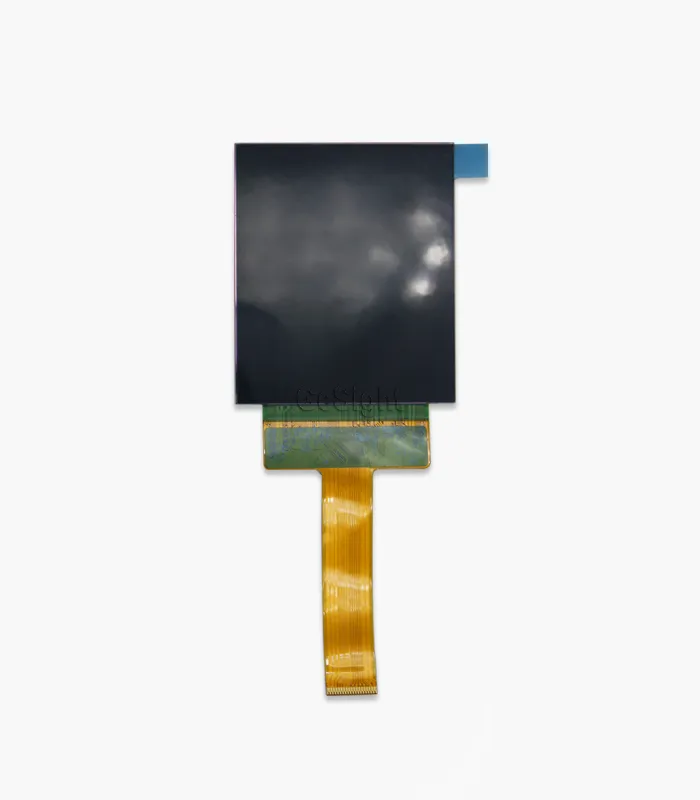

AMOLED display module back view with FPC

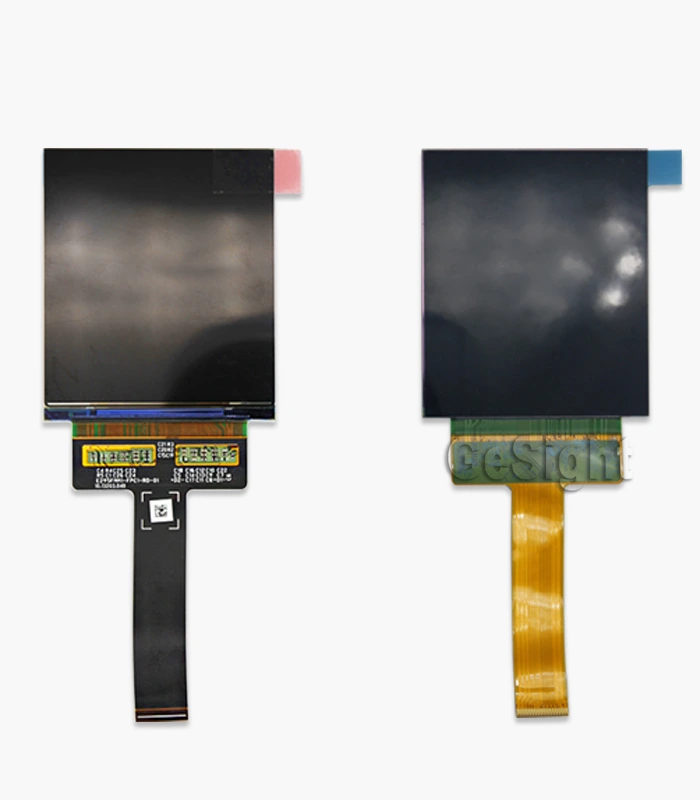

AMOLED display module front and back comparison

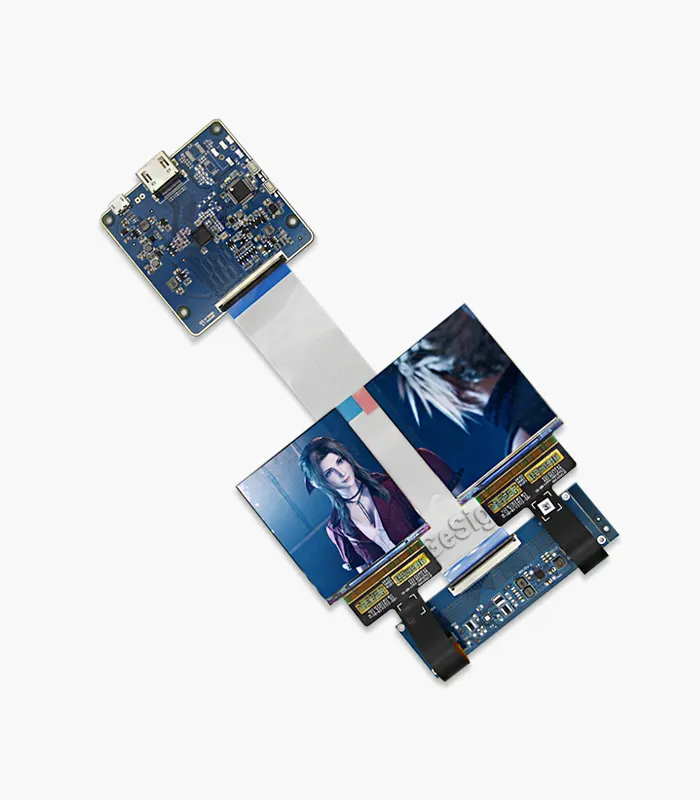

HDMI controller board demo with dual AMOLED displays

2.95-inch 1080×1200 AMOLED Near-Eye Display

Tags: , , , , , , , ,

$131.50piece

Add to wishlist
Compare
18 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: EDO295FM01

The 2.95-inch AMOLED Display delivers sharp, high-clarity visuals for near-eye VR optical engines in a compact, space-efficient module. With a 1080 × 1200 resolution, 16.7M colors (8-bit), and an ultra-fine 547 PPI, it renders small UI text and fine graphics cleanly for immersive viewing. The panel reaches 100 cd/m² (typ.) brightness and supports a 90 Hz (typ.) refresh rate for smoother motion performance.

This module uses a MIPI DSI 4-lane interface for streamlined integration in compact headset designs. Its slim 52.91 × 62.58 × 0.65 mm outline (incl. cushion) and 50.11 × 55.68 mm active area help it fit into tight mechanical stacks. Gesight supplies this display with the RM67295 driver IC, a -30 to +70℃ operating range, and -55 to +125℃ storage rating—and can provide it with a good price.

Application

VR Headsets | Near-eye Display Modules | Compact Optical Engines | Simulation & Training Systems

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

AMOLED display outline and active area dimensions

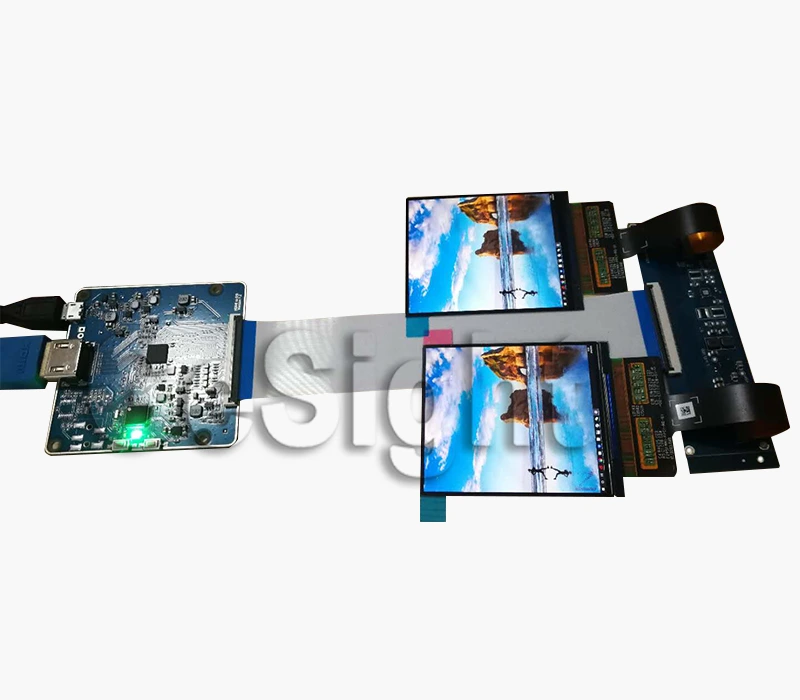

dual AMOLED display test setup controller board

HDMI Controller Board Setup for EDO295FM01 Evaluation

A dedicated HDMI controller board setup makes it easy to bring up EDO295FM01 quickly and validate real-world display performance without waiting for a full custom mainboard. By feeding stable HDMI video into the controller, you can confirm 1080×1200 mapping, check 90 Hz motion smoothness, and observe grayscale and color behavior under continuous playback—ideal for early-stage verification.

This evaluation path is built for rapid prototyping, helping teams verify MIPI DSI 4-lane compatibility and streamline debugging during integration. It also enables repeatable bench testing for demo preparation and design iteration, reducing risk and shortening development cycles for near-eye VR display projects.

Gesight provides an HDMI Board to support EDO295FM01 evaluation and can provide it with a good price.

Specifications
Size

2.95 inch
Pixels

1080(W) × 1200(H) (RGB)
Interface

Brightness

100 cd/m² (Typ.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

90 Hz
Viewing Angle Range

80° (U/D/L/R, CR ≥ 200)
Outline L*W*H

52.91 × 62.58 × 0.65 mm (Including Cushion)
Active Area L*W

50.11 × 55.68 mm
Orientation

Supply Voltage

ELVDD: 4.6 V (Typ.); ELVSS: -2.5 V (Typ.); VSP: 6.4 V (Typ., 6.1–6.5 V); VDDI: 1.8 V (Typ., 1.65–3.6 V); VCI: 3.3 V (Typ., 2.5–4.8 V)
Consumption

TBD (IELVDD/IELVSS, IVCI, IVDDIO, IVSP)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−55 to +125 °C
Bezel Area (mm)

Derived from outline & active area: (52.91−50.11)/2 = 1.40 mm; (62.58−55.68)/2 = 3.45 mm
Aspect Ratio

9:10 (1080:1200)
Connection Type

FPC (39 pins shown in I/O connection table)
IC package

–
Touch Panel

Pixel Pitch

23.2 × 46.4 μm
Sunlight Readable

–
Model

EDO295FM01
PPI ( pixels per inch )

547 PPI
Application

VR (Virtual Reality)
Pins Description
Pin # Pin Name I/O Description
1 ELVSS Power AMOLED power Negative
2 ELVSS Power AMOLED power Negative
3 ELVSS Power AMOLED power Negative
4 ELVDD Power AMOLED power Positive
5 ELVDD Power AMOLED power Positive
6 ELVDD Power AMOLED power Positive
7 GND Power The power ground
8 D2N Power MIPI DSI data2-
9 D2P O MIPI DSI data2+
10 GND I The power ground
11 D0N O MIPI DSI data0-
12 D0P I MIPI DSI data0+
13 GND Power The power ground
14 CLKN Power MIPI DSI clock-
15 CLKP Power MIPI DSI clock+
16 GND I/O The power ground
17 D1N Power MIPI DSI data1-
18 D1P I/O MIPI DSI data1+
19 GND I The power ground
20 D3N Power MIPI DSI data3-
21 D3P Power MIPI DSI data3+
22 GND Power The power ground
23 VDDIO I Driver IC digital I/O supply
24 VDDIO I Driver IC digital I/O supply
25 VCI Power Driver IC analog supply
26 VCI Power Driver IC analog supply
27 RESX I This signal will reset the device and must be applied to properly initialize the chip. Active low.
28 SWIRE O Power IC control pin
29 OLED_EN O Power IC enable
30 MTP Power Power supply for OTP. Leave the pin to open when not in use.
31 GND I/O The power ground
32 VSP Power Power supply for Analog system
33 VSP Power Power supply for Analog system
34 ELVDD Power AMOLED power Positive
35 ELVDD Power AMOLED power Positive
36 ELVDD Power AMOLED power Positive
37 ELVSS Power AMOLED power Negative
38 ELVSS Power AMOLED power Negative
39 ELVSS Power AMOLED power Negative
Electrical Characteristics

1) Electrical Characteristics (DC Characteristics)

A. Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Analog/boost power voltage VCI -0.3 - 5.5 V
VCI I/O voltage VCI_IF -0.3 - 5.5 V
I/O voltage VDDI -0.3 - 5.5 V
VSP voltage VSP -0.3 - 6.6 V
VPP (OTP power) VPP (NC) - - 8.25 V
Operating temperature Top -40 - 85 ℃
Storage temperature Tstg -55 - 125 ℃

B. Power Characteristics (Recommended)

Item Symbol Min Typ Max Unit Remark
AMOLED power positive ELVDD - 4.6 - V Ref
AMOLED power negative ELVSS - -2.5 - V Ref
Gamma voltage VSP 6.1 6.4 6.5 V Ref
Digital power supply VDDI 1.65 1.8 3.6 V Ref
Analog power supply VCI 2.5 3.3 4.8 V Ref

C. Current Consumption (as listed in spec)

Condition in spec: Gray 255, VELVDD=4.6V, VELVSS=-2.5V, VCI=3.3V, VDDIO=1.8V, VSP=6.4.

Mode Symbol Min Typ Max Unit Remark
@ Gray 255 IELVDD / IELVSS TBD TBD TBD mA Ref
@ Gray 255 IVCI TBD TBD TBD mA Ref
@ Gray 255 IVDDIO TBD TBD TBD mA Ref
@ Gray 255 IVSP TBD TBD TBD mA Ref

2) Back-light Specification Form

Backlight Item Spec
Backlight Type N/A (AMOLED, self-emissive)
LED Color N/A
LED Lifetime N/A
Forward Voltage N/A
Forward Current N/A
Number of LEDs / Strings N/A
Backlight Driver N/A





FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
