Description

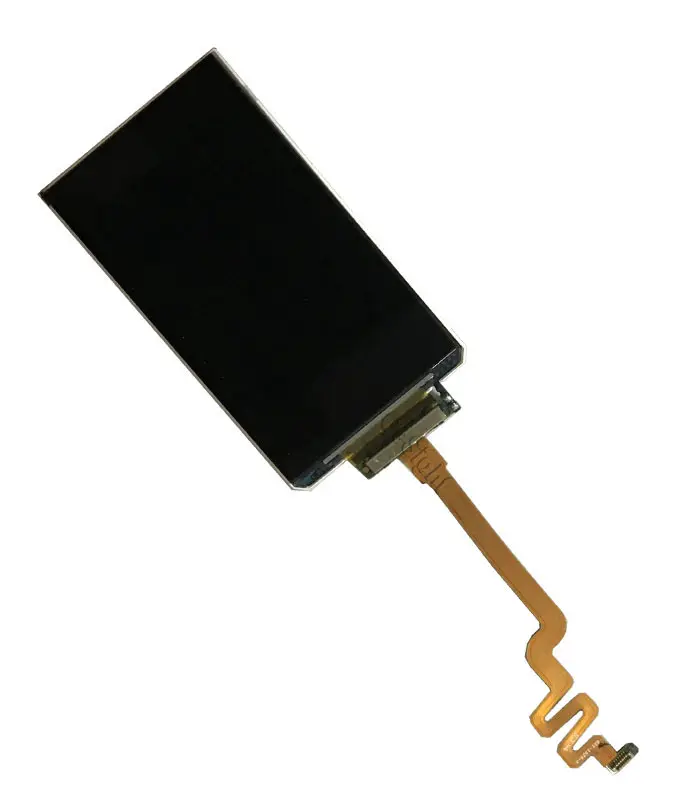

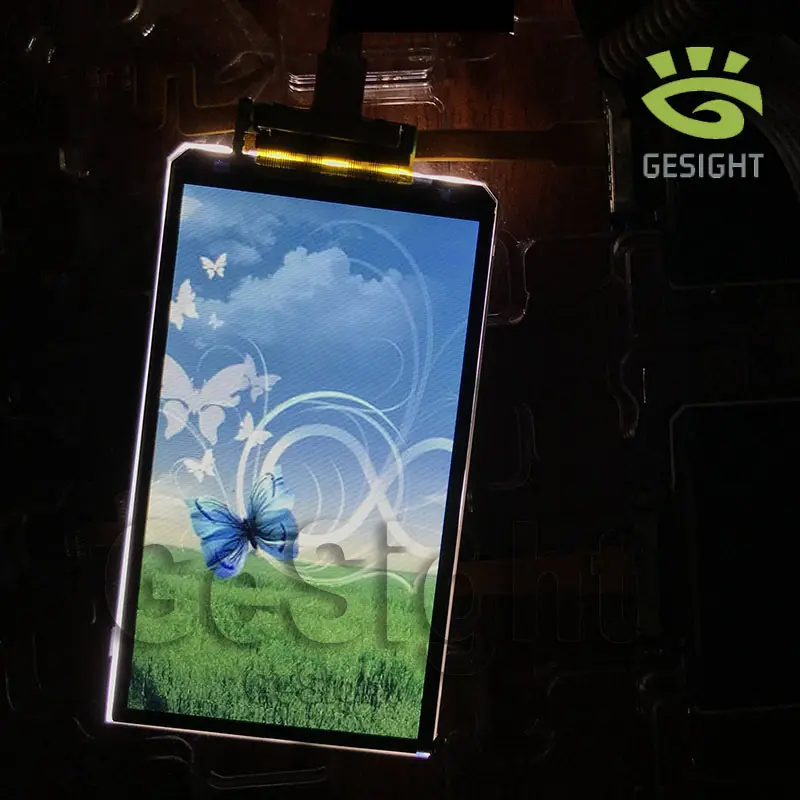

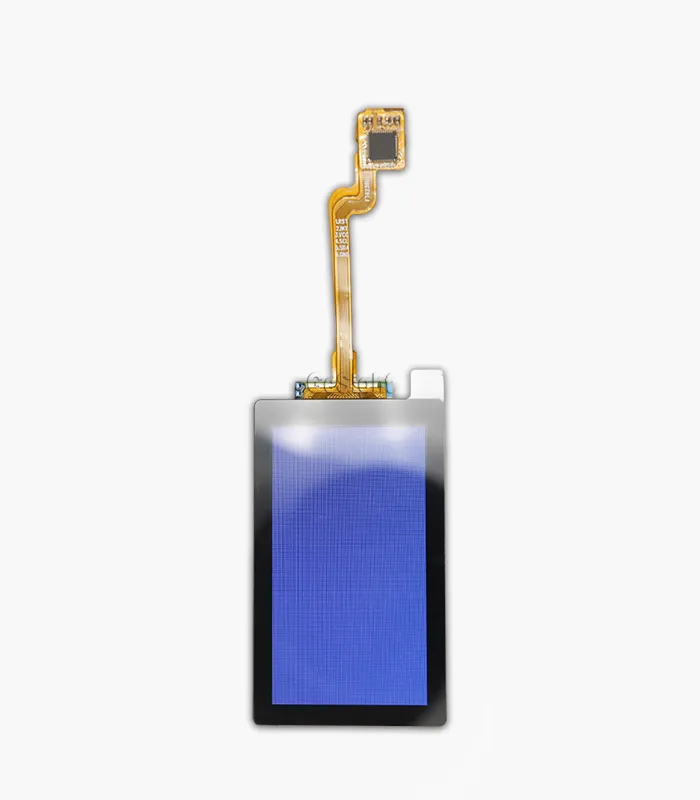

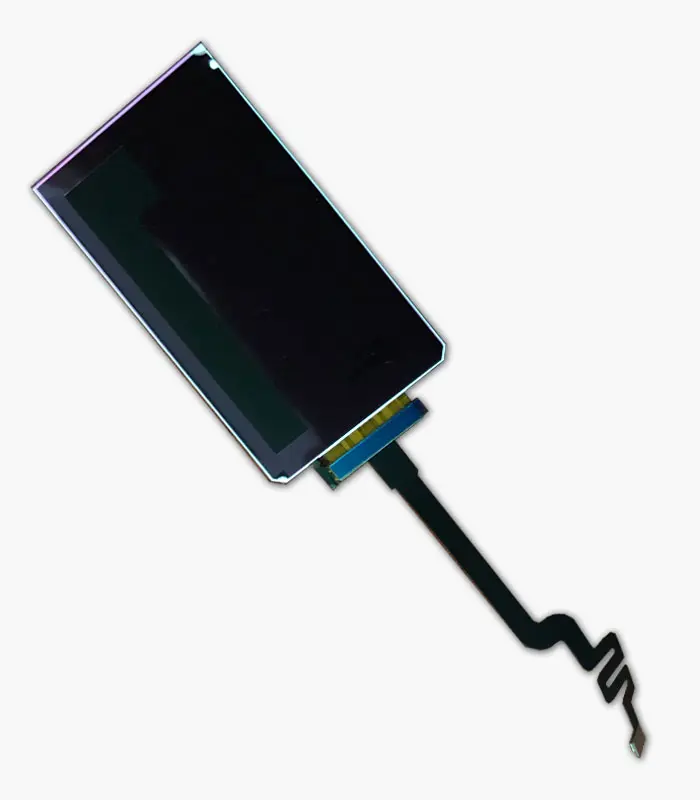

Model:H245QBN02.0

The 2.45 Inch TFT LCD Display High Brightness Wide Viewing Angle delivers 500 cd/m² high brightness and vivid colors with 240×432 resolution, ensuring sharp readability even in semi-outdoor environments. With a compact and ultra-thin form factor, this module integrates a low power state MIPI DSI interface, extending battery life for portable solutions. Its wide operating temperature and industrial-grade durability make it reliable for wearables, portable terminals, industrial control, medical devices, and consumer electronics.

Application

Wearables | Portable Terminals | Industrial Control | Consumer Electronics

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

Gesight Provide LCD Tester and Custom Driver Board Solutions

Gesight LCD Tester is designed to support efficient testing and evaluation of LCD and OLED displays. The LCD tester helps quickly verify display functionality and identify common issues such as abnormal display, signal problems, or panel defects during development, inspection, and validation processes.

In addition to standard testing solutions, Gesight also provides custom driver board services based on specific display specifications and interface requirements. Our custom driver boards support reliable display testing and system integration, helping reduce development time and improve overall testing efficiency. By combining LCD tester solutions with custom driver board development, Gesight offers a practical and flexible solution for display testing applications.

Discover the Perfect Balance of High Brightness and Low Power

The H245QBN02.0 color TFT-LCD module is designed for applications that demand both high brightness and an exceptional low power state. This 2.45-inch display delivers vibrant visuals while maximizing battery life, making it the ideal solution for your next-generation portable devices.

Exceptional Efficiency, Extended Endurance

The H245QBN02.0 module achieves a perfect balance between performance and energy efficiency. Its power consumption is just 32 mW in the MIPI Ultra-Low Power State (ULPS), and an astonishing 84 µW in deep sleep mode.

With a typical brightness of up to 500 cd/m², this module ensures content remains clearly visible in various lighting conditions, even in direct sunlight. The module also features a 240RGB x 432 resolution with 262k colors, providing crisp, detailed images in a lightweight, 2.4-gram design. The H245QBN02.0 combines a high brightness display with an industry-leading low power state to give your products a significant competitive advantage.

Built for Extremes: The Industrial-Grade H245QBN02.0 TFT-LCD Module

The H245QBN02.0 is an industrial-grade TFT-LCD module engineered for reliable performance in demanding environments. This 2.45-inch display features a wide operating temperature range, making it a robust choice for any application where conditions are harsh.

Proven Durability

This module's core strength lies in its ability to operate reliably in extreme heat and cold. It has been rigorously tested to perform consistently within a -20°C to +70°C temperature range. Furthermore, its resilience has been confirmed through extensive testing, including prolonged 240-hour operation tests at both high and low temperatures and a 50-cycle thermal shock test from -30°C to +80°C. The display also withstands physical stress, having passed vibration tests, and is resistant to electrical interference, withstanding an ESD test up to 2KV. These features ensure the module's longevity and stability in challenging industrial, automotive, or outdoor settings.

Specifications

Size	2.45" (Diagonal)
Pixels	240× 432
Interface	MIPI DSI
Brightness	450 ~ 500 cd/m²
Manufacturer	Gesight
Display Type	IPS LCD , TFT-LCD
Display Mode	ECB, Normally White
Color Depth	262K colors (18-bit)
Refresh Rate	30 fps (typical at 240 Mbps MIPI)
Viewing Angle Range	≥50° each direction (CR≥10)

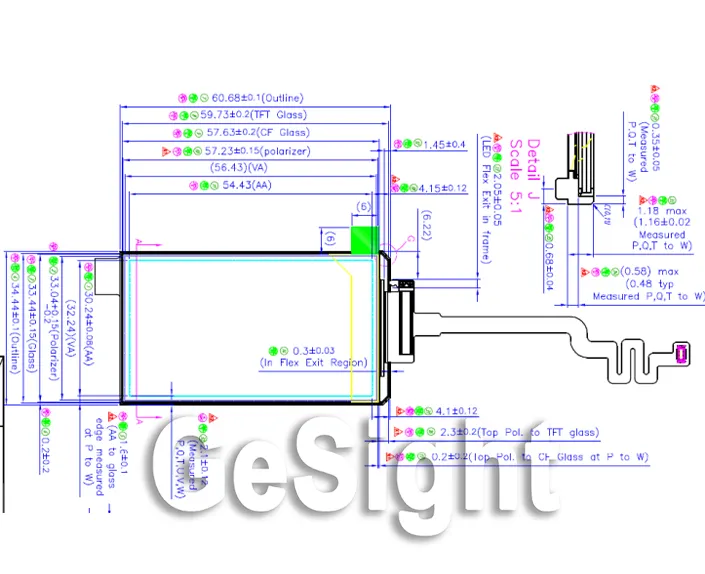

Outline LWH	31.82 × 33.72 × 1.242 mm
Active Area L*W	30.24 × 54.432 mm
Orientation	Portrait
Supply Voltage	Logic: 1.8 V, Analog: 3.0 V
Consumption	Backlight: ~252 mW, MIPI logic: up to 40 mW
Operating Temperarure	–20°C ~ 70°C
Storage Temperature	-30°C ~ +80°C
Bezel Area (mm)	(Not explicitly listed; approx. outline – active area margins)
Aspect Ratio	9:16
Connection Type	FPC (flex cable)
IC package	COG (Chip on Glass)
Touch Panel	Need to make
Pixel Pitch	0.042 × 0.126 mm
Sunlight Readable	Partial (≥500 cd/m², but not full outdoor readability)
Model	H245QBN02.0
PPI ( pixels per inch )	~180 PPI
Application	Handheld devices, portable instruments, smart appliances

Pins Description

Pin No.	Name	I/O	Description
1	DISP_CLK_P	I/O	MIPI Clock +
2	1V8	PWR	1.8 V Power Supply
3	DISP_CLK_N	I/O	MIPI Clock -
4	DISP_RESET_L	I	Reset (Active Low)
5	GND	-	Ground
6	DISP_BSYNC	O	Synchronization Pulse
7	DISP_D0_P	I/O	MIPI Data +
8	LCD_BL_CA	O	Backlight Anode
9	DISP_D0_N	I/O	MIPI Data -
10	LCD_BL_CC	O	Backlight Cathode
11	GND	-	Ground
12	DISP_3V0	PWR	3.0 V Power Supply

Electrical Characteristics

1. Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit	Notes
Analog Power Supply Voltage	DISP_3V0	-0.3	+5.0	V
Logic I/O Voltage	1V8	-0.3	+5.0	V
Logic Input Voltage	VIN	-0.3	2.3	V	Applies to DISP_D0_N, DISP_D0_P, DISP_CLK_N, DISP_CLK_P, DISP_SYNC, DISP_RESET_L
LED Current	ILED	—	25	mA	Per LED
Operating Temperature	TOP	-20	+70	°C
Storage Temperature	TSTG	-30	+80	°C
Humidity	H	5	95	%RH	Non-condensing

2. Typical Operating Conditions (GND = 0 V)

Item	Symbol	Min	Typ	Max	Unit	Remarks
Logic I/O Voltage	VDD3	1.71	1.8	1.89	V
Analog Power Supply	VCI	2.85	3.0	3.15	V
LED Input Current	ILED	16	20	—	mA
“H” Level Input Voltage	VIH	0.7VDD3	—	VDD3	V
“L” Level Input Voltage	VIL	0	—	0.3VDD3	V
“H” Level Output Voltage	VOH	0.8VDD3	—	VDD3	V	Iout = -1 mA
“L” Level Output Voltage	VOL	0	—	0.2VDD3	V	Iout = +1 mA
Power, MIPI Full Refresh	PMIPI	—	—	40	mW	@ VCI=3.0V, VDD3=1.8V, T=25°C
Power, Backlight	PB	—	252	—	mW	5 LEDs, Vf=3.2V, 15.8 mA
Power, Suspend	PS	—	84	—	μW	Deep sleep mode

Backlight Specification

Item	Condition	Min	Typ	Max	Unit
Backlight Type	LED Array (5 LEDs)	—	—	—	—
Forward Voltage (per LED)	If = 20 mA	—	3.2	—	V
Forward Current (per LED)	—	16	20	25	mA
Power Consumption	If = 20 mA	—	252	—	mW
Brightness (Center)	If = 16 mA	450	500	—	cd/m²
Uniformity	—	80	—	—	%
Lifetime	If = 20 mA, 25°C	—	~20,000	—	hrs

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

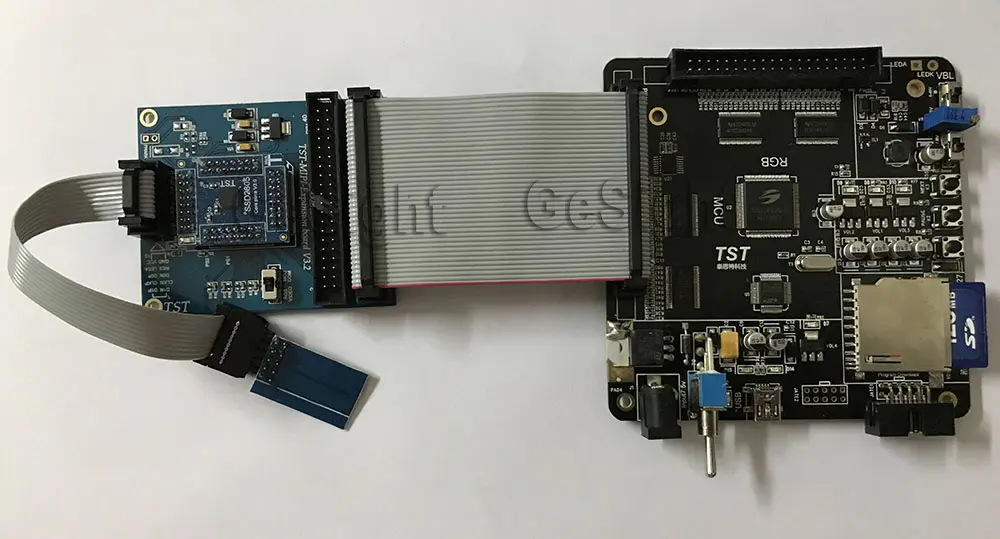

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
