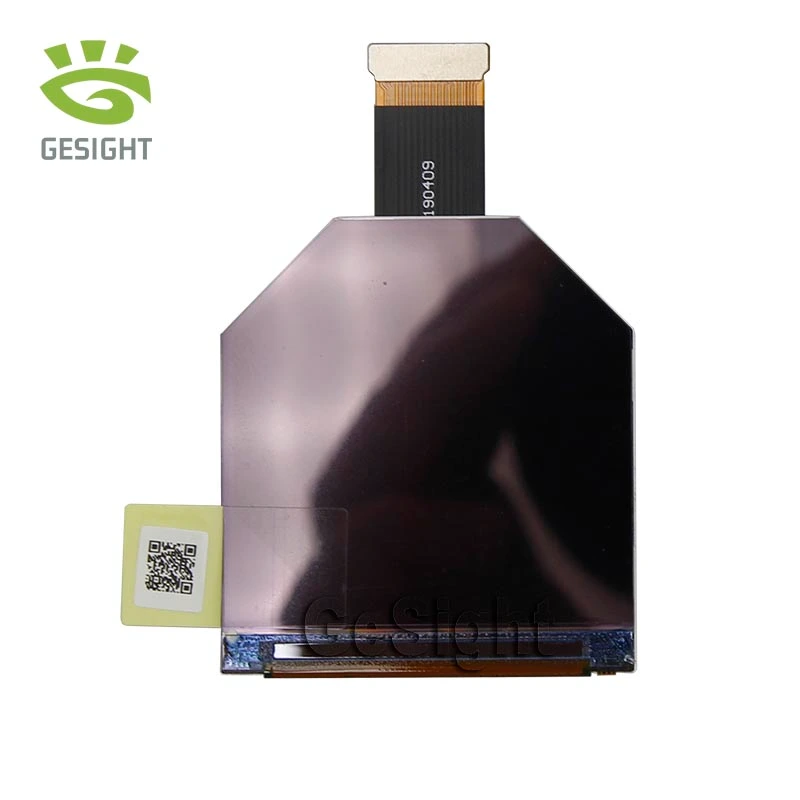

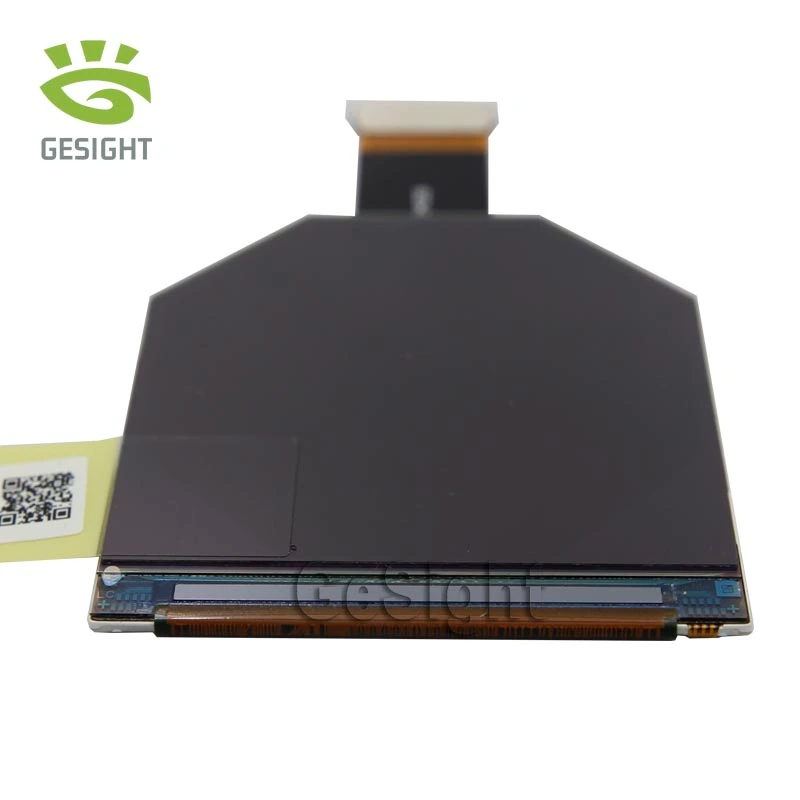

Model: VS021XRM-NW0-DKP0

This 2.1-inch square TFT-LCD is built for VR/AR near-eye applications, delivering an ultra-sharp 1600×1600 resolution with 1058 PPI for crisp imagery in compact optical designs. With 16.7M colors (8-bit) and a normally black, transmissive display mode, it provides clean contrast and detailed rendering for immersive viewing.

Designed for smooth motion performance, it supports 70/90 Hz refresh and uses a MIPI DSI (Video Mode) interface for efficient integration. The module offers a typical 450 cd/m² white luminance, a slim mechanical profile, and a lightweight build—ideal for space-constrained headset architectures.

Gesight also provides customized integration solutions — we can design and manufacture adapter/controller boards to help you evaluate or integrate this TFT-LCD with your host platform and project requirements.

Application

VR / AR near-eye display, compact optical modules, wearable display systems

Customized Options

FPC | Connector/Adapter Board | Backlight Tuning | Brightness | Controller Board

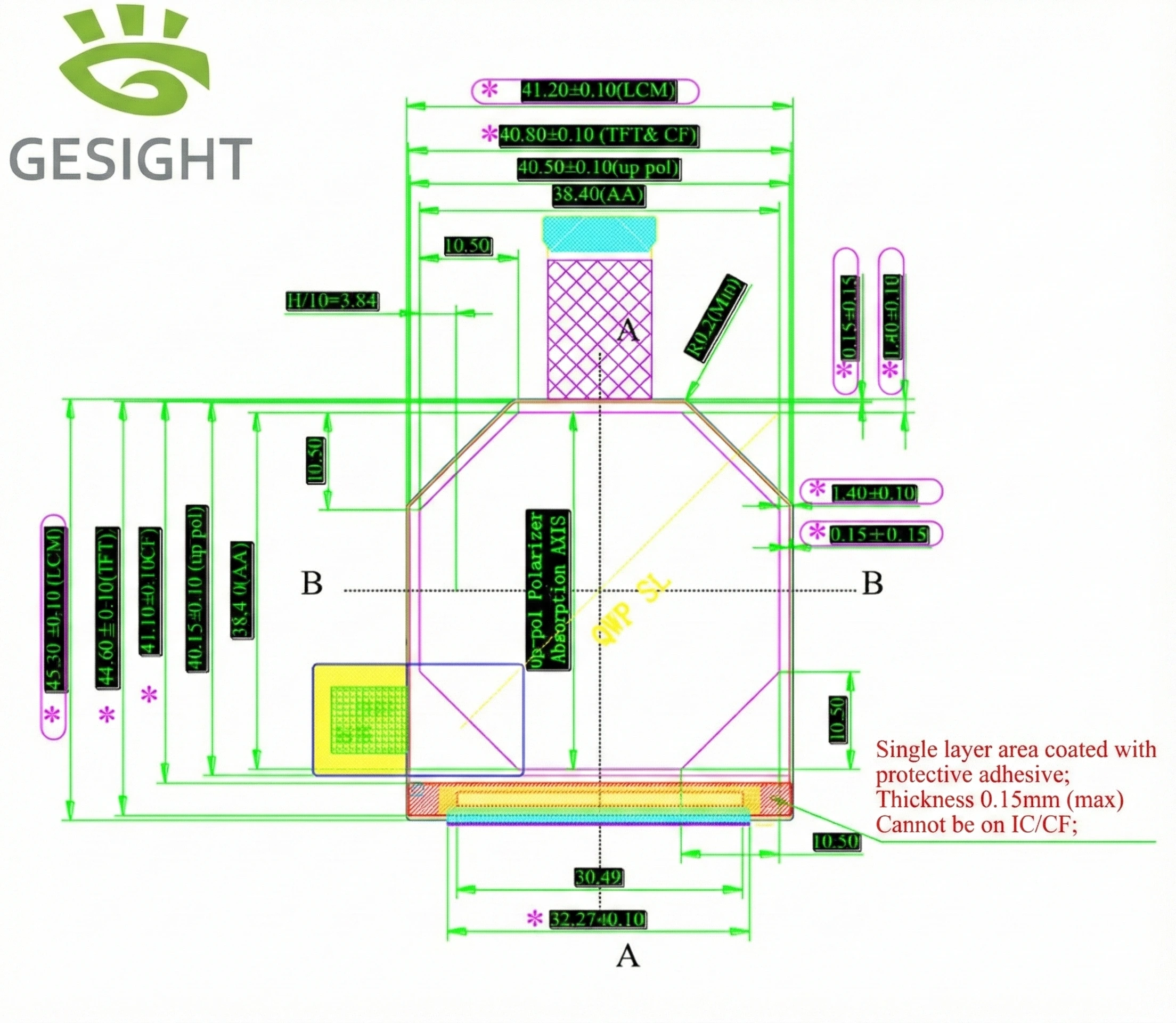

Annotated mechanical drawing of BOE VS021XRM-NW0-DKP0 2.1-inch square TFT-LCD showing outline dimensions, active area, and component layout.

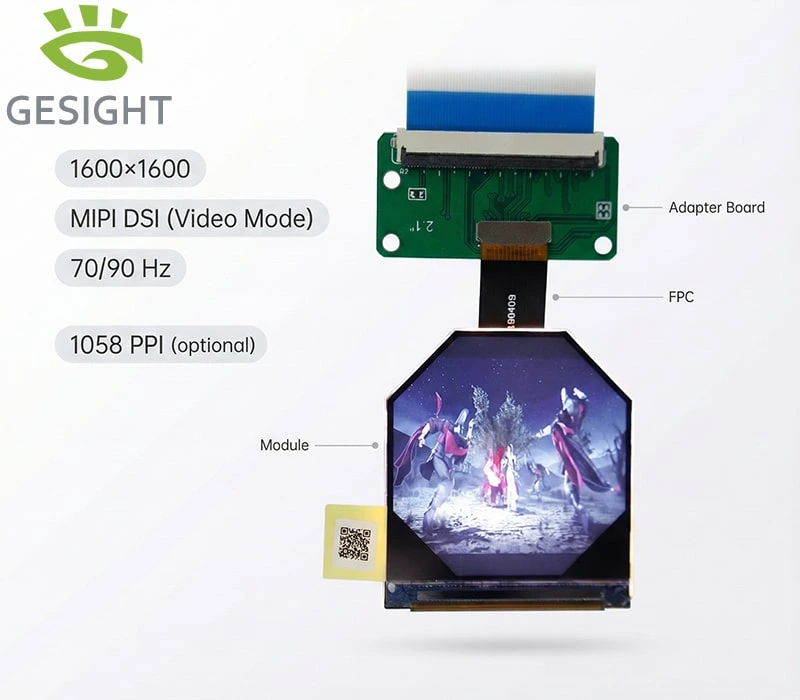

HDMI Controller Board (for VS021XRM-NW0-DKP0)

Gesight can provide a HDMI Controller board for the VS021XRM-NW0-DKP0 2.1-inch square TFT-LCD module, enabling you to quickly evaluate display performance in real-world scenarios. This demo kit is designed for efficient bring-up and verification, helping you validate key behaviors such as MIPI DSI (Video Mode) communication, 70/90 Hz refresh operation, and overall image stability during development.

Whether you are prototyping a new VR/AR near-eye device or validating an existing optical module design, our demo kit supports faster debugging and smoother integration—reducing the time from sample to system-level evaluation.

If you need an adapter board or customized integration support for this LCD module, feel free to contact us.

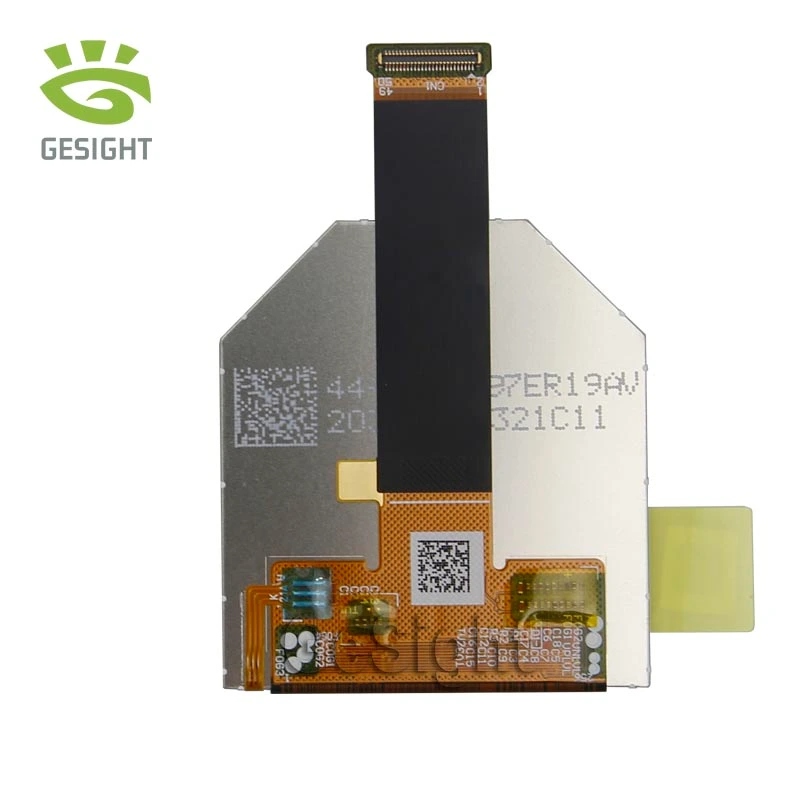

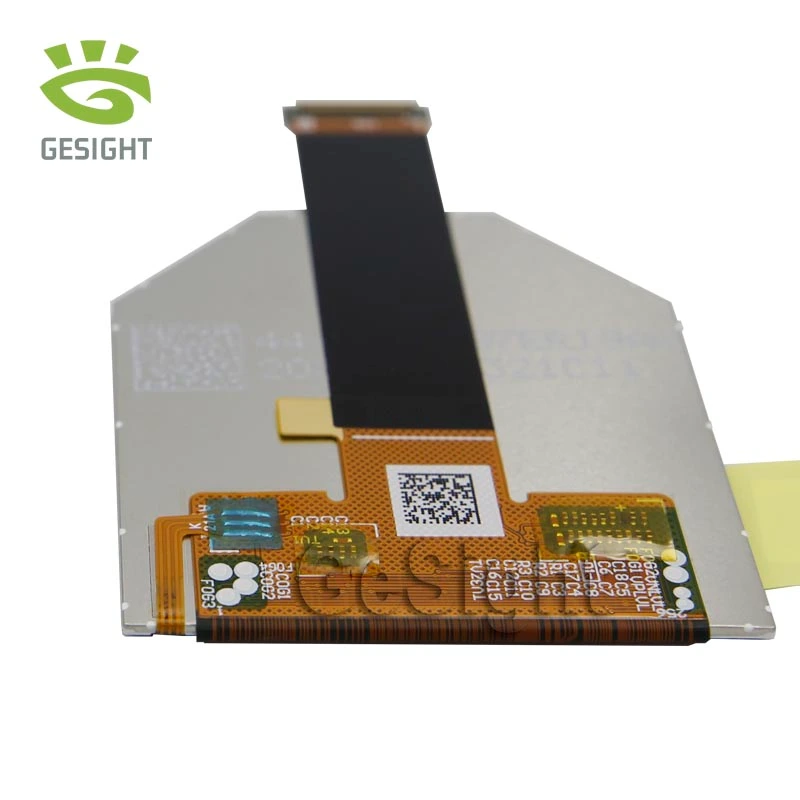

Interfaces of 2.1-Inch Square TFT-LCD Display Module (VS021XRM-NW0-DKP0)

LCD – 50-pin connector, MIPI DSI (Video Mode)

Backlight – LED+ / LED1- / LED2-, supports PWM dimming (BLUPWM)

Touch Panel – Can be customized produced by Gesight

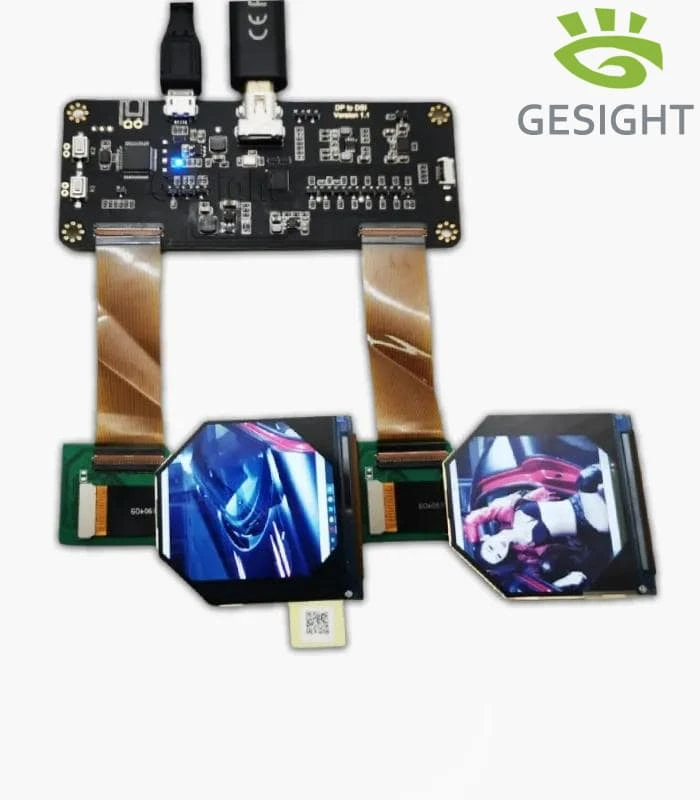

Dual BOE VS021XRM-NW0-DKP0 2.1-inch 1600×1600 square TFT-LCD modules connected to an evaluation board via FPC cables, showing active display output.

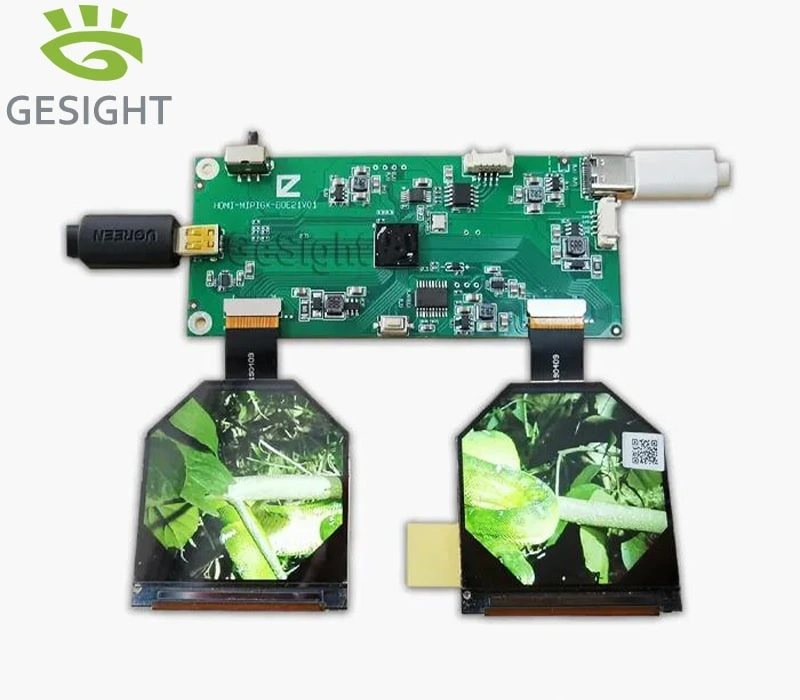

Dual Eyes HDMI controller For VR LCDs

Gesight’s Dual Eyes HDMI Controller for VR LCDs is designed to simplify dual-display bring-up and evaluation for VR/AR projects. The board converts HDMI video input to MIPI DSI, making it easy to drive VR-class LCD modules from common video sources.

It features a micro HDMI port for video signal input and a USB Type-C port for power, enabling quick setup on the bench or in prototype systems. With support for copy mode and split mode, the controller can output the same image to both displays or deliver a left/right view workflow depending on your development needs.

If your application requires a different board outline, connector placement, or mechanical constraints, Gesight can provide customized controller board services to better match your product design and integration requirements.

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

Specifications

Size	2.1inch
Pixels	1600(H) × 1600(V)
Interface	MIPI DSI
Brightness	Min 360 / Typ 450 cd/m²
Manufacturer	Geisght
Display Type	IPS LCD , TFT-LCD
Display Mode	Transmission mode, Normally Black
Color Depth	16.7 M (8-bit)
Refresh Rate	70 / 90 Hz
Viewing Angle Range	CR > 100: Left/Right 40°, Up/Down 40°
Outline LWH	41.2(H) × 45.3(V) × 1.66(T) mm
Active Area L*W	38.40 × 38.40 mm
Orientation	Landscape
Supply Voltage	VDDI: 1.7 / 1.8 / 1.9 V (Min/Typ/Max); AVDD: 5.7 / 6.0 / 6.3 V; AVEE: -6.3 / -6.0 / -5.7 V
Consumption	IVDDI: Typ 79.8 mA / Max 87.7 mA; IAVDD: Typ 8.7 mA / Max 12 mA; IAVEE: Typ -5.4 mA / Max -11 mA; Backlight Power PBL: Typ 468 mW (20% duty)
Operating Temperarure	−10~55°C
Storage Temperature	−40~70°C
Bezel Area (mm)	–
Aspect Ratio	1:1
Connection Type	Connector: Kyocera 145863050024829+
IC package	–
Pixel Pitch	8(H) × 24(V) μm
Sunlight Readable	–
Model	VS021XRM-NW0-DKP0
PPI ( pixels per inch )	1058

Pins Description

Pin	Name	Description
1	GND	Ground
2	NC	No Connection
3	PNSLV	Main port select (should be tied to Low)
4	VSP	Positive power
5	BLUPWM	Backlight duty control
6	NC	No Connection
7	TE	TE signal output
8	VSN	Negative power
9	RESET	DDIC reset signal
10	GND	Ground
11	GND	Ground
12	DSIB_D3_P	MIPI-DSI Data lane
13	DSIB_D0_P	MIPI-DSI Data lane
14	DSIB_D3_N	MIPI-DSI Data lane
15	DSIB_D0_N	MIPI-DSI Data lane
16	GND	Ground
17	GND	Ground
18	DSIB_CLK_P	MIPI-DSI Clock lane
19	DSIB_D1_P	MIPI-DSI Data lane
20	DSIB_CLK_N	MIPI-DSI Clock lane
21	DSIB_D1_N	MIPI-DSI Data lane
22	GND	Ground
23	GND	Ground
24	DSIB_D2_P	MIPI-DSI Data lane
25	DSIA_D2_N	MIPI-DSI Data lane
26	DSIB_D2_N	MIPI-DSI Data lane
27	DSIA_D2_P	MIPI-DSI Data lane
28	GND	Ground
29	GND	Ground
30	DSIA_D1_N	MIPI-DSI Data lane
31	DSIA_CLK_N	MIPI-DSI Clock lane
32	DSIA_D1_P	MIPI-DSI Data lane
33	DSIA_CLK_P	MIPI-DSI Clock lane
34	GND	Ground
35	GND	Ground
36	DSIA_D0_N	MIPI-DSI Data lane
37	DSIA_D3_N	MIPI-DSI Data lane
38	DSIA_D0_P	MIPI-DSI Data lane
39	DSIA_D3_P	MIPI-DSI Data lane
40	GND	Ground
41	GND	Ground
42	NC	No Connection
43	ID0	ID pin (low = 0)
44	LED+	LED positive power
45	ID1	ID pin (high = 1)
46	NC	No Connection
47	IOVCC1	Power for digital circuit
48	LED1-	LED negative power
49	IOVCC2	Power for digital circuit
50	LED2-	LED negative power

Electrical Characteristics

Electrical Characteristics (LCD Panel Electrical Specifications)

Condition: Ta = 25 ± 2 °C, Test pattern: All White

Item	Symbol	Min	Typ	Max	Unit	Notes
Logic voltage	VDDI	1.7	1.8	1.9	V
Positive analog supply	AVDD	5.7	6.0	6.3	V
Negative analog supply	AVEE	-6.3	-6.0	-5.7	V
Frame ratio	FPS	—	70/90	—	Hz
Input high level	VIH	0.7×VDDI	—	VDDI	V
Input low level	VIL	VSSI	—	0.3×VDDI	V
Output high level	VOH	0.8×VDDI	—	VDDI	V
Output low level	VOL	VSSI	—	0.2×VDDI	V
Current consumption (logic)	IVDDI	—	79.8	87.7	mA
Current consumption (AVDD)	IAVDD	—	8.7	12	mA	Note 2 in table
Current consumption (AVEE)	IAVEE	—	-5.4	-11	mA
Driver IC ESD (HBM)	—	—	2	—	kV	±2 kV shown
Driver IC ESD (MM)	—	-200	—	+200	V

Backlight Specifications (LED Driving Specifications)

Condition: Ta = 25 ± 2 °C; backlight power is based on 20% duty mode

Item	Symbol	Min	Typ	Max	Unit	Notes
Forward current	If	—	45 mA @ 20% duty	—	mA	Driving condition per LED chip
Forward voltage	Vf	—	6.5	—	V
Backlight power consumption	PBL	—	468	—	mW	Defined for backlight module; 20% duty basis
LED quantity	—	—	8	—	pcs

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
