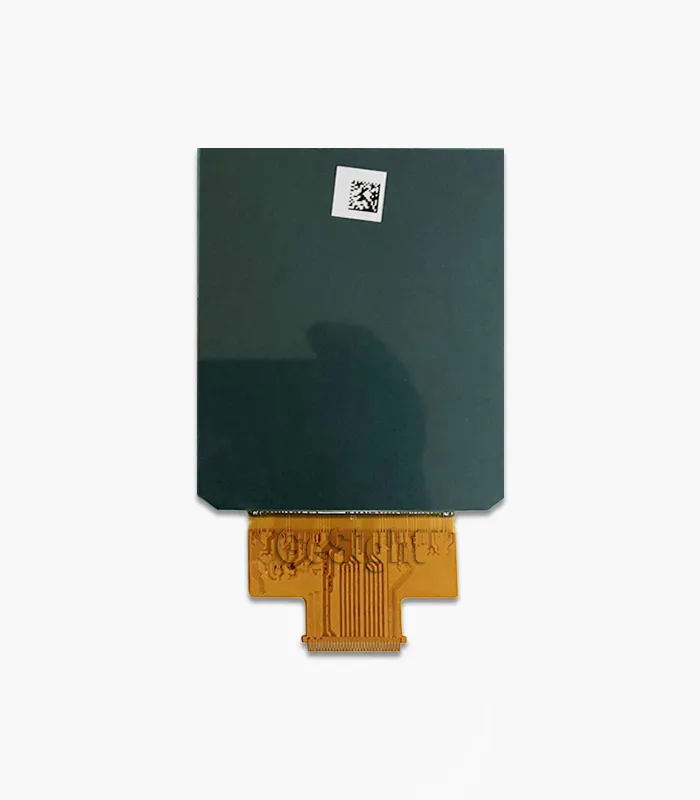

amoled panel front view
amoled panel back view flex cable
amoled panel with controller board
Click to enlarge
amoled panel front view
amoled panel back view flex cable
amoled panel with controller board

3.5-inch 1440×1600 AMOLED Microdisplay

Tags: , , , , , , ,

$124.57piece

Add to wishlist
Compare
13 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: AMS350MU04

The 3.5-inch AMOLED Display delivers sharp, high-clarity visuals for near-eye QHD HMD / VR systems in a slim, space-efficient module. With a 1440 × 1600 resolution, 16M colors, and an ultra-fine 615 PPI, it renders small UI text and fine graphics cleanly for immersive viewing. The panel reaches 166 cd/m² (typ.) brightness and supports a 90 Hz (typ.) refresh rate for smoother motion performance.

This module uses a MIPI DSI dual 8-lane (Video Mode) interface and supports VESA DSC 1/2 and 1/3, helping simplify high-bandwidth integration in compact VR designs. Its 100.91 × 62.472 × 0.846 mm outline and 66.0 × 59.4 mm active area make it easy to fit into tight mechanical stacks. Gesight supplies this display with the S6E3HA3 driver IC, a -30 to +70℃ operating range and -30 to +75℃ storage rating—and can provide it with a good price.

Application

QHD HMD VR | VR Headsets | Near-eye Display Modules | Compact Optical Engines | Simulation & Training Systems

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

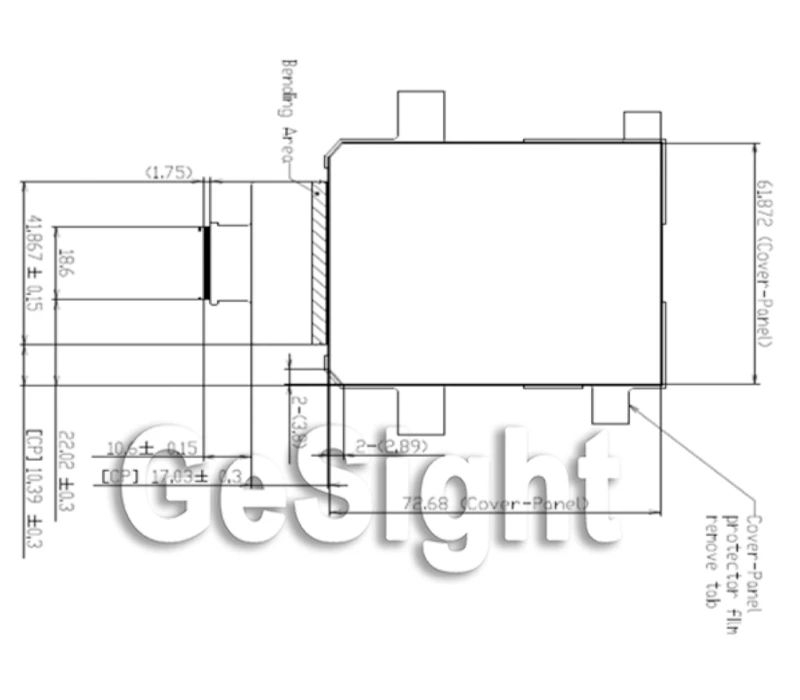

amoled outline drawing dimensions

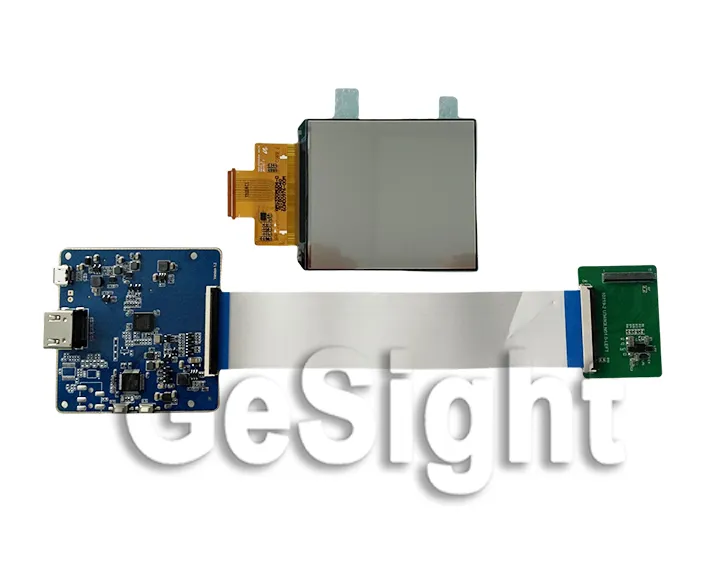

amoled demo kit hdmi board

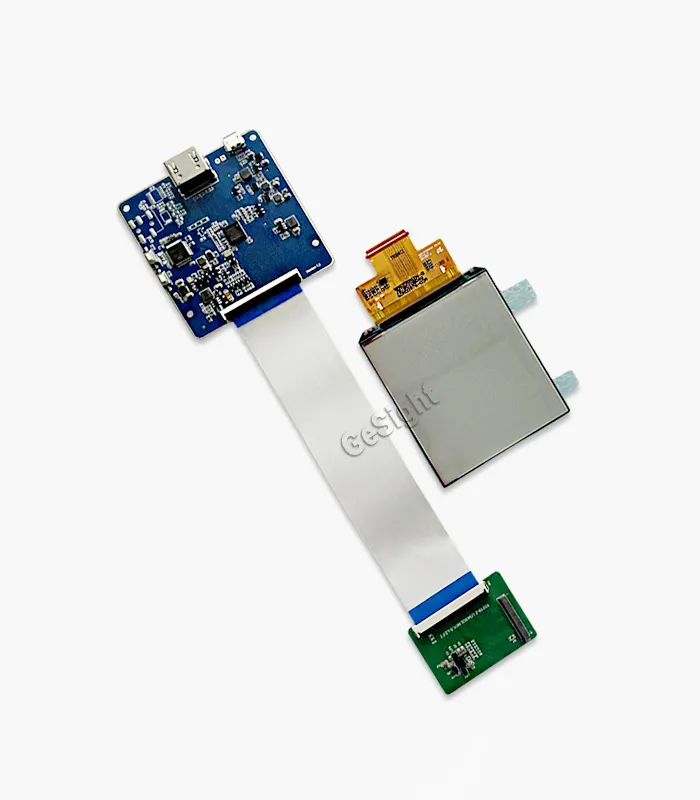

HDMI Controller Board Setup for AMS350MU04 Evaluation

A dedicated HDMI controller board setup makes it easy to bring up AMS350MU04 quickly and validate real-world display performance. By feeding stable HDMI video into the controller, you can confirm clean 1440×1600 mapping, check 90 Hz motion smoothness, and observe grayscale and color behavior under continuous playback—before committing to a full custom mainboard.

This evaluation path is ideal for rapid prototyping, helping teams verify MIPI DSI dual 8-lane video mode compatibility and streamline early-stage debugging. It’s also a practical way to build a repeatable test fixture for integration checks and demo preparation, reducing risk and iteration time during VR/HMD development.

Gesight provides an HDMI Board to support AMS350MU04 evaluation and can provide it with a good price.

Crisp QHD Visual Performance

AMS350MU04 is built for near-eye viewing, where every pixel matters. With 1440×1600 resolution packed into 3.5 inches, the panel reaches 615 PPI, so fine UI lines, small text, and detailed graphics stay sharp instead of looking soft or “pixelated” at short viewing distances. The AMOLED structure also delivers deep blacks and clean edge separation, which helps scenes look more dimensional and reduces the gray haze you often see on backlit panels.

For motion-heavy VR content, the display supports a 90 Hz (typ.) refresh rate to keep animation and camera movement looking more stable. Color and tonal transitions remain smooth under continuous playback thanks to 16M colors, making gradients, highlights, and shadow details more natural for immersive visuals.

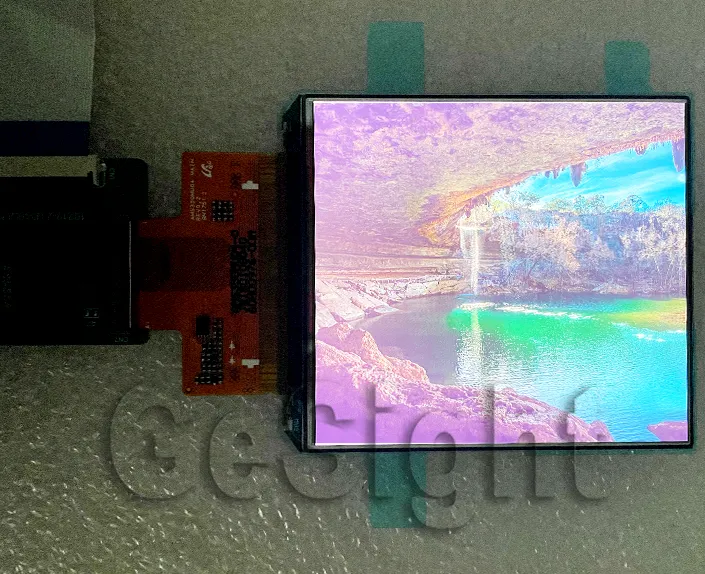

amoled display live demo

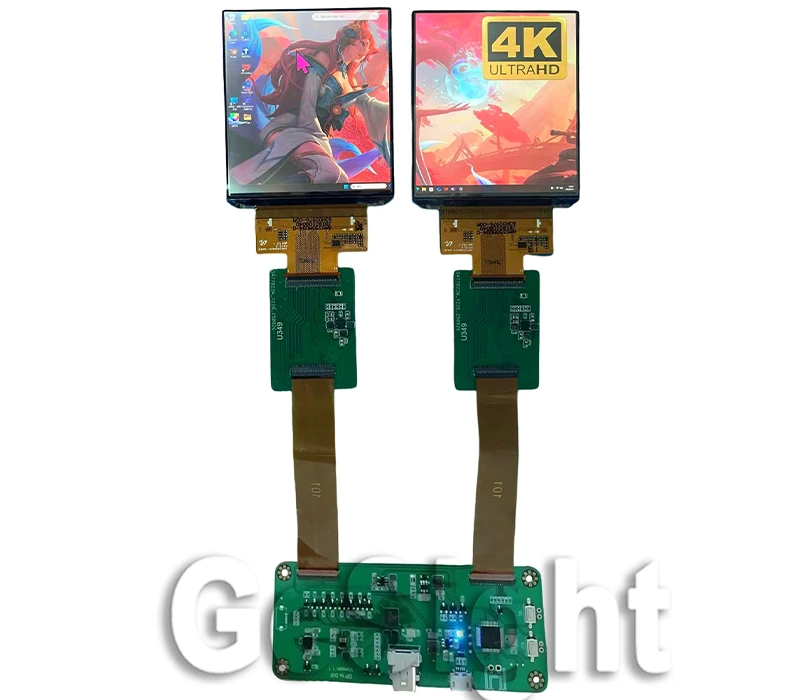

dual amoled display test image

Dual Screens HDMI Controller Board

For dual-display verification and side-by-side tuning, Gesight can provide a Dual Screens HDMI Controller Board setup to drive two AMS350MU04 panels from a single HDMI source. This makes it easy to validate synchronization, confirm stable 1440×1600 output on both screens, and run the same moving content simultaneously—ideal for checking motion behavior at 90 Hz and spotting any differences during long playback.

This dual-screen workflow is especially practical for VR/HMD development where left and right displays must behave consistently. It helps teams perform quick comparisons for uniformity, grayscale steps, and color balance, and it reduces trial-and-error when you move from lab testing to real integration. Gesight provides an HDMI Board to support AMS350MU04 evaluation and can provide it with a good price.

Specifications
Size

3.5 inch
Pixels

1440(H) × 1600(V)
Interface

Brightness

166 cd/m² typ (130 min, 200 max), White Mode
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

90 Hz (typ)
Viewing Angle Range

90° ± 30° (Up/Down/Left/Right)
Outline L*W*H

100.91(H) × 62.472(W) × 0.846(T) mm
Active Area L*W

66.0(H) × 59.4(W) mm
Orientation

Supply Voltage

VDD3: 1.8 V typ (1.65–1.95 V); VCI: 3.3 V typ (2.9–4.8 V); VBAT: 3.8 V typ; VLIN(AVDD): 7.3 V typ; ELVDD: 4.6 V typ; ELVSS: variable (-5.4 V to -1.4 V)
Consumption

IVCI: 3.0 mA typ (6.5 mA max); IVDD3: 40 mA typ (55 mA max); IBAT: 70 mA typ (85 mA max) @ 90 Hz, white pattern
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +75 °C
Bezel Area (mm)

–
Aspect Ratio

9:10 (1440:1600)
Connection Type

ZIF contact pads
IC package

–
Touch Panel

Pixel Pitch

41.25 µm × 41.25 µm
Sunlight Readable

–
Model

AMS350MU04
PPI ( pixels per inch )

615 PPI
Application

QHD HMD VR
Pins Description
Pin No. Pin Name Description I/O
1 GND Ground G
2 AVDD D-IC Power, Connect to DC-DC Output I
3 AVDD D-IC Power, Connect to DC-DC Output I
4 VCI D-IC Power I
5 VCI D-IC Power I
6 VDDIO D-IC Power I
7 VDDIO D-IC Power I
8 RESET_N Reset
9 GND Ground G
10 GND Ground G
11 DSI1D3N Differential Data 1_3N I/O
12 DSI1D3P Differential Data 1_3P I/O
13 GND Ground G
14 DSI1D0N Differential Data 1_0N I/O
15 DSI1D0P Differential Data 1_0P I/O
16 GND Ground G
17 DSI1CN Differential Clock 1_N I/O
18 DSI1CP Differential Clock 1_P I/O
19 GND Ground G
20 DSI1D1N Differential Data 1_1N I/O
21 DSI1D1P Differential Data 1_1P I/O
22 GND Ground G
23 DSI1D2N Differential Data 1_2N I/O
24 DSI1D2P Differential Data 1_2P I/O
25 GND Ground G
26 GND Ground G
27 DSI0D3N Differential Data 0_3N I/O
28 DSI0D3P Differential Data 0_3P I/O
29 GND Ground G
30 DSI0D0N Differential Data 0_0N I/O
31 DSI0D0P Differential Data 0_0P I/O
32 GND Ground G
33 DSI0CN Differential Clock 0_N I/O
34 DSI0CP Differential Clock 0_P I/O
35 GND Ground G
36 DSI0D1N Differential Data 0_1N I/O
37 DSI0D1P Differential Data 0_1P I/O
38 GND Ground G
39 DSI0D2N Differential Data 0_2N I/O
40 DSI0D2P Differential Data 0_2P I/O
41 GND Ground G
42 GND Ground G
43 F_CSN SDC internal use only, Leave it Open N
44 F_SCLK SDC internal use only, Leave it Open N
45 F_IO<0> SDC internal use only, Leave it Open N
46 F_IO<1> SDC internal use only, Leave it Open N
47 GND Ground G
48 ERR_FG Error Flag O
49 TE TE Signal O
50 REGCTRL EL Control O
51 AVDD_EN AVDD Cotrol O
52 VPP Connect to GND G
53 GND Ground G
54 ELVDD EL Power, Connect to DC-DC Output I
55 ELVDD EL Power, Connect to DC-DC Output I
56
57 N/C Leave it Open N
58 ELVSS EL Power, Connect to DC-DC Output I
59 ELVSS EL Power, Connect to DC-DC Output I
60
61 NC Leave it Open N



Electrical Characteristics

1) Electrical Characteristics (DC Characteristics)

Test Conditions: VDD3 = 1.8 V, VCI = 3.3 V, VSS = 0 V, VBAT = 3.8 V, Temp = 25℃ (unless otherwise specified).

Item Symbol Condition Min. Typ. Max. Unit Note
Logic Voltage VDD3 — 1.65 1.8 1.95 V —
Analog Voltage VCI — 2.9 3.3 4.8 V —
EL Driving ELVDD ±0.5% @ No load 4.577 4.6 4.623 V (1)(2)
EL Driving ELVSS ±30 mV @ No load -1.4 — -5.4 V (3)
Analog Voltage VLIN ±1% @ No load 7.227 7.3 7.373 V —
Logic Input “H” VIH — 0.7*VDD3 — VDD3 V —
Logic Input “L” VIL — 0.0 — 0.3*VDD3 V —
Logic Output “H” VOH IOH = -1 mA, IOL = +1 mA 0.8*VDD3 — VDD3 V —
Logic Output “L” VOL — 0.0 — 0.2*VDD3 V —
Current Consumption IVCI Frame frequency = 90 Hz, white pattern — 3.0 6.5 mA —
Current Consumption IVDD3 Frame frequency = 90 Hz, white pattern — 40 55 mA —
Current Consumption IBAT Frame frequency = 90 Hz, white pattern — 70 85 mA (2)
Frame Frequency fFRM — — 90 — Hz —



2) Back-light Specification Form

Backlight: Not applicable (AMOLED is self-emissive, no backlight unit).
