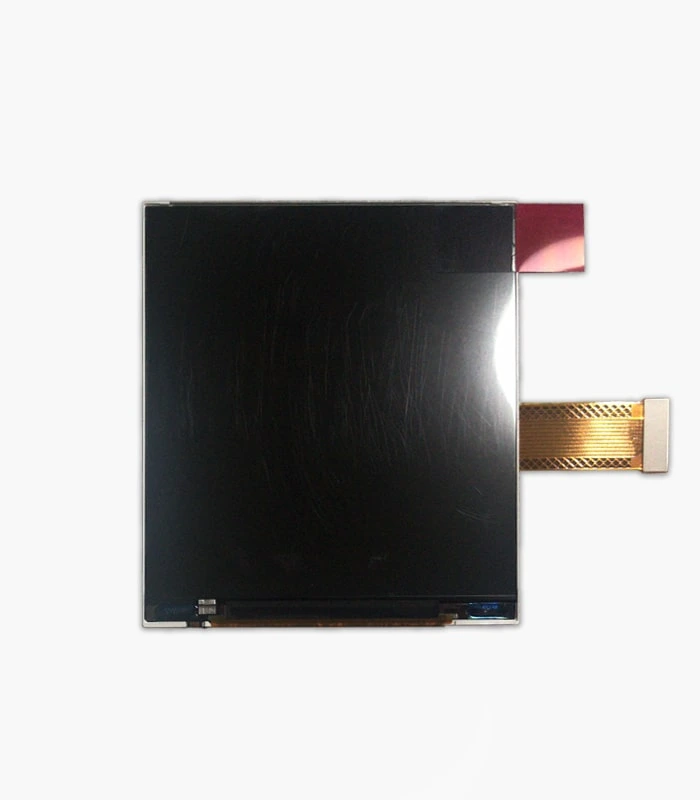

Front view of the BOL035VRM90 3.5-inch 1440×1600 TFT-LCD microdisplay module with FPC tail

Click to enlarge

3.5-inch TFT-LCD Display Module 1440×1600 MIPI DSI

Name: 3.5-inch TFT-LCD Display Module 1440×1600 MIPI DSI
SKU: 811566-1-1-1-6-1-1-3
Availability: InStock

Tags: High Contrast Ratio, Slim Design, Ultra-High Resolution, Ultra-Thin Design, Vivid Colors, VR, Wide color gamut, Wide Temperature

$48.24piece

Add to wishlist

Compare

10 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: BOL035VRM90

The 3.5-inch TFT-LCD microdisplay delivers ultra-sharp visuals with a 1440×1600 (RGB) resolution and 16.7M colors, making it a strong choice for high-detail near-eye systems. With a MIPI DSI (Video Mode) interface and a 90 Hz frame rate, it supports smoother motion rendering for immersive viewing experiences. The panel operates in transmissive, normally black mode and offers a wide viewing angle (CR>10: 70°/70°/70°/70°) for consistent visibility. Featuring a slim 62.2 × 73.6 × 1.7 mm outline and a 59.4 × 66.0 mm active area, this module is built for compact optical and headset integration. It integrates the NT57860 driver IC and uses a 50-pin board connector for reliable system connection.

Application

VR Headsets | AR Glasses | Near-eye Displays | Optical Modules | Immersive HMI

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

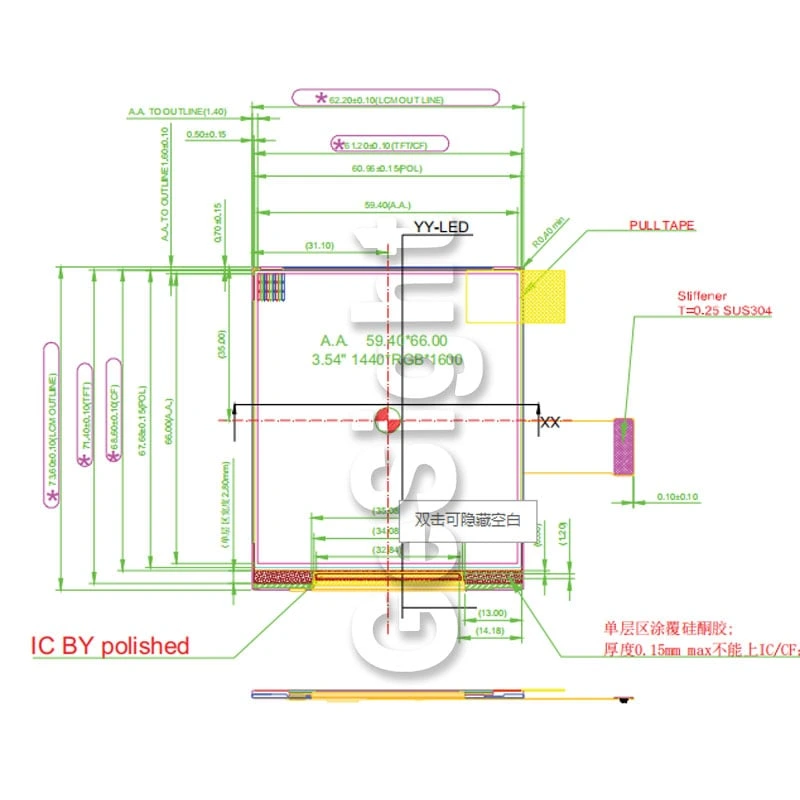

Mechanical drawing of the BOL035VRM90 3.5-inch 1440×1600 TFT-LCD microdisplay with outline and active area dimensions

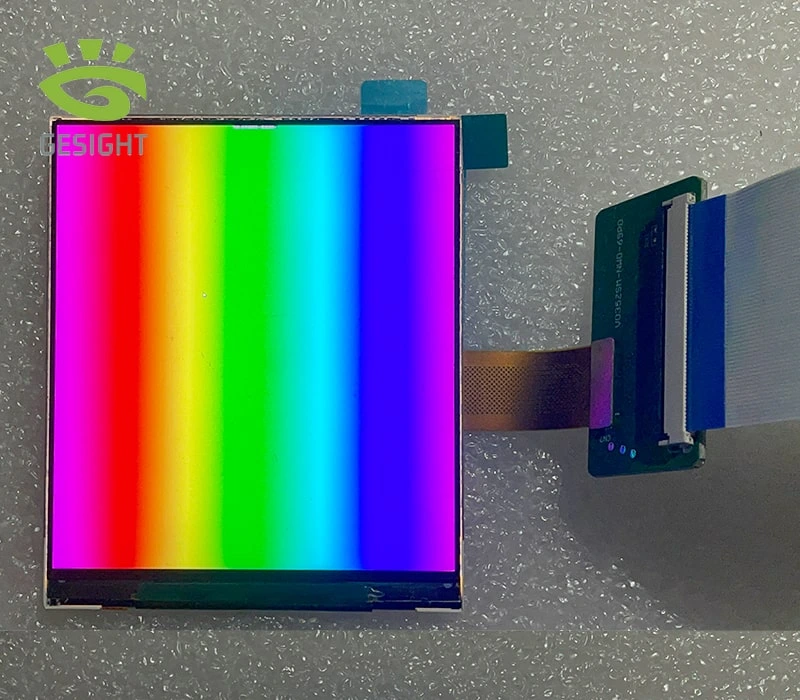

BOL035VRM90 3.5-inch 1440×1600 TFT-LCD microdisplay showing a rainbow color bar test pattern on a demo setup

Vivid Color Reproduction for Immersive Visuals

Built for near-eye viewing, the BOL035VRM90 delivers clean, well-separated hues and smooth transitions across the color spectrum—ideal for VR/AR scenes where subtle shading matters. With 16.7M colors (8-bit) and an ultra-fine 615 PPI, it keeps gradients consistent while preserving razor-sharp detail for text, UI elements, and high-frequency textures. Its normally-black architecture helps maintain deeper blacks and stronger perceived contrast, so colors appear more saturated and “pop” naturally in optical modules. Driven through MIPI DSI at a 90 Hz frame rate, it also supports smoother motion presentation, keeping color-rich content stable and comfortable during head movement

HDMI Driver Board Support for Fast Integration

To simplify evaluation and shorten development cycles, Gesight provides an HDMI driver board option for the BOL035VRM90, enabling quick video input from common sources without building a custom MIPI pipeline first. This setup is ideal for lab testing, optical alignment, and early-stage VR/AR prototype bring-up—letting you verify image quality, timing stability, and panel behavior in a straightforward, plug-and-play workflow. Optional interface accessories can be supplied to match different test environments, helping teams move from concept validation to system integration with less hardware overhead.

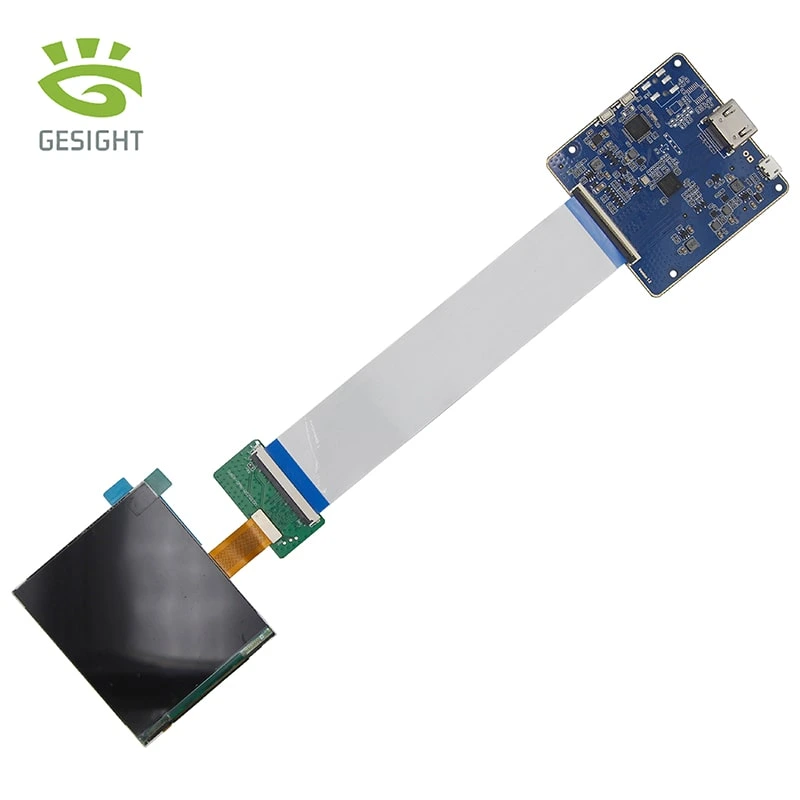

BOL035VRM90 full connection kit showing the 3.5-inch 1440×1600 MIPI DSI display linked to a controller board via ribbon cable

Specifications

Size	3.5 inch
Pixels	1440RGB×1600
Interface	MIPI DSI
Brightness	Min 160 / Typ 200 cd/m²
Manufacturer	Gesight
Display Type	TFT-LCD
Display Mode	Transmission mode, Normally black
Color Depth	16.7 M (8-bit)
Refresh Rate	Typ 90 Hz
Viewing Angle Range	Left 70° / Right 70° / Up 70° / Down 70°
Outline LWH	62.2(H) × 73.6(V) × 1.7(T) mm
Active Area L*W	59.4(H) × 66.0(V) mm
Supply Voltage	VDDI：1.7–1.9 V（Typ 1.8）/ AVDD：5.4–6.0 V（Typ 5.7）/ AVEE：-6.0–-5.4 V（Typ -5.7）
Consumption	LCD panel current：IVDDI / IAVDD / IAVEE = TBD；Backlight power：Typ 480 mW（10% duty）
Operating Temperarure	-10 ~ 55 ℃
Storage Temperature	-40 ~ 70 ℃
Bezel Area (mm)	–
Aspect Ratio	1440:1600 = 9:10
Connection Type	Electronics interface connector：Kyocera 145863050024829+（50-pin）
IC package	–
Touch Panel	Need to make
Orientation	Landscape
Pixel Pitch	13.75(H) × 41.25(V) μm
Sunlight Readable	–
Model	BOL035VRM90
PPI ( pixels per inch )	615 ppi
Application	Virtual Reality Device；Augmented Reality Device

Pins Description

Pin No.	Symbol	Description
1	GND1	Ground
2	IOVDD	1.8V
3	VSP	5.7V
4	IOVDD	1.8V
5	GND	Ground
6	ID0	GND
7	VSN	-5.7V
8	ID1	IOVDD
9	GND	Ground
10	GND	Ground
11	DSI_D0N_A	MIPI DSI port A data 0_N
12	DSI_D3N_A	MIPI DSI port A data 3_N
13	DSI_D0P_A	MIPI DSI port A data 0_P
14	DSI_D3P_A	MIPI DSI port A data 3_P
15	GND	Ground
16	GND	Ground
17	DSI_D1N_A	MIPI DSI port A data 1_N
18	DSI_CLKN_A	MIPI DSI port A clock_N
19	DSI_D1P_A	MIPI DSI port A data 1_P
20	DSI_CLKP_A	MIPI DSI port A clock_P
21	GND	Ground
22	GND	Ground
23	DSI_D2P_B	MIPI DSI port B data 2_P
24	DSI_D2N_A	MIPI DSI port A data 2_N
25	DSI_D2N_B	MIPI DSI port B data 2_N
26	DSI_D2P_A	MIPI DSI port A data 2_P
27	GND	Ground
28	GND	Ground
29	DSI_CLKP_B	MIPI DSI port B clock_P
30	DSI_D1P_B	MIPI DSI port B data 1_P
31	DSI_CLKN_B	MIPI DSI port B clock_N
32	DSI_D1N_B	MIPI DSI port B data 1_N
33	GND	Ground
34	GND	Ground
35	DSI_D3P_B	MIPI DSI port B data 3_P
36	DSI_D0P_B	MIPI DSI port B data 0_P
37	DSI_D3N_B	MIPI DSI port B data 3_N
38	DSI_D0N_B	MIPI DSI port B data 0_N
39	GND	Ground
40	GND	Ground
41	LED+	LED anode
42	RESET	LCD reset signal (low active)
43	GND	Ground
44	TE	Tearing effect output pin
45	LED1-	LED cathode 1
46	GND	Ground
47	LED2-	LED cathode 2
48	LEDPWM	LED PWM signal pin
49	GND	Ground
50	GND	Ground

Electrical Characteristics

1) Electrical Characteristics (LCD Panel Electrical Specifications)

Condition: Ta = 25 ± 2 °C
Test Pattern: All White Display

Items	Symbol	Min.	Typ.	Max.	Unit	Remark
Logic voltage	VDDI	1.7	1.8	1.9	V	Note 1
Positive Analog Power Supply Voltage	AVDD	5.4	5.7	6.0	V
Negative Analog Power Supply Voltage	AVEE	-6.0	-5.7	-5.4	V
Frame Ratio	FPS	-	90	-	Hz
Input signal voltage (High level)	VIH	0.7×VDDI	-	VDDI	V
Input signal voltage (Low level)	VIL	VSSI	-	0.3×VDDI	V
Output signal voltage (High level)	VOH	0.8×VDDI	-	VDDI	V
Output signal voltage (Low level)	VOL	VSSI	-	0.2×VDDI	V
Current consumption	IVDDI	-	TBD	-	mA
Current consumption	IAVDD	-	TBD	-	mA	Note 2
Current consumption	IAVEE	-	TBD	-	mA
Driver IC ESD (HBM)	HBM	-	2	+2	kV
Driver IC ESD (MM)	MM	-	-200	+200	V

2) Backlight Specification (LED Driving Specifications)

Condition: Ta = 25 ± 2 °C
Notes:

Note 1: Driving condition is defined for each LED chip.
Note 2: B/L power consumption is defined for the backlight module; based on 10% on duty mode.

Items	Symbol	Min.	Typ.	Max.	Unit	Remark
Forward Current	If	-	74	-	mA	Note 1
Forward Voltage	Vf	-	6.5	-	V	Note 1
Power Consumption	PBL	-	480	-	mW	Note 2
LED Quantity	-	-	10	-	ea

See TFT-LCD Collection
