3.5-inch TFT-LCD Display Module 320×480 SPI

Name: 3.5-inch TFT-LCD Display Module 320×480 SPI
SKU: 811566-1-1-1-6-1-1
Availability: InStock

Tags: Slim Design, Sunlight readable, Vivid Colors

$15.00piece

Add to wishlist

Compare

17 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PL35014C30

The 3.5-inch TFT-LCD Display delivers reliable, practical visuals with a 320×480 (RGB) resolution and 262K colors, making it a solid choice for compact embedded interfaces. With a SPI 4-wire (SPI-4W) interface and a slim 54.56 × 82.84 × 2.15 mm outline, this module supports efficient integration in space-sensitive designs. It features the ST7796S driver IC and a 6-LED parallel backlight driven by constant current (If = 120 mA ±10%). A wide operating temperature range (-20 to +70°C) helps ensure stable performance in demanding environments.

Application

Embedded HMI | Industrial Control | Medical Devices | Instrumentation | Portable Terminals

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

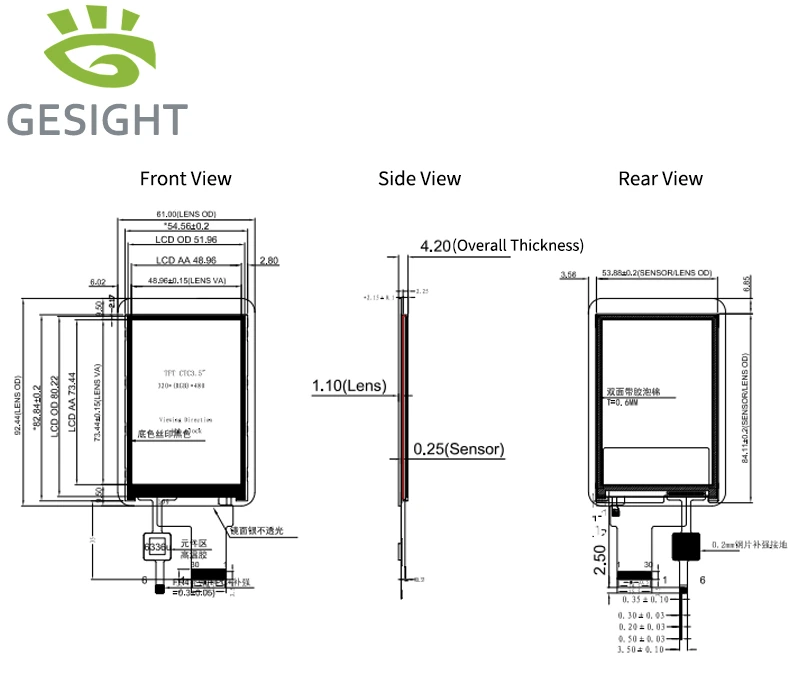

PL35014C30 mechanical drawing showing front and side views with outline and thickness dimensions

Capacitive Touch Support for PL35014C30 3.5" SPI TFT-LCD Integration

Gesight offers external capacitive touch (CTP) support for the PL35014C30 3.5-inch 320×480 SPI TFT-LCD module, enabling a more intuitive user interface for embedded products. The touch solution uses a dedicated CTP connection with 3.3V power, I²C (SCL/SDA) communication, and INT/RST signals, making it easy to integrate touch functionality into your system design.

For projects with specific mechanical or UI requirements, Gesight can support custom touch lens and cover design options and help align the touch interface with your enclosure layout and integration needs.

Gesight also provides a range of evaluation accessories to speed up prototyping and bring-up, including an HDMI controller board for quick plug-and-play testing, a mini video board for compact integration demos, and USB connectivity for phone-based display playback, making it easy to validate image output and overall system compatibility.

Specifications

Size	3.5inch
Pixels	320RGB × 480
Interface	SPI
Brightness	TBD（cd/m²）
Manufacturer	Gesight
Display Type	TFT-LCD
Display Mode	TFT / TRANSMISSIVE
Color Depth	262K colors (18-bit)
Refresh Rate	–
Viewing Angle Range	θl/θr/θu/θd=45°
Outline LWH	54.56(W) × 82.84(H) × 2.15(T) mm
Active Area L*W	48.96(W) × 73.44(H) mm
Supply Voltage	VDD：2.6 ~ 3.3 V（typ 2.8 V）
Consumption	TBD（mW)
Operating Temperarure	-20 ~ 70 ℃
Storage Temperature	-30 ~ 80 ℃
Bezel Area (mm)	Left/Right/Top/Bottom bezel: 2.80 / 2.80 / 4.70 / 4.70 mm
Aspect Ratio	320:480（=2:3，W:H）
Connection Type	FPC（30pin）
IC package	–
Touch Panel	External CTP
Orientation	Portrait
Pixel Pitch	0.051 × 0.153 mm
Sunlight Readable	–
Model	PL35014C30
PPI ( pixels per inch )	≈ 164.83 PPI
Application	–

Pins Description

Pin	Pin Name	Description
1	GND	Ground
2	LED-A	Backlight LED anode
3	NC	No connection
4	IOVCC	I/O logic power supply
5	NC	No connection
6	LEDK	Backlight LED cathode
7	NC	No connection
8	NC	No connection
9	NC	No connection
10	NC	No connection
11	NC	No connection
12	NC	No connection
13	SDA	SPI data (serial data)
14	SCL	SPI clock (serial clock)
15	NC	No connection
16	NC	No connection
17	IM0/NC	Interface mode select / NC
18	IM1/NC	Interface mode select / NC
19	CS	Chip select
20	RS	Register select (D/C)
21	RST	Reset
22	SD0	Serial data output (SDO)
23	NC	No connection
24	NC	No connection
25	NC	No connection
26	NC	No connection
27	VDD	Power supply (logic)
28	GND	Ground
29	NC	No connection
30	GND	Ground

Electrical Characteristics

Electrical Characteristics (TFT LCD Module DC Characteristics)

Note (from Interface section): “The voltage power of the interface logic pin depend on IOVCC and GND.”

Item	Symbol	Min	Typ	Max	Unit	Condition / Note
Supply voltage for logic	VDD	2.6	2.8	3.3	V	—
Input current	Idd	TBD	TBD	—	mA	—
Input voltage “H” level	VIH	0.7×VDD	—	VDD	V	—
Input voltage “L” level	VIL	VSS	—	0.3×VDD	V	—
Output voltage “H” level	VOH	0.8×VDD	—	VDD	V	—
Output voltage “L” level	VOL	VSS	—	0.2×VDD	V	—

Backlight Specification

Using condition: Constant current driving method If = 120 mA (±10%).

Item	Symbol	Min	Typ	Max	Unit	Condition / Note
Forward voltage	Vf	3.0	3.2	3.4	V	If = 120 mA
Number of LED	—	—	6	—	Piece	—
Connection mode	P	—	Parallel	—	—	—

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
