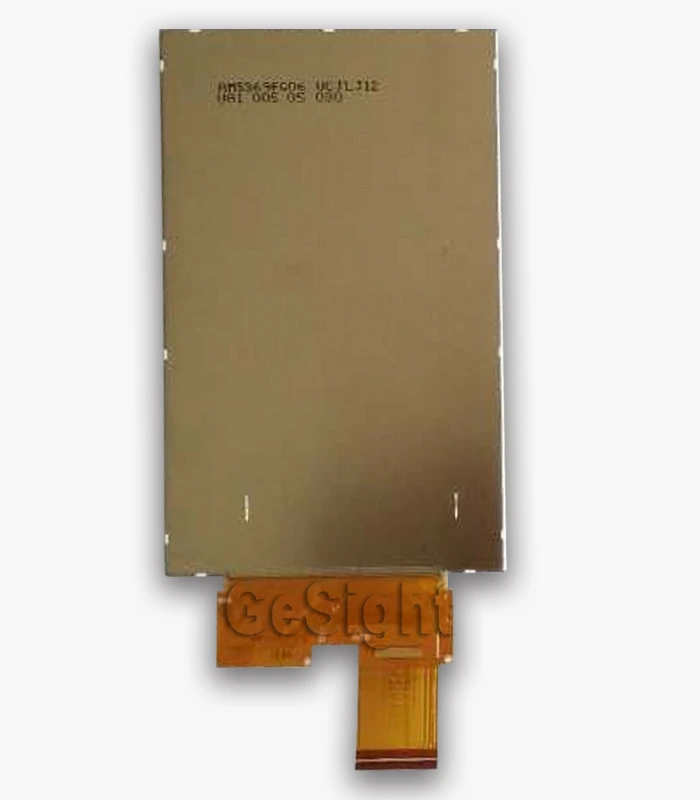

AMOLED display back metal shield

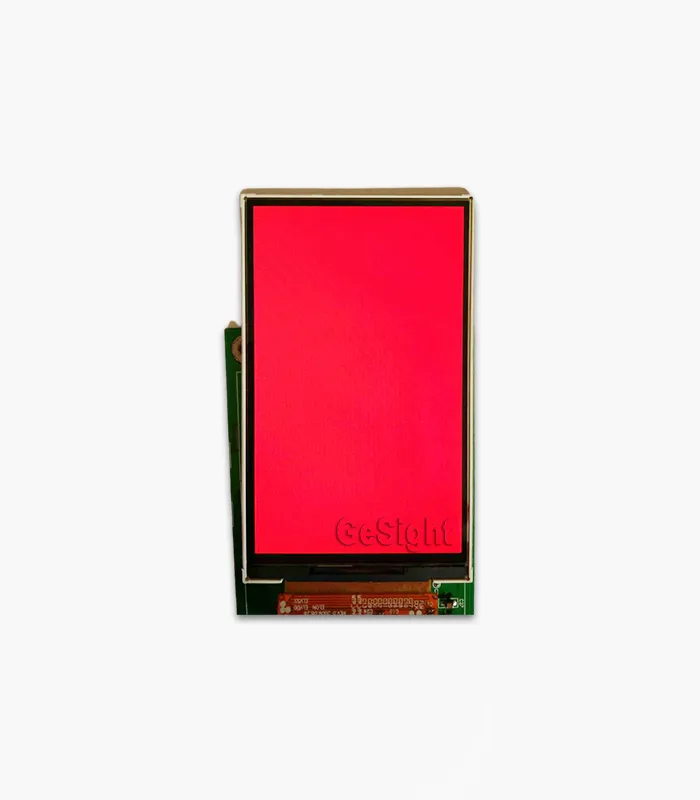

AMOLED display front view red screen
AMOLED display demo board landscape view
Click to enlarge
3.7-inch 480×800 AMOLED display module front view with scenic image
AMOLED display front view black screen
AMOLED display back metal shield
AMOLED display front view red screen
AMOLED display demo board landscape view

3.7-inch 480×800 AMOLED Display (RGB-24bit + 3-Wire SPI)

Tags: , , , , , ,

$48.60piece

Add to wishlist
Compare
10 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: AMS369FG06-0

The 3.7-inch AMOLED Display delivers vivid, high-contrast visuals in a slim, space-efficient module. With a 480 × 800 resolution and 16M colors (RGB-24bits), it renders UI text and icons cleanly while maintaining smooth color transitions. The panel reaches 250 cd/m² (typ.) brightness, making it a solid choice for compact products that prioritize color quality and a modern display look.

This module supports RGB 24-bit signaling and also provides a 3-wire SPI interface for control, giving you flexible integration options across different embedded platforms. Its 90.0 × 53.94 × 1.5 mm outline and 80.4 × 48.24 mm active area help it fit into tight mechanical stacks. Gesight supplies this display with the TL2796 driver IC, a -30 to +70℃ operating range and -30 to 85℃ storage rating—and can provide it with a good price.

Application

Compact Embedded Displays | Portable HMI | Handheld Instruments | Consumer Electronics

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

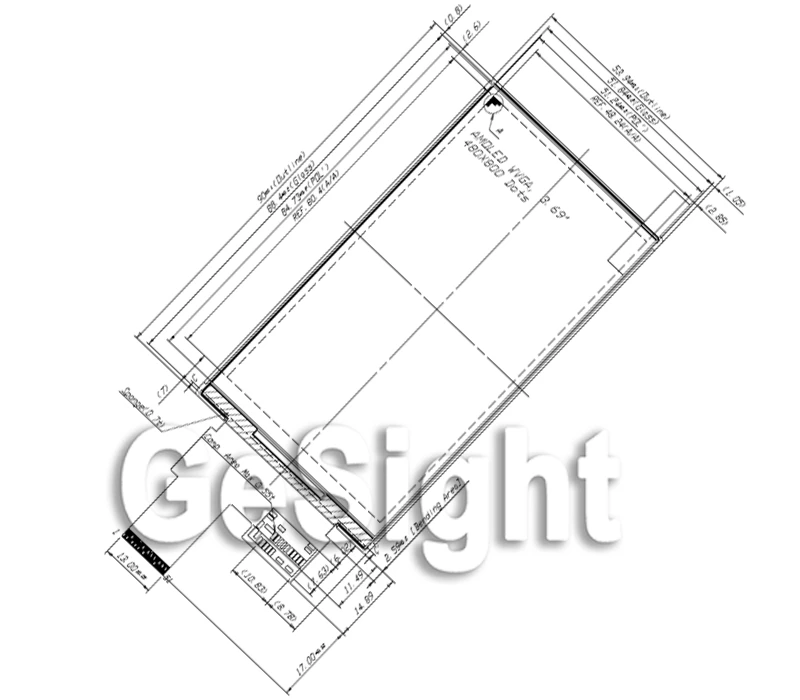

AMOLED mechanical drawing dimensions

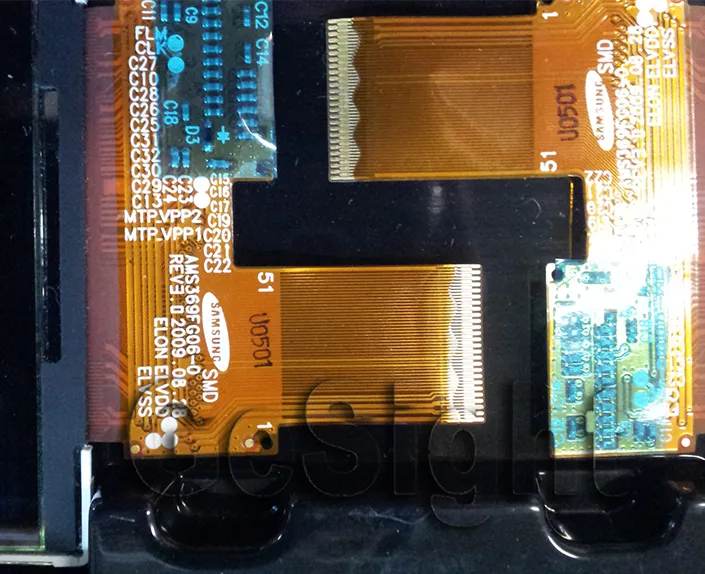

AMOLED FPC pin labels close-up

Stable FPC Pinout for Faster Bring-Up

For embedded projects, wiring mistakes cost the most time. The AMS369FG06-0 uses a clearly labeled FPC pinout that separates power rails (IOVCC / VCI / VBAT / GND) from RGB control signals (DOTCLK / HSYNC / VSYNC / ENABLE) and SPI lines (CSB / SCL / SDI / SDO / RESETB), so your team can route, debug, and validate the connection faster. It also includes ELON for DC-DC enable and reserved MTP_VPP pins for programming modes, helping you avoid accidental misconfiguration during early prototype testing.

Ready for Demo & Rapid Prototyping

Pairing the 3.7-inch AMOLED with a demo/evaluation board makes early-stage testing much easier. You can verify color performance, gradient smoothness, and UI clarity right away, then move to firmware tuning and interface validation without building custom hardware from day one. The breakout-style board also gives you more room for routing and probing, which is especially helpful when bringing up RGB 24-bit + SPI control in a new embedded platform.

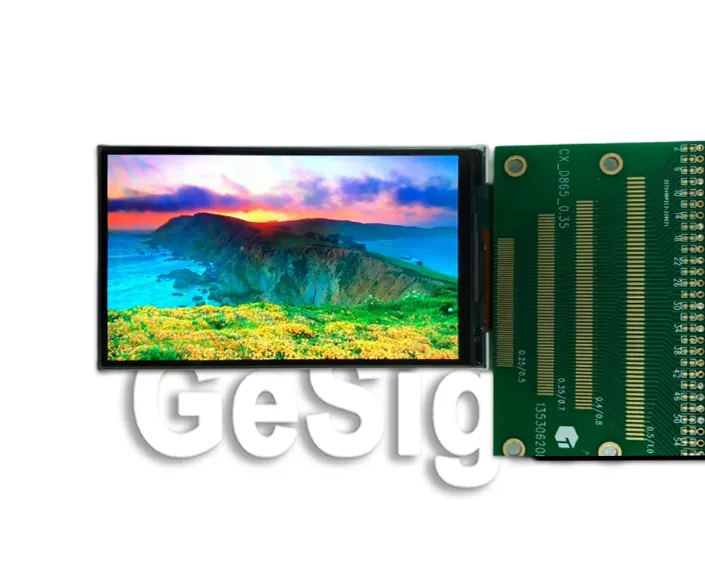

AMOLED demo board close-up
Specifications
Size

3.69 inch
Pixels

480 × 800
Interface

,

Brightness

250 cd/m² (Typ.), 200 cd/m² (Min.), 300 cd/m² (Max.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

–
Viewing Angle Range

±30° (inspection tolerance)
Outline L*W*H

90.0 × 53.94 × 1.5 mm
Active Area L*W

80.4 × 48.24 mm
Orientation

Supply Voltage

IOVCC: 1.65–3.3 V (Typ. 1.8 V); VCI: 2.5–3.3 V (Typ. 2.9 V); VBAT: 2.5–4.5 V (Typ. 3.8 V)
Consumption

IBAT: 320 mA (Typ.), 380 mA (Max.) @ 250 cd/m², full white, VBAT=3.8 V
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +85 °C
Bezel Area (mm)

Left/Right: 2.85 mm; Top/Bottom: 4.80 mm (calculated from outline vs active area)
Aspect Ratio

3:5
Connection Type

–
IC package

–
Touch Panel

Pixel Pitch

0.1005 × 0.1005 mm
Sunlight Readable

–
Model

AMS369FG06-0
PPI ( pixels per inch )

253 PPI
Application

–
Pins Description
No. I/O Symbol Function
1 Power GND Ground Terminal
2 Power GND Ground Terminal
3 Power ELVSS Power for LTPS
4 Power ELVSS Power for LTPS
5 - NC -
6 Power ELVDD Power for LTPS
7 Power ELVDD Power for LTPS
8 - NC -
9 Logic I/O Power VDDI(IOVCC) Data I/O power supply
10 Analog Power VCI Internal power for RAM
11 O ELON DC DC IC Enable
12 I CSB Chip select signal input (Low Active)
13 - SCL Serial data transfer clock input pin
14 I SDI Serial data input pin
15 I SDO Serial data output pin
16 I ENABLE Data enable signal pin for RGB I/F
17 I VSYNC Vertical sync signal of the RGB I/F
18 I HSYNC Horizontal sync signal of the RGB I/F
19 Power GND Ground Terminal
20 I DOTCLK Dot clock signal of the RGB I/F
21 Power GND Ground Terminal
22 I/O D23 Unidirectional Data Bus
23 I/O D22 Unidirectional Data Bus
24 I/O D21 Unidirectional Data Bus
25 I/O D20 Unidirectional Data Bus
26 I/O D19 Unidirectional Data Bus
27 I/O D18 Unidirectional Data Bus
28 I/O D17 Unidirectional Data Bus
29 I/O D16 Unidirectional Data Bus
30 I/O D15 Unidirectional Data Bus
31 I/O D14 Unidirectional Data Bus
32 I/O D13 Unidirectional Data Bus
33 I/O D12 Unidirectional Data Bus
34 I/O D11 Unidirectional Data Bus
35 I/O D10 Unidirectional Data Bus
36 I/O D9 Unidirectional Data Bus
37 I/O D8 Unidirectional Data Bus
38 I/O D7 Unidirectional Data Bus
39 I/O D6 Unidirectional Data Bus
40 I/O D5 Unidirectional Data Bus
41 I/O D4 Unidirectional Data Bus
42 I/O D3 Unidirectional Data Bus
43 I/O D2 Unidirectional Data Bus
44 I/O D1 Unidirectional Data Bus
45 I/O D0 Unidirectional Data Bus
46 I/O GND Ground Terminal
47 I RESETB Reset Signal (0: reset, 1: normal operation)
48 - MTP_VPP2 Connection to VCI when it is not EEPROM write program mode.
49 - MTP_VPP1 Connection to GND when it is not EEPROM write program mode.
50 - GND Ground Terminal
51 - GND Ground Terminal
Electrical Characteristics

1) Electrical Characteristics (AMS369FG06-0)

Test Conditions: IOVCC=2.8V, VCI=2.8V, Vbat=3.8V, VSS=0V, Tamb=25℃ (unless otherwise specified)

Item Symbol Condition Min. Typ. Max. Unit
Supply voltage (Logic) IOVCC - 1.65 1.8 3.3 V
Supply voltage VCI - 2.5 2.9 3.3 V
Supply voltage (Power) VBAT - 2.5 3.8 4.5 V
Input voltage “H” VIH - 0.8*IOVCC - IOVCC V
Input voltage “L” VIL - -0.2 - 0.2*IOVCC V
Output voltage “H” VOH IOH = -0.1mA, IOL = 0.1mA 0.8*IOVCC - IOVCC V
Output voltage “L” VOL - -0.2 - 0.2*IOVCC V
Leakage current (Input) ILI Vin=IOVCC or VSS -1.0 - 1.0 uA
Leakage current (Output) ILO - -3.0 - 3.0 uA
Supply current (EL Power, 250 cd/m², full white) IBAT VBAT=3.8V - 320 380 mA
Driver IC current consumption IOVCC IOVCC=VCI=2.8V - - 1 mA
Driver IC current consumption IVCI - - - 20 mA
Standby current Istby (VBAT=3.8V) IOVCC=VCI=2.8V - - 200 uA

2) Back-light Specification Form

Backlight Item Spec
Backlight Type Not applicable (AMOLED)
LED Color Not applicable
LED Configuration Not applicable
Forward Voltage (Vf) Not applicable
Forward Current (If) Not applicable
Backlight Power Consumption Not applicable
Backlight Lifetime Not applicable (panel lifetime is specified separately)
Dimming Method Not specified in datasheet
