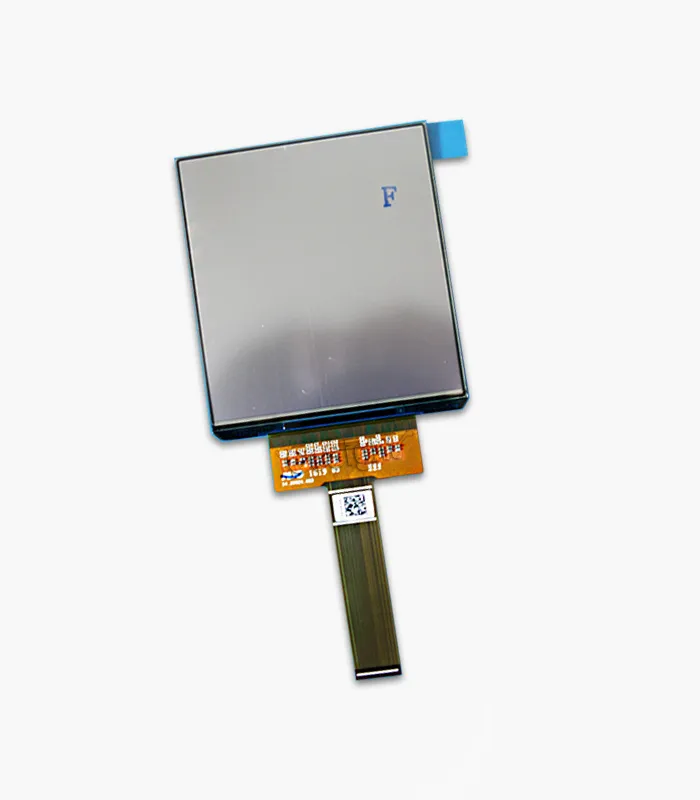

3.81 inch AMOLED display module back view, FPC connector

3.81-inch 1080×1200 90Hz AMOLED Display

Tags: , , , , , , , ,

$41.05piece

Add to wishlist
Compare
20 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: H381DLN01.0

The 3.81-inch AMOLED Display delivers sharp, high-contrast visuals in a slim, space-efficient module, featuring a 1080 × 1200 resolution and 16.7M colors (8-bit × RGB) for crisp UI rendering and smooth gradients. With 100 nits (typ.) brightness, it supports clear indoor viewing while keeping power under control for compact product designs.

The module uses a MIPI DSI (Video Mode) interface and adopts the Raydium RM69071 driver IC for straightforward integration in embedded platforms. Its 67.60 × 78.95 × 1.14 mm outline and 64.80 × 72.0 mm active area make it easy to fit into slim housings and space-limited assemblies. Gesight supplies this display with a 39-pin FPC connection (recommended Hirose FH35C-39S-0.3HW(50)), with a fixed -30 to +70℃ operating range and -40 to +80℃ storage rating—and can provide it with a good price.

Application

VR/AR Near-eye Devices | Compact Embedded Displays | Portable HMI | Evaluation & Prototype Systems

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

3.81 inch AMOLED outline drawing with active area dimensions
AMOLED display demo setup with controller board and dual screens

HDMI Controller Board (Optional)

For faster evaluation and plug-and-play demo, Gesight can provide an HDMI controller board tailored for H381DLN01.0. The board converts standard HDMI video input to MIPI DSI (Video Mode), letting you drive the panel directly from a PC, media player, or test platform without building a custom MIPI host first. It’s a practical way to verify resolution, refresh stability, and image tuning early in the project.

The HDMI board is ideal for rapid prototyping, lab validation, and demo builds, with stable power delivery and convenient connections for repeated bring-up. If you need a complete evaluation setup, we can also help match the cable/FPC connection and provide a ready-to-run configuration—and offer it with a good price.

Vivid Image Quality for Real-World Content

H381DLN01.0 brings AMOLED-level contrast and color richness to compact displays, making photos, UI elements, and video content look more dimensional and clean. Thanks to 16.7M colors (8-bit × RGB) and a fine pixel structure, it renders smooth gradients, crisp edges, and detailed textures—ideal for content where color nuance and clarity matter.

With a typical 90 Hz refresh rate, motion feels more fluid during scrolling and transitions, while wide viewing performance helps maintain consistent visibility when the module is viewed off-axis. This makes the panel a strong choice for demo kits, prototype validation, and immersive near-eye visuals where image impact is part of the experience.

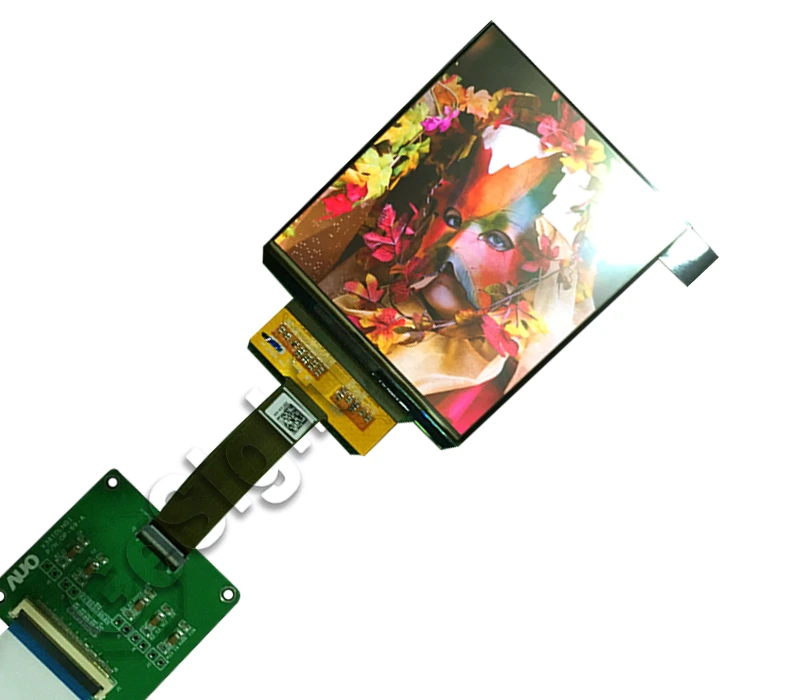

3.81 inch AMOLED display connected to controller board, live image
Specifications
Size

3.81 inch
Pixels

1080(H) × 1200(V)
Interface

Brightness

100 nits (Typ.), 80 nits (Min.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

90 Hz
Viewing Angle Range

Top/Bottom/Left/Right: 80 Deg. (CR > 480)
Outline L*W*H

67.60 (H) × 78.95 (V) × 1.14 (T) mm
Active Area L*W

64.80 (H) × 72.0 (V) mm
Orientation

Supply Voltage

IOVCC: 1.8 V (Typ., 1.65–1.95 V); VCI: 3.0 V (Typ., 2.8–3.2 V); OVDD: 4.6 V; OVSS: -2.9 V; AVDD: 5.8 V
Consumption

Normal mode current (Typ.): IAVDD 15 mA; IVCI 3 mA; IIOVCC 38 mA; IOVDD 16 mA; IOVSS 16 mA (Condition: 25℃, 100 nits White)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

Left/Right: 1.40 mm each; Top/Bottom: 3.48 mm each
Aspect Ratio

9:10
Connection Type

39-pin FPC connector (Recommended: Hirose FH35C-39S-0.3HW(50))
IC package

–
Touch Panel

Pixel Pitch

60 um
Sunlight Readable

–
Model

H381DLN01.0
PPI ( pixels per inch )

424 PPI
Application

–
Pins Description
Pin No. Pin Name I/O/P Description
1 OVSS P OLED Power
2 OVSS P OLED Power
3 OVSS P OLED Power
4 OVDD P OLED Power
5 OVDD P OLED Power
6 OVDD P OLED Power
7 GND G Ground
8 D2N I MIPI DSI data
9 D2P I MIPI DSI data
10 GND G Ground
11 D0N I/O MIPI DSI data
12 D0P I/O MIPI DSI data
13 GND G Ground
14 CLKN I MIPI DSI clock
15 CLKP I MIPI DSI clock
16 GND G Ground
17 D1N I MIPI DSI data
18 D1P I MIPI DSI data
19 GND G Ground
20 D3N I MIPI DSI data
21 D3P I MIPI DSI data
22 GND G Ground
23 TE O Tearing effect output signal
24 IOVCC P Display Driver Digital Power
25 VCI P Display Driver Analog Power
26 VCI P Display Driver Analog Power
27 RESX I This signal will reset the device and must be applied to properly initialize the chip. Signal is active low.
28 SWIRE O DC/DC power IC control signal, please connect to power IC CTRL pin
29 AVDD_EN O DC/DC power IC control signal, please connect to power IC EN pin
30 MTP P Leave this pin OPEN
31 GND G Ground
32 AVDD P Display Driver IC Source Analog Power
33 AVDD P Display Driver IC Source Analog Power
34 OVDD P OLED Power
35 OVDD P OLED Power
36 OVDD P OLED Power
37 OVSS P OLED Power
38 OVSS P OLED Power
39 OVSS P OLED Power



Electrical Characteristics

1) Electrical Characteristics (H381DLN01.0)

A. Power Supply

Item Symbol Min Typ Max Unit Note
I/O Power Supply IOVCC 1.65 1.80 1.95 V —
Analog Power Supply VCI 2.8 3.0 3.2 V —
OLED Power Supply OVDD — 4.6 — V —
OLED Power Supply OVSS — -2.9 — V —
Source Driver Analog Power AVDD — 5.8 — V —

B. Current Consumption (Normal Mode)

Item Symbol Typ Unit Condition
AVDD current IAVDD 15 mA 25℃, 100 nits White
VCI current IVCI 3 mA 25℃, 100 nits White
IOVCC current IIOVCC 38 mA 25℃, 100 nits White
OVDD current IOVDD 16 mA 25℃, 100 nits White
OVSS current IOVSS 16 mA 25℃, 100 nits White

2) Back-light Specification Form

Item Spec
Backlight Type Not applicable (AMOLED self-emissive, no backlight)
LED Color Not applicable
LED Forward Voltage Not applicable
LED Forward Current Not applicable
Luminance / Brightness 100 nits (Typ.), 80 nits (Min.)
Backlight Lifetime Not specified
