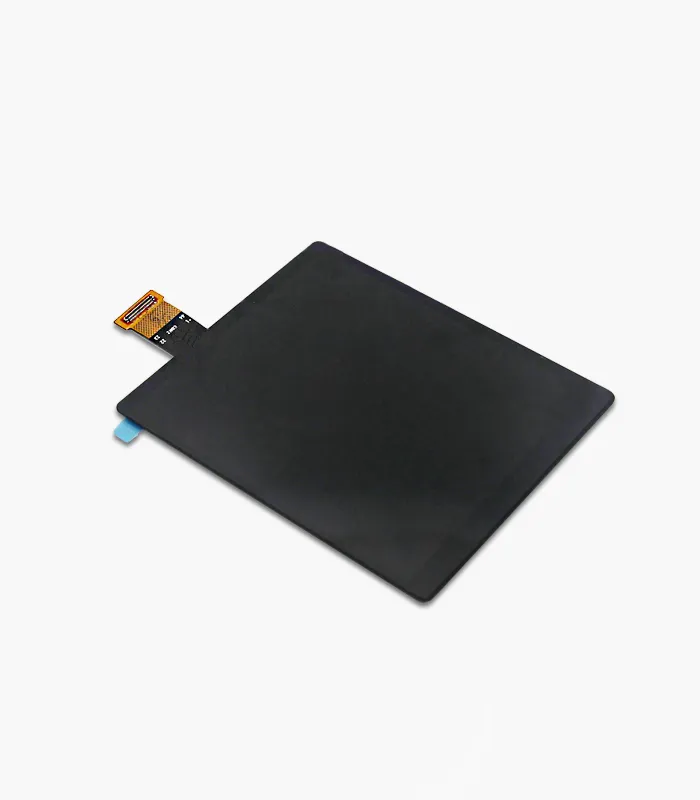

thin amoled panel, angled view, slim profile
Click to enlarge
amoled display module, front view, touch screen

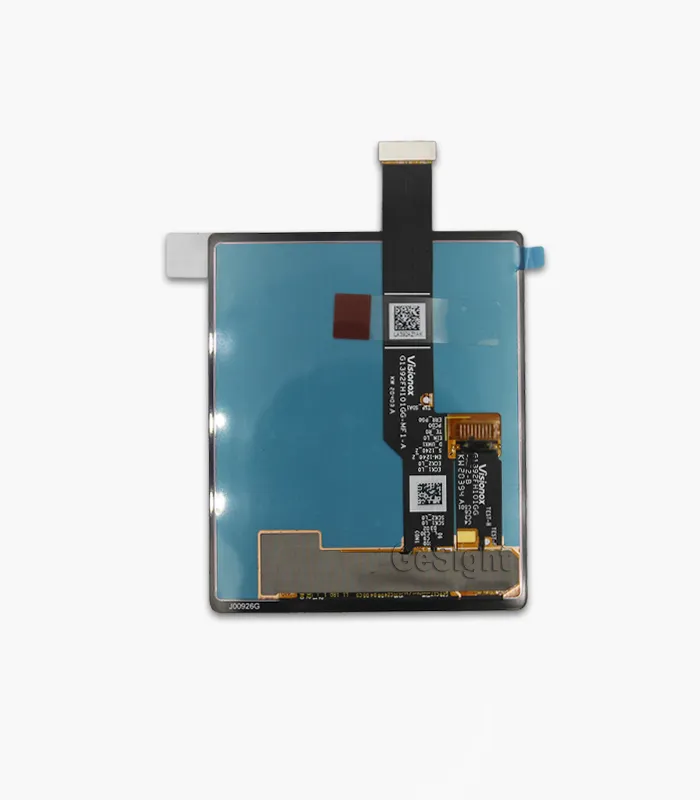

rear view, fpc cable, connector, module back
thin amoled panel, angled view, slim profile

3.92-inch 1080×1240 AMOLED Touch Display

Tags: , , , , , , ,

$67.95piece

Add to wishlist
Compare
20 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: VSX392A101GG

The 3.92-inch AMOLED Touch Display delivers crisp, high-contrast visuals in a slim, space-efficient module, featuring a 1080 × 1240 resolution and 16.7M colors for sharp UI rendering and smooth gradients. With 520 nits (typ, white) brightness and 600 nits (typ, HBM), it improves readability in brighter environments while keeping power and thickness under control.

The module uses a MIPI CMD Mode (4-lane) interface and adopts the RM692C9 driver IC, enabling straightforward integration for embedded systems and compact devices. Its 67.248 × 79.874 × 0.699 mm outline and 65.448 × 75.144 mm active area make it well-suited for thin enclosures. Gesight supplies this module with 10-point capacitive touch (I2C) and the SW42000 touch IC, with a fixed -30 to +70℃ operating range and -40 to +80℃ storage rating—and can provide it with a good price.

Application

Embedded HMI Displays | Handheld Devices | Industrial Instruments | Portable Terminals

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

mechanical drawing, outline dimensions, active area
hdmi demo, color image, display performance

Vivid AMOLED Picture Quality

VSX392A101GG delivers rich, punchy visuals with naturally deep blacks and clean highlights, making photos, maps, and UI elements look crisp and layered on a compact screen. The 1080×1240 resolution and 419 PPI help keep fine textures and small text sharp, while 16.7M colors support smooth gradients without obvious banding. With 85° wide viewing angles and up to 600 nits (HBM), the image stays clear and consistent even when viewed off-axis or under brighter ambient light—ideal for premium embedded interfaces and demo setups.

Grayscale Accuracy + HDMI Board Demo Support

In grayscale test mode, VSX392A101GG shows a clean, well-separated gray ramp—from deep dark tones to bright highlights—helping you verify gamma, uniformity, and shadow detail at a glance. The panel’s high pixel density keeps block edges sharp, making it easier to evaluate fine-level transitions and avoid “crushed blacks” or washed highlights during tuning.

For rapid evaluation and video input, Gesight can provide an HDMI controller board to drive the display for quick plug-and-play demos, bringing your prototype workflow from signal-in to on-screen validation much faster.

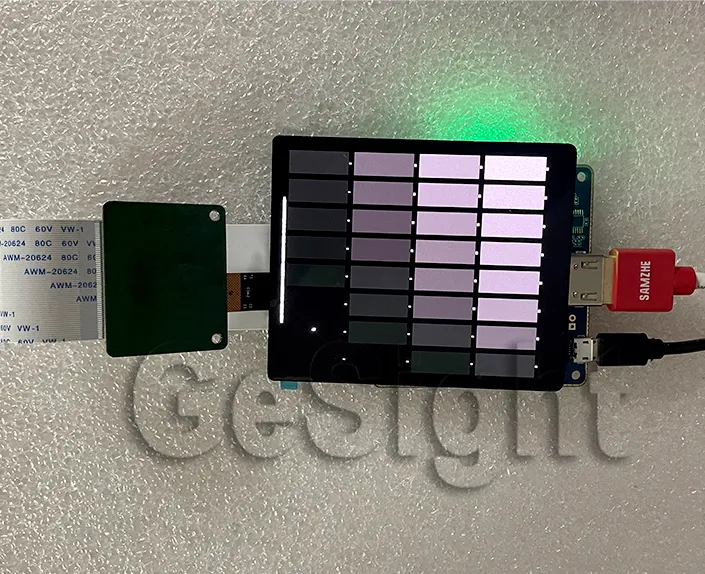

hdmi demo, grayscale test pattern, evaluation setup
Specifications
Size

3.92 inch
Pixels

1080(H) × 1240(V)
Interface

Brightness

520 cd/m² (typ, white); 600 cd/m² (typ, HBM)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz (typ) (Frame Frequency Ff: 57 / 60 / 63 Hz)
Viewing Angle Range

85°/85°/85°/85° (U/D/R/L)
Outline L*W*H

67.248 × 79.874 × 0.699 mm (W × H × T)
Active Area L*W

65.448 × 75.144 mm (W × H)
Orientation

Supply Voltage

VDDIO 1.8 V (typ); VCI 3.0 V (typ); AVDD 7.0 V; ELVDD 4.6 V; ELVSS -3.0 V; TP_DVDD 1.8 V (typ); TP_AVDD 3.3 V (typ)
Consumption

Total 1103.9 mW (typ), 1578.2 mW (max)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

W bezel total 1.800 mm (0.900 mm each side); H bezel total 4.730 mm (~2.365 mm top/bottom)
Aspect Ratio

27:31
Connection Type

BM23PF0.8-44DP-0.35V(43)
IC package

Driver IC: COG package; Touch IC: BGA116 (6×6×0.5 mm)
Touch Panel

Pixel Pitch

0.0606 × 0.0606 mm
Sunlight Readable

–
Model

VSX392A101GG
PPI ( pixels per inch )

419 PPI
Application

–
Pins Description
No. Symbol I/O Description
1 VCI P Power supply for display analog circuits
2 GND GND Ground
3 VDDIO P Power supply for interface system except MIPI interface
4 RSTX I Display reset. Active low.
5 TE O Sync Signal for preventing Tearing Effect
6 ERR_FG O Error status of MIPI’s HSDT
7 NC / NC
8 GND GND Ground
9 AVDD P Power supply for Analog system
10 GND GND Ground
11 ELVDD P Positive power supply for EL
12 ELVDD P Positive power supply for EL
13 ELVDD P Positive power supply for EL
14 GND GND Ground
15 ELVSS P Negative power supply for EL
16 ELVSS P Negative power supply for EL
17 ELVSS P Negative power supply for EL
18 GND GND Ground
19 TP_INT I Interrupt signal for TP
20 TP_RESET I Reset Pin for TP, Active low
21 TP_SDA I/O SDA pin for TP
22 TP_SCL I SCL pin for TP
23 GND GND Ground
24 VPP P Power supply for MTP Programming or Erase. If it is not used, please let it open
25 TP_1P8 P Digital Power for TP
26 TSP_AVDD P Analog Power for TP
27 GND GND Ground
28 D3N I MIPI data lane
29 D3P I MIPI data lane
30 GND O Control signal for power IC
31 D0N I MIPI data lane
32 D0P I MIPI data lane
33 GND GND Ground
34 CLKN I MIPI clock lane
35 CLKP I MIPI clock lane
36 GND GND Ground
37 D1N I MIPI data lane
38 D1P I MIPI data lane
39 GND GND Ground
40 D2N I MIPI data lane
41 D2P I MIPI data lane
42 GND GND Ground
43 VDDP_EN(OLED_EN) O Power IC enable control pin for AVDD
44 EL_ON2(SWIRE) O Power IC enable control pin for ELVDD/ELVSS
Electrical Characteristics

1) Electrical Characteristics (VSX392A101GG)

Item Symbol Min Typ Max Unit
Logic Power Supply VDDIO 1.65 1.8 1.95 V
Analog Power Supply VCI 2.5 3.0 3.6 V
Analog Power Supply AVDD — 7.0 — V
Supply Voltage ELVDD — 4.6 — V
Supply Voltage ELVSS — -3.0 — V
TP Power supply for logic circuits TP_DVDD 1.62 1.8 1.98 V
TP Power supply Input TP_AVDD 3.0 3.3 3.6 V
Frame Frequency Ff 57 60 63 Hz

Current Consumption (Ta = 25±5℃)

Item Symbol Min Typ Max Unit
Current Consumption IVDDIO — 38.6 56.1 mA
Current Consumption IVCI — 2.9 4.3 mA
Current Consumption IAVDD — 9.4 15.0 mA
Current Consumption IELVDD — 126.3 179.7 mA
Current Consumption IELVSS — 126.3 179.7 mA

Power Consumption (Measurement patterns: “Full white image”, “40% on image”, “AOD black image”)

Pattern PVDDIO (mW) PVCI (mW) PAVDD (mW) PELVDD (mW) PELVSS (mW) Total (mW)
Full white 69.5 (Typ) / 101.0 (Max) 8.7 / 12.9 65.8 / 105.0 581.0 / 820.2 378.9 / 539.1 1103.9 / 1578.2
40% on 79.2 (Typ) 10.2 105.7 164.7 252.6 612.2
AOD black 67.2 (Typ) 10.2 61.6 — — 139.0

2) Back-light Specification Form

Item Spec
Backlight Type N/A (AMOLED, no backlight)
LED Color N/A
LED Arrangement / Quantity N/A
Forward Voltage (Vf) N/A
Forward Current (If) N/A
Backlight Power Consumption N/A
Dimming N/A (Brightness controlled by OLED driving)
