3.16-inch TFT-LCD Display Module 820×320 Parallel RGB
$1.90piece
15
People watching this product now!
Quick Shipping
1-2 days after payment
Sturdy packaging
Never Damage in Ship
24/7 Support
Unlimited help desk
5-7 days Delivery
DHL/Fedex/UPS
Get Your Exclusive Quotation
Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.
Description
Model: PL0316IV0-SV1-RGB

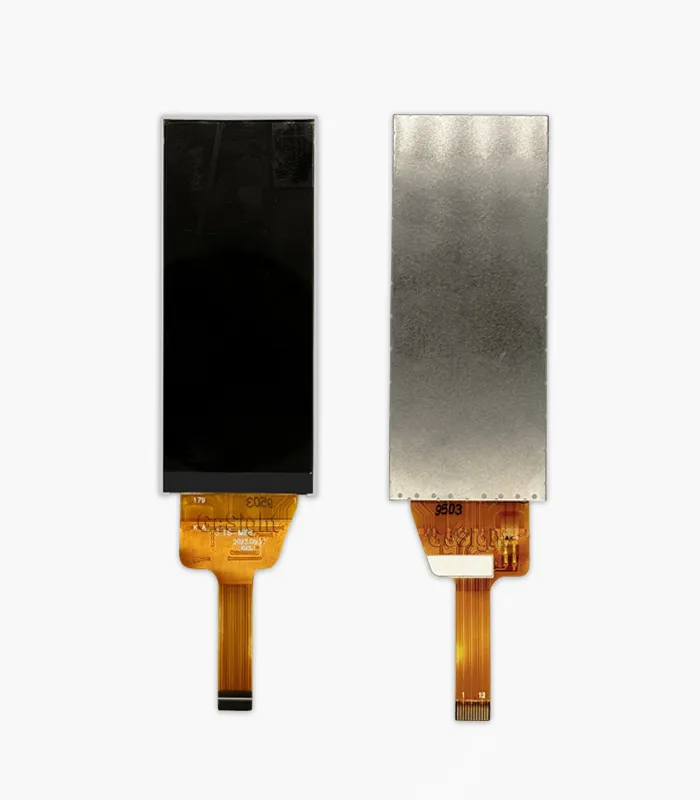

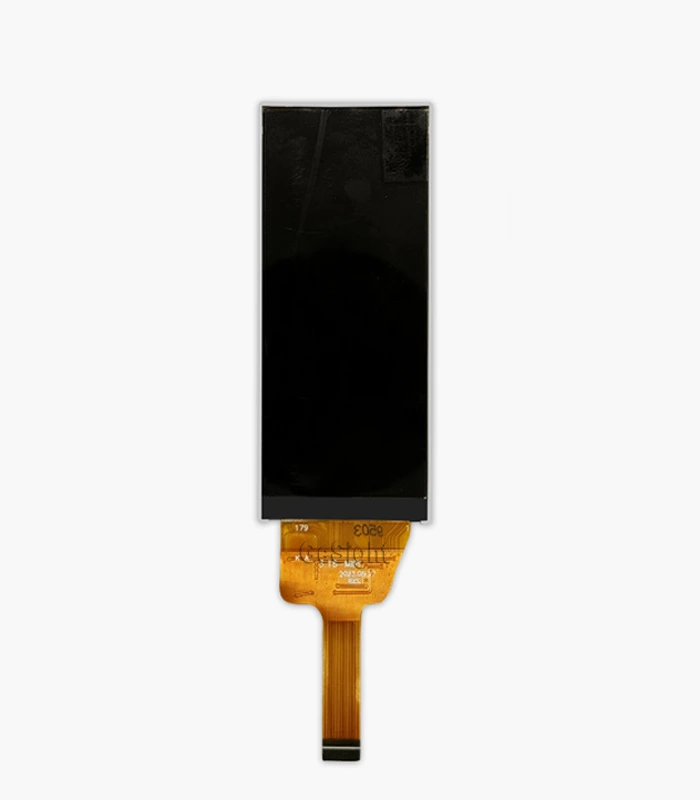

The 3.16-inch TFT-LCD module is a slim bar-type display built for compact embedded interfaces, featuring an 820×320 (RGB) resolution and 16.7M colors for clean UI rendering and fine text detail. With a Parallel RGB interface and ST7701S driver IC, it supports stable video data output for system integration. The panel operates in Normal Black mode and delivers 550 cd/m² typical brightness with an 80°/80°/80°/80° viewing angle (CR>10) for consistent visibility across viewing positions. Designed for space-limited products, it provides a 76.6×31.2×2.4 mm outline and a 65.65×26.4 mm active area, and uses a 30-pin connection for reliable electrical interfacing.
Application
Embedded HMI | Industrial Controllers | Instrumentation | Smart Home Panels | Portable Devices
Customized Options
FPC | Touch Panel | Cover Glass | Controller Board | Brightness
Specifications
| Size |
3.16 inch |
|---|---|
| Pixels |
820 RGB × 320 |
| Interface | |
| Brightness |
550 cd/m² (typ.) |
| Manufacturer |
Gesight |
| Display Type |
TFT-LCD |
| Display Mode |
Transmission mode, Normally black |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
80° (CR ≥ 10) for each direction (U/D/L/R) |

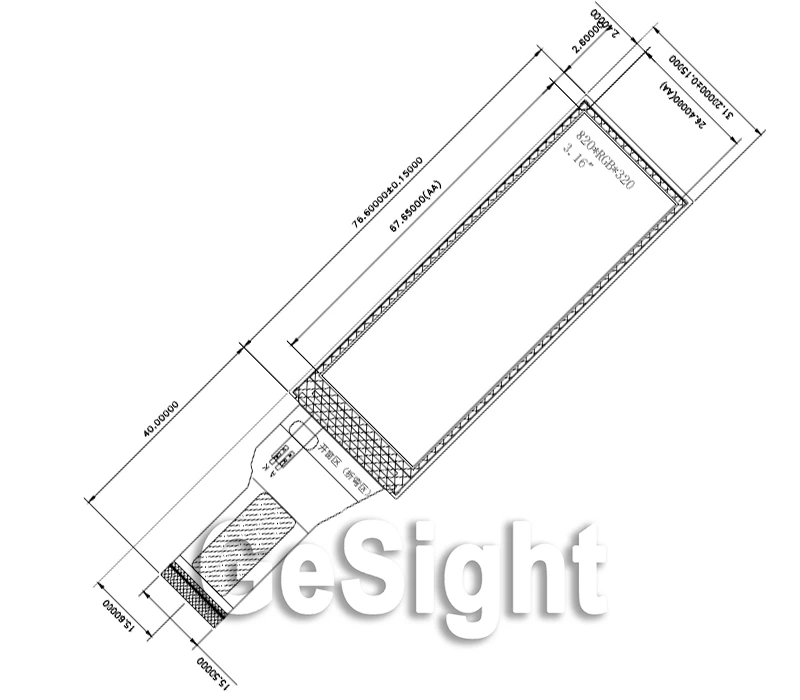

| Outline L*W*H |
76.6 × 31.2 × 2.4 mm |
| Active Area L*W |
65.65 × 26.4 mm |
| Supply Voltage |
VCI: 2.8–3.6 V (typ. 3.3 V); IOVCC: 1.65–3.3 V (typ. 1.8 V) |
| Consumption |
Idd: 40 mA (typ.) |
| Operating Temperarure |
-20 to 70 °C |
| Storage Temperature |
-30 to 80 °C |
| Bezel Area (mm) |
5.475 mm (left/right), 2.4 mm (top/bottom) |
| Aspect Ratio |
820:320 |
| Connection Type |
– |
| IC package |
– |
| Touch Panel | |
| Orientation | |
| Pixel Pitch |
0.0825 × 0.0285 mm |
| Sunlight Readable |
– |
| Model |
PL0316IV0-SV1-RGB |
| PPI ( pixels per inch ) |
278.6 PPI (≈279 PPI) |
| Application |
Virtual Reality Device；Augmented Reality Device |
Pins Description
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | LED-A | LED Negative |
| 2 | LED-K | LED Positive |
| 3 | GND | Ground |
| 4 | RESET | Reset pin |
| 5 | VSYNC | Vertical sync. signal in RGB interface mode |
| 6 | HSYNC | Horizontal sync. signal in RGB interface mode |
| 7 | CLK | Pixel clock signal in RGB interface mode |
| 8 | DEN | Data enable signal in RGB interface mode |
| 9 | GND | Ground |
| 10 | R4 | Red Data |
| 11 | R3 | Red Data |
| 12 | R2 | Red Data |
| 13 | R1 | Red Data |
| 14 | R0 | Red Data |
| 15 | G5 | Green Data |
| 16 | G4 | Green Data |
| 17 | G3 | Green Data |
| 18 | G2 | Green Data |
| 19 | G1 | Green Data |
| 20 | G0 | Green Data |
| 21 | B4 | Blue Data |
| 22 | B3 | Blue Data |
| 23 | B2 | Blue Data |
| 24 | B1 | Blue Data |
| 25 | B0 | Blue Data |
| 26 | IOPVCC | Power supply (1.8V) |
| 27 | SDI | Serial data output pin in serial interface operation |
| 28 | SCL | Serial data input pin in serial interface operation |
| 29 | CS | Chip select input pin |
| 30 | VCI | Power supply (3.3V) |
Electrical Characteristics
1) Electrical Characteristics (LCD Panel Electrical Specifications)
| Parameter of DC characteristics | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply voltage for logic | VCI | 2.8 | 3.3 | 3.6 | V |
| I/O power supply | IOVCC | 1.65 | 1.8 | 3.3 | V |
| Input Current | Idd | - | 40 | - | mA |
| Input voltage 'H' level | VIH | 0.7IOVCC | - | IOVCC | V |
| Input voltage 'L' level | VIL | -0.3 | - | 0.3IOVCC | V |
| Output voltage 'H' level | VOH | 0.8IOVCC | - | IOVCC | V |
| Output voltage 'L' level | VOL | 0 | - | 0.2IOVCC | V |
2) Backlight Specification (LED Driving Specifications)
| Item of backlight characteristics | Symbol | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| Forward voltage | Vf | - | - | - | V | If=--mA |
| Number of LED | - | - | 10 | - | Piece | - |
| Connection mode | - | - | - | - | - | - |
See TFT-LCD Collection
From 1.09 inch to 32 inch, all the size you need !
FAQ
Where can I buy this display？
If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.
I don`t know which display is suitable for my project
Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.
How can I test the display screen?
Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.
How can I drive the display panel?
Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.
Where can I get the cover glass or touch screen for this display panel?
First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.
How do Gesight Display ship display panels?
1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable
What`s the quality standard of Gesight Display`s display panels?
Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.
What`s the lifetime of these display panels?
The lifetime is different on different images, check the lifetime on datasheet to study it.
Can I connect this display to Raspberry Pi?
If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
How many days does it take to develop a project?
What is the budget for the project?
Can design edits be made during design time?
Fast Shipping
Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.
Different products collocations have different package, please confirm the shipping cost with us when place an order.
(4~6 days for most countries and area)
Specification
Panox Display offers the following specifications for most LCD/OLED products:
Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic
TFT-LCD: More Choices for Every Need
Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.
Structure of a TFT-LCD
A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.
The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.
By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
