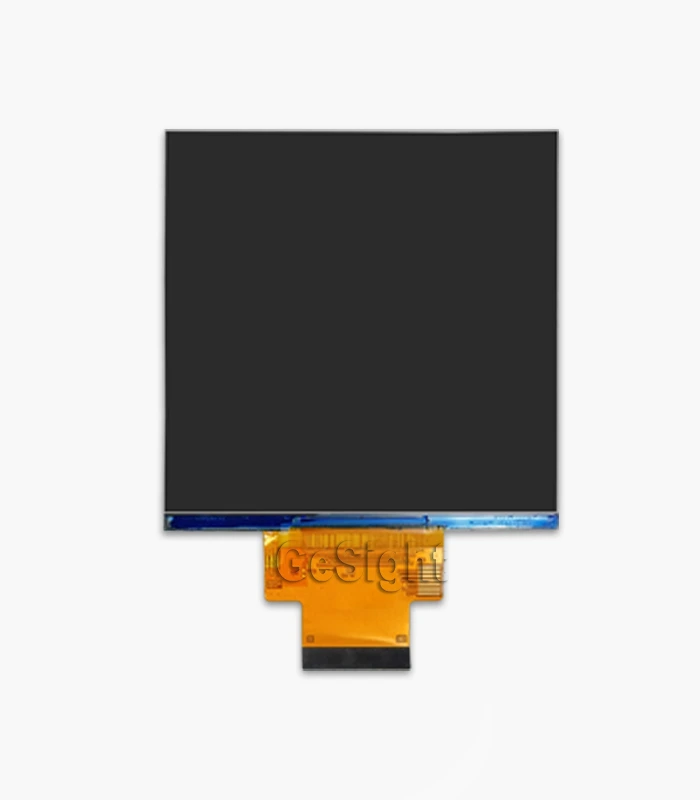

4.0-inch 480×480 square TFT-LCD display module front view

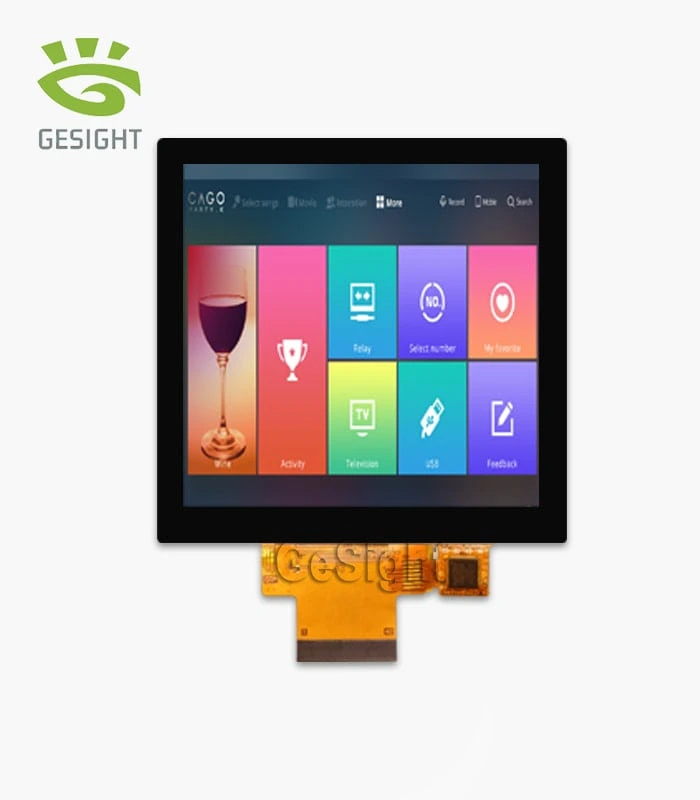

4.0-inch 480×480 square TFT-LCD showing colorful UI tiles

4.0-inch Square TFT-LCD Display Module 480×480 SPI+RGB

Tags: , , ,

$15.00piece

Add to wishlist
Compare
16 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PL040WQI-H401-R4018

The 4.0-inch square TFT-LCD display delivers clear, balanced visuals with a 480×480 (RGB) resolution and 262K colors, making it a solid choice for compact embedded interfaces. With a 3SPI + Parallel RGB interface and a slim 84.3 × 84.3 × 3.2 mm outline, this module supports efficient integration in space-limited designs. It features the ST7701S driver IC and an 8-LED backlight (4S2P) driven by constant current (IF = 40 mA typ / 45 mA max, VF = 12.8 V typ). A wide operating temperature range (-20 to +70°C) helps ensure stable performance in demanding environments.

Application

Embedded HMI | Industrial Control | Medical Devices | Instrumentation | Smart Home Panels

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

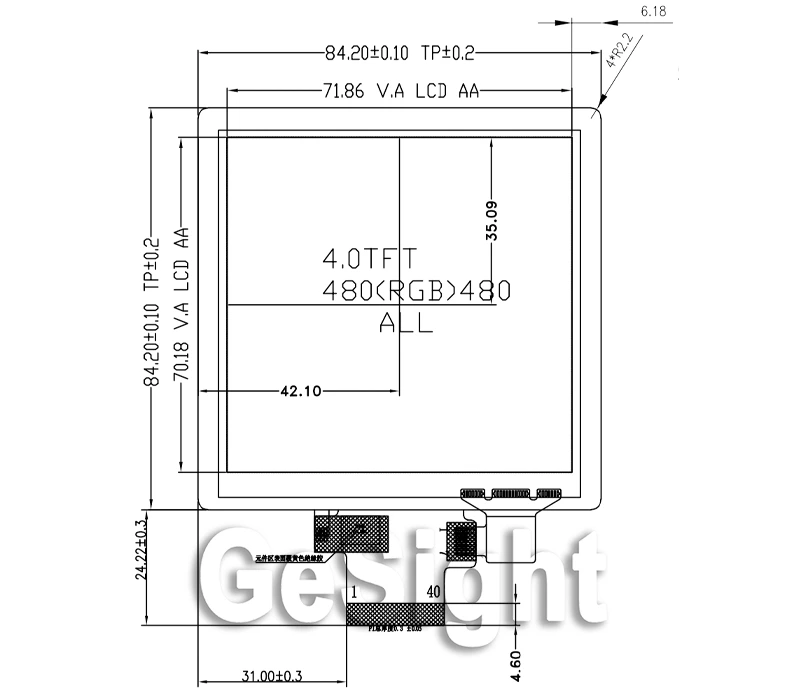

Dimension drawing of 4.0-inch 480×480 square TFT-LCD module
4.0-inch 480×480 square TFT-LCD running demo on controller board

UART Display Board for PL040WQI-H401-R4018 Integration

Gesight offers a dedicated UART Display solution for the PL040WQI-H401-R4018 4.0-inch 480×480 square TFT-LCD module, providing a clean, plug-and-play path for quick UI bring-up and system validation. The green controller board helps engineers evaluate image quality, brightness, and viewing angles while reducing wiring complexity during early-stage prototyping.

Built around the module’s 3SPI + Parallel RGB architecture, the board is designed to streamline host communication: developers can send display and control commands through a simple UART link, enabling fast screen initialization, UI updates, and demo playback without heavy driver development on day one. This approach is ideal for rapid proof-of-concept builds, factory test setups, and embedded products that prefer a lightweight serial control path.

For projects with mechanical or functional requirements, Gesight can support board customization, including connector alignment, mounting-hole layout, and firmware behavior (boot logo / test patterns / UI demo) to match your enclosure and integration workflow.

Capacitive Touch Panel (CTP) Option for PL040WQI-H401-R4018

To enable interactive UI designs on the PL040WQI-H401-R4018 4.0-inch 480×480 square TFT-LCD, Gesight can support an optional Capacitive Touch Panel (CTP) solution for projects that require smooth multi-touch input and a modern user experience. This CTP option is designed for compact embedded devices where touch responsiveness and front-surface durability matter.

The touch interface is implemented via a dedicated I²C (SCL/SDA) connection with INT and RESET signals for stable communication and reliable wake/control behavior. The touch controller reference in the module documentation includes GT911, allowing easy MCU integration and straightforward firmware bring-up for common touch functions such as tap, swipe, and gesture-based navigation.

For product-level integration, Gesight can also support custom touch lens and cover glass options, including thickness tuning, edge treatment, and optical matching to help align the touch stack with your enclosure design and target UI feel.

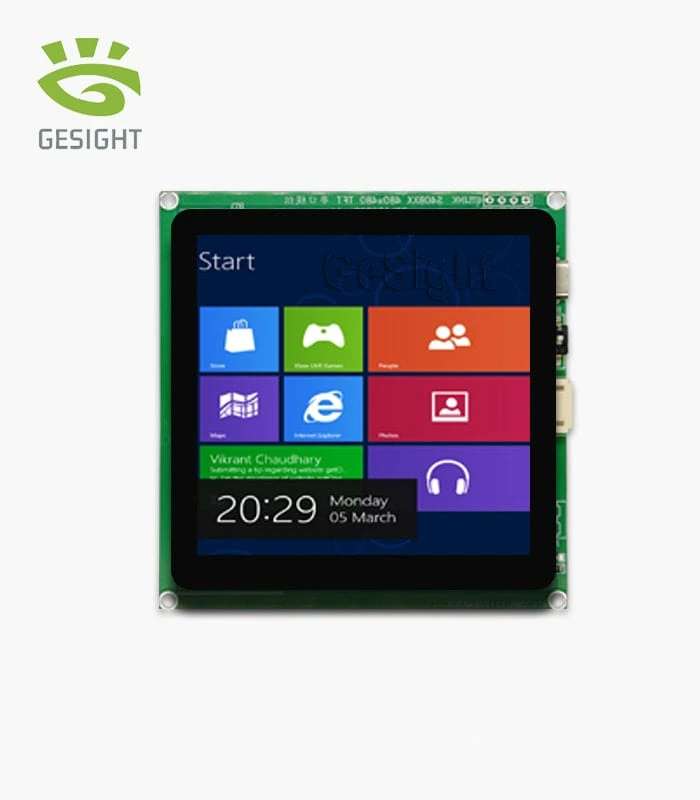

4.0-inch 480×480 square TFT-LCD module mounted on board, front view
Specifications
Size

4.0inch
Pixels

480(RGB) × 480
Interface

,

Brightness

420 min / 450 typ cd/m²
Manufacturer

Gesight
Display Type

TFT-LCD
Display Mode

Normally Black
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

80° (T) / 80° (B) / 80° (L) / 80° (R), CR ≥ 10
Outline L*W*H

84.3 * 84.3 * 3.2 mm
Active Area L*W

71.86 * 70.18 mm
Supply Voltage

VDD = 2.8 min / 3.3 typ / 3.6 max V
Consumption

IDD = 50 mA max (VDD = 2.8 V, Ta = 25°C); Backlight IF = 40 typ / 45 max mA, VF = 12.8 V (typ)
Operating Temperarure

-20 ~ 70 ℃
Storage Temperature

-30 ~ 80 ℃
Bezel Area (mm)

–
Aspect Ratio

1:1
Connection Type

0.5 PITCH connector
IC package

–
Touch Panel

Orientation

Pixel Pitch

–
Sunlight Readable

–
Model

PL040WQI-H401-R4018
PPI ( pixels per inch )

–
Application

–
Pins Description
Pin No. Pin Name Description
1 LEDA LED Anode
2 LEDK1 LED Cathode
3 LEDK2 LED Cathode
4 GND Ground
5 VCI Power Supply
6 RESET Reset Signal, Active Low
7 NC No Connect
8 NC No Connect
9 SDA SPI Data Signal
10 SCK SPI Clock Signal
11 CS SPI Chip Select Signal
12 PCLK RGB Dot Clock Signal
13 DE RGB Data Enable Signal
14 VSYNC RGB Frame Synchronizing Signal
15 HSYNC RGB Line Synchronizing Signal
16–33 DB0–DB17 RGB Data Signals (DB0: Blue LSB; DB5: Blue MSB; DB6: Green LSB; DB11: Green MSB; DB12: Red LSB; DB17: Red MSB)
34 GND Ground
35 TP_INT Touch Interrupt
36 TP_SDA Touch IIC Data Signal
37 TP_SCL Touch IIC Clock Signal
38 TP_RESET Touch Reset Signal
39 TP_VCI Touch Power Supply
40 GND Ground
Electrical Characteristics

Electrical Characteristics (Driving TFT LCD Panel)

Item Symbol Min Typ Max Unit Test condition
Operating voltage VDD 2.8 3.3 3.6 V —
Supply current IDD — — 50 mA VDD = 2.8 V, Ta = 25°C
Input voltage (High) VIH 0.8VDD — VDD V —
Input voltage (Low) VIL 0 — 0.2VDD V —
Input leakage current IIL -1.0 — 1.0 µA VIN = VDD or VSS

Backlight Specification(Driving Backlight, Ta = 25°C)

Item Symbol Min Typ Max Unit Remark
Forward Current IF — 40 45 mA —
Forward Voltage VF — 12.8 — V —
Connection mode — — 4S2P — — LED number / 8 pcs
