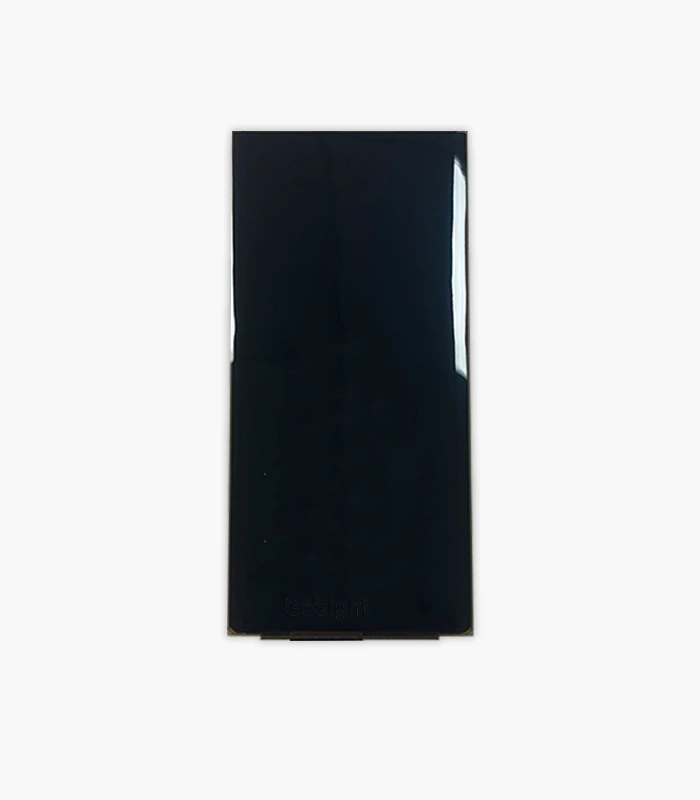

Front view of the BF051FBM-AK0- 5.1-inch flexible AMOLED display module (screen off)

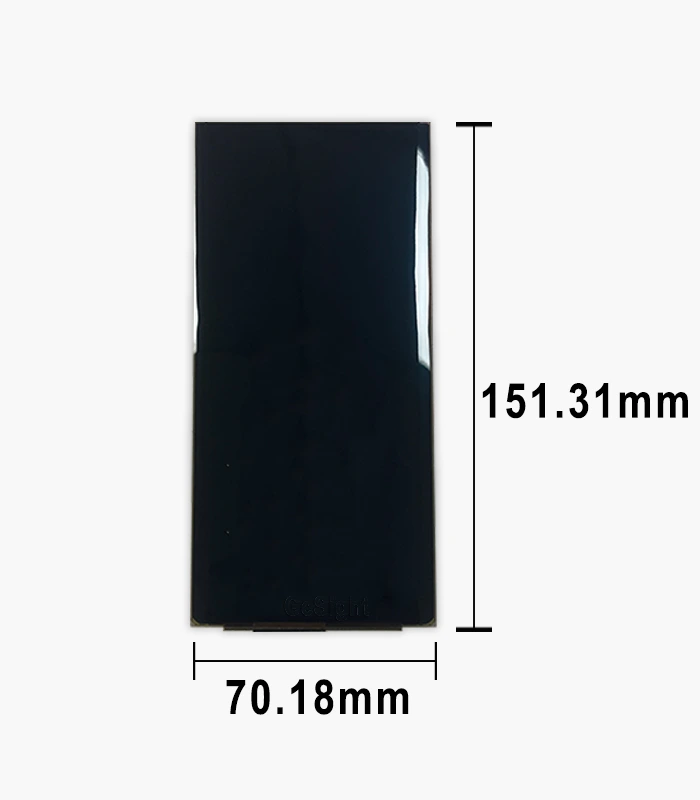

flexible AMOLED front view with overall dimensions marked (151.31 mm height, 70.18 mm width)

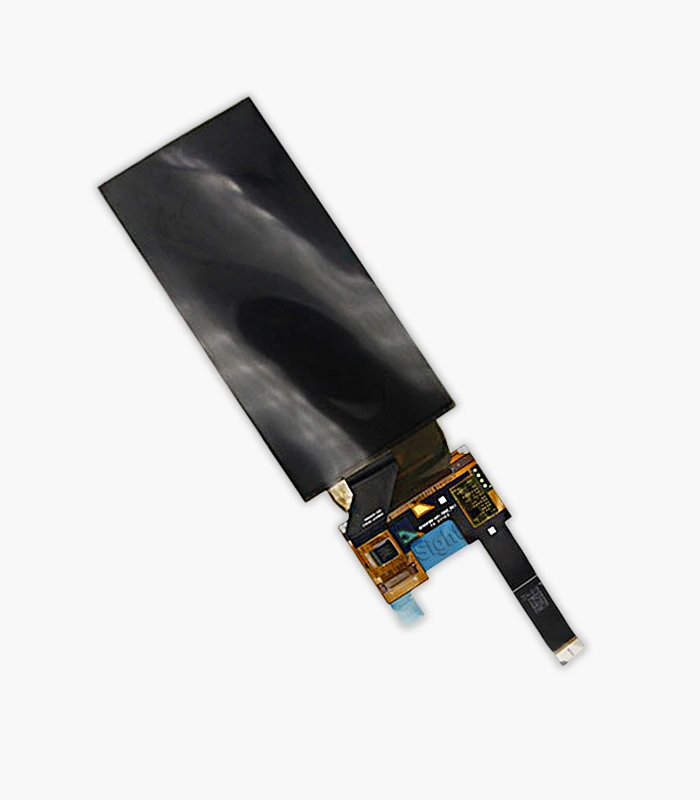

Rear view of the 5.1-inch flexible AMOLED display showing the flex cable and electronics

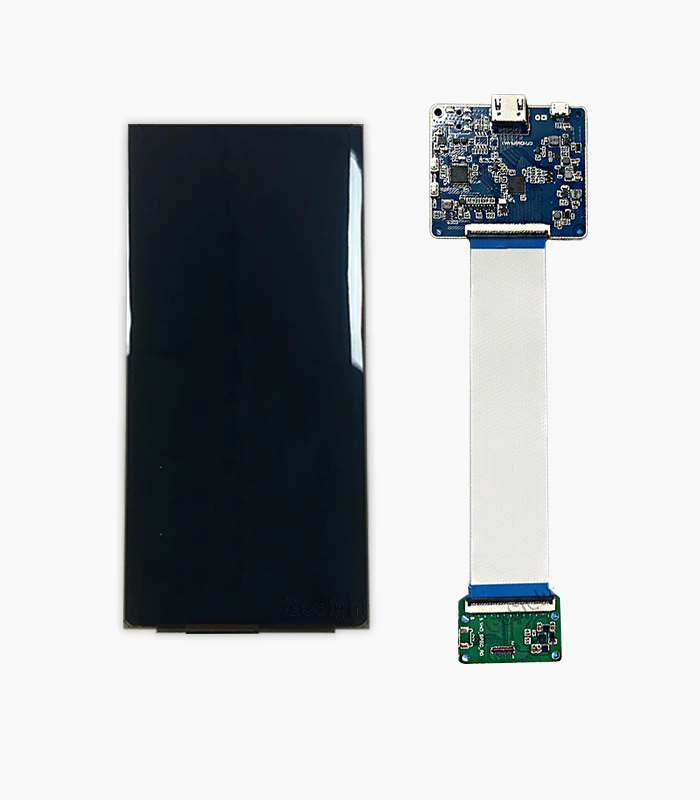

flexible AMOLED display connected to adapter/controller boards via flat ribbon cable for testing
Click to enlarge
5.1-inch flexible AMOLED display showing an image while bent to demonstrate flexibility
Front view of the BF051FBM-AK0- 5.1-inch flexible AMOLED display module (screen off)
flexible AMOLED front view with overall dimensions marked (151.31 mm height, 70.18 mm width)
Rear view of the 5.1-inch flexible AMOLED display showing the flex cable and electronics
flexible AMOLED display connected to adapter/controller boards via flat ribbon cable for testing

5.1-inch Flexible/Bendable OLED Display 720×1520 MIPI DSI

Tags: , , , , , , ,

$205.27piece

Add to wishlist
Compare
13 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: BF051FBM-AK0-

The 5.1-inch Flexible/Bendable AMOLED Module delivers vivid, high-clarity visuals in a slim, space-saving form factor, featuring a 720 × 1520 resolution and 16.7M colors for crisp UI rendering and smooth gradients. With typ. 390 cd/m² (with CG) or up to typ. 886 cd/m² (without CG) luminance, plus a wide 80° L/R/U/D viewing angle (CR ≥ 10), it maintains consistent visibility across different viewing positions. Supporting MIPI DSI (4-lane) and a typical 60 Hz design frame frequency (typ. 67 Hz actual), it’s built for responsive motion performance in compact designs. Its ultra-slim outline of 70.78 × 151.31 × 1.343 mm (typ.) and 55.404 × 116.964 mm active area simplify integration, while the External CTP (TOF) solution with built-in GT9886 touch IC enables reliable multi-touch input. Gesight supplies this module for dependable real-world use with a -20 to +70°C operating range and -40 to +80°C storage rating.

Application

Smart Mobile Phone | Slim Handheld Terminals | Compact Embedded UI Devices

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

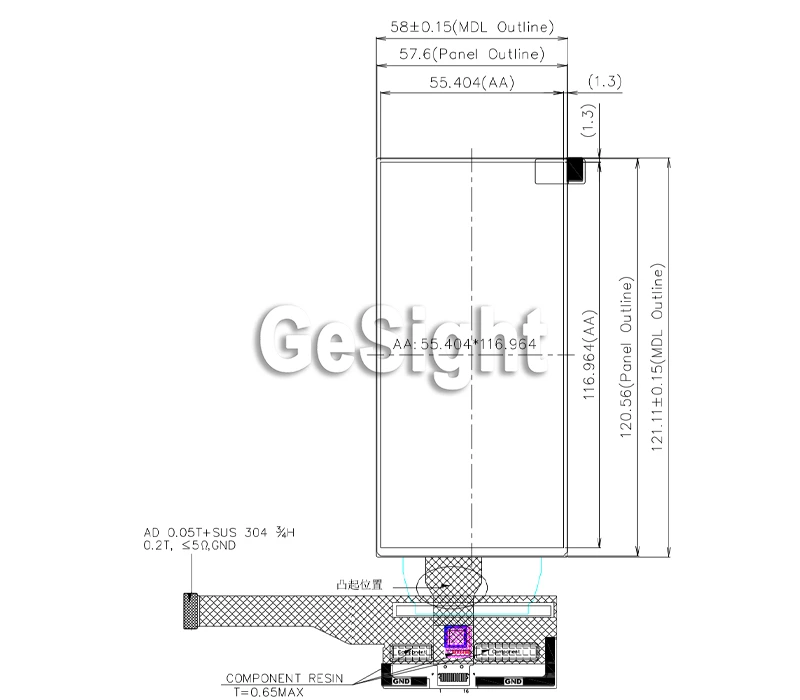

Mechanical outline drawing of the BF051FBM-AK0- module showing outline dimensions and active area (AA)

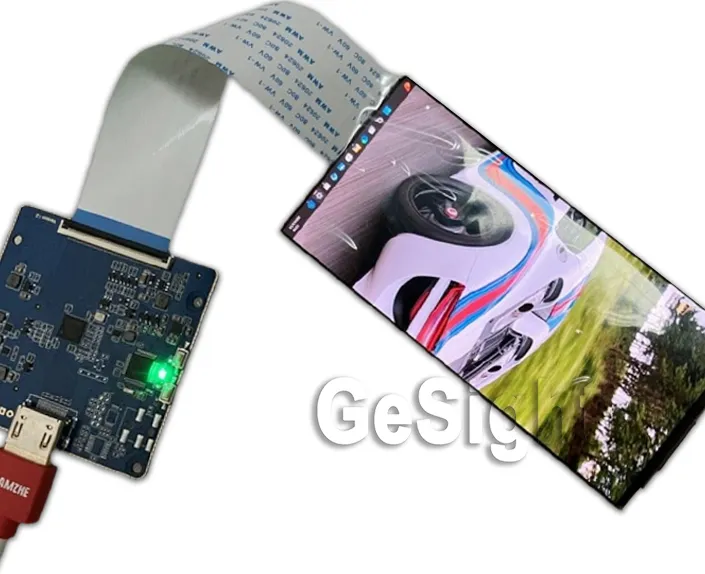

5.1-inch flexible AMOLED display connected to an HDMI controller board via ribbon cable, showing a car image

Flexible/Bendable 5.1" AMOLED Demo Setup for Quick Evaluation

Gesight’s BF051FBM-AK0- is a 5.1-inch flexible/bendable AMOLED module built for fast bring-up and UI validation. The demo setup shown makes it easy to check layout, color rendering, and motion performance on a 720 × 1520 panel with 16.7M colors—ideal for rapid prototyping.

It supports MIPI DSI (4-lane) with a typical 60 Hz design frame rate (typ. 67 Hz actual), and delivers typ. 390 cd/m² (with CG) or up to typ. 886 cd/m² (without CG) brightness. With a slim 70.78 × 151.31 × 1.343 mm outline and External CTP (TOF) touch solution, it fits compact product designs smoothly.

Gesight also provides an HDMI controller board for convenient video input and quick screen evaluation.

Flexible/Bendable Curved Display for Space-Saving Designs

The BF051FBM-AK0- flexible/bendable AMOLED can be bent to match curved housings, helping designers explore slimmer, more ergonomic product forms without sacrificing screen continuity. Even in a curved state, the 720 × 1520 resolution and 16.7M colors keep UI elements sharp and gradients smooth, making it a practical choice for concept verification and real-device fit checks.

5.1-inch flexible AMOLED display showing an image while bent to demonstrate flexibility
Specifications
Size

5.1 inch
Pixels

720 × 1520
Interface

Brightness

390 cd/m² (typ, with CG, center); 886 cd/m² (typ, without CG, center)
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

Active matrix AMOLED
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

Up/Down/Right/Left: 80° (typ) @ CR ≥ 10 (min 75°)
Outline L*W*H

70.78 × 151.31 × 1.343 mm (module outline × total thickness)
Active Area L*W

55.404 × 116.964 mm
Orientation

Supply Voltage

VDDIO: 1.62–1.98 V; VCI: 2.60–3.60 V; ELVDD: 4.40–4.80 V; ELVSS: −5.00 to −1.40 V; VCC (TSP): 2.7–3.6 V; AVDD: 5.40–7.60 V
Consumption

Display (Full White, 886 nit w/o CG): VCI 3.5 mA (typ), VDDIO 22.0 mA (typ), AVDD 13.5 mA (typ), Panel EL 147 mA (typ); Touch power: Active 49.5 mW, Standby 4.29 mW, Sleep 409 µW
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

Left/Right 1.10 mm each, Top/Bottom 1.80 mm each
Aspect Ratio

19:9
Connection Type

Board-to-board connector (Recommended: AXE640124); Touch connector type: FOF
IC package

COF
Touch Panel

Pixel Pitch

76.95 × 76.95 µm
Sunlight Readable

–
Model

BF051FBM-AK0-
PPI ( pixels per inch )

329.8 PPI
Application

Smart Mobile Phone
Pins Description
Pin No. Pin Name Remark
1 GND GND PIN
2 GND GND PIN
3 D3N MIPI Data Lane 3-
4 VPP (MTP_PWR) MTP Power
5 D3P MIPI Data Lane 3+
6 ELON2 (SWIRE) Swire PIN (communication to DCDC)
7 GND GND PIN
8 VDDP_EN (OLEN_EN) EN PIN (Enable signal communication to DCDC)
9 D0N MIPI Data Lane 0-
10 TE TE Flag PIN (communication to AP)
11 D0P MIPI Data Lane 0+
12 ERR_FG ERR Flag Pin (communication to AP)
13 GND GND PIN
14 RESX (RETN) Reset Signal
15 CKN MIPI CLK Lane -
16 VDDI 1.8V VDDIO Power
17 CKP MIPI CLK Lane +
18 VLIN1_7.6V (AVDD) AVDD POWER
19 GND GND PIN
20 VCI_3.3V VCI POWER
21 D1N MIPI Data Lane 1-
22 GND GND PIN
23 D1P MIPI Data Lane 1+
24 TSP_SDA TSP Data Lane
25 GND GND PIN
26 TSP_SCL TSP CLK Lane
27 D2N MIPI Data Lane 2+
28 TSP_INT TSP initial signal PIN
29 D2P MIPI Data Lane 2-
30 TSP_RESET TSP Reset PIN
31 GND GND PIN
32 TSP_AVDD_3.3V TSP Analog power
33 ID (GND) ID PIN
34 TSP_DVDD_1.8V (GND) TSP Logic Power (GND)
35 ELVSS EL Low power
36 ELVDD EL High Power
37 ELVSS EL Low power
38 ELVDD EL High Power
39 ELVSS EL Low power
40 ELVDD EL High Power
Electrical Characteristics

Electrical Characteristics

Item Symbol Min Max Unit
I/O Voltage VDDIO 1.62 1.98 V
Operation Voltage VCI 2.60 3.60 V
EL Driving Voltage ELVDD 4.40 4.80 V
EL Driving Voltage ELVSS −5.00 −1.40 V
Supply Voltage (TSP) VCC 2.7 3.6 V
Operating Temperature Topr −20 70 °C
Storage Temperature Tstg −40 80 °C

Backlight Specification

Item Specification
Backlight Type N/A (AMOLED, self-emissive — no backlight)
Brightness (typ, center) 390 cd/m² (with CG); 886 cd/m² (without CG)
