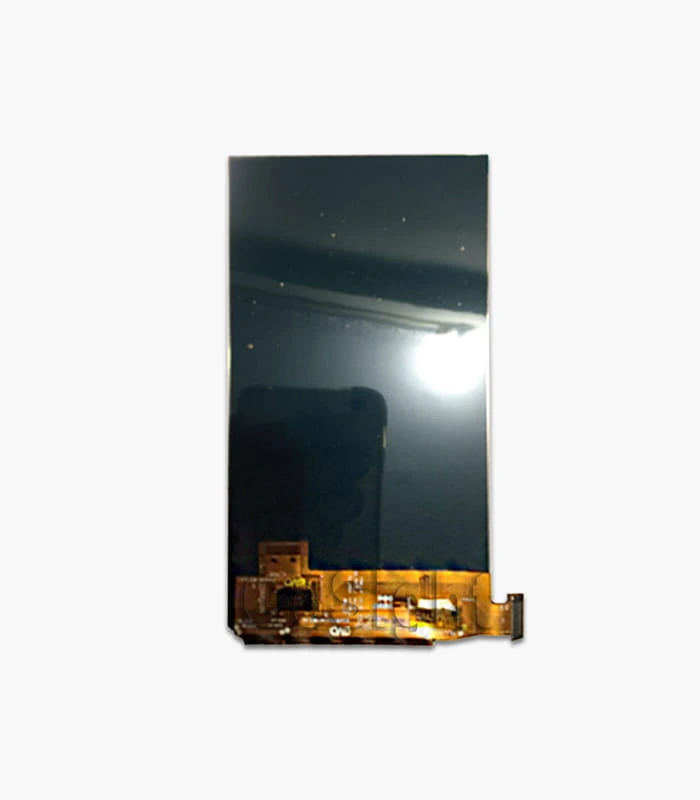

AMOLED touch display FPC connector detail
Click to enlarge
AMOLED touch display on-screen image quality
AMOLED touch display front view
AMOLED touch display FPC connector detail

5.48-inch 1080×1920 AMOLED Touch Display

Tags: , , , , , , , , ,

$50.00piece

Add to wishlist
Compare
10 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: G1548FH101GF-001

The 5.48-inch AMOLED Touch Display delivers sharp, high-clarity visuals in a slim portrait format, featuring a 1080 × 1920 resolution and 16.7M colors. With a 94.8 × 63.2 μm pixel pitch (≈ 402 PPI, calculated), it renders fine UI elements and text with crisp edges, while a 350 cd/m² (typ) luminance supports bright, clean indoor viewing.

The module uses a MIPI (4-lane) interface and supports a 60 Hz (typ) refresh rate for stable motion performance. It maintains wide viewing performance rated 75° (min) / 85° (typ) T/B/L/R under CR ≥ 10 conditions. Touch is integrated as on-cell TP with a built-in GT1151 touch IC, and the display side uses the RM67198 driver IC. Its 148.86 × 73.56 × 1.92 mm outline (including cover lens) and 121.344 × 68.256 mm active area streamline integration, using a B-to-B connector solution (AXE340124, recommended mating AXE440124). Gesight supplies this module for dependable real-world use with a -30 to +70°C operating range and -40 to +70°C storage rating—and can provide it with a good price.

Application

Tablet-Size Embedded Displays | Control Panels & HMI | Portable Terminals | Demo & Evaluation Setups

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

AMOLED touch display mechanical drawing dimensions
AMOLED touch display HDMI controller board kit

HDMI Controller Board for G1548FH101GF-001 Integration

To accelerate prototyping and video input evaluation, G1548FH101GF-001 can be paired with an HDMI controller board that bridges standard HDMI sources to the panel’s MIPI (4-lane) interface. This makes it easy to run real video content, verify signal stability, and confirm basic operation without designing a custom mainboard at the early stage. The board-to-panel link is delivered through an FPC connection, helping keep wiring clean and setup time short.

With the HDMI board in place, teams can focus on what matters most during bring-up—display performance checks, touch interaction verification, and system-level validation under real working conditions. It’s a practical path from bench testing to product integration, especially when you need repeatable results for demos, debugging, and firmware/UI tuning.

Gesight provides HDMI controller boards to support G1548FH101GF-001 evaluation and development.

Display Performance Validation for G1548FH101GF-001 (Live Demo)

In real desktop-content playback, G1548FH101GF-001 demonstrates clean, high-contrast rendering that makes UI elements immediately readable—fine text, window borders, icons, and multi-layer layouts stay sharp and well separated. As an AMOLED panel, it naturally delivers deep blacks and strong contrast, so dark areas look more “solid” while bright UI regions remain crisp, helping complex screens stay comfortable to view during long debugging sessions.

This live demo setup is also a practical way to verify color richness and tonal transitions under real content instead of test patterns. Mixed scenes with saturated colors, highlights, and shadows reveal whether gradients look smooth and whether whites stay visually neutral. Combined with its 1080×1920 resolution and 60 Hz refresh performance, it’s well-suited for evaluating scrolling stability, motion clarity, and UI/firmware tuning before moving to a custom mainboard—especially when you need repeatable visual checks during bring-up.

Gesight supplies this module and supports evaluation with matching controller/adapter solutions for faster development.

AMOLED touch display live demo with controller board
Specifications
Size

5.48 inch
Pixels

1080(W) × 1920(H)
Interface

Brightness

350 cd/m² (typ), 280 (min), 420 (max)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

75° (min) / 85° (typ) for T/B/L/R (CR ≥ 10)
Outline L*W*H

148.86 × 73.56 × 1.92 mm (including cover lens)
Active Area L*W

121.344 × 68.256 mm
Orientation

Supply Voltage

VDDIO: 1.65–3.30 V; VCI: 2.65–3.60 V; ELVDD: 4.55–4.65 V; ELVSS: -1 (min) / TBD (typ) / -5 (max) V
Consumption

Panel Power: TBD mW; INL: 191.80 mA (typ); IVCI (normal): 1.5 mA (min), TBD (typ/max); IIOVCC (normal): 42 mA (min), TBD (typ/max); Stand-by: IVCI 1 uA (min), TBD; IIOVCC 1 uA (min), TBD
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +70 °C
Bezel Area (mm)

(69.902 − 68.256) × (127.904 − 121.344) = 1.646 × 6.560 mm total bezel
Aspect Ratio

9:16
Connection Type

B-to-B connector (FPC connector: AXE340124; recommended: AXE440124)
IC package

–
Touch Panel

Pixel Pitch

94.8(W) × 63.2(H) μm
Sunlight Readable

–
Model

G1548FH101GF-001
PPI ( pixels per inch )

402 PPI
Application

–
Pins Description
Connector Pin No. Symbol I/O Description
Main FPC (40pin) 1 VPP P Power supply for MTP Programming or Erase. If it is not used please open it.
Main FPC (40pin) 2 D3N I MIPI data lane
Main FPC (40pin) 3 NC NC NC
Main FPC (40pin) 4 D3P I MIPI data lane
Main FPC (40pin) 5 ELON2 O DC/DC Power IC S-Wire CTRL Pin
Main FPC (40pin) 6 GND GND Ground
Main FPC (40pin) 7 VDDP_EN O DC/DC Power Enable Pin
Main FPC (40pin) 8 D0N I/O MIPI data lane
Main FPC (40pin) 9 PCD O Panel Crack Detection Pin
Main FPC (40pin) 10 D0P I/O MIPI data lane
Main FPC (40pin) 11 TE I Sync Signal for preventing Tearing Effect
Main FPC (40pin) 12 GND GND Ground
Main FPC (40pin) 13 ERR_FG O MIPI Error Pin
Main FPC (40pin) 14 CKN I MIPI clock lane
Main FPC (40pin) 15 RESX I Display reset. Active low.
Main FPC (40pin) 16 CKP I MIPI clock lane
Main FPC (40pin) 17 VDDIO P Power supply for display logic circuits
Main FPC (40pin) 18 GND GND Ground
Main FPC (40pin) 19 TSP_1.8V P Power supply for display logic circuits
Main FPC (40pin) 20 D1N I MIPI data lane
Main FPC (40pin) 21 VLIN_6.5V P External Power Input for AVDD
Main FPC (40pin) 22 D1P I MIPI data lane
Main FPC (40pin) 23 VCI P Power supply for display analog circuits
Main FPC (40pin) 24 GND GND Ground
Main FPC (40pin) 25 TSP_SDA I/O SDA pin for TP
Main FPC (40pin) 26 D2N I MIPI data lane
Main FPC (40pin) 27 TSP_SCL I SCL pin for TP
Main FPC (40pin) 28 D2P I MIPI data lane
Main FPC (40pin) 29 TSP_ATTN I INT pin for TP
Main FPC (40pin) 30 GND GND Ground
Main FPC (40pin) 31 TSP_3.3V P Analog Power for TP
Main FPC (40pin) 32 TSP_RESET I Reset Pin for TP, Active low.
Main FPC (40pin) 33 TSP_1.8V P Power supply for TP logic circuits
Main FPC (40pin) 34 NC NC NC
Main FPC (40pin) 35 ELVDD P Positive power supply for EL
Main FPC (40pin) 36 ELVSS P Negative power supply for EL
Main FPC (40pin) 37 ELVDD P Positive power supply for EL
Main FPC (40pin) 38 ELVSS P Negative power supply for EL
Main FPC (40pin) 39 ELVDD P Positive power supply for EL
Main FPC (40pin) 40 ELVSS P Negative power supply for EL
TP FPC (7pin) 1 TSP_DVDD_1.8V Power Power supply for display logic circuits
TP FPC (7pin) 2 TSP_RESET I Reset Pin for TP, Active low
TP FPC (7pin) 3 TSP_AVDD_3.3V Power Analog Power for TP
TP FPC (7pin) 4 TSP_SDA I/O SDA pin for TP
TP FPC (7pin) 5 TSP_SCL I/O SCL pin for TP
TP FPC (7pin) 6 TSP_ATTN I/O INT pin for TP
TP FPC (7pin) 7 GND GND Ground



Electrical Characteristics

1) Electrical Characteristics (Ta = 25℃)

Item Symbol Condition Min Typ Max Unit Remark
Logic Power Supply VDDIO — 1.65 1.80 3.30 V
Analog Power Supply VCI — 2.65 2.80 3.60 V
ELVDD Supply Voltage ELVDD — 4.55 4.60 4.65 V
ELVSS Supply Voltage ELVSS — -1 TBD -5 V
Input Signal Voltage (High) VIH — 0.80*VDDIO — VDDIO V
Input Signal Voltage (Low) VIL — 0.00 — 0.20*VDDIO V
Output Signal Voltage (High) VOH — 0.80*VDDIO — VDDIO V
Output Signal Voltage (Low) VOL — 0.00 — 0.20*VDDIO V
Panel Power PNL ELVDD=4.6V, ELVSS=TBD — TBD TBD mW Note1
INL INL — — 191.80 TBD mA Note2
IC Normal Current IVCI VCI=2.8V 1.5 TBD TBD mA —
IC Normal Current IIOVCC VDDIO=1.8V 42 TBD TBD mA —
Stand-by Current IVCI VCI=2.8V 1 TBD TBD uA —
Stand-by Current IIOVCC VDDIO=1.8V 1 TBD TBD uA —



2) Back-light Specification Form

Item Specification
Backlight Type N/A (AMOLED is self-emissive, no backlight)
LED Color N/A
LED Quantity N/A
Forward Current N/A
Forward Voltage N/A
Backlight Power Consumption N/A
Dimming Method N/A (brightness control is via display command, not LED backlight)
