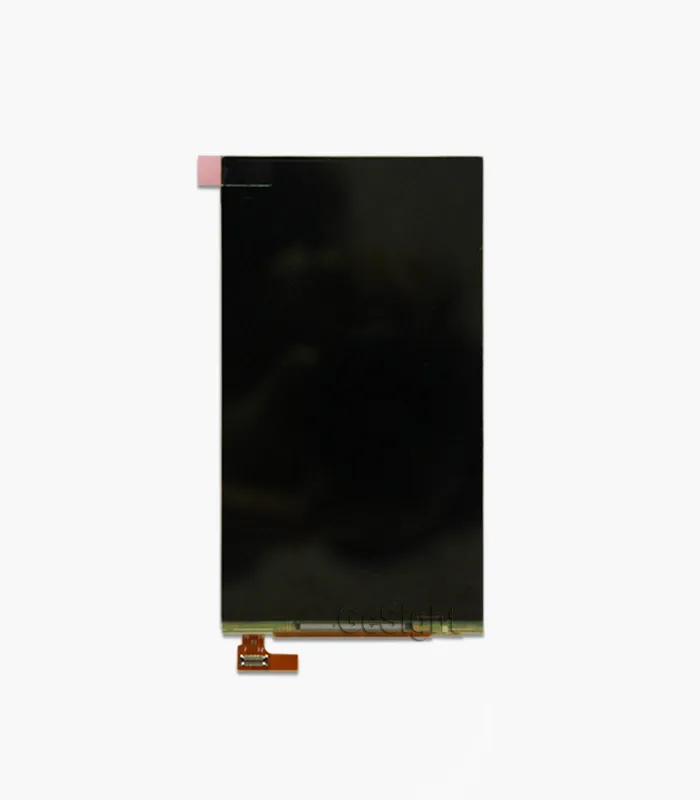

AMOLED display module front view with black screen
AMOLED display with controller board and FPC connection

5.55-inch 720×1280 AMOLED Display MIPI

Tags: , , , , , , , ,

$20.00piece

Add to wishlist
Compare
14 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: 555HDC2

The 5.551-inch AMOLED Display delivers sharp HD visuals in a slim 9:16 portrait format, featuring a 720 × 1280 resolution and 8-bit color (16.7M) for clean UI rendering and smooth gradients. With a 32 × 96 μm pixel pitch and about 265 PPI (calculated), it supports crisp text edges and fine interface details in compact devices. Typical brightness reaches 300 cd/m², making it well-suited for everyday indoor and controlled-light environments.

The module uses a MIPI (4-lane) interface and operates as an AMOLED panel for strong contrast and deep blacks. Viewing performance is rated 80°/80°/80°/80° (U/D/L/R, CR ≥ 200) for stable readability across common viewing positions. It integrates the SH1386 driver IC, and the mechanical design stays ultra-slim with a 131.20 × 72.80 × 1.181 mm outline (w/o cushion) and a 122.88 × 69.12 mm active area. Gesight supplies this module for dependable real-world use with a -30 to +70°C operating range and -30 to +70°C storage range.

Application

Mobile Phones | Portable GPS Devices | Handheld Game Consoles | Embedded Handheld UI Modules

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

AMOLED display mechanical drawing with outline and active area dimensions
AMOLED display with controller board and FPC connection

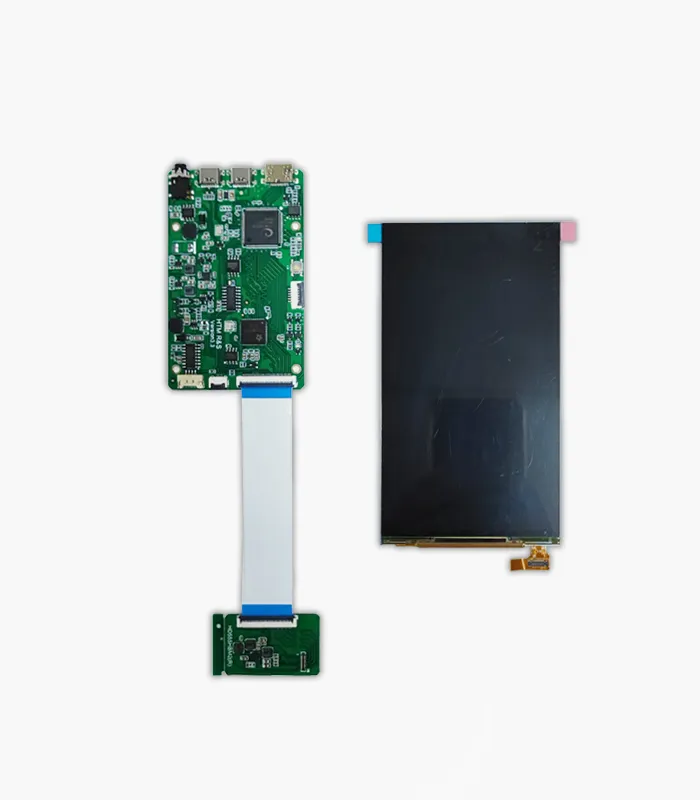

HDMI Controller Board for 555HDC2 Integration

For fast prototyping and stable video bring-up, the 555HDC2 HDMI controller board provides a practical bridge from common HDMI sources to the module’s MIPI (4-lane) interface. It’s ideal for demo setups, lab validation, and early-stage firmware/UI tuning—so you can focus on image quality and system integration without building a custom mainboard from day one.

Designed for dependable operation, the board supports clean signal routing and reliable power delivery for the AMOLED module, making it easier to verify color performance, brightness, and viewing consistency in real hardware. Gesight provides the HDMI Board as a ready-to-use option for evaluation and integration testing, helping shorten development cycles from proof-of-concept to product-ready design.

Display Performance (Vivid Color & Wide Viewing)

The 555HDC2 AMOLED delivers punchy color and high perceived contrast, making UI elements and media content look clean and saturated even in a compact form factor. With 16.7M colors (8-bit) and a fine pixel structure, it produces smooth gradients and sharp edges for icons, text, and detailed graphics.

To keep the image stable from different positions, the panel supports a wide viewing characteristic of 80°/80°/80°/80° (U/D/L/R, CR ≥ 200), helping reduce color shift and brightness drop-off in typical handheld use. With a typical brightness of 300 cd/m², it’s a solid choice for indoor and controlled-light environments where consistent clarity and rich AMOLED blacks matter most.

AMOLED display demo running on test board with color pattern
Specifications
Size

5.551 inch
Pixels

720(W) × RGB × 1280(H)
Interface

Brightness

300 cd/m² (typ.)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

–
Viewing Angle Range

80° (U/D/L/R, CR ≥ 200)
Outline L*W*H

131.20 × 72.80 × 1.181 mm (w/o cushion)
Active Area L*W

122.88 × 69.12 mm
Orientation

Supply Voltage

VCI 3.3 V (typ., 2.5–4.8 V); VDDI 1.8 V (typ., 1.65–3.6 V); ELVDD 4.6 V (typ.); ELVSS -3.5 V (typ.); VSP 6.5 V; VPP(NC) 7.6 V (typ., 7.4–7.8 V)
Consumption

IELVDD/ELVSS 200 mA (typ.) / 260 mA (max); IVCI 70 mA (typ.) / 110 mA (max); IVSP 15 mA (typ.) / 25 mA (max)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +70 °C
Bezel Area (mm)

3.68 (W) × 8.32 (H) mm (derived: outline − active); per-side: 1.84 mm (L/R), 4.16 mm (T/B)
Aspect Ratio

9:16
Connection Type

FPC
IC package

–
Touch Panel

Pixel Pitch

32 × 96 μm
Sunlight Readable

–
Model

555HDC2
PPI ( pixels per inch )

265 PPI
Application

Mobile phone; portable GPS; handheld game console
Pins Description
Pin # Pin name I/O Description
1 GND Power Ground
2 VCI Power Driver IC analog supply
3 SWIRE O Power IC control pin
4 VDDI Power Driver IC digital I/O supply
5 LCD_ID — Ground
6 VPP(NC) Power Power supply for OTP. Leave the pin to open when not in use.
7 VSP Power PFM’s Voltage
8 RST I This signal will reset the device and must be applied to properly initialize the chip. Active low.
9 TE O Tear effect output
10 ELVDD Power AMOLED power Positive
11 ELVDD Power AMOLED power Positive
12 OLED_EN O Power IC enable
13 ELVSS Power AMOLED power Negative
14 ELVSS Power AMOLED power Negative
15 GND Power Ground
16 D3P I MIPI DSI data3+
17 D3N I MIPI DSI data3-
18 GND Power Ground
19 D2P I MIPI DSI data2+
20 D2N I MIPI DSI data2-
21 GND Power Ground
22 CLKP I MIPI DSI clock+
23 CLKN I MIPI DSI clock-
24 GND Power Ground
25 D1P I MIPI DSI data1+
26 D1N I MIPI DSI data1-
27 GND Power Ground
28 D0P I MIPI DSI data0+
29 D0N I MIPI DSI data0-
30 GND Power Ground
Electrical Characteristics

1) Electrical Characteristics (AMOLED)

Item Symbol Min. Typ. Max. Unit Remark
AMOLED power positive ELVDD — 4.6 — V —
AMOLED power negative ELVSS — -3.5 — V Ref
OTP power VPP(NC) 7.4 7.6 7.8 V Ref
Gamma voltage VSP — 6.5 — V Ref
Digital power supply VDDI 1.65 1.8 3.6 V Ref
Analog power supply VCI 2.5 3.3 4.8 V Ref

Current (Power Consumption by rail, ANSI @ Gray 255)

Mode Symbol Conditions Min. Typ. Max. Unit Remark
ANSI @ Gray 255 IELVDD/ELVSS VELVDD=4.6V, VELVSS=-3.5V, VCI=3.3V, VSP=6.1V — 200 260 mA Ref
ANSI @ Gray 255 IVCI — — 70 110 mA Ref
ANSI @ Gray 255 IVSP — — 15 25 mA Ref

2) Back-light Specification Form

Backlight Item Specification
Backlight Type N/A (AMOLED, self-emissive)
Backlight Color N/A
LED Forward Voltage N/A
LED Forward Current N/A
LED Power N/A
Lifetime N/A

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
