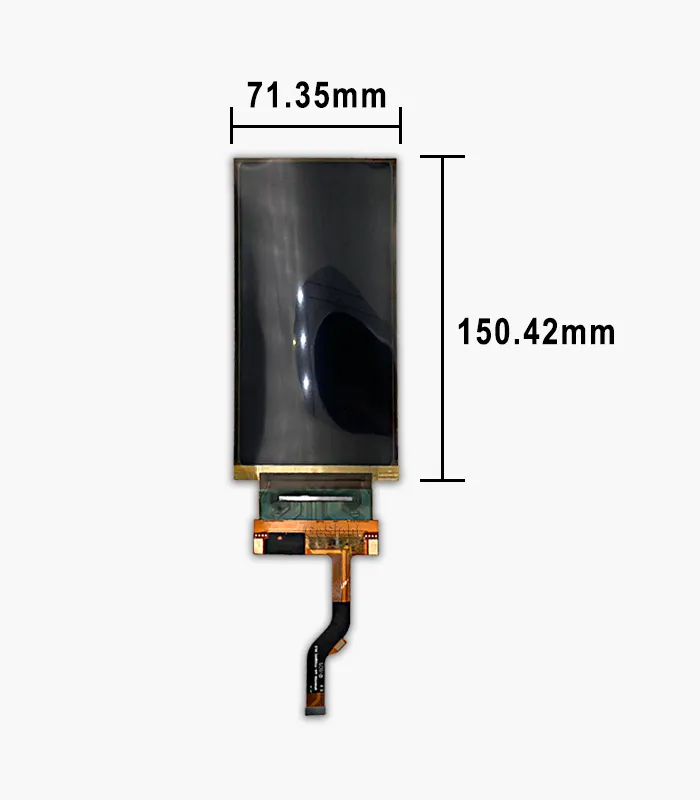

Outline dimensions of Gesight BO599FF2KM AMOLED module: 71.35 mm × 150.42 mm

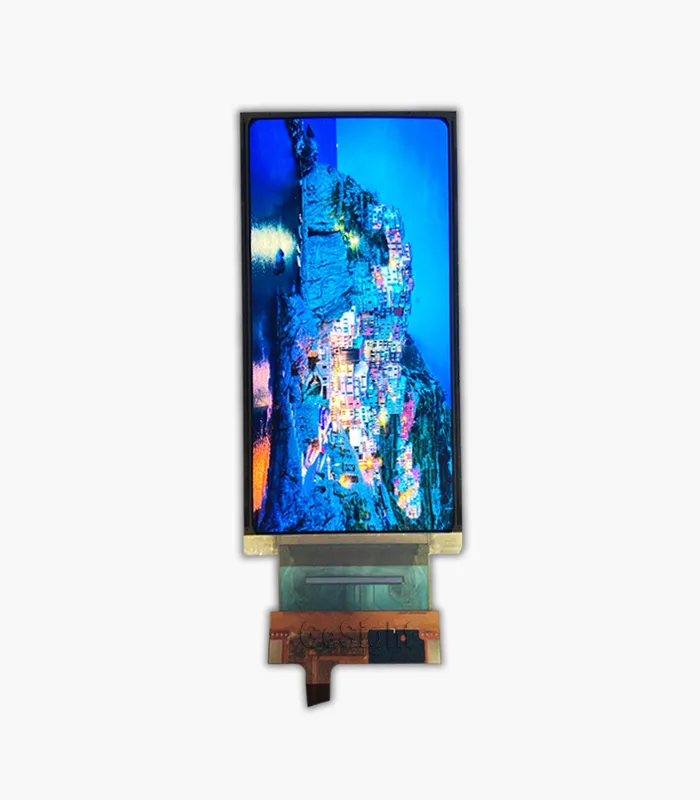

Front view of Gesight 5.99-inch AMOLED display module powered on

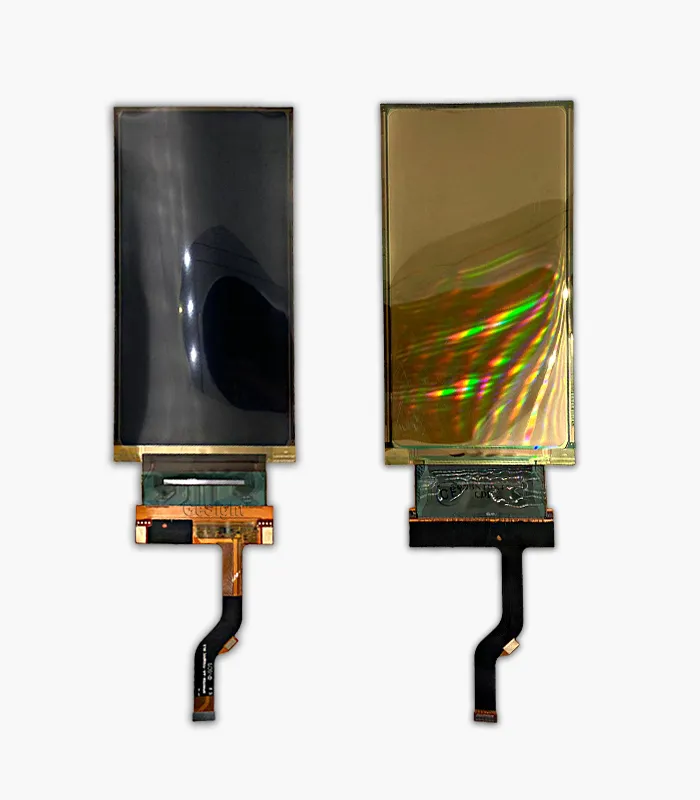

Front and back view of Gesight 5.99-inch AMOLED display module

5.99-inch Flexible/Bendable OLED Display 1080×2160 MIPI DSI

Tags: , , , , , , , , ,

$333.29piece

Add to wishlist
Compare
18 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: BO599FF2KM

The 5.99-inch Flexible/Bendable AMOLED Module delivers sharp, high-clarity visuals in a slim form factor, featuring a 1080 × 2160 resolution and 16.7M colors for crisp UI rendering and smooth gradients. With 390 cd/m² (typ.) luminance and a wide 80° L/R/U/D viewing angle (CR ≥ 10), it maintains consistent visibility across different viewing positions. Supporting MIPI DSI (4-lane) and a typical 60 Hz refresh rate, it provides stable motion performance for handheld and embedded interfaces. Its ultra-slim outline of 71.35 × 150.42 × 1.416 mm (typ.) and 68.04 × 136.08 mm active area help simplify integration, while the External CTP (TOF) solution supports 10-point multi-touch via I2C for responsive input. Gesight supplies this module for dependable real-world use with a -20 to +70°C operating range and -40 to +80°C storage rating.

Application

Smart Mobile Phone | Slim Handheld Terminals | Compact Embedded UI Devices

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

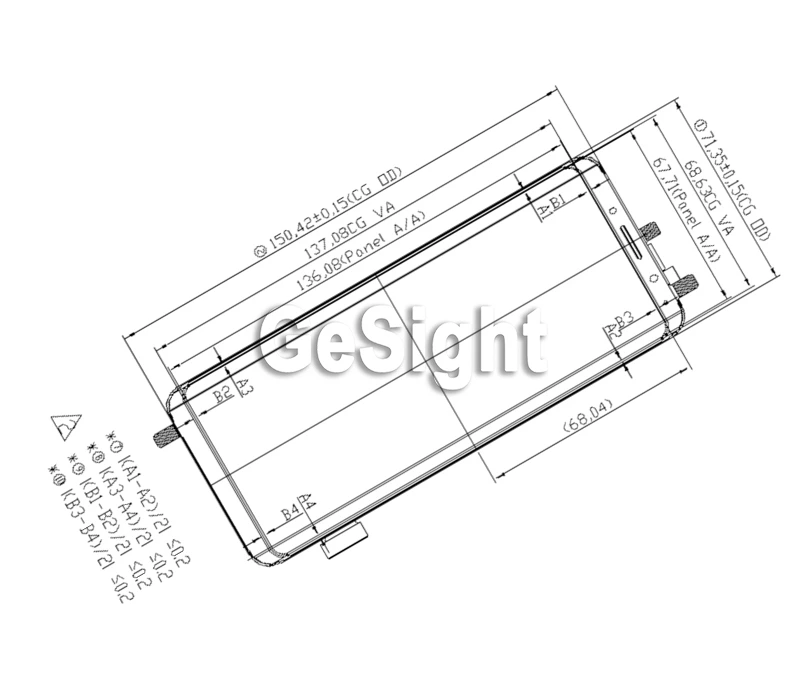

Mechanical drawing of Gesight BO599FF2KM AMOLED module showing outline and active area
5.99-inch AMOLED flexible display bending demo with vivid image

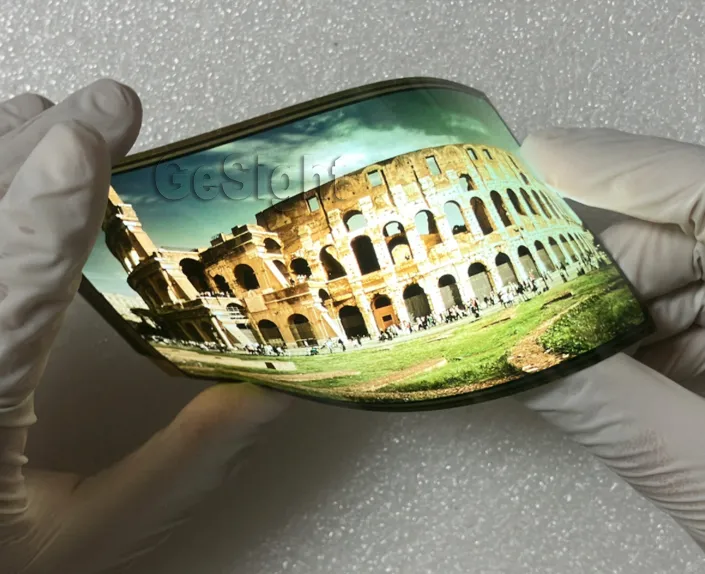

Curved AMOLED Handling Demo for Design Validation

This photo shows BO599FF2KM being gently flexed during handling—highlighting its thin, lightweight build and how naturally it can follow slight curvature in real device assemblies. It’s a practical way to validate mechanical fit, edge integrity, and real-world viewing while the panel is running vivid content, where AMOLED’s deep blacks and punchy color make UI and media look clean and premium.

BO599FF2KM features a 1080 × 2160 resolution with 16.7M colors, driven via MIPI DSI (4-lane) at a typical 60 Hz refresh rate. With 390 cd/m² (typ.) luminance and a wide 80° L/R/U/D viewing angle (CR ≥ 10), it stays legible and consistent from multiple directions. The module’s slim mechanical profile (71.35 × 150.42 × 1.416 mm, active area 68.04 × 136.08 mm) helps it integrate smoothly into compact handheld designs.

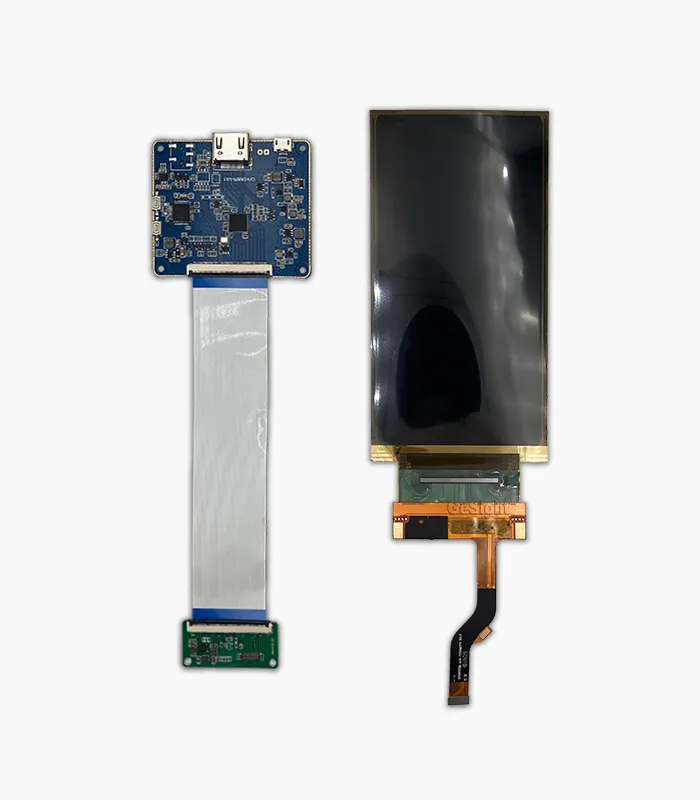

HDMI Controller Board Setup for Quick Bring-up

This setup pairs BO599FF2KM with Gesight’s HDMI controller board, making it easy to power on the panel and verify display performance without building a full host system. With standard video input and a simple test workflow, engineers can quickly check signal stability, refresh behavior, and visual tuning during early-stage development.

BO599FF2KM uses MIPI DSI (4-lane) and supports a typical 60 Hz refresh rate, while the HDMI board provides a convenient bridge for rapid screen evaluation and demo content playback. It’s especially useful for validating resolution mapping (1080 × 2160), checking color uniformity and contrast, and running repeatable tests before final hardware integration.

Gesight provides this HDMI controller solution to accelerate prototyping and reduce bring-up time for BO599FF2KM-based designs.

Gesight OLED connected to HDMI controller board for video test
Specifications
Size

5.99 inch
Pixels

1080 × 2160
Interface

Brightness

390 cd/m² (typ, Normal / W L255); 351 min, 429 max
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

Color active matrix AMOLED module (LTPS TFT)
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

Up/Down/Right/Left, CR ≥ 10: 80° (typ), 75° (min)
Outline L*W*H

71.35 × 150.42 mm; Total thickness: 1.416 mm
Active Area L*W

68.04 × 136.08 mm
Orientation

Supply Voltage

VCI: 2.60–3.60 V (typ 3.00 V); VDDIO: 1.62–1.98 V (typ 1.80 V); AVDD: 5.40–7.70 V (typ 6.80 V); ELVDD: 4.40–4.80 V (typ 4.60 V); ELVSS: -5.00 to -1.40 V (typ -2.40 V); TSP VCC: 2.7–3.6 V
Consumption

VCI 2.0 mA typ; VDDIO 30 mA typ; AVDD 20 mA typ; Panel EL 220 mA typ. Display sleep-in: VCI 0.1 mA typ; VDDIO 1.5 mA typ. Touch power: Active 82 mW; Standby 33 mW; Sleep 165 µW
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

–
Aspect Ratio

18:9
Connection Type

Main FPC, B-to-B contact pads; recommended connector: 24-5857-048
IC package

GT9286-BGA
Touch Panel

Pixel Pitch

63 µm
Sunlight Readable

–
Model

BO599FF2KM
PPI ( pixels per inch )

403 ppi
Application

Smart Mobile Phone
Pins Description
Pin No. Pin Name Pin No. Pin Name
1 TSP-INT 25 SWIRE
2 TSP-SCL 26 AVDD_EN
3 TSP-SDA 27 TE
4 GND 28 ERR_FG
5 D2P 29 RESX
6 D2N 30 OPEN
7 GND 31 OPEN
8 DIP 32 OPEN
9 DIN 33 OPEN
10 GND 34 OPEN
11 CLKP 35 GND
12 CLKN 36 OPEN
13 GND 37 ELVSS
14 D0P 38 ELVSS
15 D0N 39 ELVSS
16 GND 40 OPEN
17 D3P 41 ELVDD
18 D3N 42 ELVDD
19 GND 43 ELVDD
20 VDDIO_1.8V 44 OPEN
21 OPEN 45 GND
22 VCI_3.0V 46 TSP_AVDD_3.3V
23 OPEN 47 TSP_RESET
24 AVDD_6.8V 48 TSP_DVDD_1.8V



Electrical Characteristics

Electrical Characteristics

Test Condition: Temp = 25 ± 2 ℃

Touch power supply condition: TSP_3.3V=3.3V, TSP_1.8V=1.8V, VCI_3.0V=3.0V, VDD_1.8V=1.8V, VLIN1=6.8V; Report Rate 80Hz @ Display Frame 60Hz

Item Symbol Condition / Mode Min Typ Max Unit Remark
EL driving voltage ELVDD — 4.40 4.60 4.80 V Controlled by DDIC
EL driving voltage ELVSS — -5.0 -2.40 -1.40 V Controlled by DDIC
Analog supply AVDD — 5.40 6.80 7.70 V —
Core supply VCI — 2.60 3.00 3.60 V —
I/O supply VDDIO — 1.62 1.80 1.98 V —
Current (Display) VCI Display on mode, IC, Frame F=60Hz, White pattern 1.5 2.0 2.5 mA Full White 390 nit
Current (Display) VDDIO Display on mode, IC 20.0 30.0 40.0 mA Full White 390 nit
Current (Display) AVDD Display on mode, IC 10 20 30 mA Full White 390 nit
Current (Display) Panel EL Display on mode 180 220 260 mA Full White 390 nit
Current (Display) VCI Sleep in mode, IC sleep mode — 0.1 0.3 mA —
Current (Display) VDDIO Sleep in mode, IC sleep mode 1.0 1.5 2.0 mA —
Frame frequency Ffrm — 59 60 61 Hz —
DC-DC input current Vin White Mode L255 — — — mA Vin=4v
DC-DC input current Vin White Mode L255 — — — mA Vin=3.7v
Touch current ITSP_1.8V Sleep Mode — 10 — uA —
Touch current ITSP_3.3V Sleep Mode — 50 — uA —
Touch current ITSP_1.8V Idle Mode — 500 — uA —
Touch current ITSP_3.3V Idle Mode — 10 — mA —
Touch current ITSP_1.8V No finger — 1.95 — mA —
Touch current ITSP_3.3V No finger — 20 — mA —
Touch current ITSP_1.8V 1 Finger — 7.65 — mA —
Touch current ITSP_3.3V 1 Finger — 22 — mA —
Touch current ITSP_1.8V 5 Finger — 10.05 — mA —
Touch current ITSP_3.3V 5 Finger — 23 — mA —
Touch current ITSP_1.8V 10 Finger — 11.85 — mA —
Touch current ITSP_3.3V 10 Finger — 25 — mA —

Backlight Specification

Item Specification
Backlight N/A (AMOLED, no backlight)
