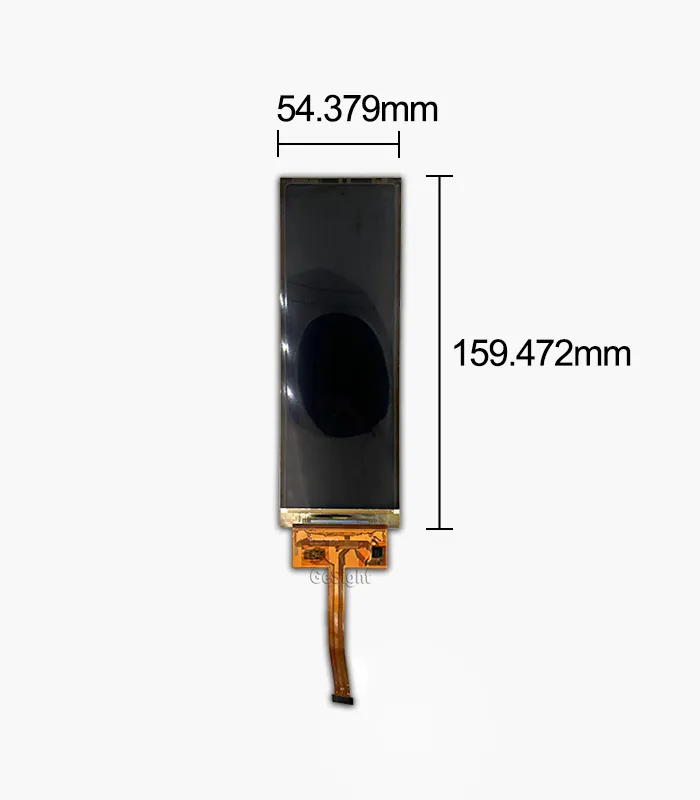

module outline size reference showing 159.472 mm length and 54.379 mm width

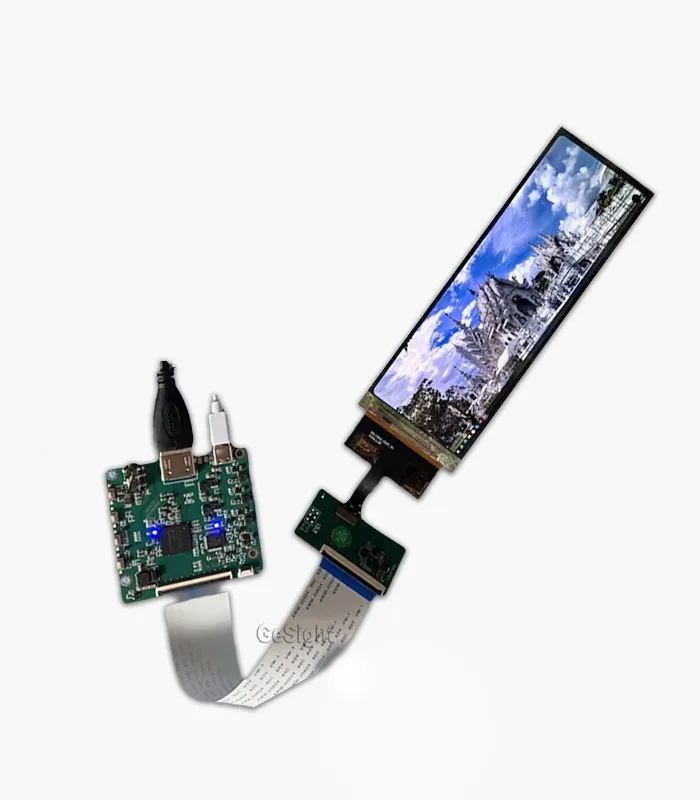

display linked to controller board via ribbon cable

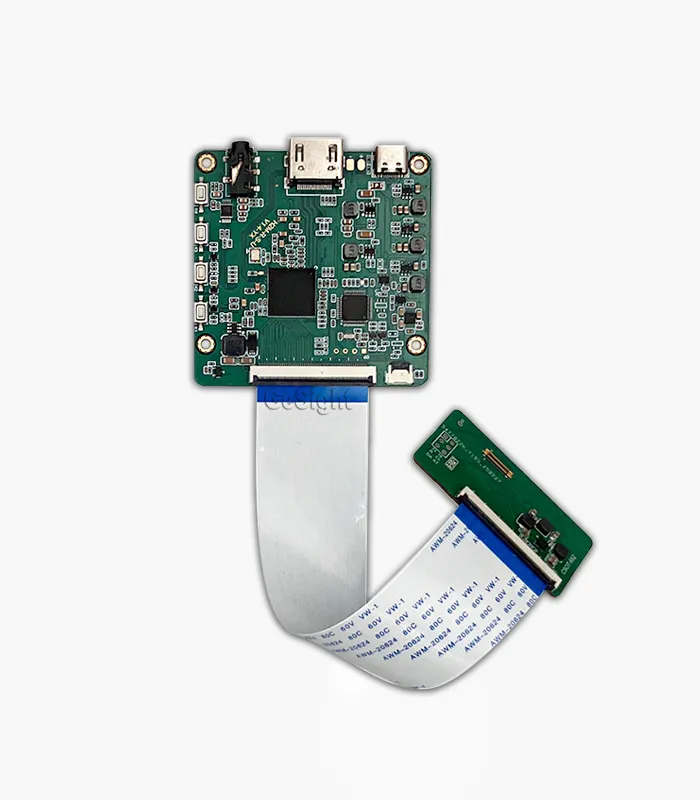

HDMI controller board for 6.52 flexible display

6.52-inch Flexible/Bendable OLED Display 2520×840 MIPI DSI

Tags: , , , , , ,

$319.61piece

Add to wishlist
Compare
16 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PO652F2K

The 6.52-inch Flexible/Benable AMOLED Module delivers sharp, high-clarity visuals in an ultra-slim, ultra-wide form factor, featuring a 2520 × 840 (SPR) resolution and a 27:9 aspect ratio for elongated UI layouts and clean content separation. With 430 nits (typ.) brightness in normal mode and up to 700 nits (typ., HBM), it helps maintain readable performance in brighter environments. Supporting MIPI (Video Mode) and 60 Hz / 90 Hz refresh rates, it enables smooth motion rendering for modern interactive interfaces. Its slim outline of 159.472 × 54.379 × 1.0 mm and 157.1976 × 52.3992 mm active area support compact integration. Touch is supported via I2C, with a recommended FT3658U touch IC and DOT touch sensor, while the display uses a recommended RM692C4 driver IC (COP) and a 40-pin connector (BM035-I40-C08). Gesight supplies this module for dependable real-world use with a -40 to +85°C operating range and -40 to +80°C storage rating.

Application

Ultra-wide UI Devices | Slim Handheld Terminals | Compact Embedded Interfaces | Flexible Display Integrations

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

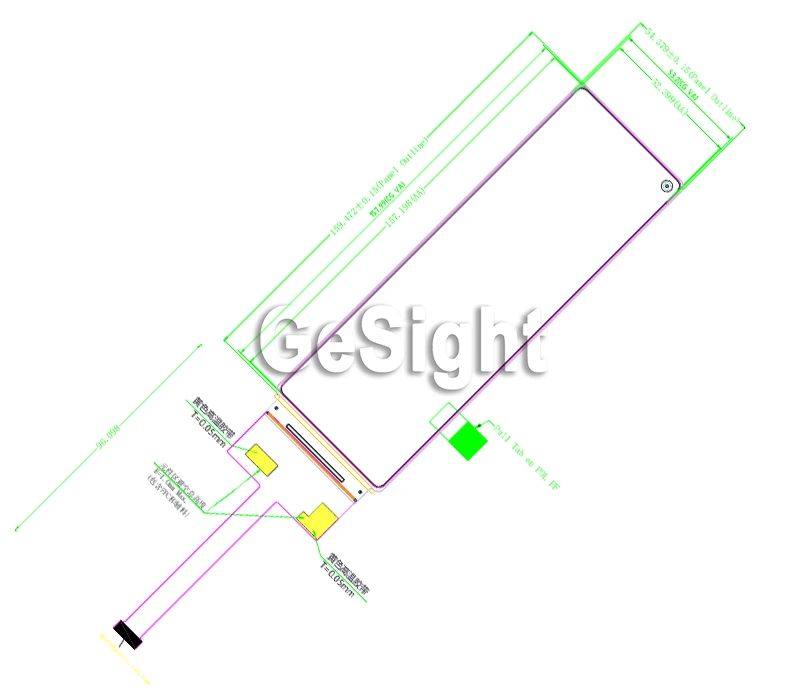

mechanical drawing showing module outline and key dimensions

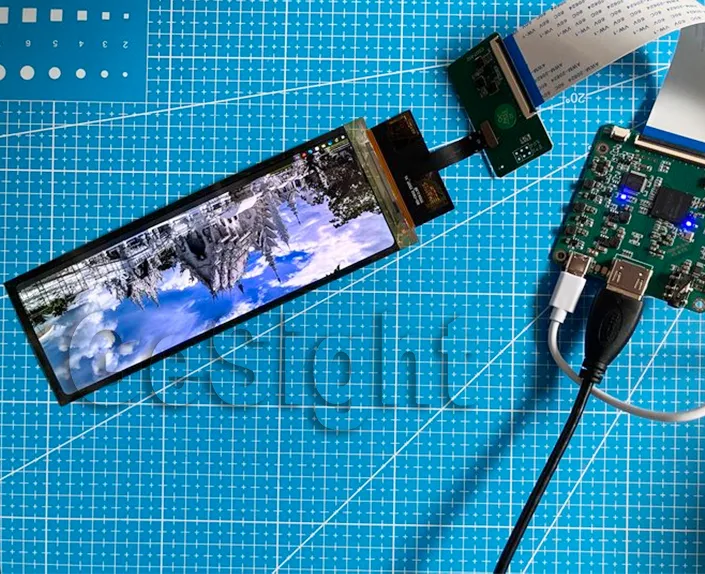

Gesight 6.52-inch flexible AMOLED demo setup with HDMI controller board and connected display

HDMI Controller Board Setup for PO652F2K Evaluation

A dedicated HDMI controller board setup makes it easy to bring up PO652F2K quickly and validate the display’s performance in real working conditions. By feeding stable video output to the panel, it supports early checks on signal integrity, timing stability, and smooth motion rendering at 60 Hz / 90 Hz, while the screen is running vivid, full-motion content.

This evaluation approach is ideal for rapid prototyping—helping teams confirm MIPI video mode behavior, verify connector and FPC routing, and shorten the gap between lab testing and final product integration. It’s also a practical way to streamline debugging and demo preparation without building a custom host platform from day one.

Gesight provides an HDMI Board to support PO652F2K evaluation and accelerate development.

Flexible/Benable AMOLED Form Factor with Immersive Ultra-Wide Visuals

The PO652F2K flexible/benable AMOLED is designed to follow gentle curvature, giving product designers more freedom to build contoured housings and sleek, space-efficient assemblies. Its flexible structure helps create a more integrated look in real devices—especially where a straight, rigid panel would limit industrial design options.

On-screen performance is tuned for modern UI content: the 2520 × 840 ultra-wide resolution and 27:9 layout keep interfaces clean and readable, while AMOLED’s inherent characteristics deliver deep blacks, punchy contrast, and smooth gradients for video, media, and graphical dashboards. With up to 700 nits (HBM) available, the panel can maintain a stronger perceived image in brighter surroundings, helping key elements stay clear and vivid.

As a result, PO652F2K supports both mechanical creativity and premium visual output—ideal for elongated displays that need to look refined from the first demo to the final product.

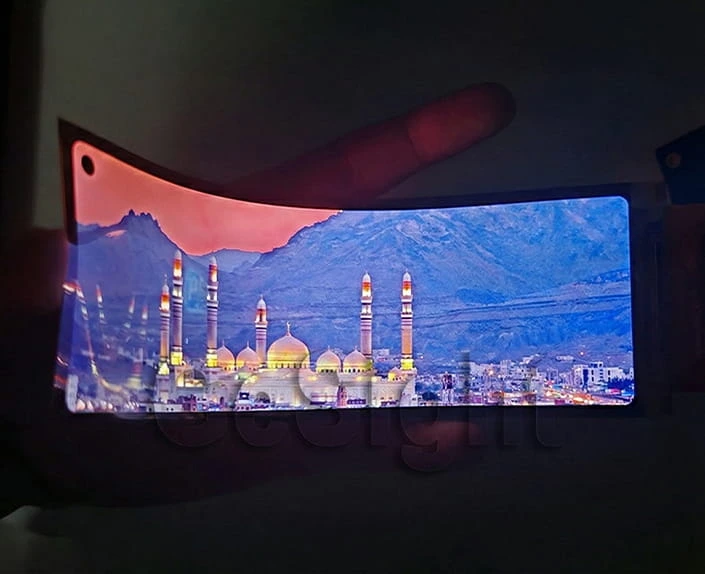

flexible AMOLED display shown curved to demonstrate bending capability
Specifications
Size

6.52 inch
Pixels

2520 × 840 (SPR)
Interface

Brightness

430 nits (typ, normal mode); 700 nits (typ, HBM mode)
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

AMOLED
Color Depth

Refresh Rate

60 Hz / 90 Hz
Viewing Angle Range

Full viewing angle; detailed angles TBD (Top/Bottom/Right/Left, CR > 10)
Outline L*W*H

159.472 × 54.379 × 1.0 mm (H max; outline is “MOD W/O CG”)
Active Area L*W

157.1976 × 52.3992 mm
Orientation

Supply Voltage

VDDIO: 1.65–1.95 V; VCI: 2.65–4.8 V; AVDD: 6.0–8.0 V; DVDD: 1.10–1.23 V; ELVDD: 4.6–5.0 V; ELVSS: -5.4–-1.4 V
Consumption

–
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

Approx. 0.99 mm (left/right) & 1.14 mm (top/bottom), computed from Outline vs Active Area
Aspect Ratio

27:9
Connection Type

40-pin connector; connector model: BM035-I40-C08
IC package

COP (Driver IC location: COP)
Touch Panel

Pixel Pitch

0.06238 mm
Sunlight Readable

–
Model

PO652F2K
PPI ( pixels per inch )

407.41 PPI
Application

–
Pins Description
Pin Name
1 ELVSS
2 TP_SDA
3 ELVSS
4 TP_RST
5 MTP_PWR
6 TP_SCL
7 ELVDD
8 TP_VDD
9 ELVDD
10 TP_IOVCC
11 AVDD
12 TP_RST(NC)
13 VDDI
14 GND
15 VCI
16 D3P
17 NC
18 D3N
19 AVDD_EN
20 D1P
21 SWIRE
22 D1N
23 TE
24 GND
25 RST
26 CLKP
27 NC
28 CLKN
29 GND
30 GND
31 NC
32 D0P
33 NC
34 D0N
35 NC
36 D2P
37 NC
38 D2N
39 NC
40 GND
Electrical Characteristics

Electrical Characteristics

Item Symbol Min. Max. Unit Remark
Digital Power Supply VDDIO 1.65 1.95 V Note1
Analog Power Supply VCI 2.65 4.8 V Note1
Power Supply for Analog Circuit AVDD 6.0 8.0 V Note1
Digital Power Supply DVDD 1.10 1.23 V Note1
ELVDD Power Supply ELVDD 4.6 5.0 V Note2
ELVSS Power Supply ELVSS -5.4 -1.4 V Note2
Operating Temperature (Ambient) Top — — °C Refer to RA test result
Storage Temperature (Ambient) Tstg — — °C Refer to RA test result
Humidity Hstg — — %RH Refer to RA test result



Backlight Specification

Item Specification
Backlight N/A (AMOLED, no backlight)
