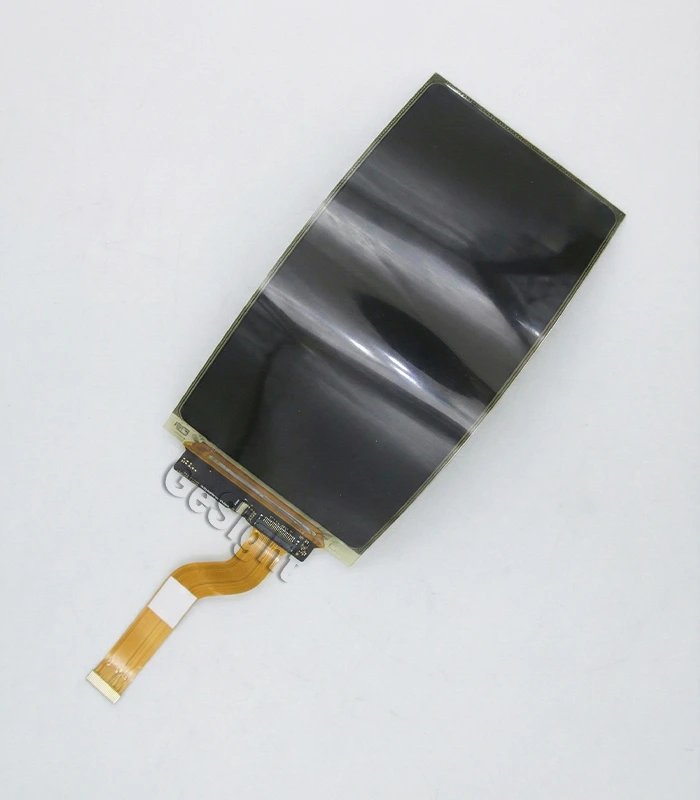

curved AMOLED panel on white

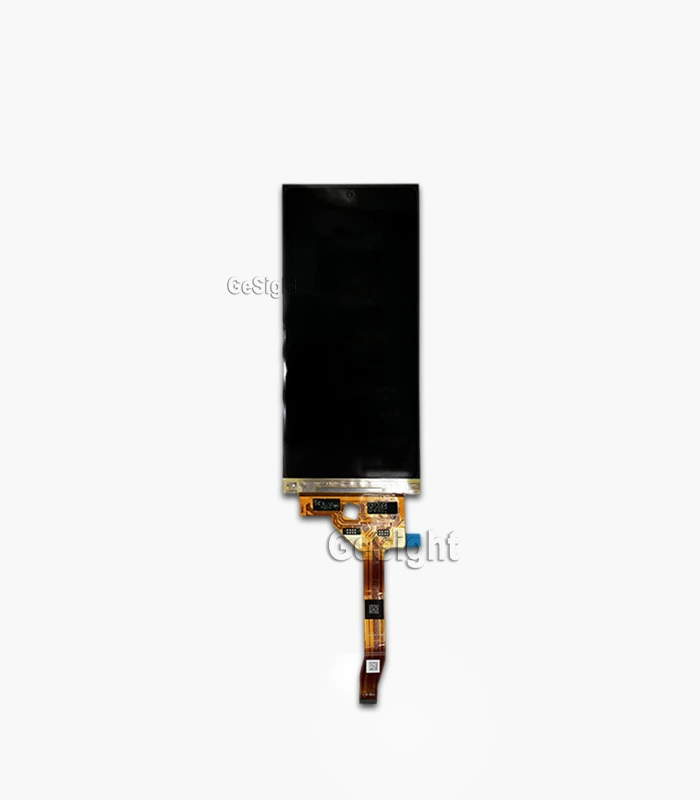

flexible/bendable AMOLED front view
AMOLED module front and back
Click to enlarge
landscape AMOLED display demo
curved AMOLED panel on white
flexible/bendable AMOLED front view
AMOLED module front and back

6.67-inch Flexible/Bendable AMOLED Display 1080×2400 MIPI

Tags: , , , , , ,

$253.46piece

Add to wishlist
Compare
12 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: TA067FM01

The 6.67-inch Flexible/Bendable AMOLED Display delivers vivid, high-clarity visuals in a slim, lightweight form factor, featuring a 1080 × 2400 resolution and a 9:20 aspect ratio for modern full-screen UI designs. With 350–700 nits (typ.) brightness and 16.7M colors (24-bit), it offers clean gradients and strong readability for rich content. The module supports a System MIPI interface and a wide viewing performance of 80° (Φ=0°/90°/180°/270°). Its ultra-thin outline of 159.24 × 72.63 × 0.62 mm and 154.560 × 69.552 mm active area enable easy integration into curved or space-limited designs. Touch is On-cell capacitive with a built-in S3909 touch IC, while the display uses the RM692E5 driver IC and an FPC + connector connection. Gesight supplies this module for dependable real-world use with a -30 to +70℃ operating range and -30 to 80℃ storage rating.

Application

Curved UI Devices | Slim Handheld Terminals | Wearable/Portable Electronics | Embedded HMI

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

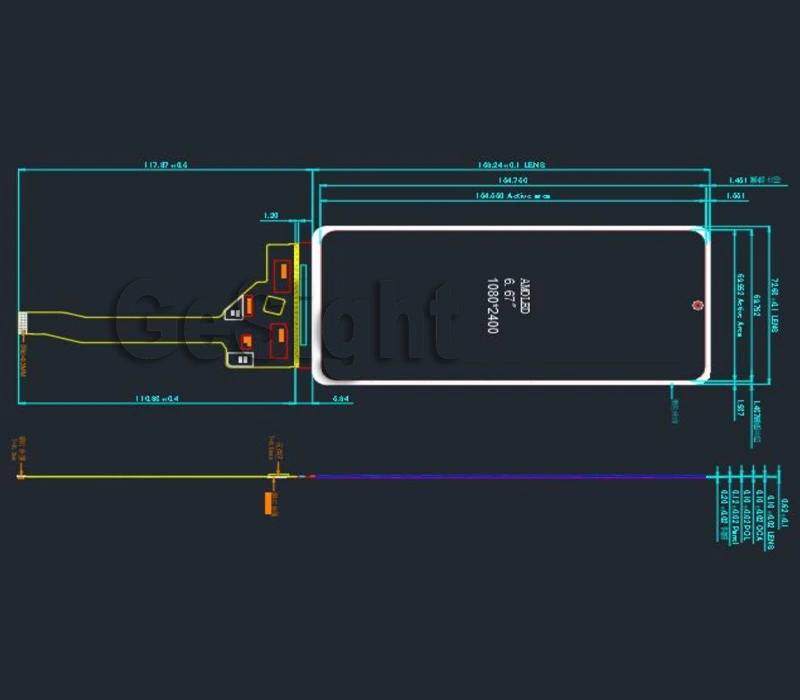

AMOLED outline and active area drawing

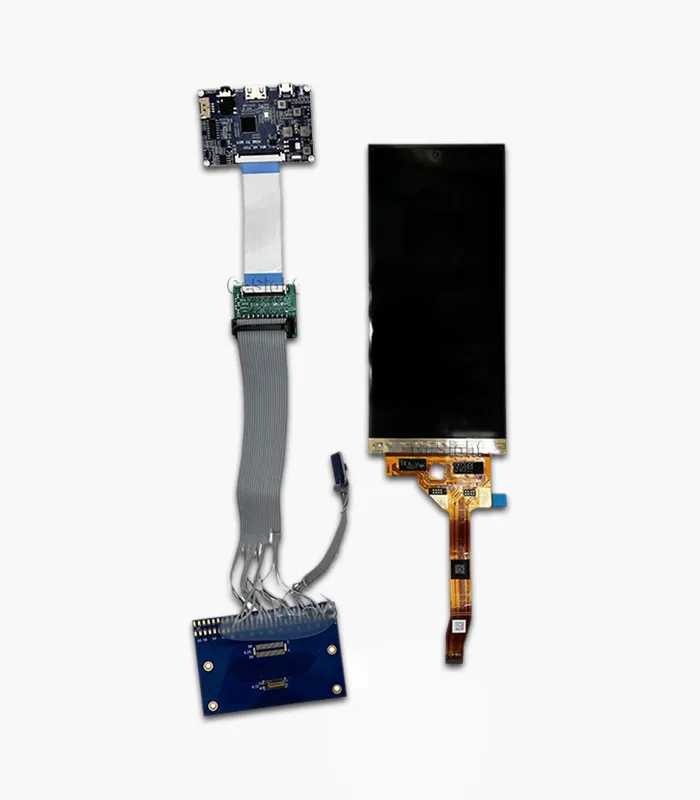

AMOLED with HDMI controller board

HDMI Controller Board for Rapid Demo & Debug

To accelerate development and verification, an HDMI controller board offers a practical way to drive the display directly from common video sources. Engineers can quickly confirm image output, timing stability, and basic interactive behavior without spending extra time on early firmware and interface bring-up. This setup is especially useful for demo preparation, lab validation, and comparison tests—helping teams iterate faster and communicate display performance more clearly to stakeholders.

Beyond simple playback, the controller board streamlines day-to-day debugging: it reduces wiring complexity, keeps the test environment consistent, and makes it easier to reproduce results when tuning signal settings or checking display behavior across different scenes. For projects moving from evaluation to integration, it also provides a smoother transition path by validating the display’s video chain before the final host design is ready.

Gesight provides HDMI Board solutions for this display, supporting efficient video input testing and faster prototyping workflows.

Flexible/Bendable Curvature with Strong Visual Presence

This 6.67-inch Flexible/Bendable AMOLED is designed to follow a smooth, natural radius, giving product teams more freedom to build contoured housings and curved front designs. The panel keeps a stable curved form, making it suitable for concept validation and real integration where a flat display would limit the overall silhouette.

In terms of on-screen performance, AMOLED’s self-emissive pixels deliver deep blacks, high contrast, and vivid color, helping images stay impactful even across the curved surface. Fine details remain clear, and gradients look smoother in bright skies and shadow areas—ideal for showcasing premium UI and media content in a flexible/bendable form factor.

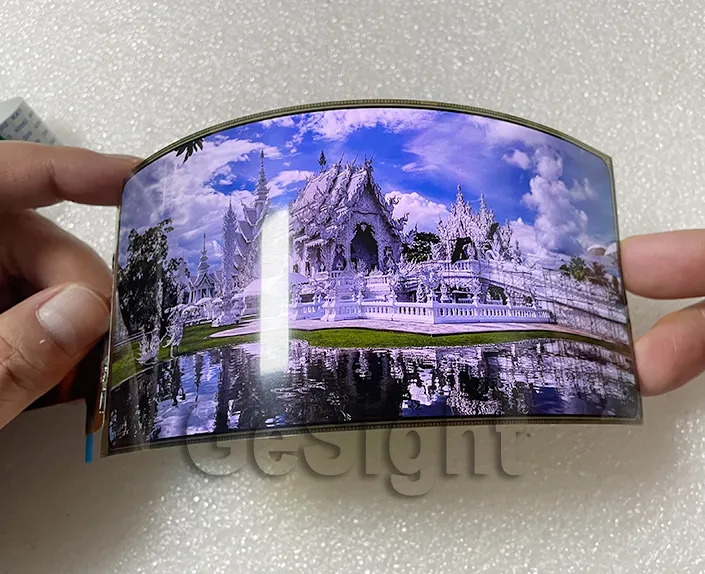

curved flexible/bendable AMOLED demo
Specifications
Size

6.67 inch
Pixels

1080 (W) × 2400 (H)
Interface

Brightness

350–700 cd/m² (White)
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

AMOLED
Color Depth

Refresh Rate

–
Viewing Angle Range

80° (Φ=0°/90°/180°/270°)
Outline L*W*H

159.24 × 72.63 × 0.62 mm
Active Area L*W

154.560 × 69.552 mm
Orientation

Supply Voltage

VCI 3.3 V; ID1 1.8 V; VDD 1.8 V; ELVSS -4.0 to 0 V (typ -3.0 V); DVDD 1.2 V; Touch VCC 3.0–3.5 V
Consumption

–
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

L/R total 3.078 mm (≈1.539 mm each), T/B total 4.680 mm (≈2.340 mm each)
Aspect Ratio

9:20 (1080:2400)
Connection Type

FPC + connector
IC package

–
Touch Panel

Pixel Pitch

–
Sunlight Readable

–
Model

TA067FM01
PPI ( pixels per inch )

~395 PPI
Application

–
Pins Description
Pin No. Pin Name
1 ELVSS
2 VCI
3 ELVSS
4 ID/GND
5 NC
6 VDDIO
7 AVDD
8 EN
9 NC
10 VDDD
11 NC
12 NC
13 NC
14 D2P
15 RST
16 D2N
17 TE
18 GND
19 ELVDD-EN
20 D1P
21 TP-RST
22 D1N
23 TP-INT2
24 GND
25 MISO
26 DCP
27 MOSI
28 DCM
29 CSO
30 GND
31 CLK
32 D0P
33 INT
34 D0N
35 VDD
36 GND
37 VPP
38 D3P
39 VCI
40 D3N



Electrical Characteristics

Electrical Characteristics

Parameter Symbol Min Typ Max Unit
Analog Voltage VCI — 3.3 — V
Logic Voltage ID1 — 1.8 — V
OLED Working Positive Voltage VDD — 1.8 — V
OLED Working Negative Voltage ELVSS -4 -3.0 -2 V
OLED Display Voltage DVDD — 1.2 — V
Touch Panel Input Power VCC 3.0 3.3 3.5 V
Input High Level Voltage Vih 0.8VDDIO — VDDIO V
Input Low Level Voltage Vil GND 0 0.2VDDIO V
Output High Level Voltage Voh 0.8VDD — VDD V
Output Low Level Voltage Vol GND 0 0.2VDD V

Backlight Specification

Item Specification
Backlight N/A (AMOLED, no backlight)
