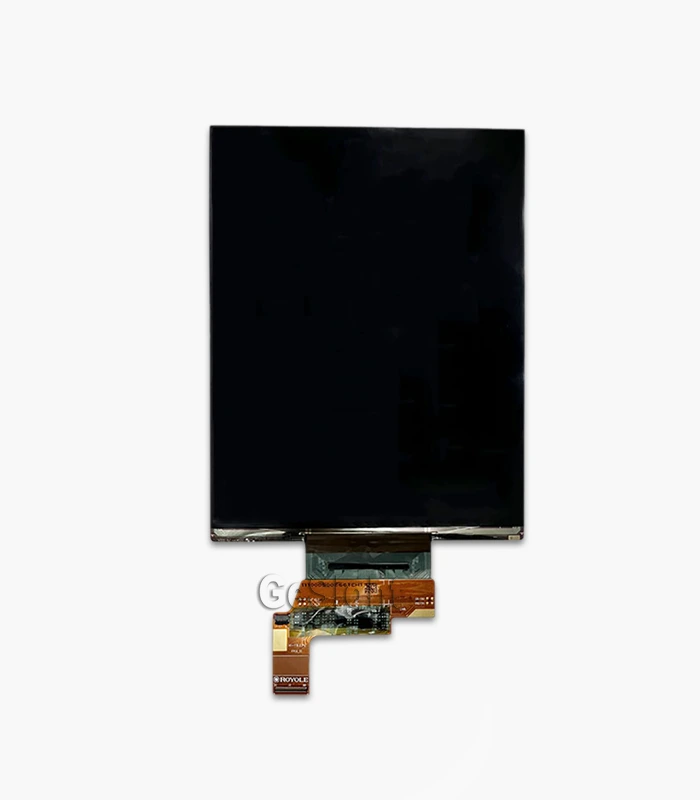

AMOLED touch display panel, front view, slim module

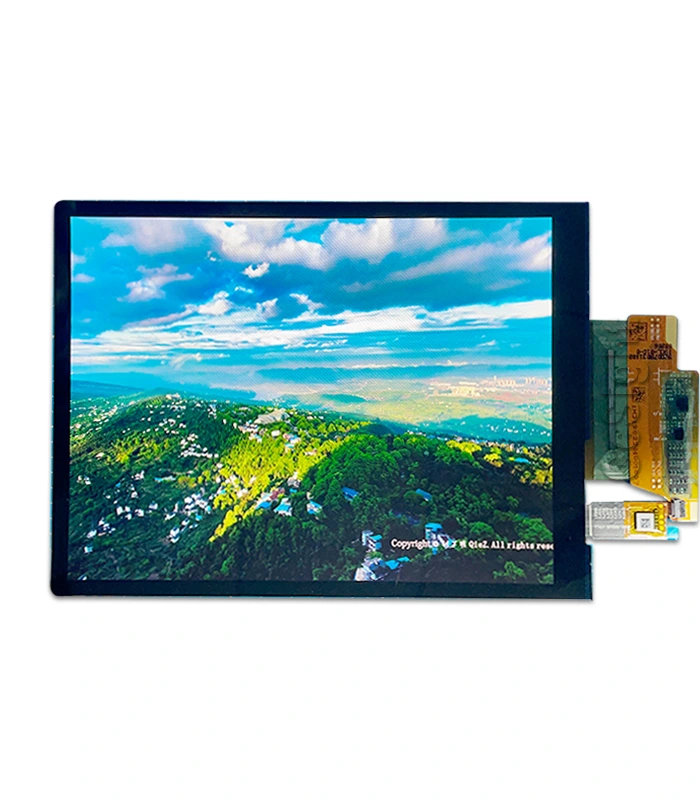

AMOLED touch display module, demo setup, high resolution screen
AMOLED touch display, HDMI controller board, ribbon cable connection

7.8-inch Flexible/Bendable AMOLED 1440×1920 Display Module

Tags: , , , , , , , ,

$406.20piece

Add to wishlist
Compare
20 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: D07802-02

The 7.8-inch Flexible/Bendable AMOLED Touch Display Module delivers sharp, vibrant visuals in a compact 4:3 format, featuring a 1440 × 1920 resolution and 308 PPI for clean UI detail and smooth gradients. With 250 cd/m² (min) and 300 cd/m² (typ) brightness plus 16.7M colors (3 × 8-bit), it provides strong color performance for rich content. The module supports a 2-port MIPI interface and a 60 Hz refresh rate, while maintaining a wide viewing performance of 80° (U/D/L/R) @ CR ≥ 200. Its outline of 129.4 × 175.95 mm and active area of 118.8 × 158.4 mm help streamline integration in space-conscious designs. Touch is integrated with a built-in FT3558 touch IC, and the display uses the RM69350 driver IC with a BTB connection (recommended connector: Hirose BM20B(0.6)-60DS-0.4V(51)). Gesight supplies this module for dependable real-world use with a -30 to +70°C operating range and -30 to 80°C storage rating.

Application

Embedded HMI | Portable Terminals | Industrial Controllers | Medical UI Devices | Smart Home Panels

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

mechanical drawing, outline dimensions, active area size

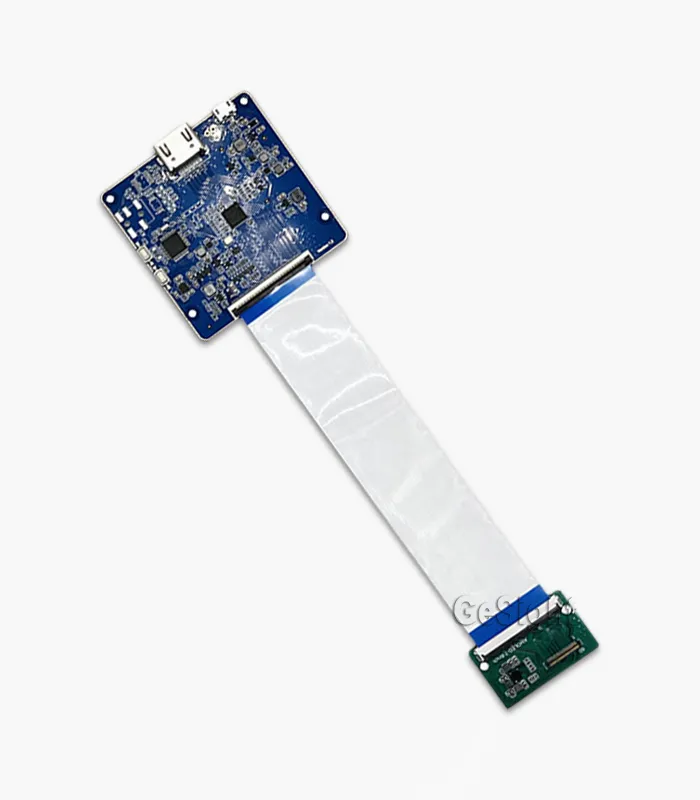

HDMI controller board, video input, ribbon cable interface

HDMI Controller Board for Quick Bring-up & Video Testing

To speed up evaluation and early-stage validation, the HDMI controller board provides a straightforward way to drive the 7.8-inch Flexible/Bendable AMOLED Touch Display Module from common video sources. Instead of spending time on host-side interface bring-up first, engineers can quickly verify image output, color rendering, and overall link stability, making it easier to confirm the display is working as expected right from the start.

For day-to-day development, this setup also helps simplify debugging workflows. It reduces wiring complexity, keeps test conditions consistent, and supports repeatable checks across different scenes—useful for demo preparation, lab validation, and side-by-side performance comparisons. When a project moves from evaluation to integration, validating the video path early can reduce risk and shorten the iteration cycle.

Gesight provides HDMI Board options for this display to support efficient video input testing and faster prototyping.

Flexible/Bendable Curvature with Vivid Image Performance

Designed for flexible form factors, the display supports smooth Flexible/Bendable curvature while keeping the picture clean and stable across the curved surface. Even when bent, the image remains well-aligned from edge to edge—helpful for product concepts that need a wrapped UI, ergonomic viewing angles, or space-saving industrial layouts.

On the visual side, the AMOLED panel delivers punchy color and strong contrast that makes scenes look lively and dimensional. Fine details, gradients, and highlights stay crisp, so photos, maps, and UI elements remain clear and engaging—ideal for demos where you want the screen’s real-world presentation to speak for itself.

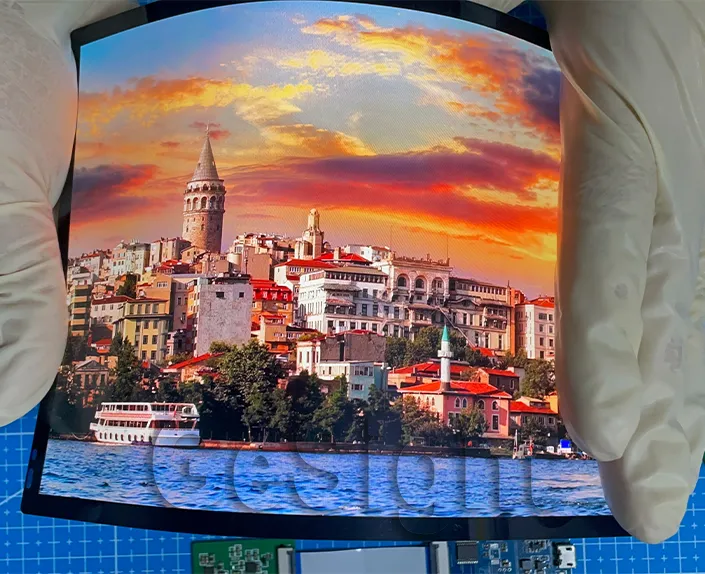

flexible/bendable AMOLED touch display, curved screen demo, vivid color
Specifications
Size

7.8 inch
Pixels

1440 × 1920
Interface

Brightness

Min 250 cd/m²; Typ 300 cd/m²
Manufacturer

Gesight
Display Type

Flexible OLED
Display Mode

–
Color Depth

Refresh Rate

60 Hz
Viewing Angle Range

80° (U/D/L/R) @ CR ≥ 200
Outline L*W*H

129.4 × 175.95 × TBD mm
Active Area L*W

118.8 × 158.4 mm
Orientation

Supply Voltage

Panel driving (Typ): ELVDD 5.2 V; ELVSS -2.3 V; LVGL -7 V; AVDD 5.0 V; VDDI 1.8 V; VCI 3.0 V. Touch driving (Typ): VDD28 2.8 V; IOVCC 1.8 V
Consumption

1.77 W @ 40% APL; (2.91 W @ 300 nits full white)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−30 to +80 °C
Bezel Area (mm)

Calculated (total border): (129.4 – 118.8) = 10.6 mm (W total); (175.95 – 158.4) = 17.55 mm (H total).
Aspect Ratio

4:3
Connection Type

BTB
IC package

COF
Touch Panel

Pixel Pitch

0.0825 mm
Sunlight Readable

–
Model

D07802-02
PPI ( pixels per inch )

308
Application

–
Pins Description
Pin No. Symbol I/O Description
1 D0_N_A I/O DSI-D0− differential data signals of Port A
2 D0_P_A I/O DSI-D0+ differential data signals of Port A
3 GND P Ground
4 D1_N_A I DSI-D1− differential data signals of Port A
5 D1_P_A I DSI-D1+ differential data signals of Port A
6 GND P Ground
7 CLK_N_A I CLK− differential clock of Port A
8 CLK_P_A I CLK+ differential clock of Port A
9 GND P Ground
10 D2_N_A I DSI-D2− differential data signals of Port A
11 D2_P_A I DSI-D2+ differential data signals of Port A
12 GND P Ground
13 D3_N_A I DSI-D3− differential data signals of Port A
14 D3_P_A I DSI-D3+ differential data signals of Port A
15 GND P Ground
16 D0_N_B I DSI-D0− differential data signals of Port B
17 D0_P_B I DSI-D0+ differential data signals of Port B
18 GND P Ground
19 D1_N_B I DSI-D1− differential data signals of Port B
20 D1_P_B I DSI-D1+ differential data signals of Port B
21 GND P Ground
22 CLK_N_B I CLK− differential clock of Port B
23 CLK_P_B I CLK+ differential clock of Port B
24 GND P Ground
25 D2_N_B I DSI-D2− differential data signals of Port B
26 D2_P_B I DSI-D2+ differential data signals of Port B
27 GND P Ground
28 D3_N_B I DSI-D3− differential data signals of Port B
29 D3_P_B I DSI-D3+ differential data signals of Port B
30 GND P Ground
31 GND P Ground
32 VDD28 P 2.8 V for CTP power
33 SCL18 I/O SCL for CTP signal (1.8 V logic level)
34 SDA18 I/O SDA for CTP signal (1.8 V logic level)
35 RST18 O Reset for CTP signal (1.8 V logic level)
36 INT18 O INT for CTP signal (1.8 V logic level)
37 SWIRE O Swire protocol setting pin of power IC (if not used, leave open)
38 AVDD_EN O Power IC enable control pin (if not used, leave open)
39 RESX I Reset for AMOLED signal
40 F_CSB I CS for De-Mura FLASH (leave open)
41 F_SCLK I/O CLOCK for De-Mura FLASH (leave open)
42 F_SDI I/O SDI for De-Mura FLASH (leave open)
43 F_SDO O SDO for De-Mura FLASH (leave open)
44 F_HOLDN I HOLD enable for De-Mura FLASH (leave open)
45 F_WPN I WP enable for De-Mura FLASH (leave open)
46 F_DISS I DISS enable for De-Mura FLASH (leave open)
47 VDDI P Power supply for digital system
48 GND P Ground
49 VCI P Power supply for analog system
50 NC - No connection
51 AVDD P Power supply for analog circuit and driver outputs
52 NC - No connection
53 ELVDD P OLED positive power
54 ELVDD P OLED positive power
55 ELVDD P OLED positive power
56 NC - No connection
57 ELVSS P OLED negative power
58 ELVSS P OLED negative power
59 ELVSS P OLED negative power
60 LVGL P Panel negative power
Electrical Characteristics

1) Electrical Characteristics

1 DC Characteristics for Panel Driving

Condition: GND = AGND = 0 V, Ta = 25°C

Item Symbol Min Typ Max Unit Remark
OLED Power supply ELVDD 4.6 5.2 5.2 V
OLED Power supply ELVSS -6.4 -2.3 -1.4 V
Panel negative power supply LVGL -15 -7 -5 V
Driver IC source output power supply AVDD 4.5 5.0 8.0 V
Digital power supply VDDI 1.62 1.8 1.98 V
Analog power supply VCI 2.7 3.0 3.6 V
Input signal level VIH 0.7*VDDI - VDDI V T = 25°C
Input signal level VIL 0 - 0.3*VDDI V T = 25°C



2 Display Current Consumption

Mode Symbol Condition (TBD) Min Typ Max Unit Remark
Normal IAVDD AVDD=5.0 V; VCI=3.3 V; VDDI=1.8 V; ELVDD=5.2 V; ELVSS=-2.3 V; LVGL=-7 V - 49 TBD mA Note1
IVCI - - 2.5 TBD mA
IVDDI - - 40.2 TBD mA
IELVDD - - 317 TBD mA
IELVSS - - 317 TBD mA Note2
ILVGL - - 0.67 TBD mA
Deep Standby IAVDD - - 2 TBD uA
Display Off IVCI - - 0.6 TBD mA
IVDDI - - 26 TBD uA
IELVDD - - 0 TBD mA
IELVSS - - 0 TBD mA
ILVGL - - 0 TBD mA
