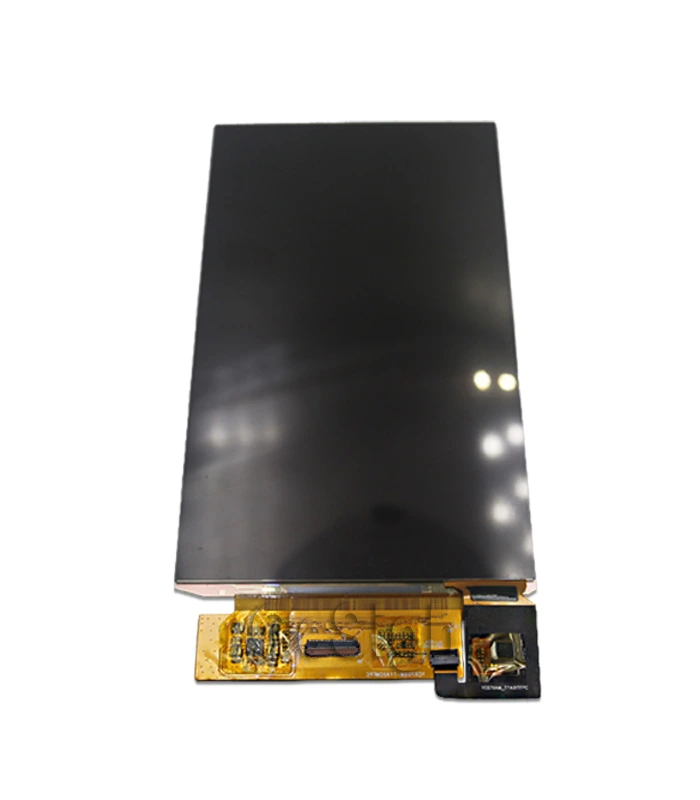

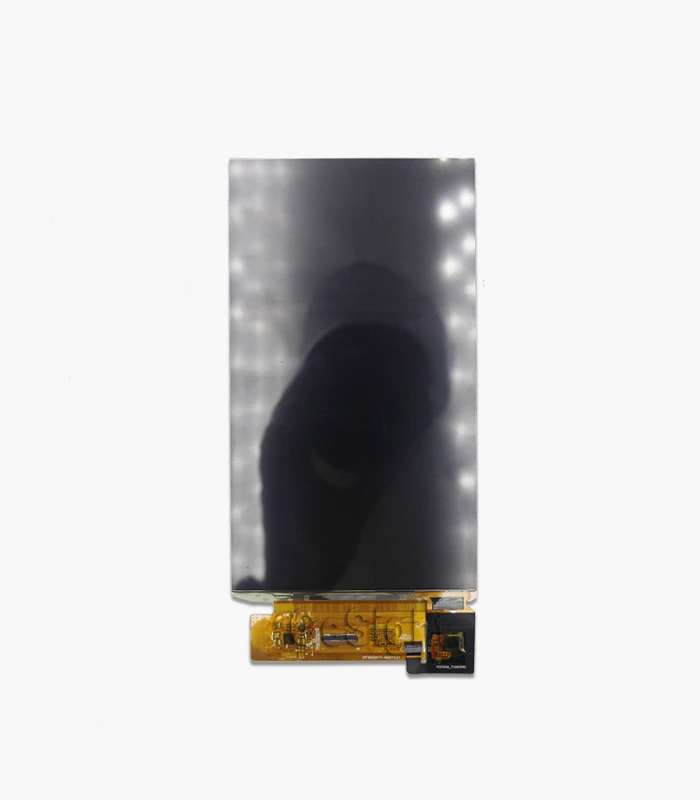

AMOLED display module, front view, glossy panel

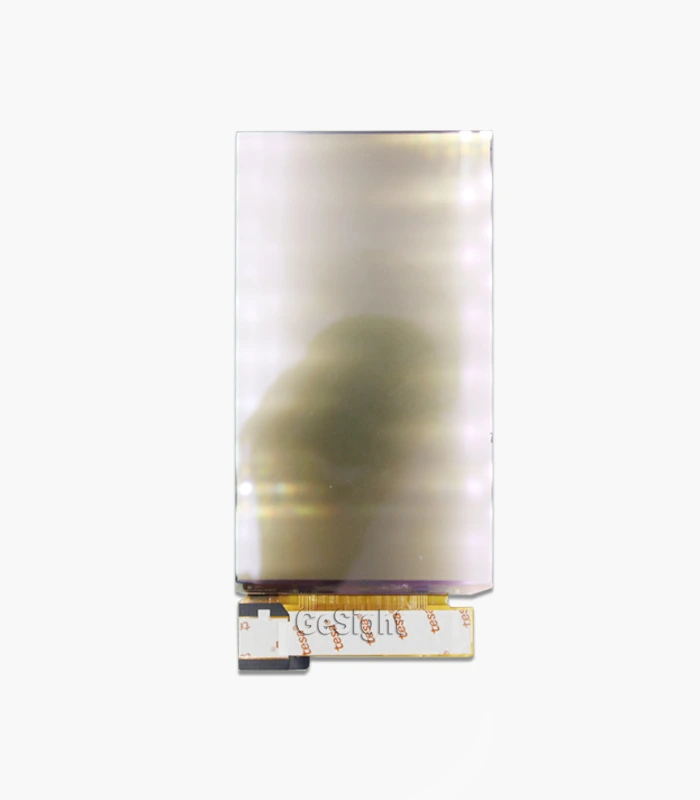

display module rear view, protective film, flex cable
AMOLED touch display module, front view, flex cable closeup

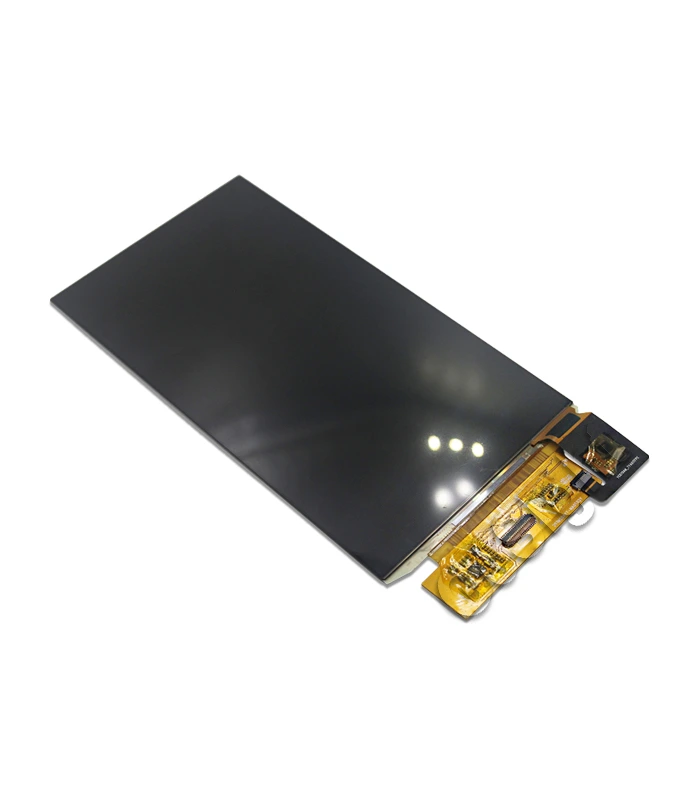

angled AMOLED panel, slim module, flex tail

7.0-inch 1080×1920 AMOLED Touch Display

Tags: , , , , , , , , , , ,

$100.00piece

Add to wishlist
Compare
10 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get A Quotation

Get Your Exclusive Quotation

 Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: PO700FH101GG

The 7.0-inch AMOLED Touch Display delivers crisp FHD visuals in a slim 9:16 format, featuring a 1080 × 1920 resolution and 10-bit color (DSC) up to 1.07B colors. With an ≈0.0807 mm pixel pitch (≈315 PPI, calculated), it renders fine UI elements and smooth gradients with clean edges. Brightness reaches 800 cd/m² (typ, Normal) and up to 1000 cd/m² (typ, HBM), supporting clearer viewing under higher ambient light.

The module uses a MIPI DSI (4-lane) interface and supports 50/60/120/165 Hz refresh options for responsive motion performance. It maintains wide viewing performance rated 80°/80°/80°/80° (U/D/L/R) at CR ≥ 10. Touch is integrated as an On-cell Touch Panel (With TP). The display integrates the ICNA3512 AMOLED driver IC, and the module outline is 89.13 × 160.91 × 1.095 mm (with R.T) with an 87.13 × 154.91 mm active area, using an FH26-39S-0.3SHW connector. Gesight supplies this module for dependable real-world use with a -30 to +70℃ operating range.

Application

Handheld Terminals | Embedded HMI & Control Panels | Portable Instruments | Demo & Evaluation Setups

Customized Options

FPC  | Touch Panel | Cover Glass | Controller Board | Brightness

mechanical drawing, outline dimensions, active area

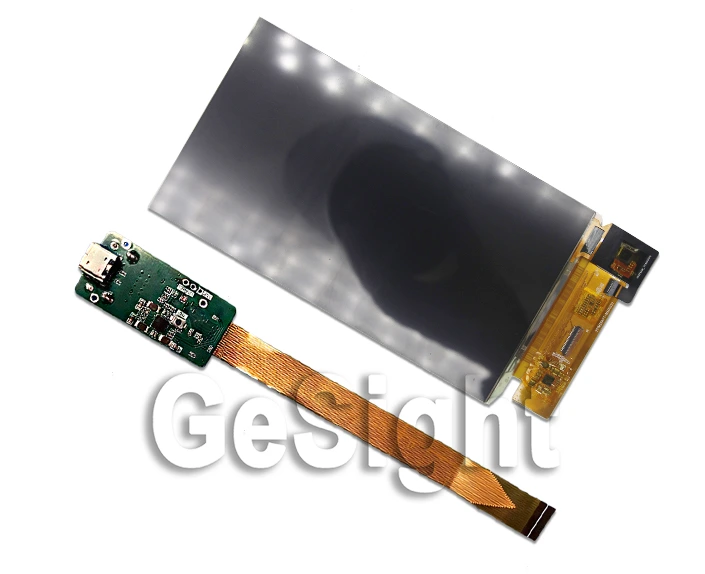

AMOLED display module with controller board, flex connection

HDMI Controller Board for PO700FH101GG Integration

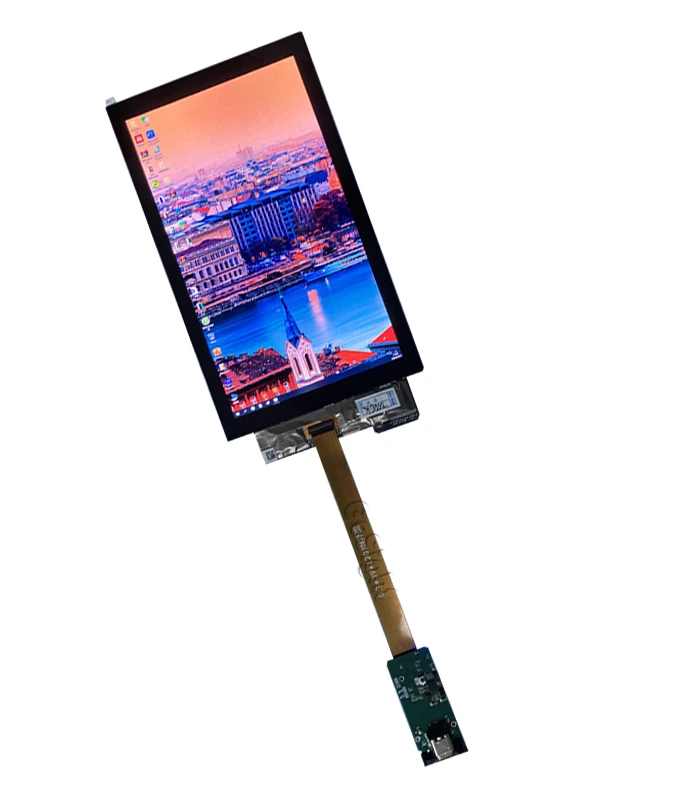

To speed up prototyping and video-source evaluation, PO700FH101GG can be paired with an HDMI controller board that converts standard HDMI input into the panel’s MIPI DSI (4-lane) interface. This setup makes it easy to play real video content, check signal stability, and bring up the display quickly—without building a custom mainboard at the early stage. The board-to-panel link is delivered through an FPC connection, helping keep wiring clean and setup time short.

With the HDMI board in place, teams can focus on practical validation—brightness/contrast checks, refresh-rate verification, touch interaction testing (on-cell TP), and system-level demos under real working conditions. It’s a reliable path from bench testing to product integration, especially when you need repeatable results for debugging and UI tuning.

Gesight provides HDMI boards to support PO700FH101GG evaluation and development.

On-Cell Touch Panel for Direct, Responsive Interaction

PO700FH101GG integrates an on-cell touch panel, enabling a slimmer stack-up and a cleaner front surface while keeping touch response fast and consistent. For product teams, this means you can validate real interaction flows early—taps, swipes, UI gestures, and multi-step control logic—directly on the AMOLED module without adding an external touch layer.

In demo and evaluation setups, on-cell touch also helps reduce optical haze and maintains sharp visual clarity, so you can judge UI readability, icon edges, and color gradients while testing touch behavior at the same time. It’s a practical solution for handheld terminals, embedded HMI, and interactive prototypes where both display performance and touch feel need to be verified before final system integration.

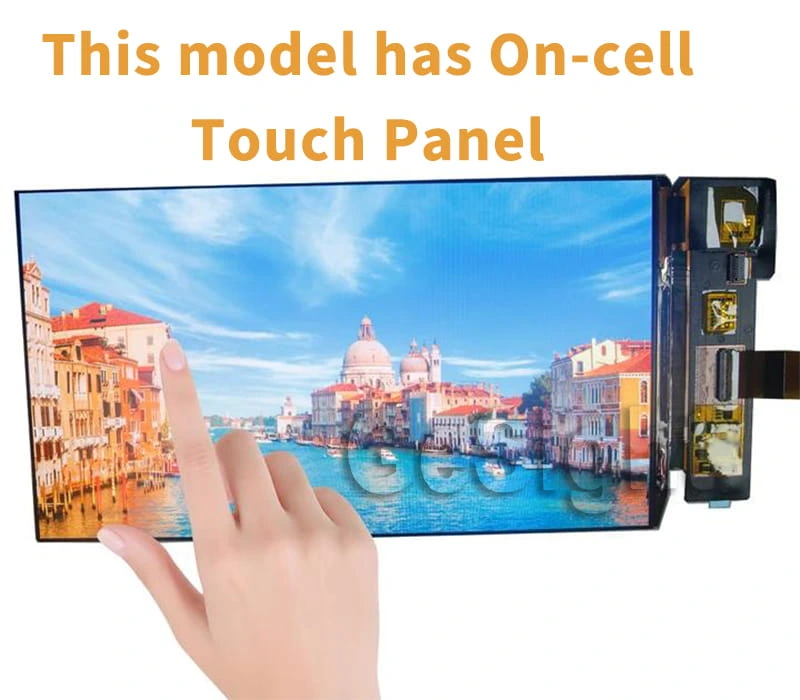

on-cell touch panel, touch interaction demo
live display demo, high brightness, vivid color

Vivid AMOLED Visuals for Real-Content Evaluation

PO700FH101GG is built to show what matters in real UI and video—not just in a spec table. In live demos, the AMOLED panel delivers deep blacks and high contrast, helping scenes look clean and dimensional while keeping shadow details readable. The FHD 1080×1920 resolution and ≈315 PPI also make fine text, icons, and interface lines appear sharp, which is especially useful when you’re checking UI density and layout spacing on an actual device.

For image-quality validation, the module’s 10-bit color (DSC) supports smoother gradients and more natural tonal transitions, reducing banding in sky, skin-tone, and soft-color backgrounds. Combined with 800 cd/m² (typ) brightness and up to 1000 cd/m² (typ, HBM), it’s a practical choice for demo playback, visual tuning, and early-stage verification before final system integration.

Specifications
Size

7.0 inch
Pixels

1080 × 1920 (FHD)
Interface

Brightness

800 cd/m² (typ, Normal); 1000 cd/m² (typ, HBM)
Manufacturer

Gesight
Display Type

AMOLED
Display Mode

AMOLED
Color Depth

Refresh Rate

50/60/120/165 Hz
Viewing Angle Range

80°/80°/80°/80° (T/B/L/R, CR ≥ 10)
Outline L*W*H

89.13 × 160.91 × 1.095 mm (module, with R.T); 89.1344 × 160.9056 × 0.8 mm (panel outline)
Active Area L*W

87.13 × 154.91 mm (AA)
Orientation

Supply Voltage

VBAT: 3.8–4.5 V; VCC: 3.3 V; IOVCC: 1.8 V
Consumption

4.40 W (typ, Normal); 5.84 W (typ, HBM)
Operating Temperarure

−30 to +70 °C
Storage Temperature

−40 to +80 °C
Bezel Area (mm)

AA: L/R ≈ 1.0 mm each; T/B ≈ 3.0 mm each
Aspect Ratio

9:16
Connection Type

FPC connector (FH26-39S-0.3SHW)
IC package

–
Touch Panel

Pixel Pitch

≈ 0.0807 mm
Sunlight Readable

–
Model

PO700FH101GG
PPI ( pixels per inch )

315 PPI
Application

Folding / Flexible AMOLED module (panel)
Pins Description
Pin No. Symbol Description When not in use
1 GND Ground
2 GND Ground -
3 GND Ground
4 VBAT 3.8-4.5V in
5 VBAT 3.8-4.5V in -
6 VBAT 3.8-4.5V in
7 VBAT 3.8-4.5V in -
8 VBAT 3.8-4.5V in
9 GND Ground -
10 OTPV NC -
11 NC -
12 GND Ground -
13 D3P MIPI data Lane
14 D3N MIPI data Lane
15 GND Ground -
16 D0P MIPI data Lane
17 D0N MIPI data Lane -
18 GND Ground -
19 CLKP MIPI Clock Lane
20 CLKN MIPI Clock Lane
21 GND Ground
22 D1P MIPI data Lane
23 D1N MIPI data Lane
24 GND Ground
25 D2P MIPI data Lane
26 D2N MIPI data Lane
27 GND Ground
28 RESX Reset signal input terminal(1V8)
29 VDDIO IO Power supply(1V8)
30 VCI Power supply(3V3)
31 TE Tearing effect signal to frame memory writing
32 GND Ground
33 TP-VDD TP Power supply(3V3)
34 TP-1V8 TP IO Power supply(1V8-3V3)
35 TP-SDA TP Serial DATA input signal(1V8-3V3)
36 TP-SCL TP Serial clock(1V8-3V3)
37 TP-RESET TP Reset signal input terminal(1V8-3V3)
38 TP-INT TP INT(1V8-3V3)
39 GND Ground -



Electrical Characteristics

1) Electrical Characteristics (AMOLED)

Parameter Symbol Min Typ Max Unit Notes
Supply voltage for logic VBAT 3.8 – 4.5 V
Supply voltage for logic VCC – 3.3 – V
I/O power supply IOVCC – 1.8 – V
Power consumption (Normal) – 4.24 4.40 4.54 W
Power consumption (HBM) – 5.83 5.84 5.86 W
Input voltage “H” level VIH 0.8VCC – VCC V
Input voltage “L” level VIL -0.3 – 0.2VCC V
Output voltage “H” level VOH 0.8VCC – – V
Output voltage “L” level VOL – – 0.2VCC V

2) Back-light Specification Form

Item Specification
Backlight Type None (AMOLED self-emissive)
Backlight Driver N/A
LED Configuration N/A
Backlight Input Voltage N/A
Backlight Current N/A
Dimming / Control N/A



FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance,  most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable


Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

The lifetime is different on different images, check the lifetime on datasheet to study it.
