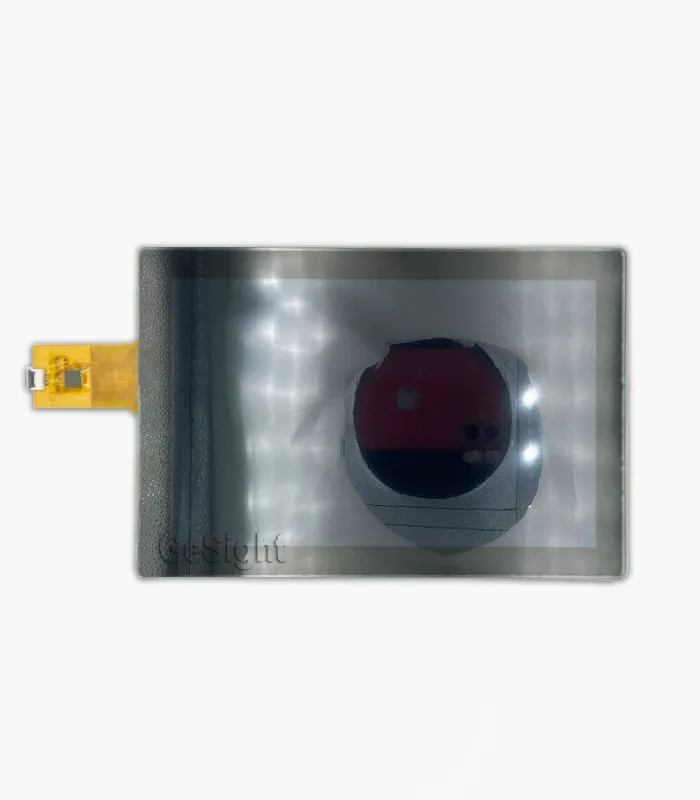

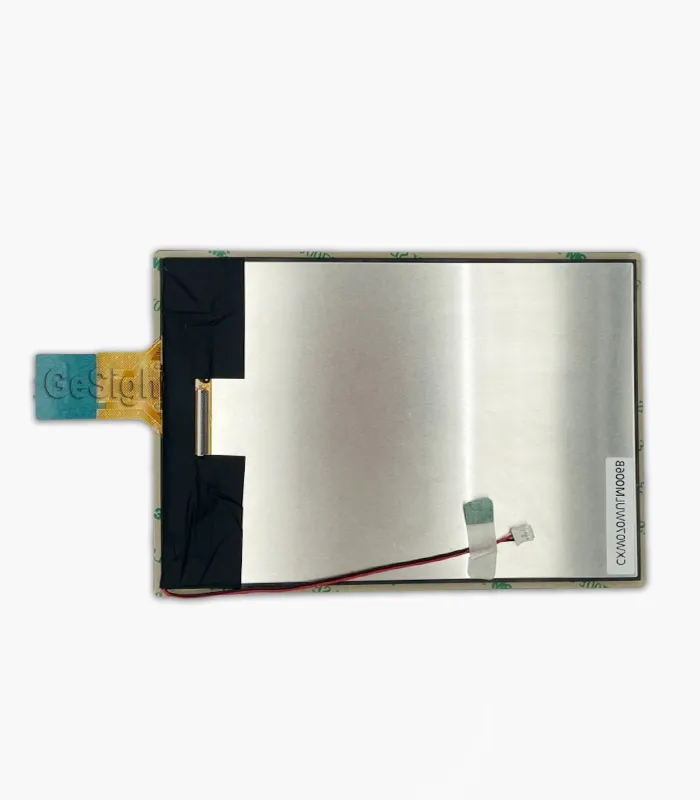

7 Inch 1920×1200 IPS TFT LCD 2000 cd High Brightness

Name: 7 Inch 1920x1200 IPS TFT LCD 2000 cd High Brightness
SKU: 811566-1-1-1
Availability: InStock

Tags: High brightness, Sunlight readable, Wide Temperature

$90.00piece

Add to wishlist

Compare

20 People watching this product now!

Quick Shipping

1-2 days after payment

Sturdy packaging

Never Damage in Ship

24/7 Support

Unlimited help desk

5-7 days Delivery

DHL/Fedex/UPS

Get Your Exclusive Quotation

Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

Description

Model: CXW070WULM006B

This 7-inch 1920×1200 IPS TFT LCD Display offers outstanding image clarity, vivid colors, and a wide 80° viewing angle. With an ultra-high brightness of 2000 cd/m², it ensures excellent readability even in direct sunlight, making it ideal for outdoor, industrial, and embedded applications. Built with an IPS panel and robust design, it delivers reliable performance in demanding environments.

Gesight also provides customized solutions — we can design and manufacture controller boards to connect this TFT LCD Display to HDMI or LVDS interfaces of single-board computers (SBC) or other computer systems, offering flexible integration for your project needs.

Application

Industrial / outdoor readable display

Customized Options

FPC | Touch Panel | Cover Glass | Controller Board | Brightness

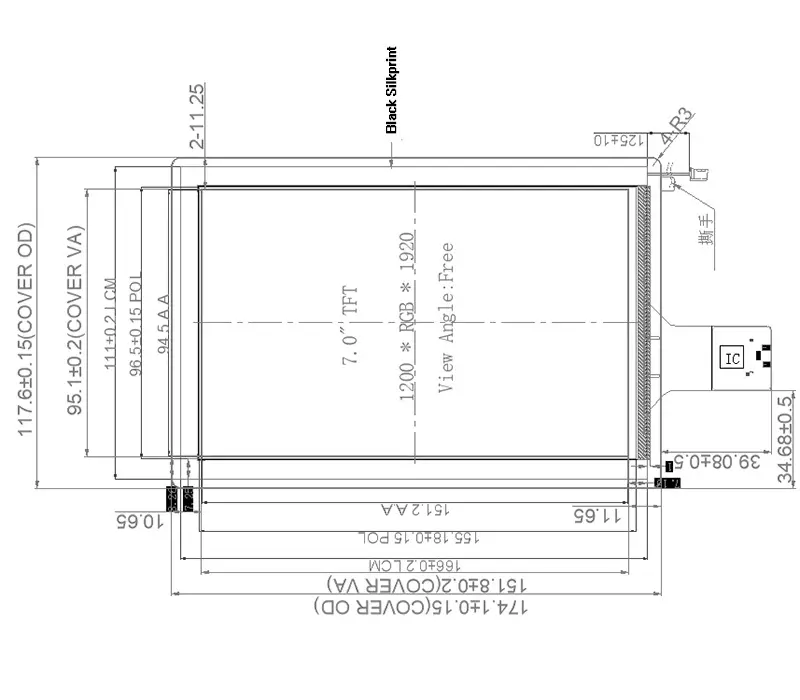

7inchTFT-LCD-1280x1920-high-brightness-outline

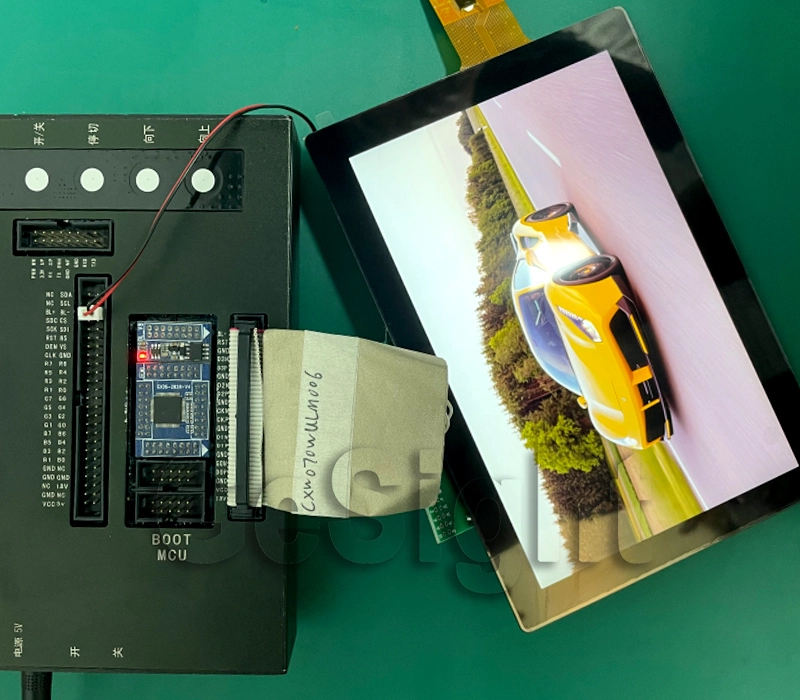

LCD Tester for 7 Inch High Brightness TFT LCD Display Module

Gesight can provide a complete LCD Tester for this 7 inch high brightness TFT LCD display module, allowing you to thoroughly test the performance and features of the TFT LCD display. Our demo kit includes an easy-to-use LCD tester designed to help you set default images and evaluate the display quality quickly. Whether you are developing new products or verifying existing designs, this demo kit is ideal for hands-on testing of the LCD module and TFT panel. Contact us today to receive your demo kit and experience the superior clarity and brightness of our LCD displays.

If you need a HDMI controller board for this LCD, also feel free to contact us.

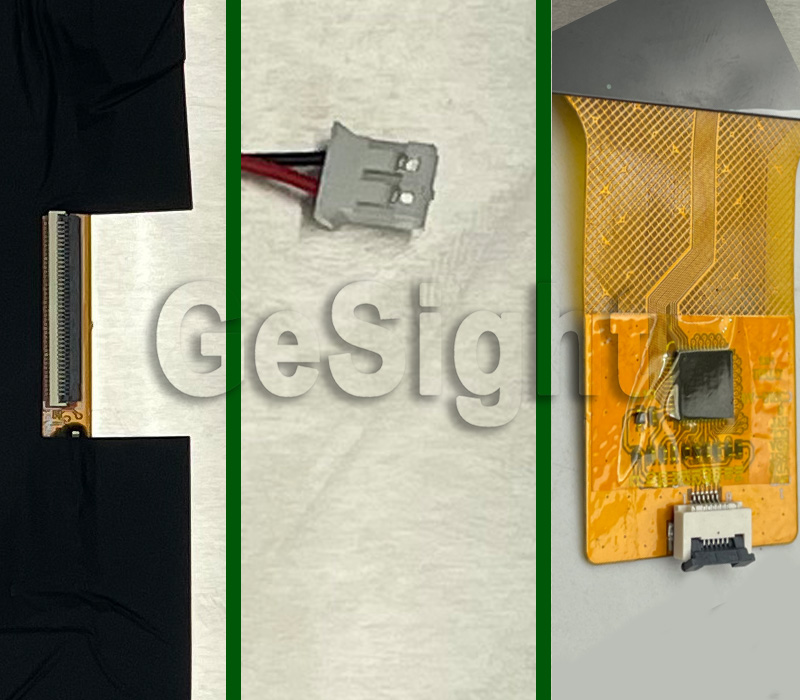

Interfaces of 7 Inch High Brightness TFT LCD Display Module

LCD - 40 pins MIPI

Backlight - PH2.5

Touch Panel - I2C

High Brightness TFT LCD Screen with Vivid Color and Superior Image Performance

This high brightness TFT LCD display delivers exceptional image performance with vivid colors and sharp clarity. Designed as a premium TFT LCD screen, it ensures excellent visibility even under strong ambient light. Ideal for applications requiring bright, vibrant displays, this TFT LCD offers reliable, high-quality visuals in any environment.

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

Specifications

Size	7 inch
Pixels	1200 (H) × RGB × 1920 (V)
Interface	MIPI DSI
Brightness	2000 cd/m² (typical)
Manufacturer	Gesight
Display Type	TFT-LCD
Display Mode	Normally Black, a-Si TFT / transmissive
Color Depth	1.07B colors (8+2 bit)
Refresh Rate	60 Hz
Viewing Angle Range	80°/80°/80°/80° (L/R/U/D)
Outline LWH	111.0 × 166.0 × 3.29 mm
Active Area L*W	94.5 × 151.2 mm
Orientation	Landscape
Supply Voltage	VDDI: 1.7–2.0 V, VSP: 4.5–6.0 V, VSN: –6.0 to –4.5 V
Consumption	BL: 390 mA @ 21.7 V (typ)
Operating Temperarure	–20°C ~ 70°C
Storage Temperature	-30 ~ 80 °C
Bezel Area (mm)	25.24 (H) × 19.4 (V) x 1.925(T) mm
Aspect Ratio	16:10 (H:V)
Connection Type	40-pin MIPI
IC package	COG
Touch Panel	External CTP
Pixel Pitch	0.0996 x 0.0996 mm
Sunlight Readable	Yes (2000 cd/m²)
Model	CXW070WULM006B
PPI ( pixels per inch )	323

Pins Description

Pin No.	Pin Name	Description	Remark
1	NC	No connection	—
2, 3	IOVCC	Power Supply 1.8V	—
4	GND	Ground	—
5	RST	Reset pin	—
6	NC	No connection	—
7	GND	Ground	—
8	D0N	-MIPI Differential Data Input	—
9	D0P	+MIPI Differential Data Input	—
10	GND	Ground	—
11	D1N	-MIPI Differential Data Input	—
12	D1P	+MIPI Differential Data Input	—
13	GND	Ground	—
14	CLKP	-MIPI Differential Data Input	—
15	CLKN	+MIPI Differential Data Input	—
16	GND	Ground	—
17	D2N	-MIPI Differential Clock Input	—
18	D2P	+MIPI Differential Clock Input	—
19	GND	Ground	—
20	D3N	-MIPI Differential Data Input	—
21	D3P	+MIPI Differential Data Input	—
22	GND	Ground	—
23	NC	No connection	—
24	NC	No connection	—
25	GND	Ground	—
26	NC / TE	Sync signal for touch panel. Float if not used	—
27	NC / PWMO	PWM control signal for LED driver	—
28	NC / BIST	Enable Test Image Generation (connect to GND to enable). Float if not used	—
29	NC	No connection	—
30	GND	Ground	—
31, 32	LED-	Backlight LED-	—
33	NC	No connection	—
34, 35	VSN	Analog supply negative voltage (-5.8V)	—
36	NC	No connection	—
37, 38	VSP	Analog supply positive voltage (5.8V)	—
39, 40	LED+	Backlight LED+	—

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit	Note
Power Voltage (Digital)	VDDI	1.7	1.8	2.0	V	—
Analog Supply Voltage (Positive)	VSP	4.5	5.8	6.0	V	—
Analog Supply Voltage (Negative)	VSN	-6.0	-5.8	-4.5	V	—
Operating Temperature	TOP	-20	—	70	°C	—
Storage Temperature	TST	-30	—	80	°C	—

Back-light Specification

Item	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	VF	Only Backlight	21.0	21.7	22.4	V
Supply Current	IF	—	—	390	—	mA
Average Brightness (BL+LCD)	IV	IF = 390 mA	—	2000	—	cd/m²
CIE Color Coordinate (X)	X	IF = 390 mA	—	—	—	—
CIE Color Coordinate (Y)	Y	IF = 390 mA	—	—	—	—
Uniformity	B	IF = 390 mA	80	85	—	%
Color	—	—	—	White	—	—

See TFT-LCD Collection

From 1.09 inch to 32 inch, all the size you need !

View Collection

FAQ

Where can I buy this display？

If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.

I don`t know which display is suitable for my project

Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.

How can I test the display screen?

Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.

How can I drive the display panel?

Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.

Where can I get the cover glass or touch screen for this display panel?

First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.

How do Gesight Display ship display panels?

1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable

What`s the quality standard of Gesight Display`s display panels?

Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.

What`s the lifetime of these display panels?

The lifetime is different on different images, check the lifetime on datasheet to study it.

Can I connect this display to Raspberry Pi?

If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.

How many days does it take to develop a project?

What is the budget for the project?

Can design edits be made during design time?

Free convertor board and Connectors

Fast Shipping

Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.

Different products collocations have different package, please confirm the shipping cost with us when place an order.

(4~6 days for most countries and area)

Specification

Panox Display offers the following specifications for most LCD/OLED products:

Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic

TFT-LCD: More Choices for Every Need

Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.

Structure of a TFT-LCD

A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.

The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.

By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
