Original price was: $100.00.$22.00Current price is: $22.00.piece
1-2 days after payment
Never Damage in Ship
Unlimited help desk
DHL/Fedex/UPS
Website prices are retail (incl. shipping & PayPal fees). Company clients enjoy up to 70% off on bulk orders — submit your requirements now.

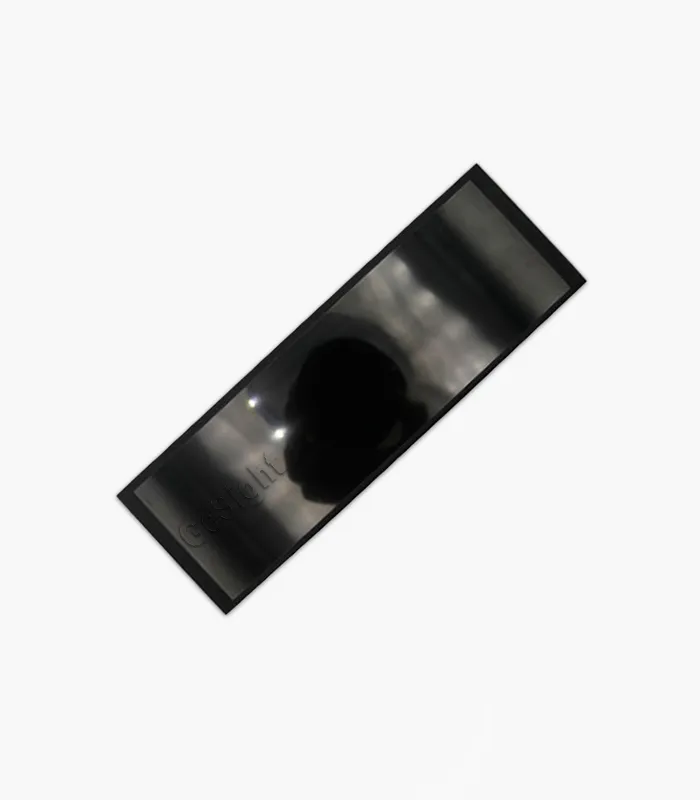

Introducing the 7.84" IPS TFT LCD Module featuring 500cd/m² high brightness and MIPI interface for superior performance in demanding environments. This ultra-slim (4.6mm) display delivers sunlight-readable clarity with wide viewing angles and low EMI characteristics, making it ideal for automotive and industrial applications. Engineered for reliability, it operates across -20°C to +70°C and features a rugged design that withstands vibration and harsh conditions. Perfect for digital rearview mirrors, central infotainment systems, ADAS, and HUD projections in vehicles, as well as industrial HMIs, control panels, and outdoor digital signage. With 400×1280 resolution, 70% NTSC color gamut, and 30,000-hour lifespan, this display module combines exceptional visual performance with long-term durability for mission-critical applications.
Industrial | Digital Rearview Mirrors | ADAS | Heads-Up Display (HUD) Projection | Machinery
FPC | Touch Panel | Cover Glass | Controller Board | Brightness

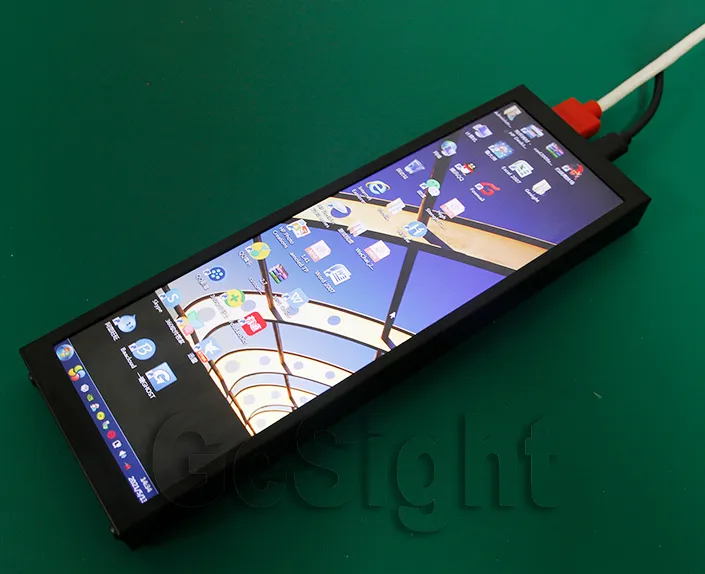

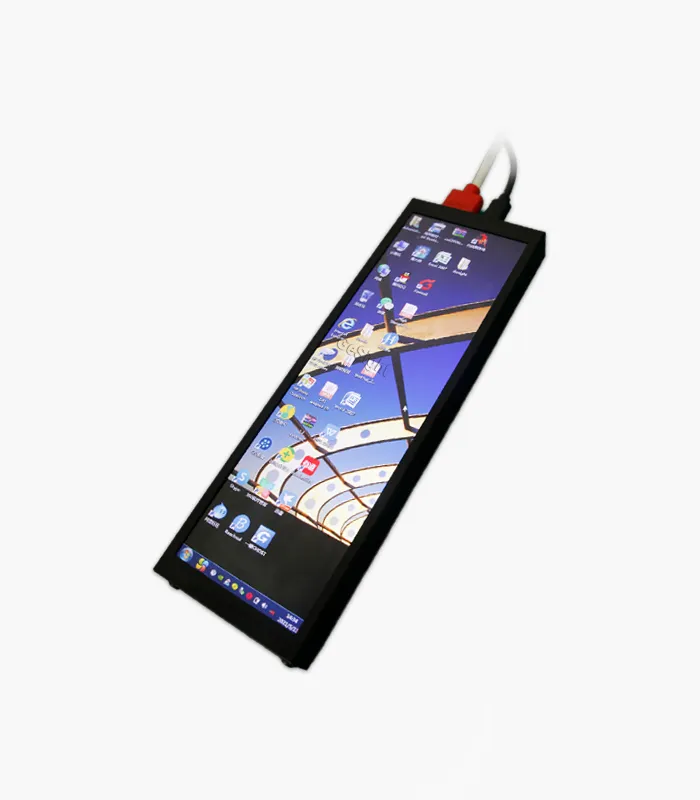

Transform your 7.84" IPS TFT LCD into a professional portable monitor with Gesight Technology's custom shell enclosure. Perfect for DIY PC builders, overclockers, and system integrators, this complete package turns the display into a sleek, standalone monitor for real-time system diagnostics via AIDA64, HWiNFO, or Rainmeter.

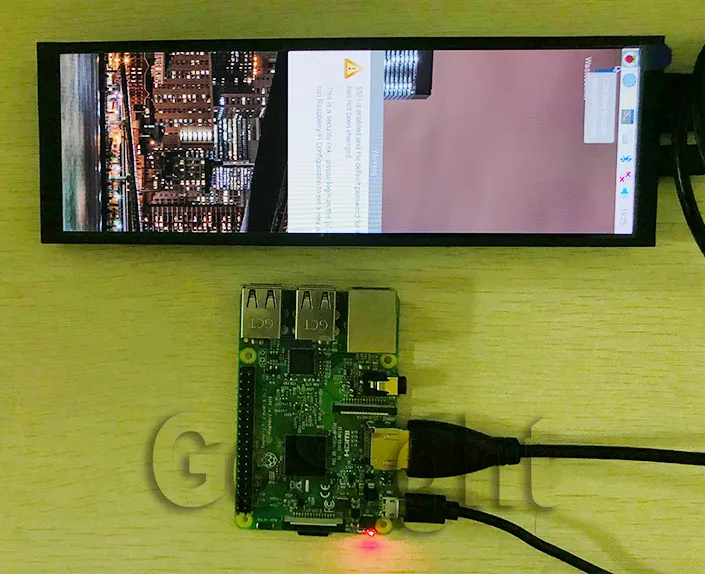

Introducing our high-performance 7.84-inch IPS TFT LCD Module, specifically designed for industrial and automotive applications while offering seamless Raspberry Pi compatibility. This premium display solution combines exceptional visual clarity with rugged durability, making it the perfect choice for demanding environments.
Order today to upgrade your project with a sunlight-readable, industrial-grade display that's ready for Raspberry Pi! Contact our technical team for volume pricing and customization options.
| Weight | 12 kg |
|---|---|
| Size |
7.84 inches |
| Pixels |
400×1280 |
| Interface | |
| Brightness |
450 cd/m² (Min), 500 cd/m² (Typ) |
| Manufacturer |
Gesight |
| Display Type |
IPS LCD ,TFT-LCM |
| Display Mode |
Normally Black, a-Si TFT / transmissive |
| Color Depth | |
| Refresh Rate |
– |
| Viewing Angle Range |
70°–80° (CR ≥10, all directions) |

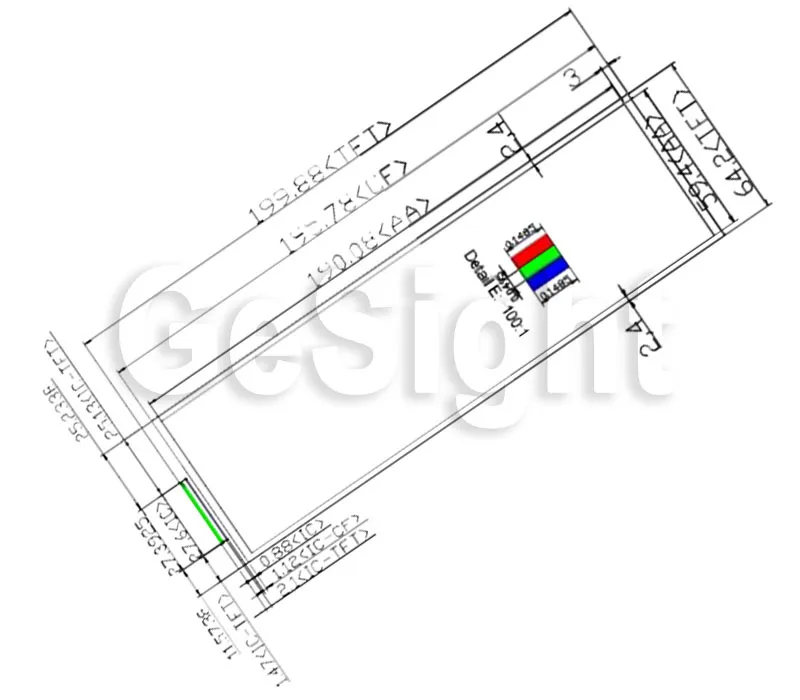

| Outline L*W*H |
205.78 × 67.60 × 4.60 mm (Outline: 205.78 × 67.60; Thickness: 4.6 mm) |
| Active Area L*W |
190.08 × 59.40 mm |
| Supply Voltage |
19.2V (Typ, for backlight), 3.3V/1.8V (Logic) |
| Consumption |
24 × 192 mW (Max power dissipation) |
| Operating Temperarure |
-20°C to +70°C |
| Storage Temperature |
-30°C to +70°C |
| Bezel Area (mm) |
– |
| Aspect Ratio |
~3.2:1 (190.08:59.4) |
| Connection Type |
FPC (Flexible Printed Circuit) |
| IC package |
Suggested Driver IC: EK79030 |
| Touch Panel | |
| Pixel Pitch |
Same as Pixel Size |
| Sunlight Readable |
– |
| Model |
BRT784-4.6BL0292-24A / TM078XYHP01-00 |
| PPI ( pixels per inch ) |
~163 PPI (Calculated from resolution and active area) |
| PPI | |
| Application |
Automotive(Rearview Mirror) |
| Pin No. | Symbol | Description |
|---|---|---|
| 1–2 | LEDA | LED Anode (Backlight power) |
| 4–7 | LEDK | LED Cathode (Backlight ground) |
| 8–9, 12, 16, 19, 22, 25 | GND | Ground |
| 10–11 | D3N/D3P | MIPI Differential Data Lane 3 |
| 13–14 | D2N/D2P | MIPI Differential Data Lane 2 |
| 17–18 | DCLKN/DCLKP | MIPI Differential Clock Lane |
| 20–21 | D1N/D1P | MIPI Differential Data Lane 1 |
| 23–24 | D0N/D0P | MIPI Differential Data Lane 0 |
| 26 | LCD ID | Up pull 1.8V |
| 27 | RESET | Reset signal (1.8V logic) |
| 29 | IOVCC | 1.8V Power supply |
| 30 | VDD | 3.3V Power supply |
Backlight Forward Voltage (Vf): 17.4V (Min), 19.2V (Typ), 20.4V (Max) at 100mA.
Current Derating:
DC Drive: -0.36mA/°C (above 25°C).
Pulse Drive: -0.86mA/°C (above 25°C).
Power Dissipation: 24 × 192 mW (Max), derated at -0.75mW/°C.
MIPI Timing:
Clock Lane: TCLK−PREPARE = 38–95 ns, TCLK−TRAIL ≥ 60 ns.
Data Lane: THS−PREPARE = 40–85 ns.
| Parameter | Value |
|---|---|
| Brightness | 450–500 cd/m² (100mA drive) |
| Uniformity | ≥80% |
| Color Coordinates | White (x: 0.27–0.33, y: 0.32–0.38) |
| Lifetime | 30,000 hours (50% brightness decay) |
| LED Configuration | 24 LEDs (4 × 80mA max DC current) |
From 1.09 inch to 32 inch, all the size you need !
If you just need a few samples, it`s better to directly on our Aliexpress store, we are 5 stars feedback supplier with 100% Honesty. (The buy link is on the right of the product image)
For bulk orders, it`s better to contact us and get a better price.
Different displays have different characteristics, just tell Gesight Display your application, and operating environment, Gesight Display will suggest a suitable display for you.
Gesight Display provide HDMI/Type-C controller board or individual demo kit to test.
The pictures of demo kit can be changed by yourself.
Gesight Display will provide necessary specifications for most LCD/OLED on sale, including,
Display Datasheet
Display Drawing
IC Datasheet
Circuit schematic
For most electronics engineers, our specifications are enough to run the display, and we will provide some assistance.
But Gesight Display is not a school, if customers don`t know the basic knowledge to design circuit boards, we suggest using our controller board to drive the display.
First, you need to check whether this display has On-cell or In-cell touch panel, if has, it only needs to add a cover glass on it. If not, it needs an external touch panel.
(On-cell and In-cell are integrated PCAP touch panels on the display screen)
Because the shape of the cover glass depends on the design of the clients, to avoid infringement of appearance, most of the developers need different customized touch panels.
Gesight Display can provide a customized touch screen with a low cost of tooling charge.
1. UPS/Fedex/DHL/TNT, the best choice for most clients, 3~7 days to arrive.
2. Aliexpress standard ship, this way is cheap and slow, usually take more than 10 days. Only for samples.
3. For Russian clients, EMS or Aliexpress shipment is better.
4. Any designated logistics are acceptable
Most display panels are from giant manufacturers such as BOE, Sharp, LG, EDO, AUO, etc. They have already tested with strict standards.
For OEM products from Panox Display factory, please check the quality test standards.
The lifetime is different on different images, check the lifetime on datasheet to study it.
If your Raspberry Pi can support the interface of the display panel, and you know how to program on Raspberry Pi, you can connect to our display.
If you don`t know or don`t want to write a display program on Raspberry Pi, it`s better to get an HDMI controller board from us, and Panox Display will send a config.txt file for reference.
Most of our clients are manufacturers purchasing our displays for their applications, who are willing to get samples as soon as possible.
Different products collocations have different package, please confirm the shipping cost with us when place an order.
(4~6 days for most countries and area)
Panox Display offers the following specifications for most LCD/OLED products:
Display datasheet
Mechanical drawing
IC datasheet
Circuit schematic
Unlike OLED displays, which often have only a few models for each size, the TFT LCD screen market offers a wide variety. After many years of continuous production by Chinese OEM manufacturers, there are countless TFT LCD display options for almost every size, with different resolutions, brightness levels, and specifications. Whether you need high brightness for outdoor use, fine resolution for industrial applications, or cost-effective solutions for consumer products, a TFT LCD module is available to meet your requirements. and vivid image, and consistent display from any angle.
A TFT-LCD display is made of multiple precise layers, each serving a unique function. Starting from the viewing side, the polarizer controls light polarization, while the first glass substrate supports the color filter layer that creates red, green, and blue subpixels. Beneath this is the transparent common electrode and the transparent display electrode, which work together to control light transmission.
The active layer contains the thin-film transistor (TFT) and storage capacitor, connected through the gate (row) line and source (column) line to drive each pixel. A second glass substrate supports this circuit. Behind the panel, a diffuser spreads light evenly, while the backlight provides the illumination necessary for the display to be visible. Finally, another polarizer fine-tunes light before it exits the screen, ensuring clear, bright images.
By combining these layers into a single TFT-LCD module, manufacturers achieve sharp resolution, accurate colors, and consistent brightness for a wide range of applications.
Gesight is a high-tech company specializing in OLED, LCD displays. Integrated with display marketing and sales, customized LCD OEM manufacturing, driver board development, customized TP, etc.
After six years of effort and development, we have grown up to a certain size, now we have a service team with excellent service quality, professional technical service.
After several years of steady development, Gesight has served hundreds of customers from different places all over the world. Including big companies such as Bosch, Nokia, Garmin, Circuits, and countless small and medium-size companies or electronics DIYers.
We implement strict quality control through every stage of production and inspection. Each display undergoes rigorous testing to eliminate any pixel defects, including bright, dark, or stuck dots. Our professional QC team uses advanced optical equipment to ensure flawless screen performance, delivering only high-reliability LCD and OLED panels to our customers.
